HONEYWELL Rotary Actuator Limit Switch Head
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Actuator Length | Operating Torque | Actuator Style | Actuator Location | Operating Force | Movement | Ip Rating | Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 201LS10 | 0.58" to 5.56" | - | Rotary | Side | 5 oz. | Pretravel (Pt) 20° Max, Overtravel (Ot) 30° Min, Differential Travel (Dt) 12° Max. | Not Rated | -20°F to +160°F | €823.68 | |
| B | 201LS1 | 1 1/2" | - | Roller Lever Plunger | Side | 3 lbs. | Pretravel (Pt) 20° Max, Overtravel (Ot) 30° Min, Differential Travel (Dt) 12° Max. | IP67 | -20°F to +160°F | €584.95 | |
| C | 201LS3 | 1.2" to 3.5" | - | Roller Lever Plunger | Side | 3 lbs. | Pretravel (Pt) 20° Max, Overtravel (Ot) 30° Min, Differential Travel (Dt) 12° Max. | IP67 | -20°F to +160°F | €710.45 | |
| A | 201LS47 | 5 1/2" | - | Rod | Side | 5 oz. | Pretravel (Pt) 5° Max, Overtravel (Ot) 30° Min, Differential Travel (Dt) 4° Max. | IP67 | -20°F to +160°F | €1,368.72 | |
| D | GLZ1AA | Not Specified | 3 lbs.-in. | Rotary Lever | Side | 3 lbs.-in. | CW/CCW | IP67 | +13°F to +185°F | €106.68 | |
| E | LSZ1A | Not Specified | - | Rotary | Side | 4 lbs.-in. | CW/CCW | Not Rated | +10°F to +250°F | €163.81 | |
| F | LSZ1AB | Not Specified | 4 lbs.-in. | Rotary Lever | Side | 4 lbs.-in. | CW/CCW | Not Rated | -40°F to +212°F | €264.57 | |

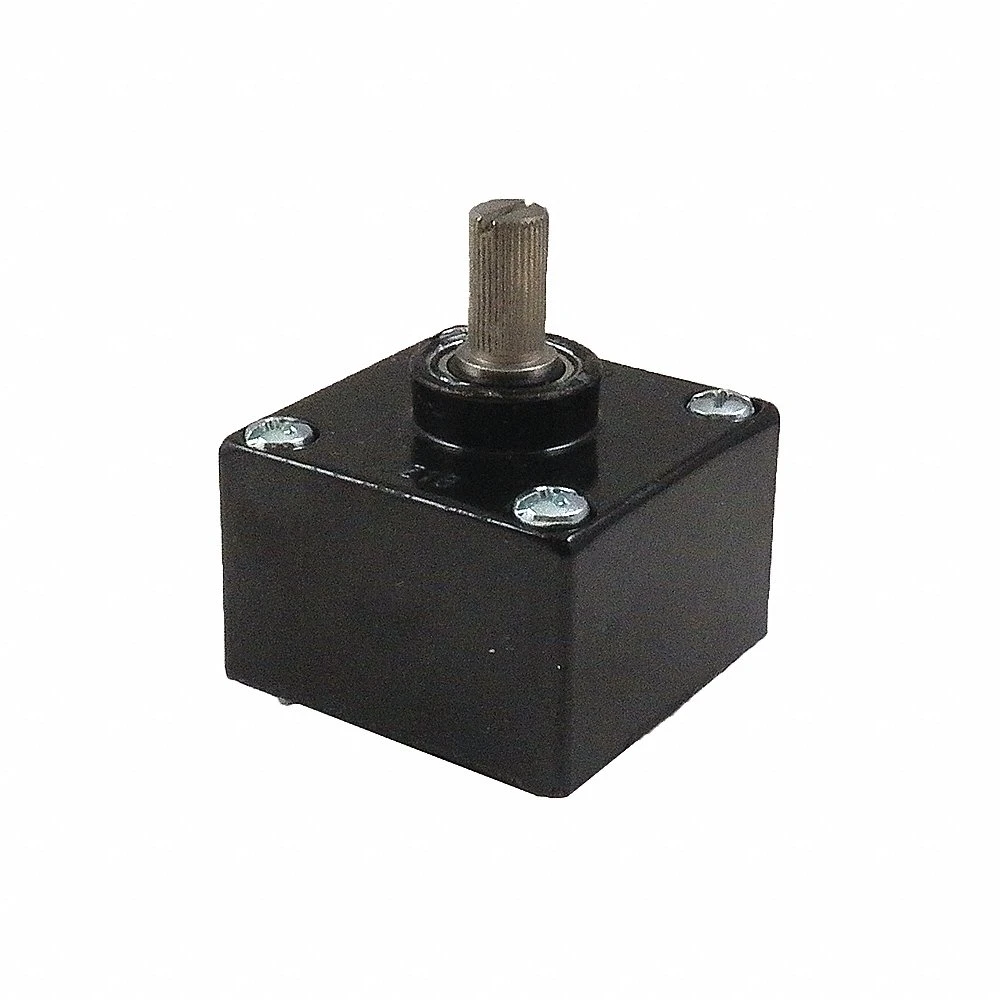

| G | LSZ1B | Not Specified | 2.5 lbs.-in. | Rotary Lever | Top | 2.5 lbs.-in. | CW/CCW | Not Rated | +30°F to +250°F | €358.01 | |

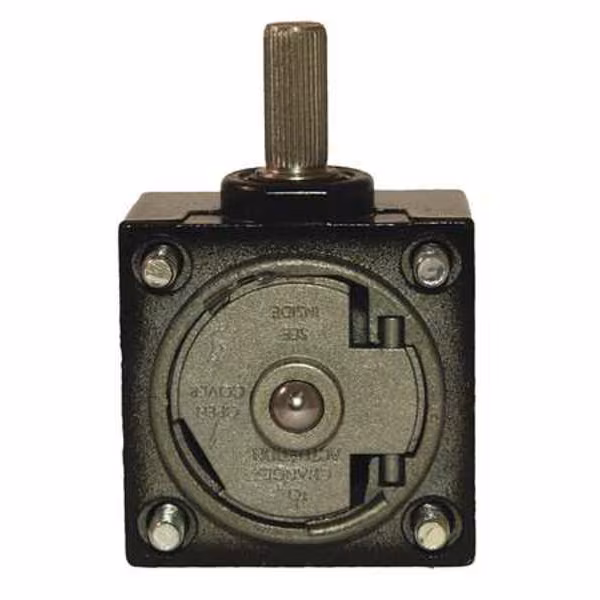

| H | LSZ1M | Not Specified | 4 lbs.-in. | Rotary Lever | Side | 4 lbs.-in. | CW/CCW | Not Rated | +30°F to +250°F | €321.34 | |

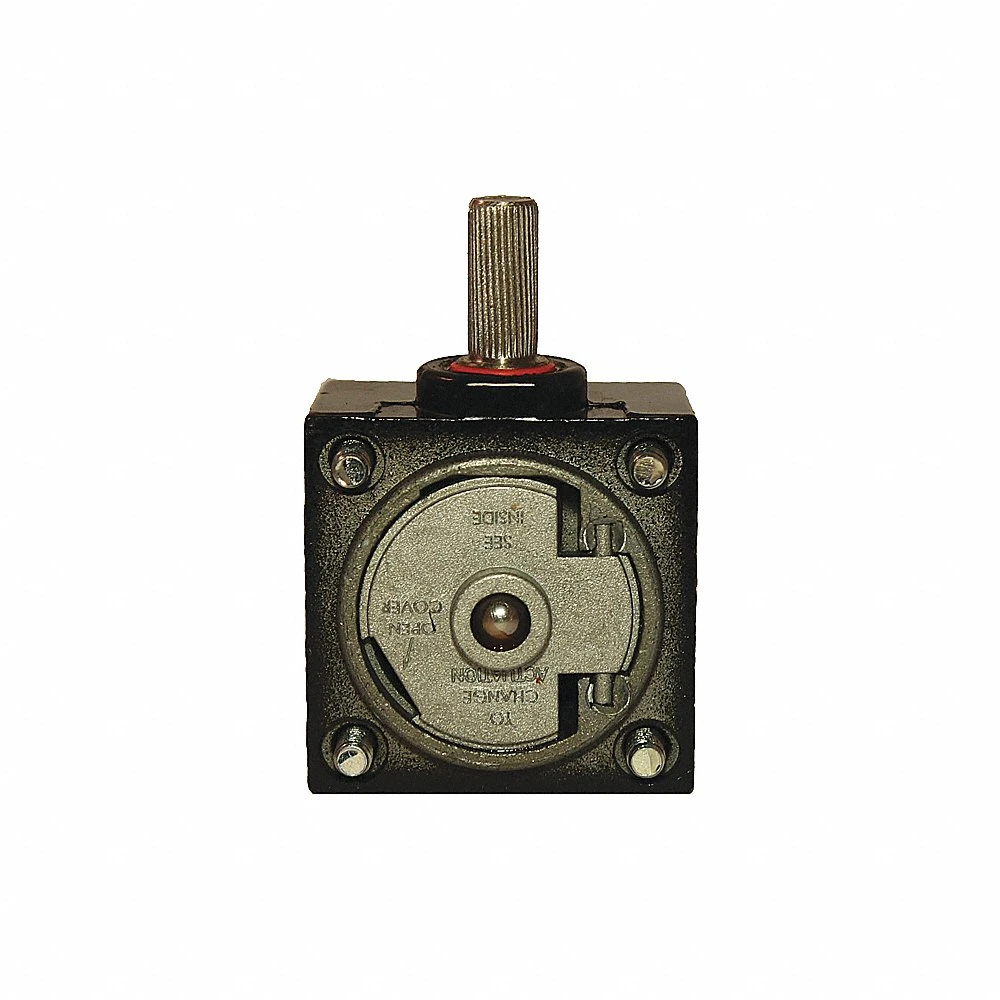

| I | LSZ1R | Not Specified | 1.7 lbs.-in. | Rotary Lever | Side | 1.7 lbs.-in. | CW/CCW | Not Rated | +30°F to +250°F | €203.64 |
