HAMILTON Inferno Metallic Wheels
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Wheel Dia. | Hub Length | Wheel Face | Wheel Color/finish | Hub Dia. | Load Capacity @ 550°f | Load Capacity @ 750°f | Wheel Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | W-312-HM-1/2 | 3" | 1 3/8" | 1 3/8" | Unpainted | 1 1/4" | 200 lbs. | 100 lbs. | Cast Iron | €25.08 | |
| B | W-415-HM-1/2 | 4" | 1 3/4" | 1 1/2" | High Heat Silver | 2 1/4" | 440 lbs. | 220 lbs. | Cast Iron | €75.92 | |
| C | W-420-HMB-1/2 | 4" | 2 1/2" | 2" | High Heat Silver | 2 1/4" | 800 lbs. | 400 lbs. | Cast Iron | €121.24 | |
| D | W-520-HMB-1/2 | 5" | 2 1/2" | 2" | High Heat Silver | 2 1/4" | 900 lbs. | 475 lbs. | Cast Iron | €133.26 | |
| E | W-620-HMB-1/2 | 6" | 2 1/2" | 2" | High Heat Silver | 2 1/4" | 1120 lbs. | 560 lbs. | Cast Iron | €129.07 | |
| F | W-630-HMB-3/4 | 6" | 3 1/2" | 3" | High Heat Silver | 2 1/4" | 2000 lbs. | 1000 lbs. | Cast Iron | €268.58 | |
| G | W-820-HMB-1/2 | 8" | 2 1/2" | 2" | High Heat Silver | 2 3/8" | 1200 lbs. | 600 lbs. | Cast Iron | €189.02 | |
| H | W-830-HMB-3/4 | 8" | 3 1/2" | 3" | High Heat Silver | 3" | 2080 lbs. | 1040 lbs. | Cast Iron | €287.98 | |

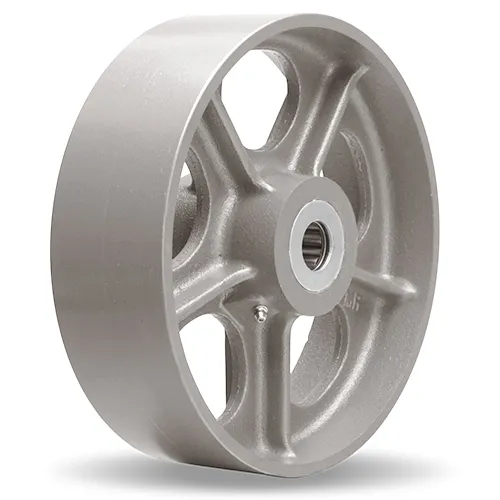

| I | W-1030-HMB-3/4 | 10" | 3 1/2" | 3" | High Heat Silver | 3" | 2080 lbs. | 1040 lbs. | Cast Iron | €247.25 |
