GREENFIELD THREADING General Purpose Spiral Flute Taps
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M| Style | Model | Thread Size | Thread Limit | Overall Length | 75% Thread Drill Size | Number Of Flutes | Tap Finish | Shank Dia. | Tap Chamfer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 330202 | #4-40 | H2 | 1 7/8" | 2.2 mm | 2 | Tin | 9/64" | Bottoming | €47.95 | |
| B | 367149 | #4-40 | H2 | 1 7/8" | 2.2 mm | 2 | Bright | 9/64" | Plug | €40.25 | |
| C | 367156 | #4-40 | H2 | 1 7/8" | 2.2 mm | 2 | Bright | 9/64" | Bottoming | €40.25 | |
| D | 330193 | #6-32 | H3 | 2" | #36 | 2 | Tin | 9/64" | Plug | €38.82 | |
| C | 367230 | #6-32 | H3 | 2" | #36 | 2 | Bright | 9/64" | Bottoming | €30.55 | |
| A | 330203 | #6-32 | H3 | 2" | #36 | 2 | Tin | 9/64" | Bottoming | €39.00 | |
| B | 367222 | #6-32 | H3 | 2" | #36 | 2 | Bright | 9/64" | Plug | €34.00 | |
| B | 367263 | #8-32 | H3 | 2 1/8" | 3.4 mm | 3 | Bright | 5/32" | Plug | €32.63 | |
| C | 367271 | #8-32 | H3 | 2 1/8" | 3.4 mm | 3 | Bright | 5/32" | Bottoming | €30.23 | |
| D | 330194 | #8-32 | H3 | 2 1/8" | 3.4 mm | 3 | Tin | 5/32" | Plug | €38.95 | |
| A | 330204 | #8-32 | H3 | 2 1/8" | 3.4 mm | 3 | Tin | 5/32" | Bottoming | €38.82 | |
| D | 330195 | #10-24 | H3 | 2 3/8" | #25 | 3 | Tin | 3/16" | Plug | €38.82 | |
| C | 367313 | #10-24 | H3 | 2 3/8" | #25 | 3 | Bright | 3/16" | Bottoming | €28.27 | |
| B | 367305 | #10-24 | H3 | 2 3/8" | #25 | 3 | - | 0.188" | Plug | €33.13 | |
| A | 330205 | #10-32 | H3 | 2 3/8" | #21 | 3 | - | 0.188" | Plug | €38.82 | |
| D | 330196 | #10-32 | H3 | 2 3/8" | #21 | 3 | Tin | 3/16" | Bottoming | €50.22 | |
| C | 367339 | #10-32 | H3 | 2 3/8" | #21 | - | Bright | 3/16" | Bottoming | €30.60 | |
| B | 367321 | #10-32 | H3 | 2 3/8" | #21 | 3 | Bright | 3/16" | Plug | €33.92 | |
| E | 368063 | 1/2"-13 | H3 | 3 3/8" | 27/64" | 3 | Bright | 23/64" | Plug | €87.81 | |
| F | 313588 | 1/2"-13 | H11 | 3 3/8" | 27/64" | 3 | Black Oxide | 23/64" | Semi Bottoming | €47.82 | |
| G | 313533 | 1/2"-13 | H11 | 3 3/8" | 0.422" | 3 | - | 0.359" | Semi Bottoming | €40.46 | |
| H | 368071 | 1/2"-13 | H3 | 3 3/8" | 27/64" | 3 | Bright | 23/64" | Bottoming | €90.42 | |
| G | 313534 | 1/2"-20 | H11 | 3 3/8" | 11.4 mm | 3 | Bright | 23/64" | Semi Bottoming | €47.65 | |
| E | 368089 | 1/2"-20 | H3 | 3 3/8" | 11.4 mm | 3 | Bright | 23/64" | Plug | €92.73 | |
| F | 313589 | 1/2"-20 | H11 | 3 3/8" | 11.4 mm | 3 | Black Oxide | 23/64" | Semi Bottoming | €40.69 | |
| H | 368097 | 1/2"-20 | H3 | 3 3/8" | 11.4 mm | 3 | Bright | 23/64" | Bottoming | €100.72 | |

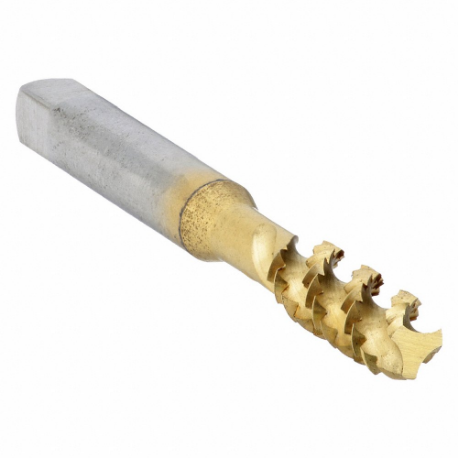

| I | 367913 | 1/4"-20 | H3 | 2 1/2" | #7 | 3 | Tin | 1/4" | Bottoming | €36.64 | |
| E | 367909 | 1/4"-20 | H3 | 2 1/2" | #7 | 3 | Bright | 1/4" | Plug | €35.05 | |

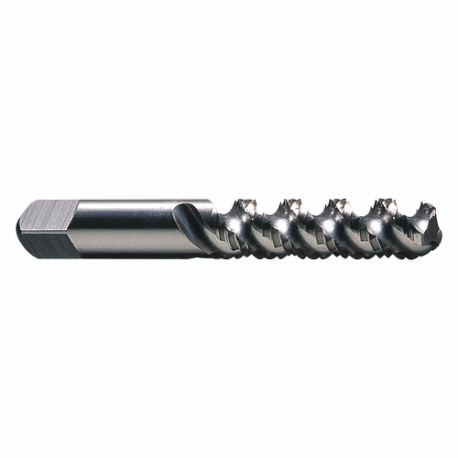

| J | 313580 | 1/4"-20 | H11 | 2 1/2" | #7 | 3 | Black Oxide | 1/4" | Semi Bottoming | €20.73 | |
| C | 367917 | 1/4"-20 | H3 | 2 1/2" | #7 | 3 | Bright | 1/4" | Bottoming | €32.70 | |

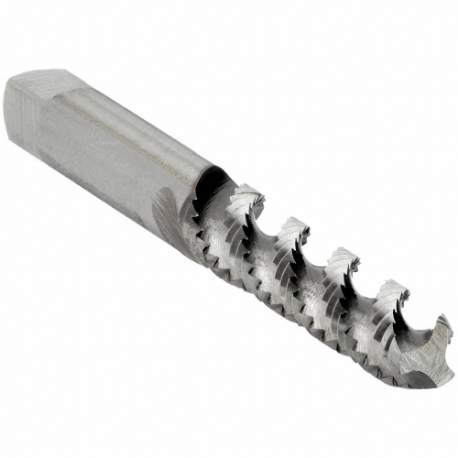

| K | 313526 | 1/4"-28 | H11 | 2 1/2" | 5.45 mm | 3 | Bright | 1/4" | Semi Bottoming | €18.08 | |
| C | 367933 | 1/4"-28 | H3 | 2 1/2" | 5.45 mm | 3 | Bright | 1/4" | Bottoming | €35.27 | |
| E | 367925 | 1/4"-28 | H3 | 2 1/2" | 5.45 mm | 3 | Bright | 1/4" | Plug | €34.72 | |

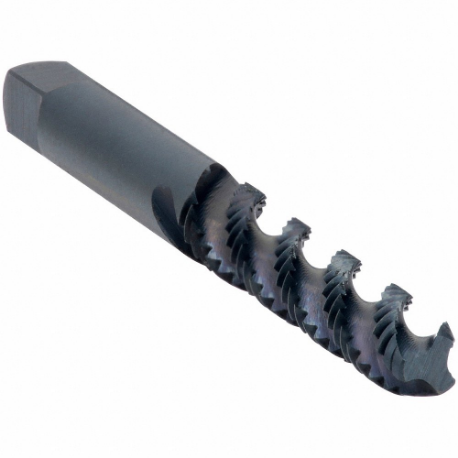

| L | 313581 | 1/4"-28 | H11 | 2 1/2" | 5.45 mm | 3 | Black Oxide | 1/4" | Semi Bottoming | €22.01 | |
| G | 313537 | 3/4"-10 | H11 | 4 1/4" | 16.5 mm | 4 | Bright | 37/64" | Semi Bottoming | €116.49 | |
| F | 313592 | 3/4"-10 | H11 | 4 1/4" | 16.5 mm | 4 | Black Oxide | 37/64" | Semi Bottoming | €128.56 | |
| F | 313593 | 3/4"-16 | H11 | 4 1/4" | 17.5 mm | 4 | Black Oxide | 37/64" | Semi Bottoming | €109.72 | |
| G | 313538 | 3/4"-16 | H11 | 4 1/4" | 17.5 mm | 4 | Bright | 37/64" | Semi Bottoming | €109.16 | |
| E | 367982 | 3/8"-16 | H3 | 2 15/16" | 5/16" | 3 | Bright | 3/8" | Plug | €52.96 | |
| H | 367990 | 3/8"-16 | H3 | 2 15/16" | 5/16" | 3 | Bright | 3/8" | Bottoming | €45.87 | |
| G | 313529 | 3/8"-16 | H11 | 2 15/16" | 5/16" | 3 | Bright | 5/16" | Semi Bottoming | €24.58 | |
| F | 313584 | 3/8"-16 | H11 | 2 15/16" | 5/16" | 3 | Black Oxide | 3/8" | Semi Bottoming | €28.27 | |
| H | 368014 | 3/8"-24 | H3 | 2 15/16" | 8.5 mm | 3 | Bright | 3/8" | Bottoming | €56.39 | |
| F | 313585 | 3/8"-24 | H11 | 2 15/16" | 8.5 mm | 3 | Black Oxide | 3/8" | Semi Bottoming | €24.72 | |
| G | 313530 | 3/8"-24 | H11 | 2 15/16" | 8.5 mm | 3 | Bright | 5/16" | Semi Bottoming | €24.61 | |
| E | 368006 | 3/8"-24 | H3 | 2 15/16" | 8.5 mm | 3 | Bright | 3/8" | Plug | €48.78 | |
| M | 313590 | 5/8" | 1 1/4" | 3 13/16" | - | - | Black Oxide | 5/8" | - | €75.01 | |
| G | 313535 | 5/8"-11 | H11 | 3 13/16" | 13.6 mm | 3 | Bright | 15/32" | Semi Bottoming | €85.77 | |
| F | 313591 | 5/8"-18 | H11 | 3 13/16" | 14.5 mm | 3 | Black Oxide | 15/32" | Semi Bottoming | €78.00 | |
| G | 313536 | 5/8"-18 | H11 | 3 13/16" | 14.5 mm | 3 | Bright | 15/32" | Semi Bottoming | €76.42 | |
| F | 313582 | 5/16"-18 | H11 | 2.719" | F | 3 | - | 0.312" | Semi Bottoming | €20.52 | |
| E | 367941 | 5/16"-18 | H3 | 2 23/32" | F | 3 | Bright | 5/16" | Plug | €42.86 | |
| G | 313527 | 5/16"-18 | H11 | 2.719" | F | 3 | - | 0.312" | Semi Bottoming | €20.60 | |
| H | 367958 | 5/16"-18 | H3 | 2 23/32" | F | 3 | Bright | 5/16" | Bottoming | €40.60 | |
| H | 367974 | 5/16"-24 | H3 | 2 23/32" | I | 3 | Bright | 5/16" | Bottoming | €45.64 | |
| E | 367966 | 5/16"-24 | H3 | 2.719" | I | 3 | - | 0.312" | Plug | €44.58 | |
| G | 313528 | 5/16"-24 | H11 | 2 23/32" | I | 3 | Bright | 5/16" | Semi Bottoming | €20.36 | |
| F | 313586 | 7/16"-14 | H11 | 3 1/8" | U | 3 | Black Oxide | 5/16" | Semi Bottoming | €33.86 | |
| G | 313531 | 7/16"-14 | H11 | 3 1/8" | U | 3 | Bright | 5/16" | Semi Bottoming | €39.51 | |
| F | 313587 | 7/16"-20 | H11 | 3 1/8" | 9.95 mm | 3 | Black Oxide | 5/16" | Semi Bottoming | €33.86 | |
| G | 313532 | 7/16"-20 | H11 | 3 1/8" | 9.95 mm | 3 | Bright | 5/16" | Semi Bottoming | €39.74 |
