GRAINGER Worm Gear Tube And Hose Clamps
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S| Style | Model | Max. Clamp Inside Dia. | Clamp Min. Inside Dia. | Band Thickness | Screw Material | For Max. Outside Dia. | Band Width | Install Torque | Screw Material Grade | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 671657B | 1 1/2" | 11/16" | 0.021" | Stainless Steel | 1 1/2" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €39.19 | |

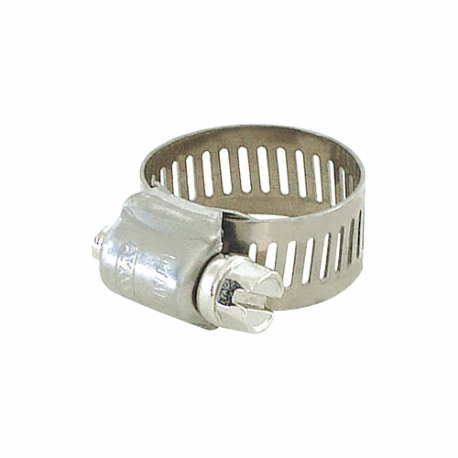

| B | 43261 | 1 1/2" | 13/16" | 0.02" | Steel | - | 1/2" | - | - | 10 | €11.45 | |
| C | 6716M70 | 1 1/2" | 3/4" | 0.024" | Stainless Steel | 1 1/2" | 1/2" | 35 lbs.-in. | Grade 316 | 10 | €79.59 | |
| D | 671257B | 1 1/4" | 1/2" | 0.021" | Stainless Steel | 1 1/4" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €45.44 | |
| E | 671057B | 1 1/16" | 1/2" | 0.021" | Stainless Steel | 1 1/16" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €42.97 | |
| F | 672057B | 1 3/4" | 3/4" | 0.021" | Stainless Steel | 1 3/4" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €48.37 | |

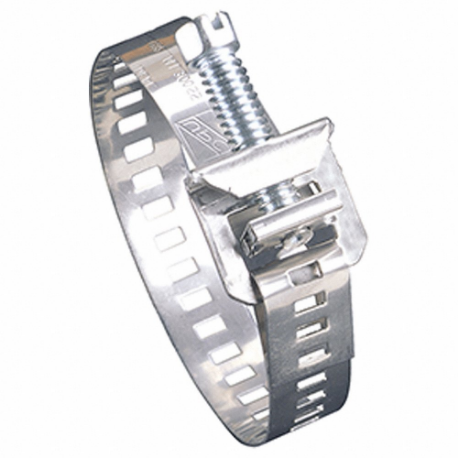

| G | 6920070 | 1 3/4" | 11/16" | 0.02" | Stainless Steel | 1 3/4" | 1/2" | 20 lbs.-in. | Grade 305 | 50 | €194.05 | |
| H | 670857B | 1" | 7/16" | 0.021" | Stainless Steel | 1" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €40.90 | |
| C | 6708M70 | 1" | 5/8" | 0.024" | Stainless Steel | 1" | 1/2" | 35 lbs.-in. | Grade 316 | 10 | €85.13 | |
| I | 672857B | 2 1/4" | 1 1/4" | 0.021" | Stainless Steel | 2 1/4" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €49.54 | |
| J | 673657B | 2 3/4" | 3/4" | 0.021" | Stainless Steel | 2 3/4" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €57.46 | |
| G | 6932070 | 2 5/8" | 11/16" | 0.02" | Stainless Steel | 2 5/8" | 1/2" | 20 lbs.-in. | Grade 305 | 50 | €200.81 | |
| K | 672457B | 2" | 1" | 0.021" | Stainless Steel | 2" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €48.37 | |
| L | 674857B | 3 1/2" | 1 1/2" | 0.021" | Stainless Steel | 3 1/2" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €52.06 | |
| M | 676457B | 4 1/2" | 2 1/2" | 0.021" | Stainless Steel | 4 1/2" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €71.07 | |
| N | 4805671 | 4" | 1" | 0.023" | Stainless Steel | 4" | 9/16" | 40 lbs.-in. | Grade 305 | 1 | €6.24 | |
| N | 4807271 | 5" | 2" | 0.023" | Stainless Steel | 5" | 9/16" | 40 lbs.-in. | Grade 305 | 1 | €6.84 | |
| G | 6972070 | 5" | 1 3/4" | 0.02" | Stainless Steel | 5" | 1/2" | 20 lbs.-in. | Grade 305 | 50 | €267.54 | |
| O | 626047B | 5/8" | 5/16" | 0.022" | Stainless Steel | 5/8" | 5/16" | 10 lbs.-in. to 15 lbs.-in. | Grade 302 | 25 | €26.76 | |
| C | 6788M70 | 6" | 5" | 0.024" | Stainless Steel | 6" | 1/2" | 35 lbs.-in. | Grade 316 | 10 | €151.96 | |
| N | 4808871 | 6" | 2" | 0.023" | Stainless Steel | 6" | 9/16" | 40 lbs.-in. | Grade 305 | 1 | €9.25 | |
| G | 6910470 | 7 1/4" | 4" | 0.02" | Stainless Steel | 7 1/4" | 1/2" | 20 lbs.-in. | Grade 305 | 50 | €295.67 | |
| P | 626067B | 7/8" | 5/16" | 0.022" | Stainless Steel | 7/8" | 5/16" | 10 lbs.-in. to 15 lbs.-in. | Grade 302 | 25 | €28.27 | |
| Q | 670657B | 7/8" | 3/8" | 0.021" | Stainless Steel | 7/8" | 1/2" | 35 lbs.-in. | Grade 305 | 25 | €40.50 | |
| N | 4818871 | 12 1/4" | 6 1/4" | 0.023" | Stainless Steel | 12 1/4" | 9/16" | 40 lbs.-in. | Grade 305 | 1 | €13.08 | |
| R | 533040012071 | 12 mm | 8 mm | 0.024" | Stainless Steel | 12 mm | 9 mm | 18 lbs.-in. | Grade 304 | 10 | €38.85 | |
| N | 4823271 | 15" | 9" | 0.023" | Stainless Steel | 15" | 9/16" | 40 lbs.-in. | Grade 305 | 1 | €15.94 | |
| S | 4823270 | 15" | 9" | 0.023" | Stainless Steel | 15" | 9/16" | 40 lbs.-in. | Grade 305 | 100 | €1,551.02 | |
| R | 533040016071 | 16 mm | 10 mm | 0.024" | Stainless Steel | 16 mm | 9 mm | 18 lbs.-in. | Grade 304 | 10 | €38.85 | |
| S | 4830670 | 19 5/8" | 14 1/16" | 0.023" | Stainless Steel | 195/8" | 9/16" | 40 lbs.-in. | Grade 305 | 100 | €1,594.80 | |
| N | 4830671 | 19 5/8" | 14 1/16" | 0.023" | Stainless Steel | 195/8" | - | 40 lbs.-in. | Grade 305 | 1 | €16.62 | |
| R | 533040020071 | 20 mm | 12 mm | 0.024" | Stainless Steel | 20 mm | 9 mm | 18 lbs.-in. | Grade 304 | 10 | €36.05 | |
| R | 533040022071 | 22 mm | 12 mm | 0.024" | Stainless Steel | 22 mm | 9 mm | 18 lbs.-in. | Grade 304 | 10 | €36.29 | |
| R | 533040027071 | 27 mm | 16 mm | 0.024" | Stainless Steel | 27 mm | 9 mm | 18 lbs.-in. | Grade 304 | 10 | €36.00 | |
| R | 533040032071 | 32 mm | 20 mm | 0.024" | Stainless Steel | 32 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €36.00 | |
| R | 533040035071 | 35 mm | 23 mm | 0.024" | Stainless Steel | 35 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €37.71 | |
| R | 533040040071 | 40 mm | 25 mm | 0.024" | Stainless Steel | 40 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €39.96 | |
| R | 533040045071 | 45 mm | 30 mm | 0.024" | Stainless Steel | 45 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €41.64 | |
| R | 533040050071 | 50 mm | 30 mm | 0.024" | Stainless Steel | 50 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €42.63 | |
| R | 533040060071 | 60 mm | 40 mm | 0.024" | Stainless Steel | 60 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €43.83 | |
| R | 533040070071 | 70 mm | 50 mm | 0.024" | Stainless Steel | 70 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €43.83 | |
| R | 533040080071 | 80 mm | 60 mm | 0.024" | Stainless Steel | 80 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €45.20 | |
| R | 533040090071 | 90 mm | 70 mm | 0.024" | Stainless Steel | 90 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €46.40 | |
| R | 533040100071 | 100 mm | 80 mm | 0.024" | Stainless Steel | 100 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €48.51 | |
| R | 533040110071 | 110 mm | 90 mm | 0.024" | Stainless Steel | 110 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €52.61 | |
| R | 533040120071 | 120 mm | 100 mm | 0.024" | Stainless Steel | 120 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €53.69 | |
| R | 533040130071 | 130 mm | 110 mm | 0.024" | Stainless Steel | 130 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €56.44 | |
| R | 533040140071 | 140 mm | 120 mm | 0.024" | Stainless Steel | 140 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €57.56 | |
| R | 533040150071 | 150 mm | 130 mm | 0.024" | Stainless Steel | 150 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €58.58 | |
| R | 533040160071 | 160 mm | 140 mm | 0.024" | Stainless Steel | 160 mm | 9 mm | 27 lbs.-in. | Grade 304 | 10 | €59.74 |
