GATES Global Spiral Max Hose Couplings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1| Style | Model | Hose Inside Dia. | Cut Off Length | Drop Length | Nut Hex Size | Stem Hex Size | Flange Head Thickness | Flange Dia. | Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 734102335 | 38.1 mm | 6.23" | 2 1/2" | - | - | 12.7 mm | 63.5 mm | 60° | €332.19 | |
| B | 734102325 | 38.1 mm | 5.74" | 2.205" | - | - | 12.7 mm | 79.5 mm | 45° | €374.89 | |
| C | 734102265 | 38.1 mm | 4.13" | - | - | - | 12.7 mm | 79.5 mm | - | €283.13 | |
| D | 734102115 | 38.1 mm | 5 1/5" | 1.535" | - | - | 14.2 mm | 63.5 mm | 45° | €303.54 | |
| E | 734102645 | 38.1 mm | 3.18" | - | - | - | - | - | - | €509.36 | |
| F | 734102055 | 38.1 mm | 3.71" | - | - | - | 14.2 mm | 63.5 mm | - | €228.61 | |
| G | 73410235 | 38.1 mm | 4 17/25" | 3.701" | - | - | 12.7 mm | 63.5 mm | 90° | €332.15 | |
| F | 734102065 | 38.1 mm | 4.13" | - | - | - | 14.2 mm | 79.5 mm | - | €305.66 | |
| H | 734102085 | 38.1 mm | 4.13" | 0.87" | - | - | 14.2 mm | 79.5 mm | 22.5° | €383.06 | |
| G | 734102355 | 38.1 mm | 4 17/25" | 3.701" | - | - | 12.7 mm | 63.5 mm | 90° | €373.67 | |
| I | 734102585 | 38.1 mm | 2.77" | - | - | 50.8 mm | - | - | - | €176.55 | |

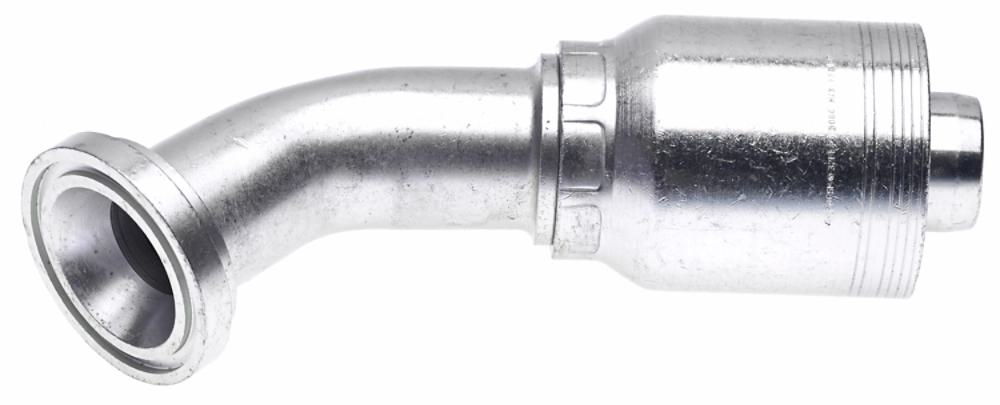

| J | 734101965 | 38.1 mm | 5 3/4" | 2 13/25" | - | - | 8.1 mm | 60.5 mm | 60° | €351.13 | |
| K | 734107035 | 38.1 mm | 5.81" | 1.957" | 55 mm | - | - | - | 45° | €789.19 | |
| L | 734101985 | 38.1 mm | 119.9 mm | 3.189" | - | - | 8.1 mm | 60.5 mm | 90° | €305.99 | |
| H | 734102075 | 38.1 mm | 5.57" | 0.661" | - | - | 14.2 mm | 63.5 mm | 22.5° | €333.07 | |
| M | 734102545 | 38.1 mm | 7.18" | 3.386" | 60 mm | - | - | - | 90° | €405.31 | |
| N | 734102105 | 38.1 mm | 6 9/25" | 1.378" | - | - | 14.2 mm | 79.5 mm | 30° | €376.75 | |
| O | 734107055 | 38.1 mm | 3.35" | - | 60 mm | - | - | - | - | €521.57 | |
| P | 734101945 | 38.1 mm | 5.31" | 1.732" | - | - | 8.1 mm | 60.5 mm | 45° | €290.00 | |
| Q | 73410229 | 38.1 mm | 5.7" | 1.181" | - | - | 12.7 mm | 63.5 mm | 30° | €273.37 | |
| R | 734101915 | 38.1 mm | 3.66" | - | - | - | 9.7 mm | 71.4 mm | - | €246.82 | |
| R | 734101905 | 38.1 mm | 3.35" | - | - | - | 8.1 mm | 60.5 mm | - | €237.70 | |
| B | 734102315 | 38.1 mm | 5.39" | 1.728" | - | - | 12.7 mm | 63.5 mm | 45° | €300.72 | |
| S | 734102535 | 38.1 mm | 5.15" | 1.339" | 60 mm | - | - | - | 45° | €341.32 | |
| Q | 734102305 | 38.1 mm | 5 3/25" | 1.102" | - | - | 12.7 mm | 63.5 mm | 30° | €379.19 | |
| T | 734102525 | 38.1 mm | 3 1/25" | - | 59.94 mm | 55.12 mm | - | - | - | €251.55 | |
| U | 73410244 | 38.1 mm | 2.73" | - | 59.94 mm | 55.12 mm | - | - | - | €323.42 | |
| V | 734102135 | 38.1 mm | 6.17" | 2.169" | - | - | 14.2 mm | 63.5 mm | 60° | €335.53 | |
| W | 734102555 | 38.1 mm | 67.3 mm | - | - | 50.04 mm | - | - | - | €198.03 | |

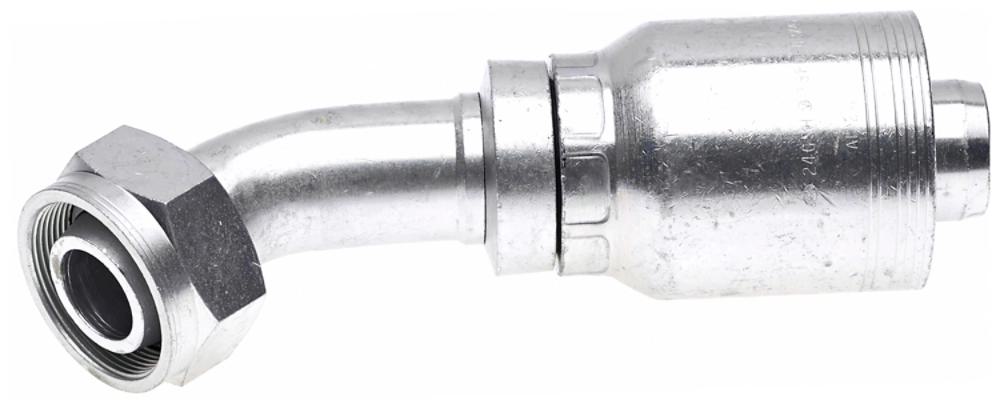

| X | 734107065 | 38.1 mm | 5.59" | 1.74" | 60 mm | - | - | - | 45° | €681.36 | |
| Y | 734102815 | 38.1 mm | 5.39" | 1.732" | - | - | 2.5 mm | 63.5 mm | 45° | €458.60 | |
| Z | 734107025 | 38.1 mm | 2.67" | - | - | 55 mm | - | - | - | €259.32 | |
| G | 734102365 | 38.1 mm | 4 17/25" | 4.724" | - | - | 12.7 mm | 79.5 mm | 90° | €364.65 | |
| N | 734102095 | 38.1 mm | 5.49" | 0.906" | - | - | 14.2 mm | 63.5 mm | 30° | €477.36 | |
| A1 | 734102275 | 38.1 mm | 5 21/25" | 0.709" | - | - | 12.7 mm | 63.5 mm | 22.5° | €407.03 | |
| B1 | 734102735 | 38.1 mm | 2.23" | - | - | 50.8 mm | - | - | - | €392.41 | |
| C | 734102255 | 38.1 mm | 4.13" | - | - | - | 12.7 mm | 63.5 mm | - | €227.46 | |
| U | 734102445 | 38.1 mm | 2.73" | - | 59.94 mm | 55.12 mm | - | - | - | €394.32 | |
| P | 734101955 | 38.1 mm | 5.34" | 2.051" | - | - | 9.7 mm | 71.4 mm | 45° | €322.90 | |
| C1 | 734102805 | 38.1 mm | 4.13" | - | - | - | 2.5 mm | 63.5 mm | - | €386.30 | |
| D | 734102125 | 38.1 mm | 5.86" | 2.323" | - | - | 14.2 mm | 79.5 mm | 45° | €397.81 | |
| R | 73410190 | 38.1 mm | 3.35" | - | - | - | 7.9 mm | 60.5 mm | - | €195.00 | |
| F | 734102175 | 38.1 mm | 5 16/25" | - | - | - | 14.2 mm | 63.5 mm | - | €317.82 | |
| I | 73410258 | 38.1 mm | 2.77" | - | - | 50.8 mm | - | - | - | €156.92 | |
| D1 | 734107075 | 38.1 mm | 5.02" | 3.622" | 60 mm | - | - | - | 90° | €699.72 | |
| E1 | 734102475 | 38.1 mm | 3.69" | 3.386" | 63.5 mm | - | - | - | 90° | €468.93 | |
| C | 73410224 | 38.1 mm | 4.13" | - | - | - | 10.4 mm | 54.1 mm | - | €212.50 | |
| F1 | 734102155 | 38.1 mm | 4.7" | 3.425" | - | - | 14.2 mm | 63.5 mm | 90° | €328.93 | |
| Q | 734102295 | 38.1 mm | 5.7" | 1.181" | - | - | 12.7 mm | 63.5 mm | 30° | €307.53 | |
| A1 | 734102395 | 38.1 mm | 5.81" | 0.941" | - | - | 12.7 mm | 63.5 mm | - | €527.95 | |
| G1 | 734102455 | 38.1 mm | 5 14/25" | 1.496" | 60 mm | - | - | - | 45° | €507.24 | |
| F1 | 734102165 | 38.1 mm | 5.11" | 5.512" | - | - | 14.2 mm | 79.5 mm | 90° | €379.04 | |
| H1 | 734107045 | 38.1 mm | 5.02" | 3.937" | 55 mm | - | - | - | 90° | €806.49 | |
| G | 734102375 | 38.1 mm | 4 17/25" | 5.906" | - | - | 12.7 mm | 63.5 mm | 90° | €499.40 | |
| N | 73410209 | 38.1 mm | 5.49" | 0.906" | - | - | 14.2 mm | 63.5 mm | 30° | €386.39 | |
| C | 734102245 | 38.1 mm | 4.13" | - | - | - | 10.4 mm | 54.1 mm | - | €239.07 | |
| V | 734102145 | 38.1 mm | 7.94" | 3.421" | - | - | 14.2 mm | 79.5 mm | 60° | €412.59 | |
| I1 | 734107015 | 38.1 mm | 2 8/25" | - | 55 mm | - | - | - | - | €610.52 | |
| L | 73412027 | 50.8 mm | 5.93" | 5.118" | - | - | 9.7 mm | 71.4 mm | 90° | €476.78 | |
| J1 | 734120395 | 50.8 mm | 2.13" | - | - | - | - | - | - | €479.68 | |
| A | 734120075 | 50.8 mm | 7.77" | 3.268" | - | - | 12.7 mm | 79.5 mm | 60° | €464.03 |
