EATON M22 Momentary Modular Push Buttons
Filter
A
B
C
D
E
F
G| Style | Model | Head/lens Color | Max. Lamp Voltage | Max. Operator Voltage Rating | Overall Depth | Button Color | Push Button Style | Nema Enclosure Rating | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M22-DL-G-K20-G | Green | 30V AC/DC | 30V AC/DC | 2.26" | Green | Flush | NEMA 13, NEMA 4X | 2NO | €135.11 | |

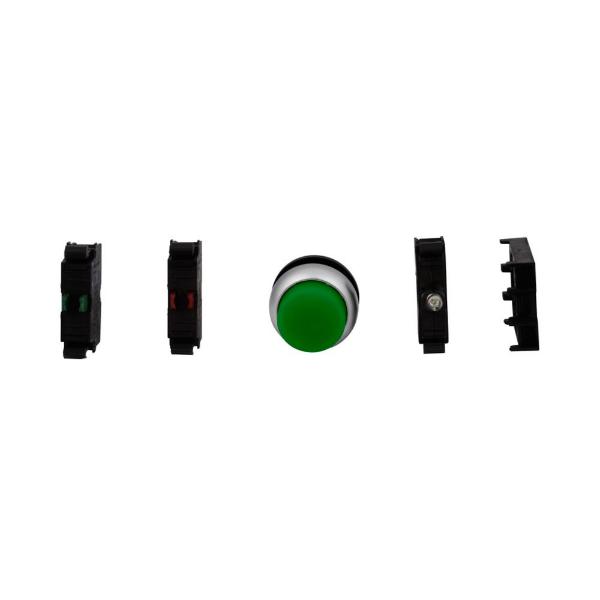

| B | M22-DLH-G-K20-G | Green | 30V AC/DC | 30V AC/DC | 2.56" | Green | Extended | NEMA 13, NEMA 4X | 2NO | €146.29 | |
| B | M22-DLH-G-K20-230G | Green | 264V AC/DC | 264V | 2.56" | Green | Extended | NEMA 13, NEMA 4X | 2NO | €138.05 | |

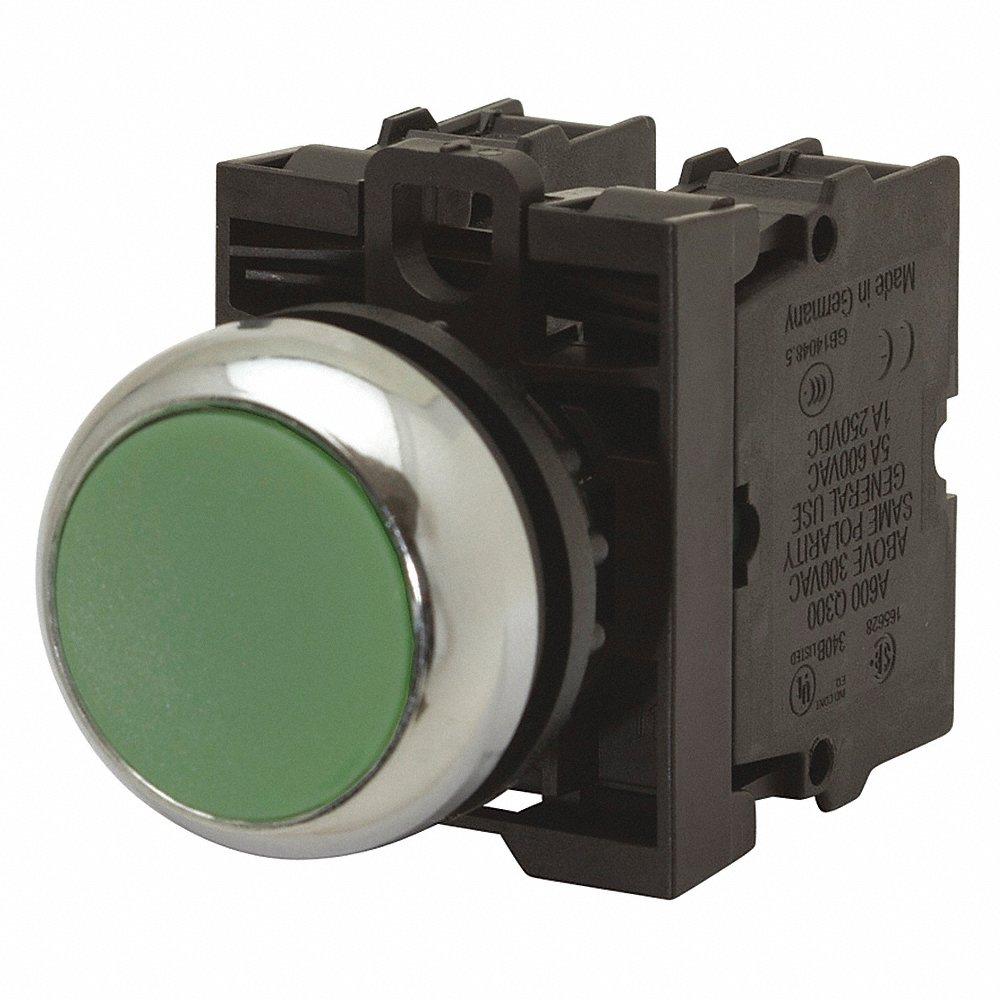

| C | M22-DL-G-K10-230G | Green | 264V AC/DC | 264V | 2.26" | Green | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | 1NO | €103.88 | |

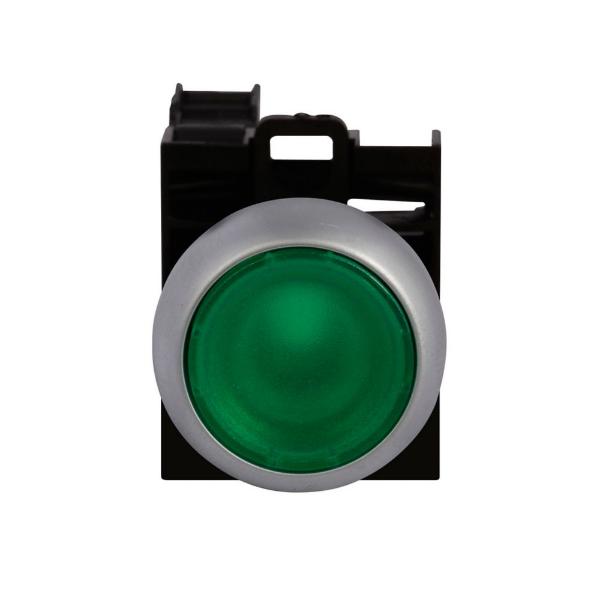

| A | M22-DL-G-K10-G | Green | 30V AC/DC | 30V AC/DC | 2.26" | Green | Flush | NEMA 13, NEMA 4X | 1NO | €109.70 | |
| A | M22-DL-G-K11-230G | Green | 264V AC/DC | 264V | 2.26" | Green | Flush | NEMA 13, NEMA 4X | 1NO/1NC | €134.25 | |
| A | M22-DL-G-K11-G | Green | 30V AC/DC | 30V AC/DC | 2.26" | Green | Flush | NEMA 13, NEMA 4X | 1NO/1NC | €134.50 | |
| A | M22-DL-G-K20-230G | Green | 264V AC/DC | 264V | 2.26" | Green | Flush | NEMA 13, NEMA 4X | 2NO | €133.34 | |

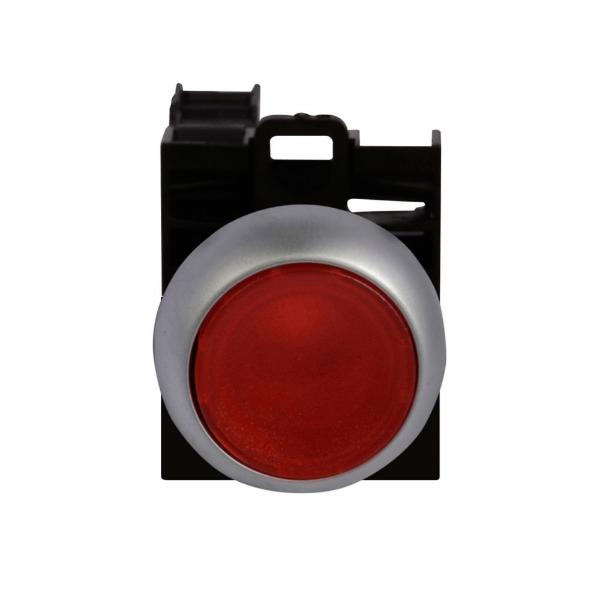

| D | M22-DL-R-K01-230R | Red | 264V AC/DC | 264V | 2.26" | Red | Flush | NEMA 13, NEMA 4X | 1NC | €133.26 | |
| E | M22-DLH-R-K11-230R | Red | 264V AC/DC | 264V | 2.56" | Red | Extended | NEMA 13, NEMA 4X | 1NO/1NC | €129.70 | |
| D | M22-DL-R-K02-230R | Red | 264V AC/DC | 264V | 2.26" | Red | Flush | NEMA 13, NEMA 4X | 2NC | €136.66 | |
| E | M22-DLH-R-K11-R | Red | 30V AC/DC | 30V AC/DC | 2.56" | Red | Extended | NEMA 13, NEMA 4X | 1NO/1NC | €134.44 | |
| D | M22-DL-R-K01-R | Red | 30V AC/DC | 30V AC/DC | 2.26" | Red | Flush | NEMA 13, NEMA 4X | 1NC | €116.10 | |
| D | M22-DL-R-K11-R | Red | 30V AC/DC | 30V AC/DC | 2.26" | Red | Flush | NEMA 13, NEMA 4X | 1NO/1NC | €120.85 | |
| D | M22-DL-R-K02-R | Red | 30V AC/DC | 30V AC/DC | 2.26" | Red | Flush | NEMA 13, NEMA 4X | 2NC | €137.35 | |
| D | M22-DL-R-K11-230R | Red | 264V AC/DC | 264V | 2.26" | Red | Flush | NEMA 13, NEMA 4X | 1NO/1NC | €125.05 | |
| F | M22-DL-W-K11-W | White | 30V AC/DC | 30V AC/DC | 2.26" | White | Flush | NEMA 13, NEMA 4X | 1NO/1NC | €124.98 | |
| F | M22-DL-W-K11-230W | White | 264V AC/DC | 264V | 2.26" | White | Flush | NEMA 13, NEMA 4X | 1NO/1NC | €135.92 | |
| G | M22-DLH-W-K20-W | White | 30V AC/DC | 30V AC/DC | 2.56" | White | Extended | NEMA 13, NEMA 4X | 2NO | €132.76 | |
| F | M22-DL-W-K10-230W | White | 264V AC/DC | 264V | 2.26" | White | Flush | NEMA 13, NEMA 4X | 1NO | €108.74 | |
| F | M22-DL-W-K10-W | White | 30V AC/DC | 30V AC/DC | 2.26" | White | Flush | NEMA 13, NEMA 4X | 1NO | €99.52 | |

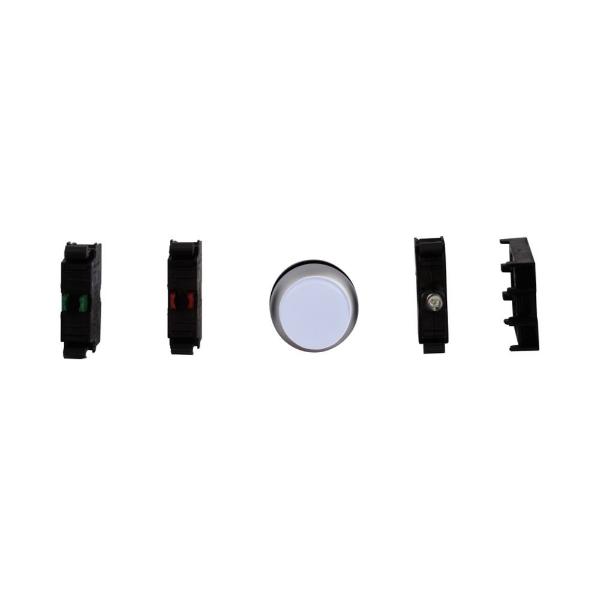

| G | M22-DLH-W-K20-230W | White | 264V AC/DC | 264V | 2.56" | White | Extended | NEMA 13, NEMA 4X | 2NO | €137.12 | |
| F | M22-DL-W-K20-230W | White | 264V AC/DC | 264V | 2.26" | White | Flush | NEMA 13, NEMA 4X | 2NO | €138.24 | |
| F | M22-DL-W-K20-W | White | 30V AC/DC | 30V AC/DC | 2.26" | White | Flush | NEMA 13, NEMA 4X | 2NO | €135.64 |
