EATON General Duty Double Throw Safety Switches


Eaton general duty double throw safety switches are suitable for shifting the power from a primary power source to a secondary source or transferring between different circuits that carry varying loads. They are used in industrial and commercial applications where backup power is necessary.

Filter
EATON DT221URHA
EATON DT221URK-NPSB
EATON DT223URKPSC
EATON DT223URK-NPSD
EATON DT224URKPSE
EATON DT224URK-NPSF
EATON DT225URK-NPSG
EATON DT225URKPSH
StyleModelVoltageAmpsProduct WidthProduct HeightNo. Of WiresTypeNo. Of PolesEnclosure MaterialPrice
A
DT221URH		240V30A11.94"24.63"2General Duty, Double-throw2Steel€1,688.42
A
DT222URH-N		240V60A-24.63"3General Duty, Double-throw2Steel€2,061.67
A
DT222URH		240V60A11.94"24.63"2General Duty, Double-throw2Steel€1,766.46
A
DT223URH		240V100A11.94"24.63"2General Duty, Double-throw2Steel€1,846.19
A
DT223URH-N		240V100A10"8 1/2"3General Duty, Double-throw2Steel€1,877.69
B
DT221URK-NPS		240V AC/250V DC30A11.94"24.63"3General Duty, Double-throw2Steel€2,102.67
B
DT221URKPS		240V AC/250V DC30A11.94"24.63"2General Duty, Double-throw2Steel€2,047.28
A
DT221URH-N		240V AC/250V DC30A11.94"24.63"3General Duty, Double-throw2Steel€772.12
B
DT222URKPS		240V AC/250V DC60A11.94"24.63"2General Duty, Double-throw2Steel€2,144.35
B
DT222URK-NPS		240V AC/250V DC60A11.94"24.63"3General Duty, Double-throw2Steel€1,680.54
C
DT223URKPS		240V AC/250V DC100A11.94"-2General Duty, Double-throw2Steel€2,289.96
D

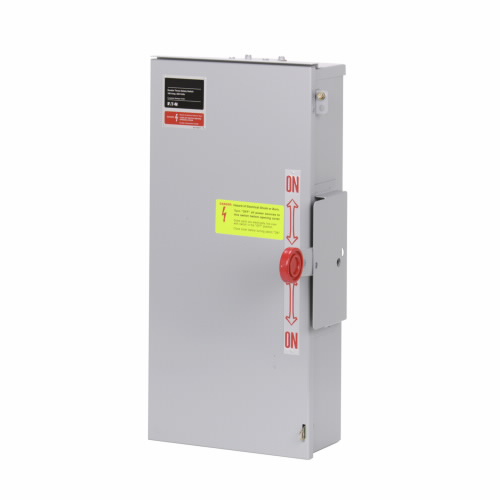

DT223URK-NPS		240V AC/250V DC100A11.94"24.63"3General Duty, Double-throw2Steel€1,008.95
E
DT224URKPS		240V AC/250V DC200A19 14/25"37.38"2General Duty, Double-throw2Steel€4,057.03
F
DT224URK-NPS		240V AC/250V DC200A19 14/25"9 1/2"3General Duty, Double-throw2Steel€1,849.95
G

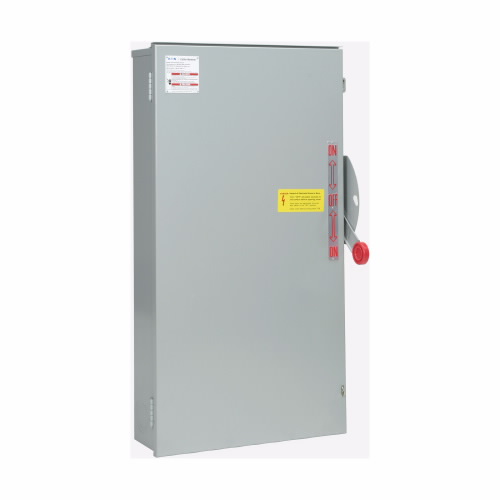

DT225URK-NPS		240V AC/250V DC400A23.13"53.81"3General Duty, Double-throw2Steel€4,510.24
H
DT225URKPS		240V AC/250V DC400A23.13"-2General Duty, Double-throw2Steel€11,312.13

Features

  • Eaton general duty double throw safety switches have two contact points for an effortless opening and closing mechanism, ensuring less risk of contact burning.
  • They are equipped with triple padlocking to prevent tampering or unauthorised access during operation, maintenance or repair.
  • These safety switches have tangential knockouts on the sides, top & bottom, allowing for mounting conduits of any size very close to the wall for a neat appearance.
  • They feature a clear line shield for protection against unexpected touch with energised parts, ensuring user safety.

Standards and Approvals

  • UL

Frequently Asked Questions

Can these double-throw safety switches withstand harsh temperature conditions?

Eaton general duty double throw safety switches have NEMA-rated enclosures for protection against ingressing dust and contamination in the environment.

What are the operating voltage ratings of Eaton general duty double throw safety switches?

600VAC & 250VDC.

How can we test the line without removing the clear line shield in Eaton general duty double throw safety switches?

These double safety switches feature probe holes that enable the operator to test if the line side is energised without removing the clear line shield.
