EATON Current Sensors


Eaton current sensors detect and measure the current flowing through GRF relays. They are ideal for power generation & distribution, automation, automotive and electronics applications.

Filter

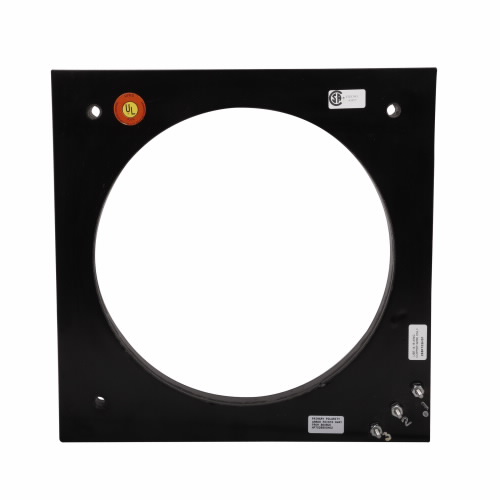

EATON 179C767G02A

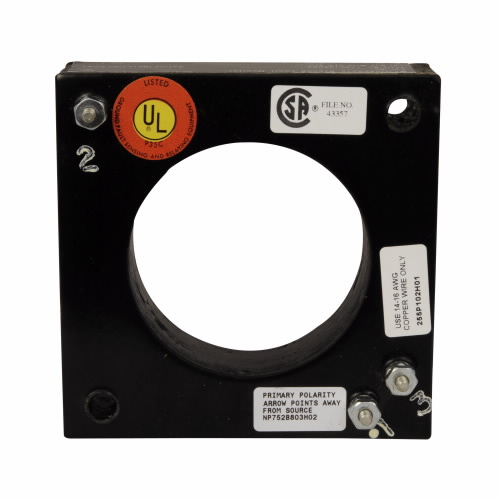

EATON 179C768G02B

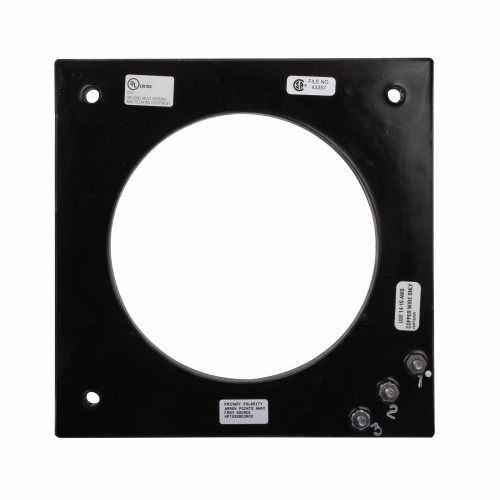

EATON 1256C13G01C

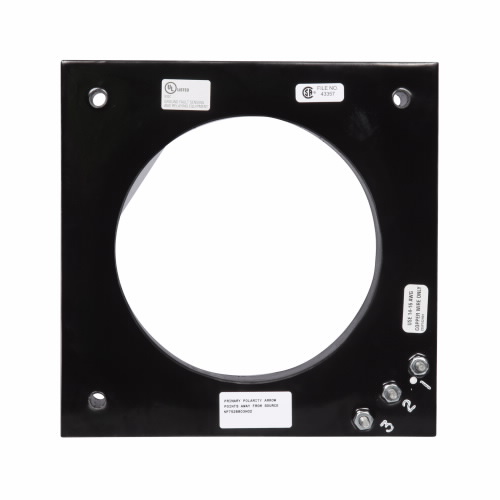

EATON 1283C45G01D
StyleModelMPNPrice
A
179C767G02		179C767G02€3,445.44
B
179C768G02		179C768G02€2,083.04
C
1256C13G01		1256C13G01€2,704.64
C
1256C13G02		1256C13G02€2,704.64
D
1283C45G01		1283C45G01€2,704.64

Working Mechanism

  • A thin strip of conductive material is placed in a magnetic field generated by a permanent magnet or an electromagnet.
  • When a current flows through the conductor, it generates a magnetic field that interacts with the external magnetic field, causing a voltage difference to appear across the conductor.
  • This voltage difference is then measured by the sensor and converted into an output signal proportional to the current flowing through the conductor.

Standards and Approvals

  • UL
  • CSA

Frequently Asked Questions

What is the difference between a current sensor and a current transformer?

A current sensor measures the current flowing through a conductor using a magnetic or resistive element, while a current transformer uses a magnetic core.

How can I choose the right current sensor for my application?

Choosing the right current sensor depends on the type & range of current to be measured, the accuracy & resolution required and the environmental conditions of the application.

What are some common sources of measurement errors in current sensors?

Some common sources of measurement errors in current sensors include external magnetic fields, temperature variations and sensor offset or gain errors. Regular calibration and maintenance can help minimise these errors.
