EATON 10250T Series Pushbutton Operators
Eaton 10250T Series pushbutton operators are momentary switches that cause a temporary change in the electrical circuit.
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Operator Material | Head/lens Color | Type | Height | Actuator Color | Overall Height | Overall Width | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 10250TA77Y39 | - | - | - | - | - | - | - | - | €720.20 | |
| B | 10250T33036 | - | - | 30.5 mm, Heavy-Duty | 2.19" | - | - | - | - | €539.00 | |
| C | 10250TA45 | - | - | 30.5 mm, Heavy-Duty | 2.1" | Red | - | - | - | €389.80 | |

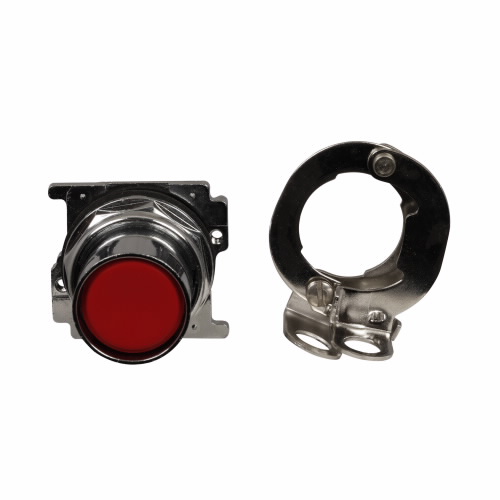

| D | 10250TA16 | - | - | 30.5 mm, Heavy-Duty | 3.3" | Red | - | - | - | €234.86 | |
| A | 10250T56E | - | - | 30.5 mm, Heavy-Duty | 2 1/5" | - | - | - | - | €244.74 | |
| A | 10250T56C | - | - | 30.5 mm, Heavy-Duty | 2 1/5" | - | - | - | - | €123.66 | |
| A | 10250T56EC | - | - | 30.5 mm, Heavy-Duty | 2 1/5" | - | - | - | - | €244.74 | |
| A | 10250TA77Y41 | - | - | - | - | - | - | - | - | €937.57 | |

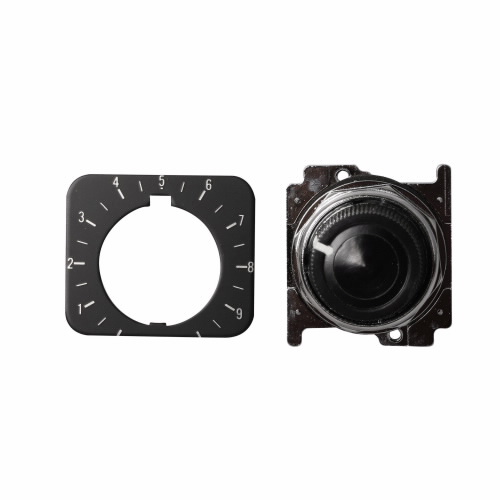

| B | 10250T330 | - | - | - | - | - | - | - | - | €588.95 | |
| A | 10250TA77Y40 | - | - | - | - | - | - | - | - | €811.31 | |

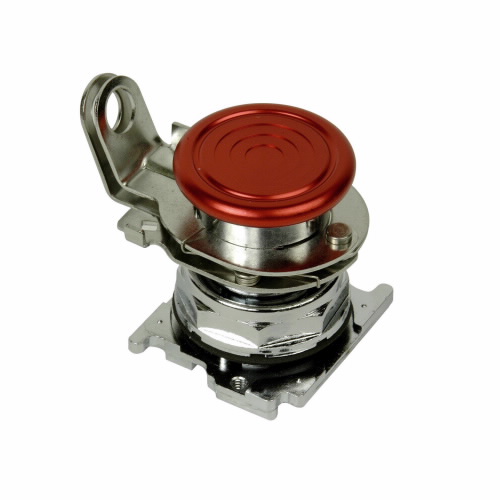

| C | 10250TA42 | - | - | 30.5 mm, Heavy-Duty | 2" | Red | - | - | - | €441.05 | |

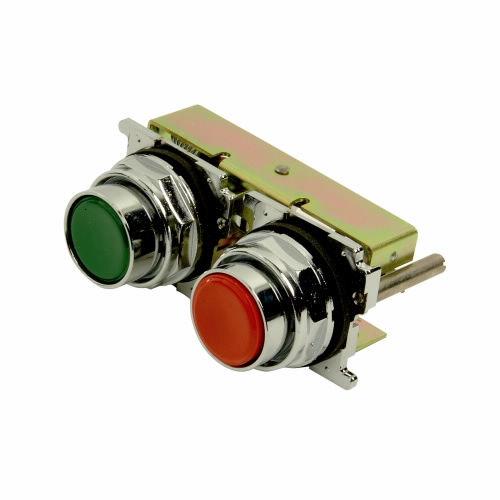

| E | 10250TA72 | Metal | Green, Red | 30.5 mm, Heavy-Duty | 4 1/2" | Green, Red | 4 1/2" | 3 1/2" | 3" | €423.46 | |
| A | 10250TA77 | Metal | Green, Red | 30.5 mm, Heavy-Duty | 3" | Green, Red | 3" | 3 1/4" | 4.4" | €547.80 | |

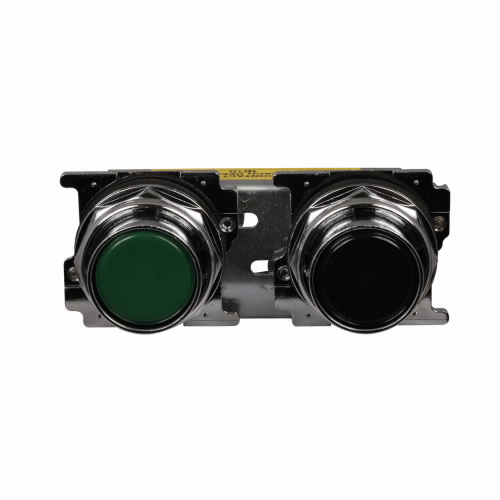

| F | 10250TA66 | Metal | Black, Green | 30.5 mm, Heavy-Duty | 3 1/5" | Black, Green | 3 1/5" | 3.3" | 4.4" | €423.46 | |
| G | 10250TA68 | Metal | Black, Red | 30.5 mm, Heavy-Duty | 3 1/5" | Black, Red | 3 1/5" | 3.3" | 4.4" | €587.34 | |

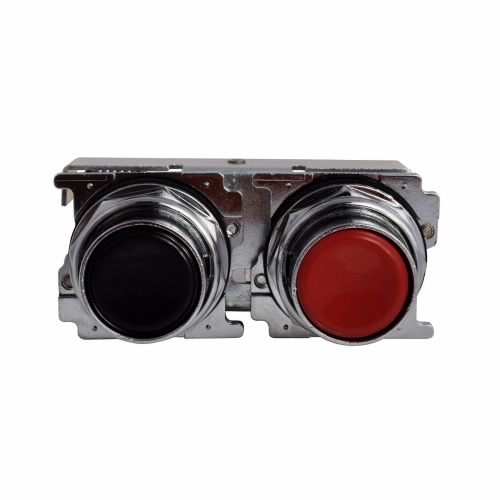

| H | 10250TA67 | Metal | Black, Red | 30.5 mm, Heavy-Duty | 3 1/5" | Black, Red | 3 1/5" | 3.1" | 4.2" | €423.46 | |
| A | 10250TA75 | Metal | Black, Green | 30.5 mm, Heavy-Duty | 3 2/5" | Black, Green | 3 2/5" | 3 1/5" | 4.3" | €423.46 | |
| I | 10250TA73 | Plastic | Black, Red | Mechanically Interlocked | 1" | - | 1" | 1" | 1" | €423.46 | |

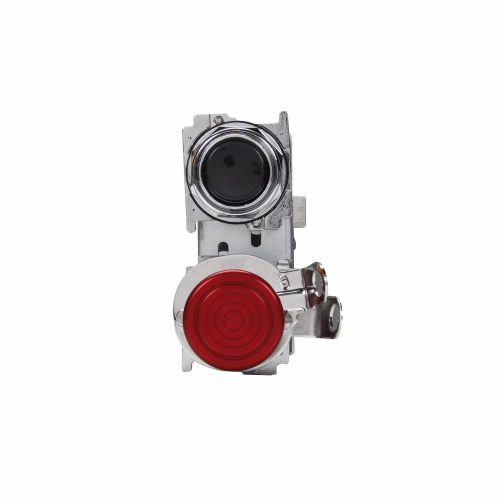

| J | 10250TA69 | Plastic | Black, Red | Mechanically Interlocked | 1" | Black, Red | 1" | 1" | 1" | €664.10 | |
| I | 10250TA76 | Plastic | Black, Red | Mechanically Interlocked | 3.3" | Black, Red | 3.3" | 3 1/5" | 4.3" | €605.54 |
Features
- Eaton 10250T pushbutton operators have a mushroom head for easy operation.
- They have 1LONC-1ECNO configuration to simplify connections.
- These mechanically operated switches feature zinc die-cast construction and chrome-plated housing to resist corrosion.
Compatible Accessories
- Eaton Pushbutton: This 30 mm non-illuminated push button is ideal for use with these operators for momentary action.
Standards and Approvals
- CE
- CSA
- UL
Frequently Asked Questions
Are these push buttons input or output devices?
Input.
What are the types of pushbuttons?
Normally opened (NO) and normally closed (NC).
Where should these operators be mounted?
Eaton pushbutton operators are flush mount units. The body of the fixture goes inside the wall, leaving only a cover plate on top of the wall surface.
