DIXON Grooved Fitting Gaskets
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Color | Size | Material | Color Code | Nominal Size | Temp. | Fuel Compatability | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | G250E | Black | 2 1/2" | EPDM | One Green Stripe | - | -22°F to +230°F | - | - | €9.13 | |
| B | G400V | Black | 4" | FKM | One Blue Stripe | 4" | -13°F to +350°F | - | - | €76.60 | |
| C | G400VB | Black | 4" | FKM B | Two Red Stripes | 4" | - | - | - | €155.68 | |
| C | G300VB | Black | 3" | FKM B | Two Red Stripes | 3" | - | - | - | €110.45 | |
| D | G300BL | Black | 3" | Baylast | Two Orange Stripes | - | - | - | - | €58.89 | |
| B | G600V | Black | 6" | FKM | One Blue Stripe | 6" | -13°F to +350°F | - | - | €128.62 | |
| C | G200VB | Black | 2" | FKM B | Two Red Stripes | 2" | - | - | - | €101.31 | |
| B | G1200V | Black | 12" | FKM | One Blue Stripe | 12" | -13°F to +350°F | - | - | €351.77 | |
| E | G1000T | Black | 10" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | - | €75.37 | |
| B | G1000V | Black | 10" | FKM | One Blue Stripe | 10" | -13°F to +350°F | - | - | €223.10 | |
| E | G1200T | Black | 12" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | - | €104.89 | |
| A | G800E | Black | 8" | EPDM | One Green Stripe | - | -22°F to +230°F | - | - | €53.71 | |
| A | G150E | Black | 1 1/2" | EPDM | One Green Stripe | - | -22°F to +230°F | - | - | €6.31 | |
| A | G200E | Black | 2" | EPDM | One Green Stripe | - | -22°F to +230°F | - | - | €7.89 | |

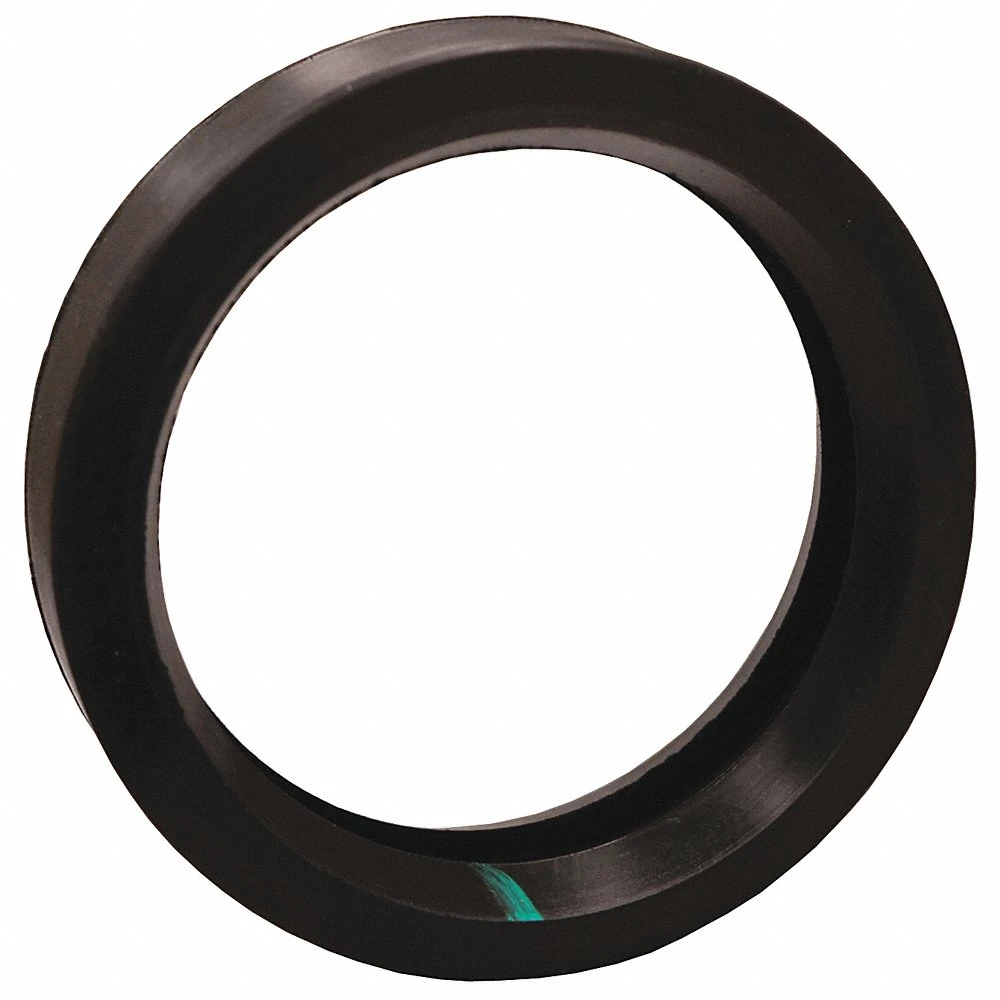

| F | G300E | Black | 3" | EPDM | One Green Stripe | - | -22°F to +230°F | - | - | €18.05 | |
| E | G150T | Black | 1 1/2" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | - | €6.31 | |
| B | G200V | Black | 2" | FKM | One Blue Stripe | 2" | -13°F to +350°F | - | - | €44.55 | |
| E | G300T | Black | 3" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Rated For Petroleum Service | - | €14.97 | |
| G | G600T | Black | 6" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | 176°F | €35.02 | |
| G | G800T | Black | 8" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | 176°F | €53.71 | |
| G | G1000E | Black | 10" | EPDM | 1 Green Stripe | - | -22°F to +230°F | - | 230°F | €75.37 | |
| H | G200T | Black | 2" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Rated For Petroleum Service | - | €14.13 | |
| E | G500T | Black | 5" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | - | €27.97 | |
| B | G400T | Black | 4" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | - | €20.97 | |
| D | G400BL | Black | 4" | Baylast | Two Orange Stripes | - | - | - | - | €63.23 | |
| A | G500E | Black | 5" | EPDM | One Green Stripe | - | -22°F to +230°F | - | - | €27.97 | |
| A | G600E | Black | 6" | EPDM | One Green Stripe | - | -22°F to +230°F | - | - | €35.02 | |
| A | G400E | Black | 4" | EPDM | 1 Green Stripe | - | -22°F to +230°F | - | 230°F | €20.97 | |
| E | G250T | Black | 2 1/2" | Nitrile Rubber | One Orange Stripe | - | -24°F to +176°F | Gasoline, Diesel | - | €9.13 | |
| B | G300V | Black | 3" | FKM | One Blue Stripe | 3" | -13°F to +350°F | - | - | €55.57 | |
| D | G200BL | Black | 2" | Baylast | Two Orange Stripes | - | - | - | - | €55.32 | |
| B | G800V | Black | 8" | FKM | One Blue Stripe | 8" | -13°F to +350°F | - | - | €190.82 | |

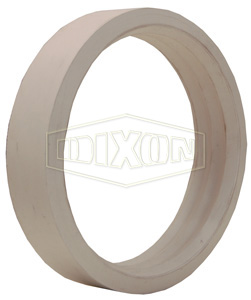

| I | G400N | White | 4" | Nitrile Rubber | - | - | -24°F to +176°F | Gasoline And Diesel | - | €57.45 |
