DICKSON 8 Inch Charts
Dickson 8-inch charts are used in 8-inch chart recorders to keep a written record of pressure, temperature and humidity. These units come with a 1/4 inch NPT thread and 5/8 hex fitting connection for easy installation.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1| Style | Model | Time Recorded | Highest Generic Number Recorded | Generic Number Measured | Circular Chart Diameter | Number Of Charts Included | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|
| A | C411 | - | - | - | 8" | 60 | 60 | €81.01 | |
| B | C437 | - | - | - | 8" | 60 | 60 | €79.39 | |
| C | C487 | 7 Days | - | - | 8" | 60 | 60 | €76.76 | |
| D | C465 | 7 Days | 60 | 0 to 60 | 8" | 60 | 60 | €76.76 | |
| E | C439 | 7 Days | - | - | 8" | 60 | 60 | €82.18 | |
| F | C459 | 7 Days | - | - | 8" | 60 | 60 | €82.18 | |
| G | C448 | 7 Days | - | - | 8" | 60 | 60 | €76.76 | |
| H | C444 | 7 Days | - | - | 8" | 60 | 60 | €84.90 | |
| I | C405 | 7 Days | - | -0.1 to +0.1 | 8" | 60 | 60 | €80.69 | |
| J | C431 | 7 Days | - | - | 8" | 60 | 60 | €88.21 | |
| K | C498 | 7 Days | 10 | 0 to 10 | 8" | 60 | 60 | €78.02 | |
| L | C453 | 7 Days | - | 0 to 14 | 8" | 60 | 60 | €79.39 | |
| M | C417 | 7 Days | - | - | 8" | 60 | 60 | €83.00 | |
| N | C436 | 7 Days | - | - | 8" | 60 | 60 | €85.69 | |
| O | C412 | 7 Days | - | - | 8" | 60 | 60 | €82.18 | |
| P | C479 | 7 Days | - | - | 8" | 60 | 60 | €78.87 | |
| Q | C440 | 7 Days | - | - | 8" | 60 | 60 | €82.18 | |
| R | C477 | 7 Days | - | - | 8" | 60 | 60 | €79.39 | |
| S | C414 | 7 Days | - | - | 8" | 60 | 60 | €82.18 | |
| T | C473 | 7 Days | - | - | 8" | 60 | 60 | €82.87 | |
| U | C435 | 7 Days | - | - | 8" | 60 | 60 | €82.18 | |
| V | C415 | 24 hr. | - | - | 8" | 60 | 60 | €80.59 | |
| W | C469 | 24 hr. | - | - | 8" | 60 | 60 | €79.31 | |
| X | C445 | 24 hr. | - | - | 8" | 60 | 60 | €91.08 | |
| Y | C447 | 24 hr. | - | - | 8" | 60 | 60 | €77.32 | |
| Z | C429 | 24 hr. | 60 | 0 to 60 | 8" | 60 | 60 | €76.76 | |

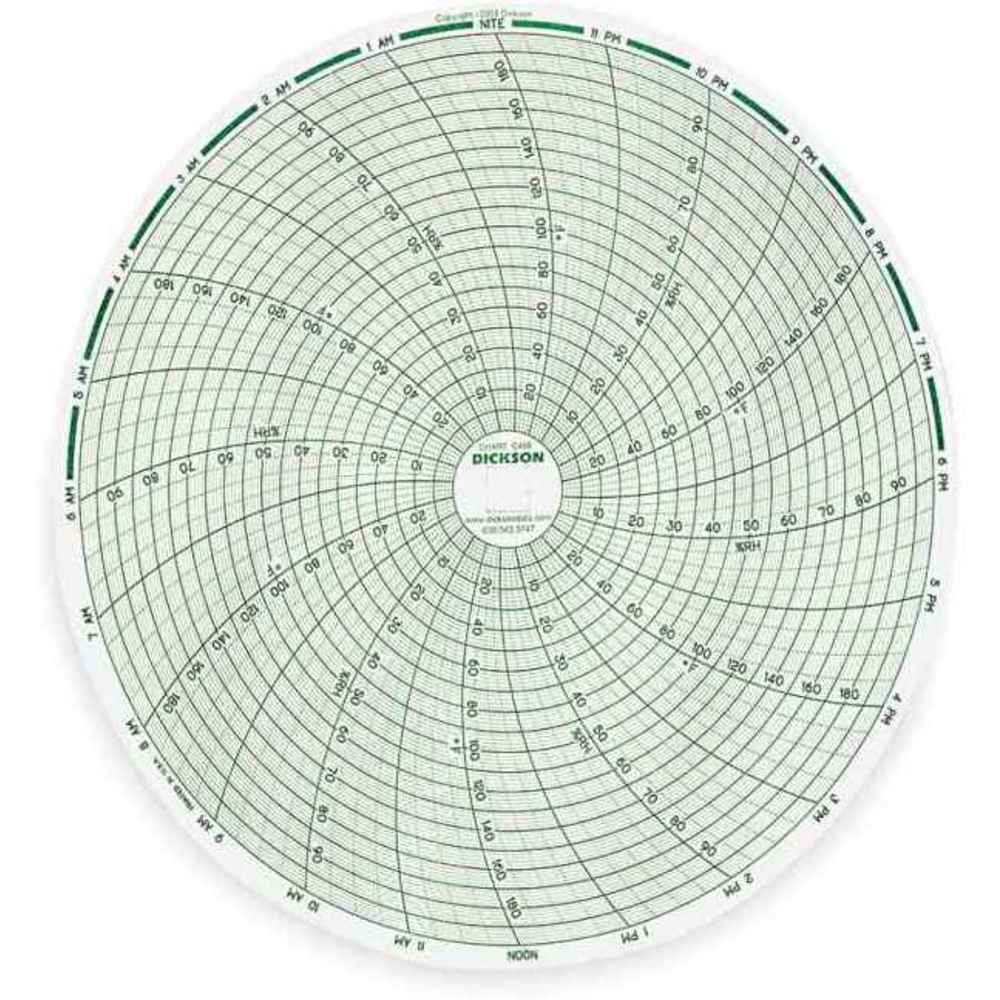

| A1 | C458 | 24 hr. | - | - | 8" | 60 | 60 | €80.71 | |
| B1 | C456 | 24 hr. | - | - | 8" | 60 | 60 | €85.69 | |

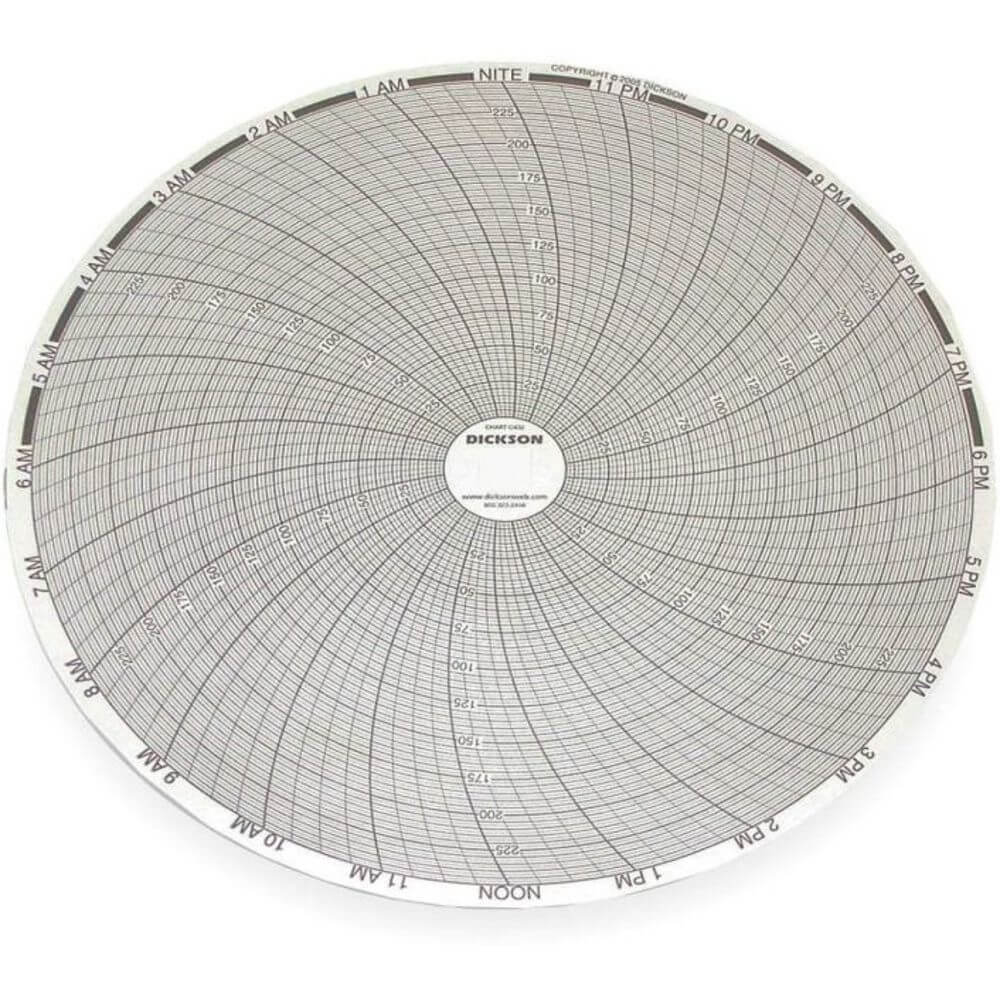

| C1 | C432 | 24 hr. | - | - | 8" | 60 | 60 | €81.01 | |
| D1 | C472 | 24 hr. | - | - | 8" | 60 | 60 | €82.87 | |

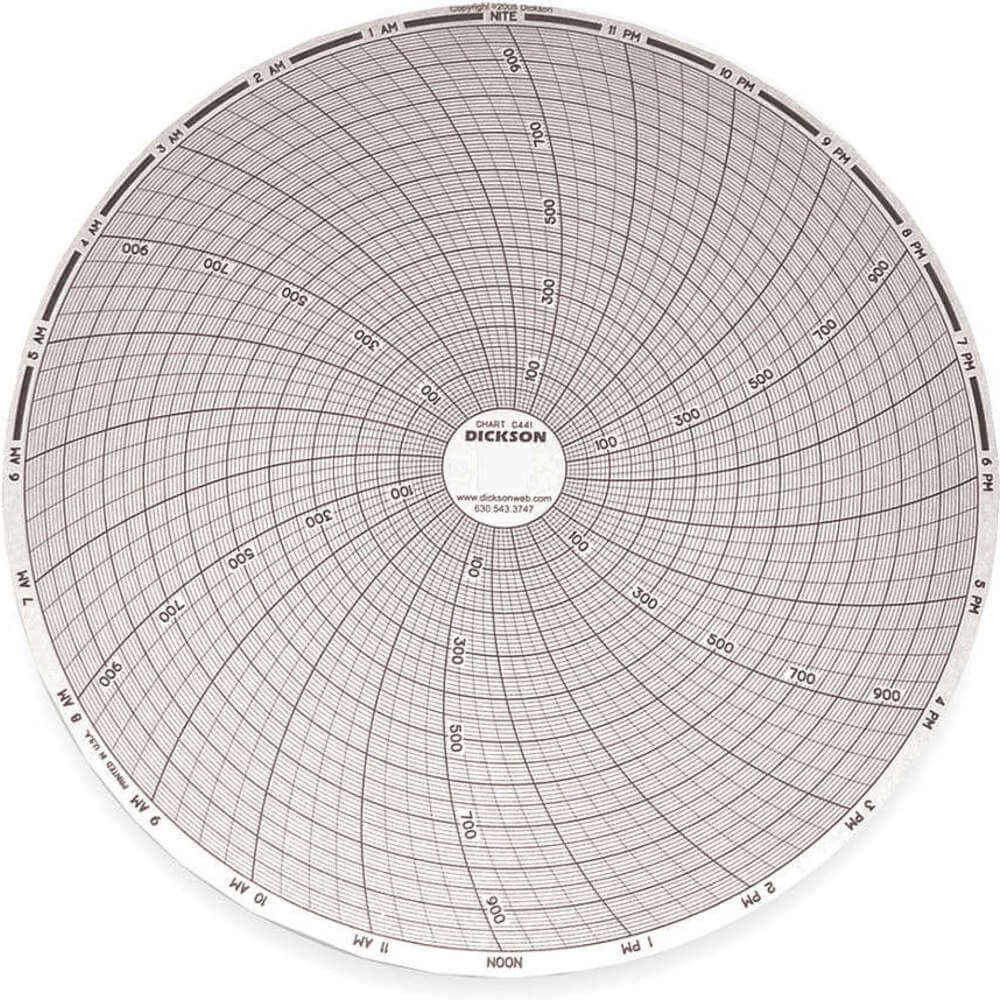

| E1 | C441 | 24 hr. | - | - | 8" | 60 | 60 | €81.01 | |
| F1 | C443 | 24 hr. | - | - | 8" | 60 | 60 | €84.90 | |
| G1 | C410 | 24 hr. | - | - | 8" | 60 | 60 | €80.85 | |
| H1 | C422 | 24 hr. | - | - | 8" | 60 | 60 | €84.39 | |

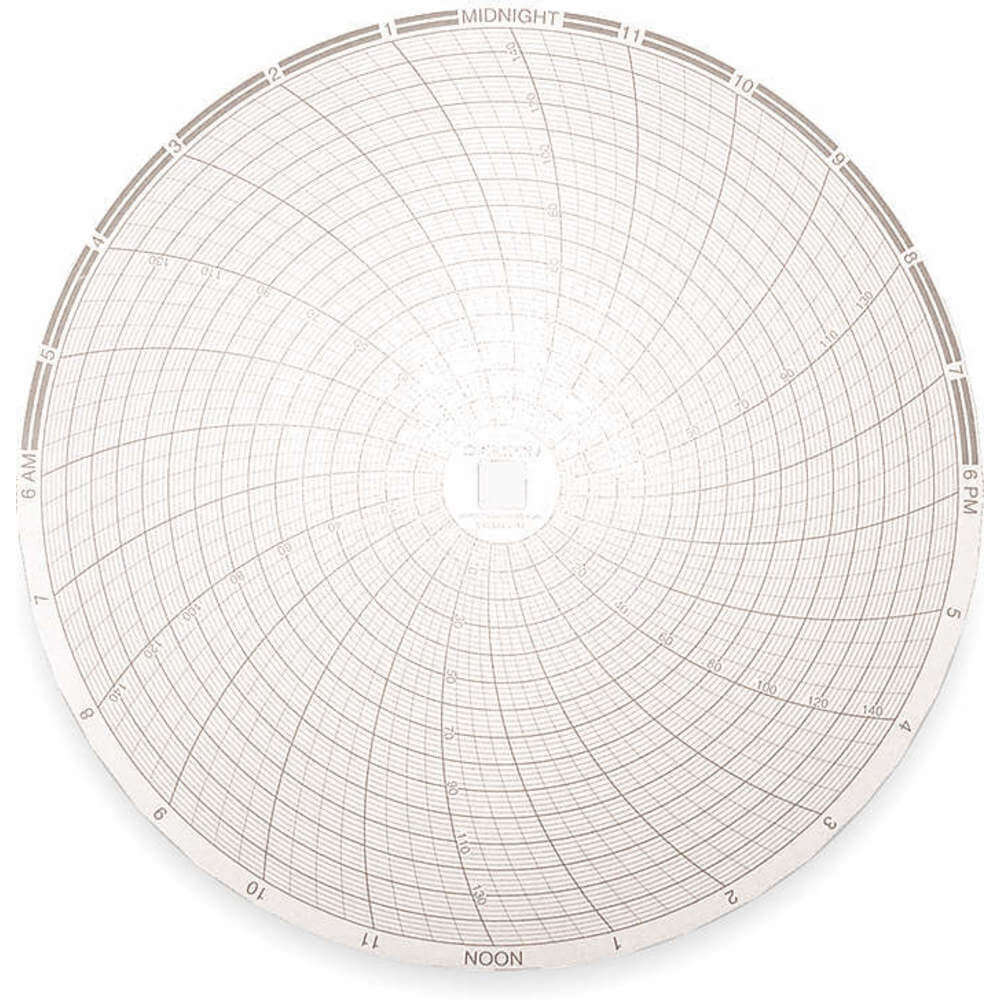

| I1 | C425 | 24 hr. | - | - | 8" | 60 | 60 | €81.01 | |

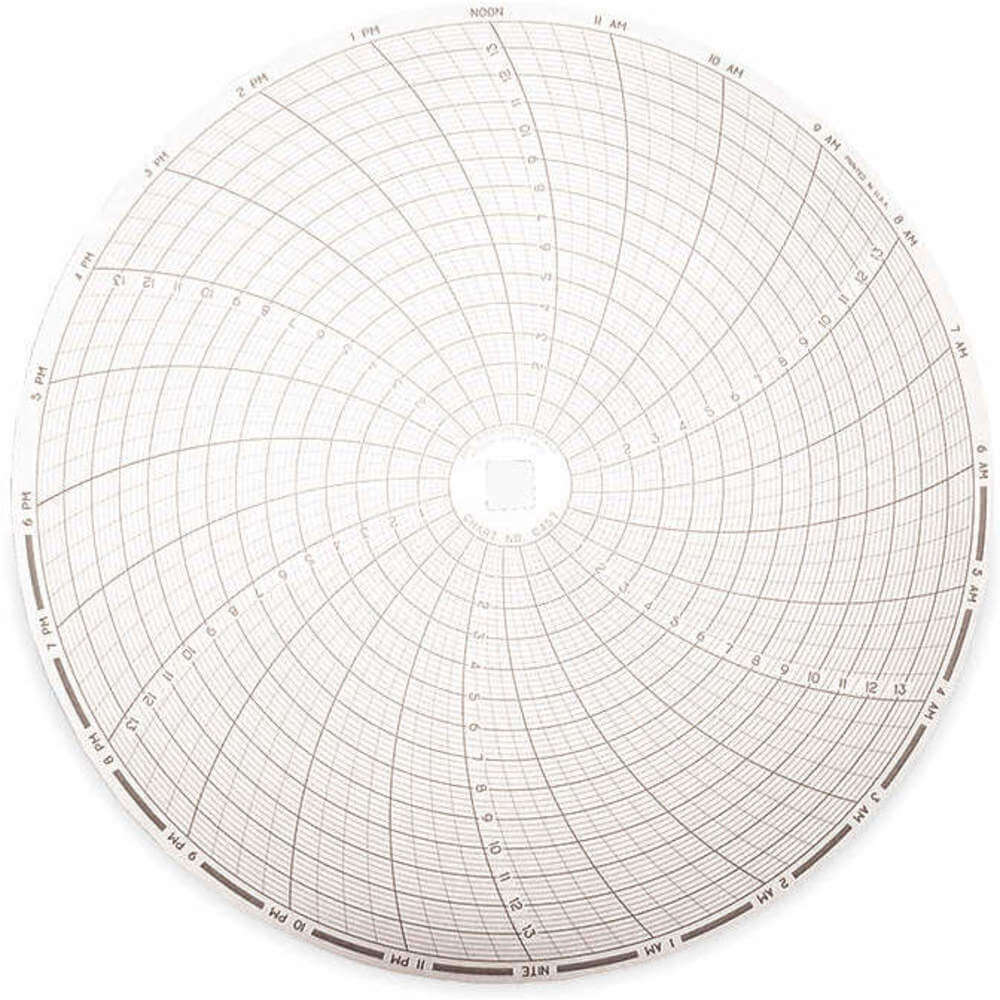

| J1 | C457 | 24 hr. | - | 0 to 14 | 8" | 60 | 60 | €79.39 | |
| K1 | C478 | 24 hr. | - | - | 8" | 60 | 60 | €78.87 | |
| L1 | C476 | 24 hr. | - | - | 8" | 60 | 60 | €79.39 | |
| M1 | C428 | 24 hr. | - | - | 8" | 60 | 60 | €81.01 | |
| N1 | C406 | 31 Days | - | - | 8" | 60 | 60 | €84.91 | |
| O1 | C482 | 31 Days | - | - | 8" | 60 | 60 | €77.38 | |
| P1 | C481 | 31 Days | - | - | 8" | 60 | 60 | €76.76 | |
| Q1 | C409 | 31 Days | - | 0 to 100 | 8" | 60 | 60 | €83.99 | |
| R1 | C480 | 31 Days | - | - | 8" | 60 | 60 | €76.76 |
Features
- These recorders use bi-metal or replaceable sensors for setting the ranges and recording time to fit the user's monitoring needs.
- They include replacement pens for recording temperature or humidity within a time frame.
- They have a circular design that offers a glance of the complete data within a time frame of 24 hours, 7 days or 31 days to complete one rotation.
- These charts are placed in position with the help of spring clips to prevent curling during operation.
Compatible Accessories
- Replacement Pen Kit: These replaceable red & blue colour pens are used for drawing the temperature or humidity readings onto these paper charts.
Frequently Asked Questions
How are these chart papers useful in recording temperature?
Dickson chart papers come equipped with red and blue pens that can record and write real-time data for user convenience.
