CLIMAX METAL PRODUCTS RC Series, Set Screw Couplings
Filter
A
B
C
D
E
F| Style | Model | Clearance Dia. | Max. Speed | Shaft Locking Type | Coupling Material | Overall Length | Max. Torque | Screw Material | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RC-025-A | 0.5" | 3500 RPM | Set Screw | Aluminum | 3/4" | 41 lbs.-in. | Carbon Steel | 41 lbs.-in. | €17.31 | |
| B | RC-025 | 0.5" | 1800 RPM | Clamp On | Carbon Steel | 3/4" | 68 lbs.-in. | Carbon Steel | 68 lbs.-in. | €14.54 | |
| C | RC-075-KW | 1 1/2" | 1800 RPM | Clamp On | Carbon Steel | 2" | 563 lbs.-in. | Carbon Steel | 563 lbs.-in. | €33.12 | |
| D | RC-075-S-KW | 1 1/2" | 3500 RPM | Set Screw | Stainless Steel | 2" | 338 lbs.-in. | Stainless Steel | 338 lbs.-in. | €124.11 | |
| E | RC-075-S | 1 1/2" | 3500 RPM | Set Screw | Stainless Steel | 2" | 338 lbs.-in. | Stainless Steel | 338 lbs.-in. | €86.09 | |
| A | RC-075-A | 1 1/2" | 3500 RPM | Set Screw | Aluminum | 2" | 338 lbs.-in. | Carbon Steel | 338 lbs.-in. | €34.75 | |
| D | RC-062-S-KW | 1 1/4" | 3500 RPM | Set Screw | Stainless Steel | 2" | 281 lbs.-in. | Stainless Steel | 281 lbs.-in. | €96.17 | |
| C | RC-062-KW | 1 1/4" | 1800 RPM | Set Screw | Carbon Steel | 2" | 469 lbs.-in. | Carbon Steel | 469 lbs.-in. | €32.96 | |
| E | RC-062-S | 1 1/4" | 3500 RPM | Set Screw | Stainless Steel | 2" | 281 lbs.-in. | Stainless Steel | 281 lbs.-in. | €67.38 | |
| A | RC-062-A | 1 1/4" | 3500 RPM | Set Screw | Aluminum | 2" | 281 lbs.-in. | Carbon Steel | 281 lbs.-in. | €31.04 | |
| F | RC-062 | 1 1/4" | 3500 RPM | Set Screw | Carbon Steel | 2" | 469 lbs.-in. | Carbon Steel | 469 lbs.-in. | €26.49 | |
| E | RC-050-S | 1" | 3500 RPM | Set Screw | Stainless Steel | 1 1/2" | 138 lbs.-in. | Stainless Steel | 138 lbs.-in. | €44.16 | |
| C | RC-050-KW | 1" | 1800 RPM | Clamp On | Carbon Steel | 1 1/2" | 238 lbs.-in. | Carbon Steel | 238 lbs.-in. | €24.30 | |
| A | RC-050-A | 1" | 3500 RPM | Set Screw | Aluminum | 1 1/2" | 143 lbs.-in. | Carbon Steel | 143 lbs.-in. | €24.02 | |
| F | RC-050 | 1" | 3500 RPM | Set Screw | Carbon Steel | - | 238 lbs.-in. | Carbon Steel | 238 lbs.-in. | €20.76 | |
| D | RC-050-S-KW | 1" | 3500 RPM | Set Screw | Stainless Steel | - | 138 lbs.-in. | Stainless Steel | 138 lbs.-in. | €61.65 | |
| F | RC-075 | 1.5" | 3500 RPM | Set Screw | Carbon Steel | 2" | 563 lbs.-in. | Carbon Steel | 563 lbs.-in. | €29.83 | |
| E | RC-025-S | 1/2" | 3500 RPM | Set Screw | Stainless Steel | 3/4" | 38 lbs.-in. | Stainless Steel | 38 lbs.-in. | €29.38 | |
| D | RC-150-S-KW | 2 1/2" | 1800 RPM | - | - | 4 1/2" | 900 lbs.-in. | - | - | €512.42 | |
| F | RC-150 | 2 1/2" | 3500 RPM | Set Screw | Carbon Steel | 4" | 1500 lbs.-in. | Carbon Steel | 1500 lbs.-in. | €141.48 | |
| C | RC-150-KW | 2 1/2" | 1800 RPM | Set Screw | Carbon Steel | 4 1/2" | 1500 lbs.-in. | Carbon Steel | 1250 lbs.-in. | €155.09 | |
| E | RC-150-S | 2 1/2" | 3500 RPM | Set Screw | Stainless Steel | 4 1/2" | 900 lbs.-in. | Stainless Steel | 900 lbs.-in. | €388.07 | |
| A | RC-125-A | 2 1/4" | 3500 RPM | Set Screw | Aluminum | 4" | 750 lbs.-in. | Carbon Steel | 750 lbs.-in. | €88.50 | |
| F | RC-125 | 2 1/4" | 1800 RPM | - | - | 4" | 1250 lbs.-in. | - | - | €68.36 | |
| E | RC-125-S | 2 1/4" | 3500 RPM | Set Screw | Stainless Steel | 4" | 750 lbs.-in. | Stainless Steel | 750 lbs.-in. | €240.95 | |
| D | RC-125-S-KW | 2 1/4" | 3500 RPM | Set Screw | Stainless Steel | 4" | 750 lbs.-in. | Stainless Steel | 750 lbs.-in. | €344.31 | |
| D | RC-100-S-KW | 2" | 3500 RPM | Set Screw | Stainless Steel | 3" | 450 lbs.-in. | Stainless Steel | 450 lbs.-in. | €216.78 | |
| E | RC-100-S | 2" | 3500 RPM | Set Screw | Stainless Steel | 3" | 450 lbs.-in. | Stainless Steel | 338 lbs.-in. | €147.97 | |
| C | RC-100-KW | 2" | 1800 RPM | Set Screw | Carbon Steel | 2" | 750 lbs.-in. | Carbon Steel | 563 lbs.-in. | €54.00 | |
| F | RC-100 | 2" | 3500 RPM | Set Screw | Carbon Steel | 3" | 750 lbs.-in. | Carbon Steel | 750 lbs.-in. | €42.64 | |
| C | RC-037-KW | 3/4" | 3500 RPM | Set Screw | Carbon Steel | - | 178 lbs.-in. | Carbon Steel | 178 lbs.-in. | €36.56 | |
| D | RC-037-S-KW | 3/4" | 3500 RPM | Set Screw | Stainless Steel | - | 103 lbs.-in. | Stainless Steel | 103 lbs.-in. | €66.23 | |
| E | RC-037-S | 3/4" | 3500 RPM | Set Screw | Stainless Steel | 1" | 103 lbs.-in. | Stainless Steel | 103 lbs.-in. | €35.74 | |
| A | RC-037-A | 3/4" | 3500 RPM | Set Screw | Aluminum | 1" | 107 lbs.-in. | Carbon Steel | 107 lbs.-in. | €21.86 | |
| B | RC-037 | 3/4" | 1800 RPM | Clamp On | Carbon Steel | 1" | 178 lbs.-in. | Carbon Steel | 178 lbs.-in. | €17.67 |
RC Series, Set Screw Couplings

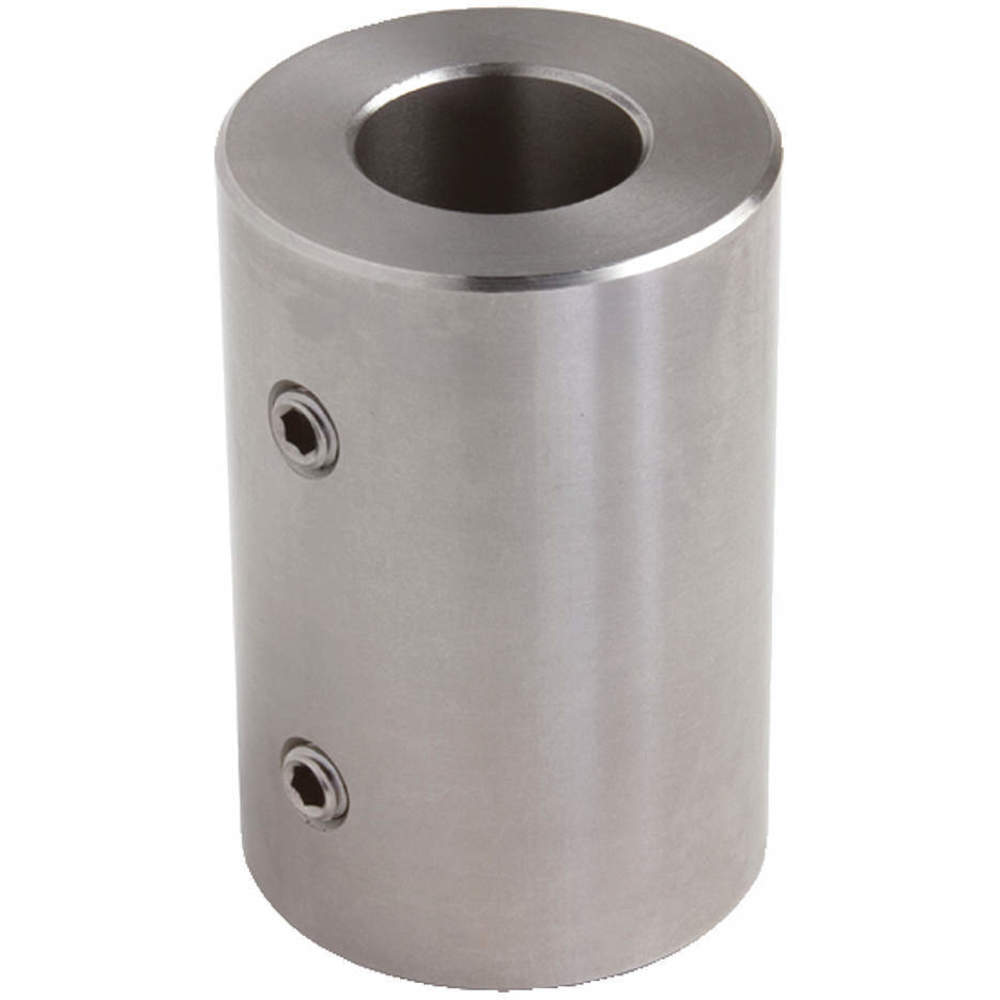

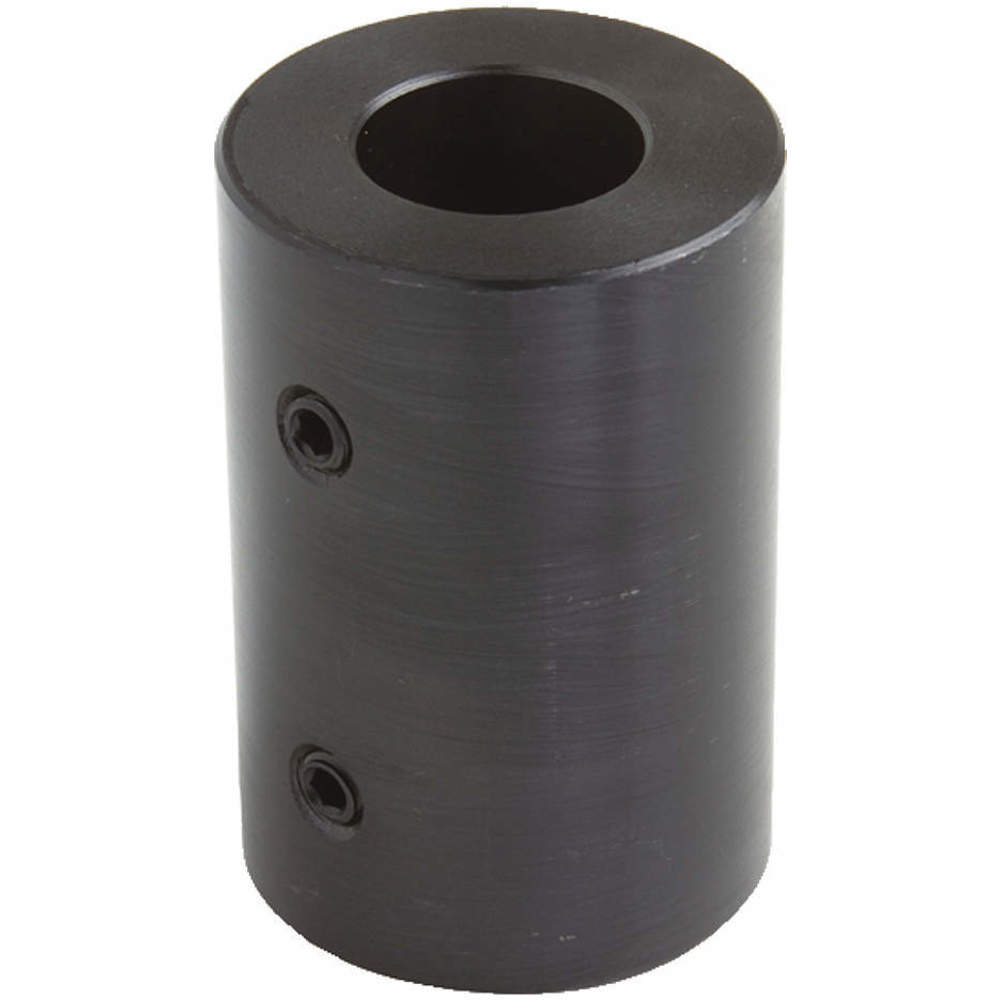

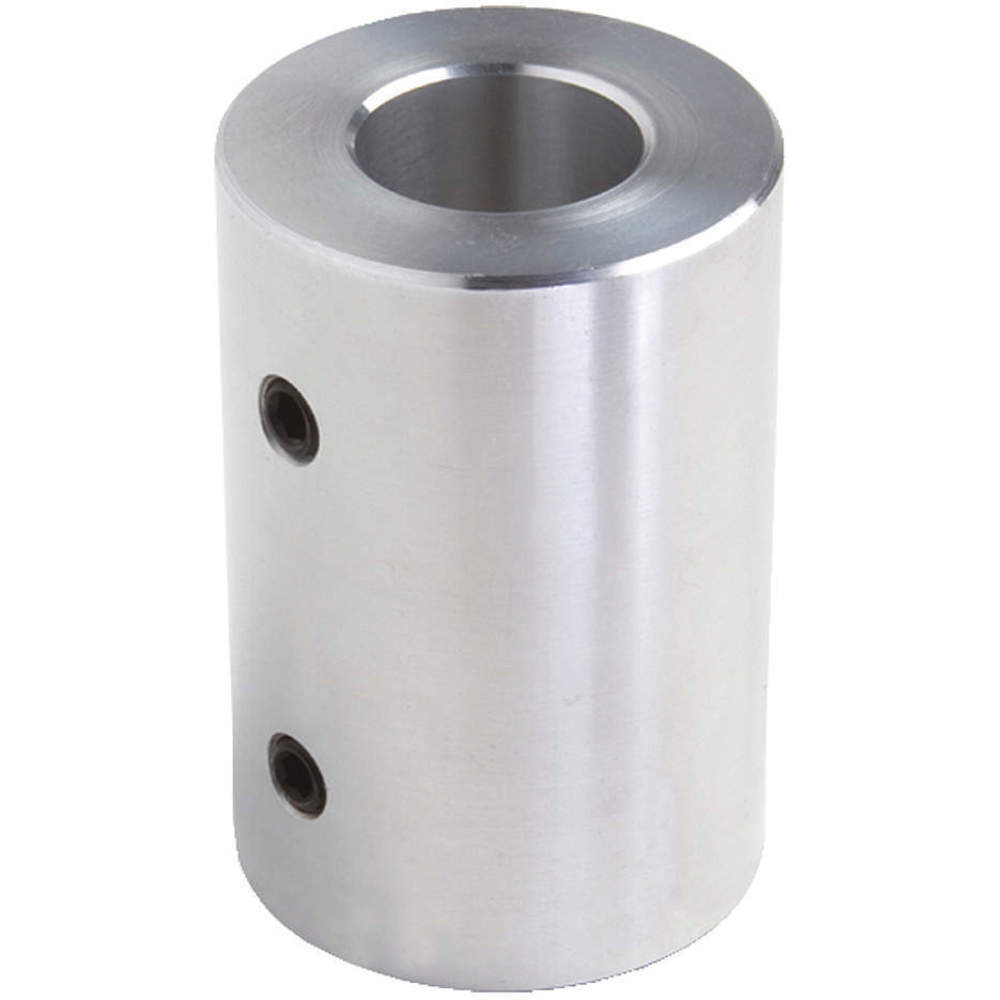

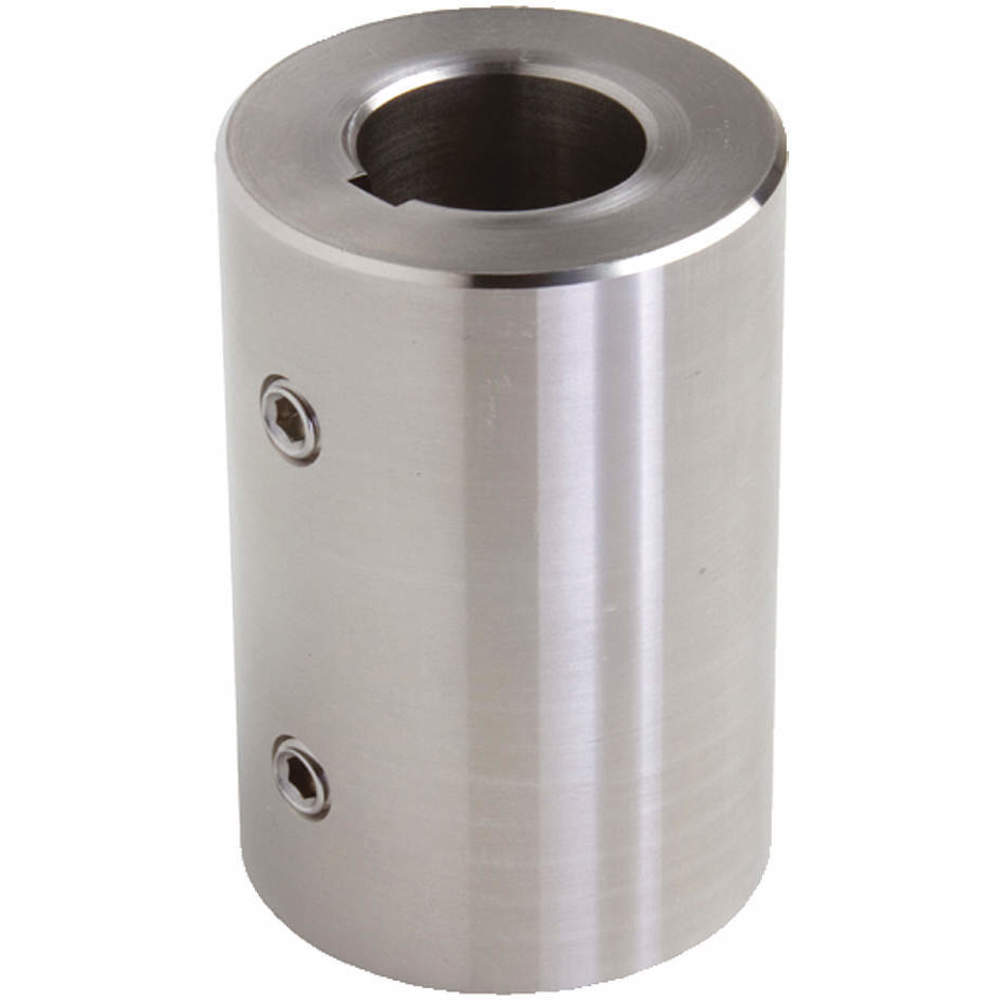

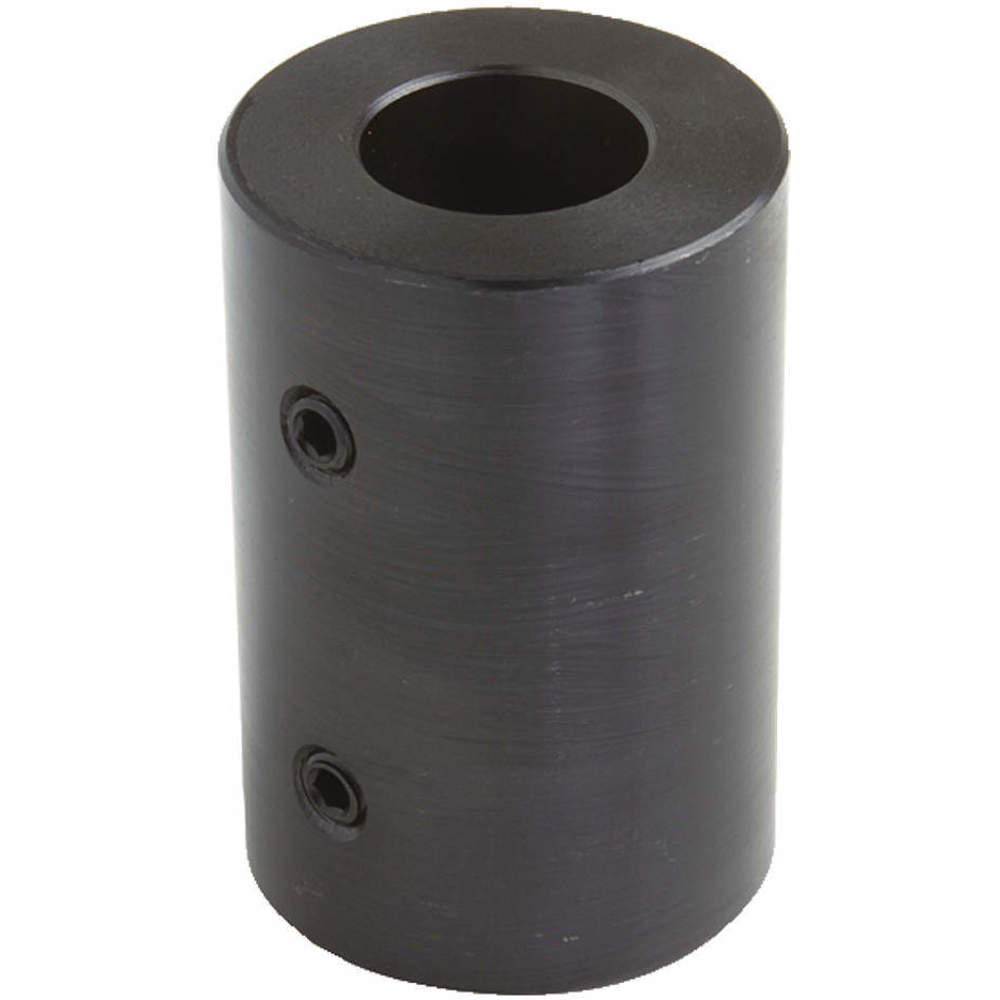

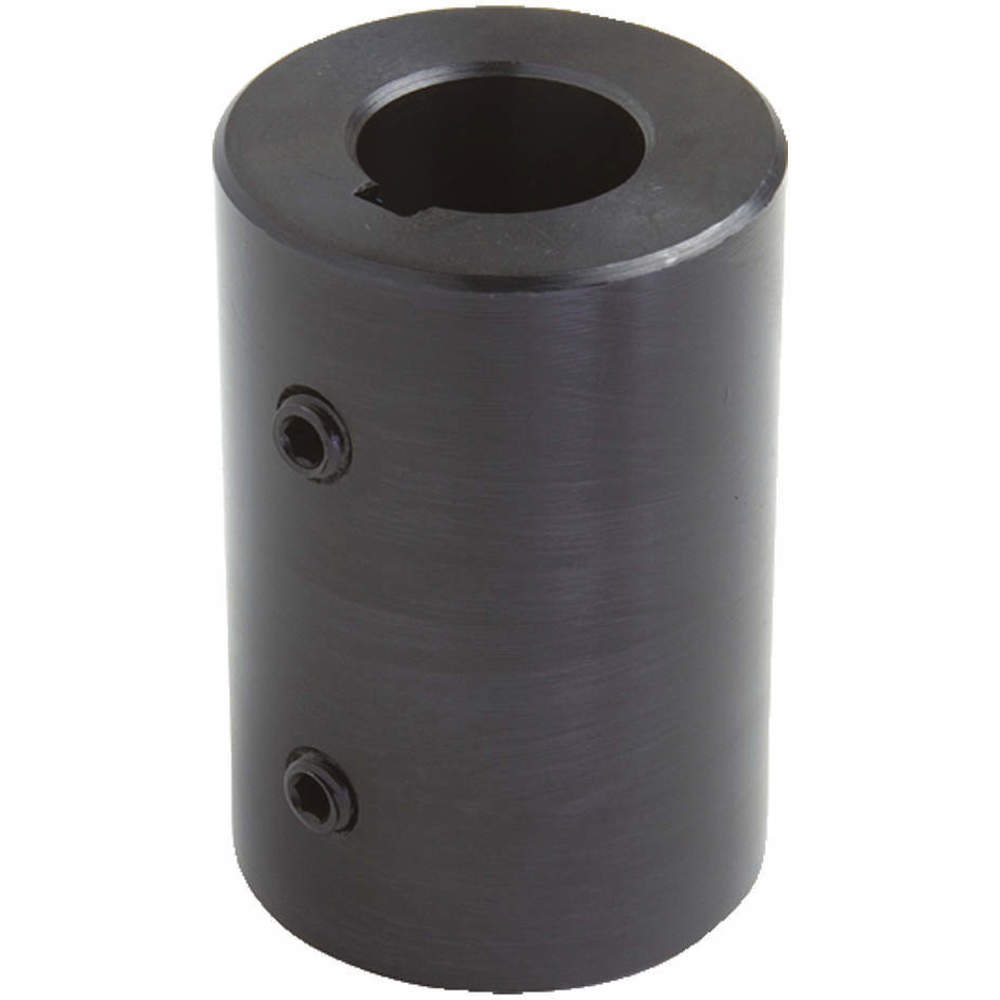

Climax Metal Products RC Series set screw couplings are ideal for joining two shafts together, providing a secure connection. These couplings are commonly used in industrial applications, such as power transmission systems, conveyor belts and industrial machinery. They feature steel / stainless steel construction for structural rigidity and corrosion resistance. These screw couplings provide a maximum speed of 350 RPM and 41 to 750 lb-inch torque output.
