CLIMAX METAL PRODUCTS C200 Series Locking Assemblies
Filter
A
B| Style | Model | Hub Contact Pressure | For Shaft Dia. | Overall Width | Max. Transmitted Torque | Transmissible Torque | Bolt Size | Outside Dia. Tolerance | No. Of Locking Bolts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

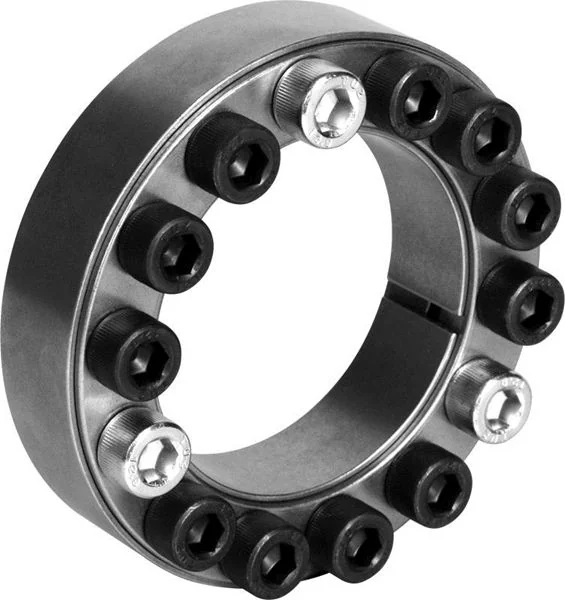

| A | C200E-387 | - | - | - | - | - | - | - | - | - | RFQ
|
| B | C200E-118 | 29766.267 psi | 1 3/16" | 1.024" | 37 lbs.-ft. | 37 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 10 | €109.99 | |
| B | C200E-137 | 30848.677 psi | 1 3/8" | 1.024" | 51 lbs.-ft. | 51 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 12 | €139.62 | |
| B | C200E-112 | 31419.949 psi | 1 1/8" | 1.024" | 35 lbs.-ft. | 35 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 10 | €139.65 | |
| B | C200E-100 | 31812.698 psi | 1" | 1.024" | 28 lbs.-ft. | 28 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 9 | €124.54 | |
| B | C200E-087 | 32317.662 psi | 7/8" | 1.024" | 22 lbs.-ft. | 22 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 8 | €86.90 | |
| B | C200E-237 | 32610.6 psi | 2 3/8" | 1.26" | 190 lbs.-ft. | 190 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 14 | €202.06 | |
| B | C200E-150 | 32990.946 psi | 1 1/2" | 1.024" | 65 lbs.-ft. | 65 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 14 | €149.52 | |
| B | C200E-125 | 33933.545 psi | 1 1/4" | 1.024" | 46 lbs.-ft. | 46 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 12 | €137.39 | |
| B | C200E-300 | 34220.349 psi | 3" | 1.496" | 381 lbs.-ft. | 381 lbs.-ft. | M10 x 25 | -0.002" to +0.002" | 14 | €207.22 | |
| B | C200E-193 | 34263.671 psi | 1 15/16" | 1.26" | 133 lbs.-ft. | 133 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 12 | €188.01 | |
| B | C200E-225 | 34422.3 psi | - | - | - | 180 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 14 | €153.67 | |
| B | C200E-143 | 34425.335 psi | 1 7/16" | 1.024" | 62 lbs.-ft. | 62 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 14 | €148.41 | |
| B | C200E-256 | 34542.238 psi | 2 9/16" | 1.26" | 234 lbs.-ft. | 234 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 16 | €178.56 | |
| B | C200E-293 | 34948.441 psi | 2 15/16" | 1.496" | 373 lbs.-ft. | 373 lbs.-ft. | M10 x 25 | -0.002" to +0.002" | 14 | €299.37 | |
| B | C200E-250 | 35405.794 psi | 2 1/2" | 1.26" | 228 lbs.-ft. | 228 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 16 | €212.19 | |
| B | C200E-187 | 35405.794 psi | 1 7/8" | 1.26" | 128 lbs.-ft. | 128 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 12 | €188.59 | |
| B | C200E-218 | 35405.794 psi | 2 3/16" | 1.26" | 175 lbs.-ft. | 175 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 14 | €152.47 | |
| B | C200E-287 | 35708.19 psi | 2 7/8" | 1.496" | 365 lbs.-ft. | 365 lbs.-ft. | M10 x 25 | -0.002" to +0.002" | 14 | €228.80 | |
| B | C200E-243 | 36313.635 psi | 2 7/16" | 1.26" | 222 lbs.-ft. | 222 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 16 | €211.89 | |
| B | C200E-212 | 36447.141 psi | 2 1/8" | 1.26" | 170 lbs.-ft. | 170 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 14 | €200.58 | |
| B | C200E-275 | 37331.29 psi | 2 3/4" | 1.496" | 349 lbs.-ft. | 349 lbs.-ft. | M10 x 25 | -0.002" to +0.002" | 14 | €278.06 | |
| B | C200E-075 | 37703.939 psi | 3/4" | 1.024" | 19 lbs.-ft. | 19 lbs.-ft. | M6 x 18 | -0.002" to +0.002" | 8 | €85.04 | |
| B | C200E-175 | 37934.779 psi | 1 3/4" | 1.26" | 120 lbs.-ft. | 120 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 12 | €178.95 | |
| B | C200E-268 | 38199.459 psi | 2 11/16" | 1.496" | 341 lbs.-ft. | 341 lbs.-ft. | M10 x 25 | -0.002" to +0.002" | 14 | €294.15 | |
| B | C200E-200 | 38725.087 psi | 2" | 1.26" | 160 lbs.-ft. | 160 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 14 | €199.82 | |
| B | C200E-262 | 39108.97 psi | 2 5/8" | 1.496" | 333 lbs.-ft. | 333 lbs.-ft. | M10 x 25 | -0.002" to +0.002" | 14 | €279.58 | |
| B | C200E-168 | 39339.771 psi | 1 11/16" | 1.26" | 115 lbs.-ft. | 115 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 12 | €180.68 | |
| B | C200E-162 | 40852.839 psi | 1 5/8" | 1.26" | 111 lbs.-ft. | 111 lbs.-ft. | M8 x 22 | -0.002" to +0.002" | 12 | €177.22 |
