CHERNE Replacement Ring And Chain Assemblies
Cherne replacement ring and chain assemblies are ideal for installation on plumbing plugs, Muni-Balls, Test-Balls and Long-Balls. These ring and chain assemblies allow the user to pull / hold the plumbing balls out of the piping system after testing / maintenance tasks.
Filter
A
B
C
D| Style | Model | Overall Width | Overall Height | Chain Length | Ring Size | Included | Compatible Manufacturer Part Number | Compatible Mfr Part No | Compatible Grainger Part No | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

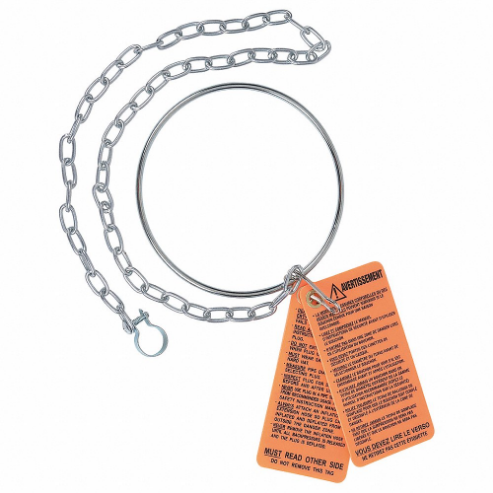

| A | 059778 | 3 1/2" | 1/4" | 24" | 4" | 4" Ring, Safety Tag | 270040 | 270040 | 1VNF1 | €7.30 | |
| B | 059798 | 3 1/5" | 0.1" | 24" | 6" | 6" Ring, Safety Tag | 270067 | 270067 | 1VNF3 | €7.99 | |
| B | 059758 | 3 1/5" | 0.1" | 24" | 2" | 2" Ring, Safety Tag | 270024 | 270024 | 1VNE9 | €9.63 | |
| B | 059768 | 3 1/5" | 0.1" | 24" | 3 ft. | 3" Ring, Safety Tag | 270032 | 270032 | 1VNE7 | €10.04 | |
| C | 059718 | 3 2/5" | 0.1" | 12" | 3" | 3" Ring, Safety Tag | 270032 | 270032 | 1VNE7 | €6.86 | |

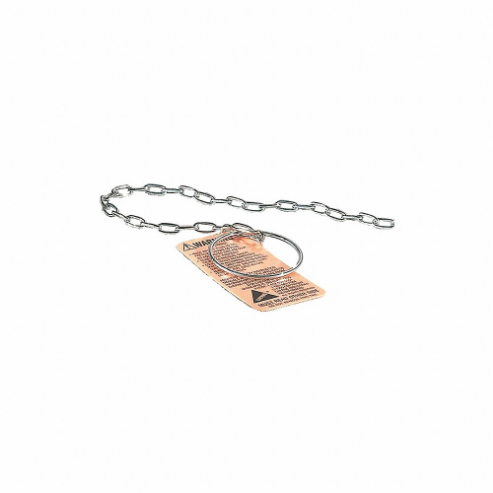

| C | 059708 | 3 2/5" | 0.1" | 12" | 2" | 2" Ring, Safety Tag | 270024 | 270024 | 1VNE9 | €6.59 | |

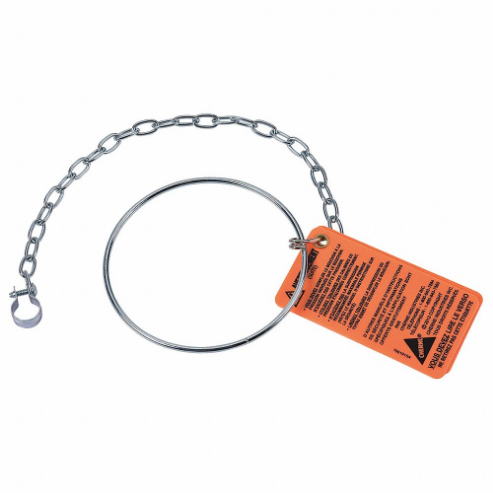

| D | 059728 | 3 3/4" | 1/4" | 12" | 4" | 4" Ring, Safety Tag | 270040 | 270040 | 1VNF1 | €7.23 |
Working Mechanism
- These ring and chain assemblies have a clamp on one end having a screw mechanism. This screw is loosened to accommodate the plug.
- The screw is fastened once the plug anchoring point is fitted into the clamp.
Features
- These ring and chain assemblies have stainless steel construction for preventing any chances of damage / wear against reactive fluids and corrosive conditions.
- They feature a safety tag on the ring end for warning the user against pulling the chain accidentally.
- They have a screw locking clamp end for gripping the plug, allowing the user to grip & pull the plug after the operation quickly.
Compatible Accessories
- Cherne Muni-Ball Plugs: These ring & chain assemblies prevent the Muni-Ball / Test-Ball plugs (attached with these assemblies) from falling into the drain / pipeline.
Frequently Asked Questions
How to attach Cherne ring & chain assemblies to ball plugs?
The ring & chain assemblies can be attached to the plug using the clamping end. The clamp on the ring & chain assembly grips the nozzle stem of the ball plug. The screw is fastened to secure the ring & chain assembly on the ball plug.
What is the ring diameter of Cherne ring & chain assemblies?
These rings have diameters ranging from 2 to 6 inches depending upon the variant.
What size plugs are compatible with Cherne ring & chain assemblies?
These ring & chain assemblies are suitable for installation on smaller, handheld Muni-Ball & Test-Ball plugs.
