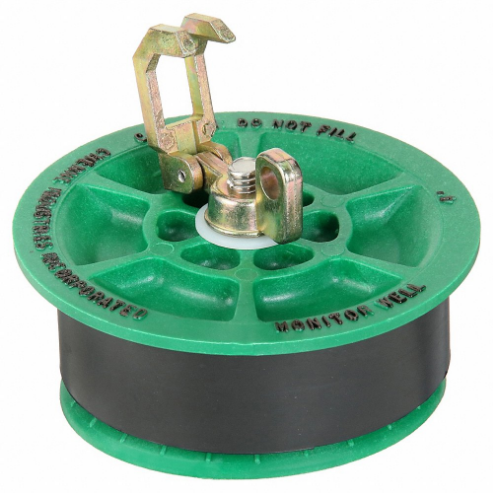

CHERNE Monitor Well Locking Plugs
Cherne Monitor Well Locking plugs offer a high-quality, petro-chemical resistant design to seal monitor wells.
Filter
A
B
C| Style | Model | Max. Dia. | Min. Dia. | Nominal Size | For Max. Pipe Inside Dia. | For Min. Pipe Inside Dia. | For Pipe Size | Plug Length | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 271648 | 1.38" | 1" | 1" to 1.25" | 1.38" | 1" | 1", 1 1/2" | 2 1/2" | 2 1/2" | €30.66 | |
| B | 271675 | 2.31" | 1.9" | 2" | 2.31" | 1.9" | 2" | 2 1/2" | 2 1/2" | €36.89 | |
| A | 271669 | 3.1" | 2 4/5" | 3" | 3.1" | 2 4/5" | 3" | 2 3/5" | 2 3/5" | €40.59 | |
| C | 271683 | 4.38" | 3 4/5" | 4" | 4.38" | 3 4/5" | 4" | 3" | 3" | €44.69 | |
| A | 271691 | 6 2/25" | 5.77" | 6" | 6 2/25" | 5.77" | 6" | 3.98" | 3.98" | €98.79 | |
| A | 271735 | 8.03" | 7 19/25" | 8" | 8.03" | 7 19/25" | 8" | 3.98" | 3.98" | €222.45 |
Features
- Cherne Monitor Well locking plugs are sized to seal schedule 40 piping.
- They feature chemical / petroleum-resistant Estaloc plastic bottom and top plates.
- They have a yellow chromate-coated locking latch that accepts Cherne's solid brass padlock or No. 2 Master padlock.
- They feature a petroleum-resistant nitrile O-ring and stainless steel carriage bolt.
Standards and Approvals
- EPA
Frequently Asked Questions
Where do we use a locking plug?
Locking plugs and connectors are mainly used by construction workers, contractors, welders and more.
What is the maximum back pressure of these Cherne Monitor Well Locking plugs?
These Monitor Well Locking plugs can withstand a maximum back pressure of 6.5 PSI (0.45 bar).
What are the nominal sizes available for these locking plugs?
These plugs are available in nominal sizes ranging from 1 to 8 inches.
