BROWNING N Type Quick Disconnect Bushings
Filter
A
B
C
D| Style | Model | Bore Size | Keyway Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Type | Rated Torque | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1075373 | 2 5/8" | 5/8" x 5/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075415 | 2 7/8" | 3/4" x 3/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075340 | 2 7/16" | 5/8" x 5/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €1,415.47 | |
| A | 1075365 | 2 9/16" | 5/8" x 5/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075381 | 2 11/16" | 5/8" x 5/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €3,077.51 | |
| A | 1075407 | 2 13/16" | 3/4" x 3/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075423 | 2 15/16" | 3/4" x 3/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €2,959.17 | |
| A | 1075449 | 3 1/16" | 3/4" x 3/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075555 | 3 3/4" | 7/8" x 7/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075498 | 3 3/8" | 7/8" x 7/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075464 | 3 3/16" | 3/4" x 3/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €3,136.73 | |
| A | 1075480 | 3 5/16" | 7/8" x 7/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075506 | 3 7/16" | 7/8" x 7/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €2,818.26 | |
| A | 1075548 | 3 11/16" | 7/8" x 7/16" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €3,136.73 | |
| A | 1075589 | 3 15/16" | 1" x 1/2" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €2,818.26 | |

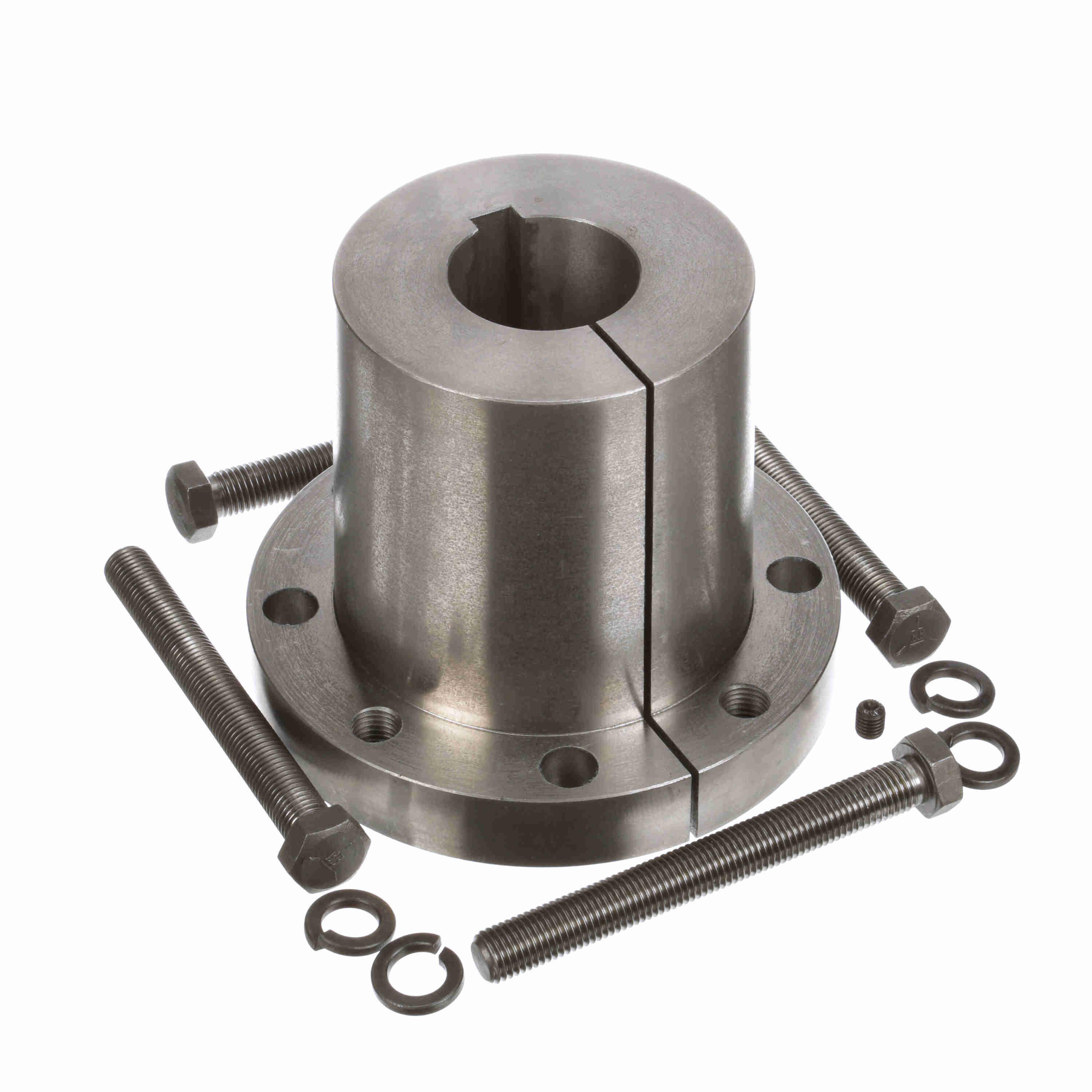

| B | 1075431 | 3" | 3/4" x 3/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €1,472.08 | |
| A | 1075621 | 4 3/16" | 1" x 1/2" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075738 | 4 7/8" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €2,818.26 | |
| A | 1075662 | 4 7/16" | 1" x 1/2" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,959.17 | |
| A | 1075688 | 4 9/16" | 1" x 1/2" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €2,818.26 | |
| A | 1075704 | 4 11/16" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €2,818.26 | |
| A | 1075746 | 4 15/16" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,959.17 | |
| A | 1075597 | 4" | 1" x 1/2" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €3,077.51 | |

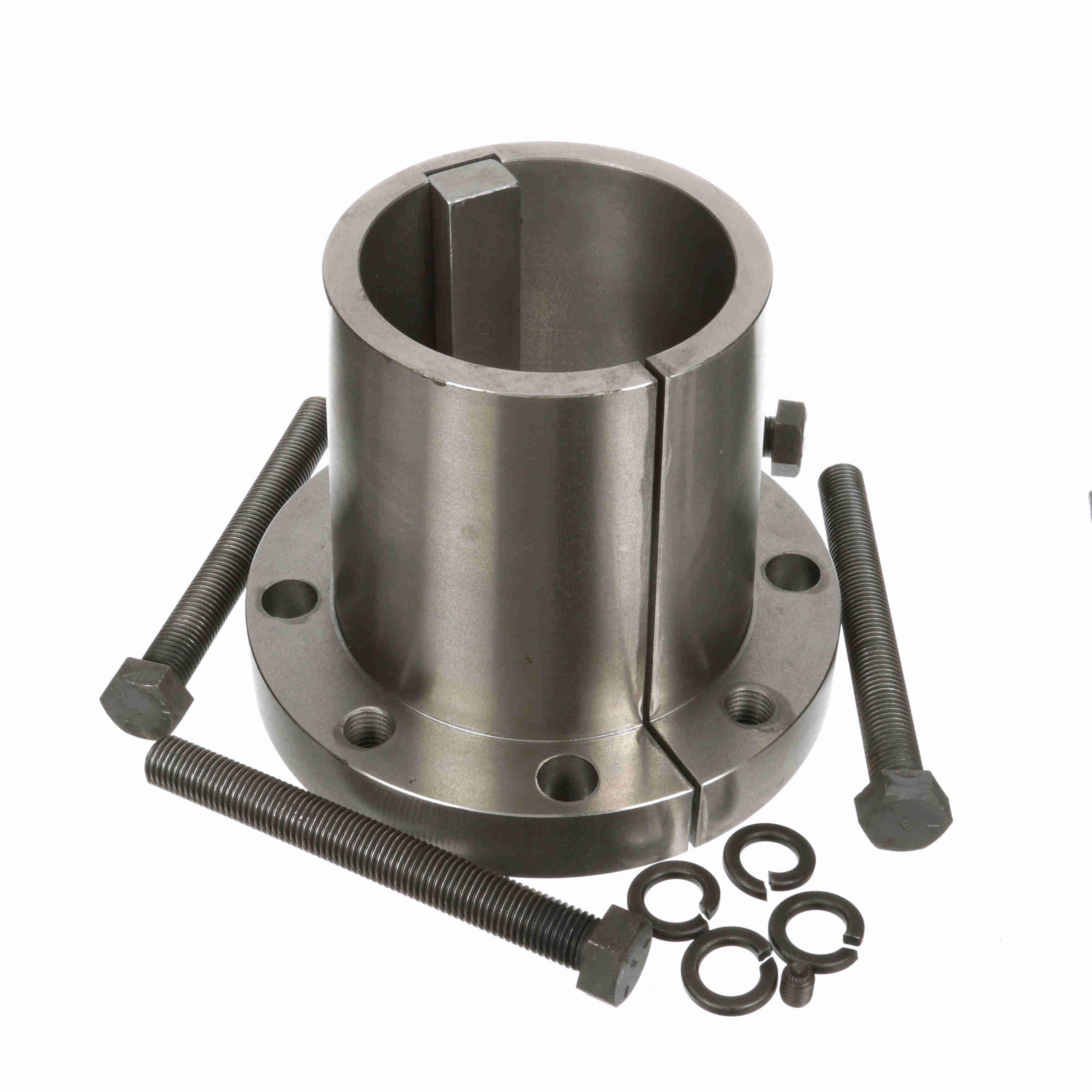

| C | 1075837 | 5 1/2" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €1,500.40 | |
| A | 1075795 | 5 1/4" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €3,170.53 | |
| A | 1075779 | 5 1/8" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075878 | 5 3/4" | 1 1/2" x 3/4" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €1,348.06 | |

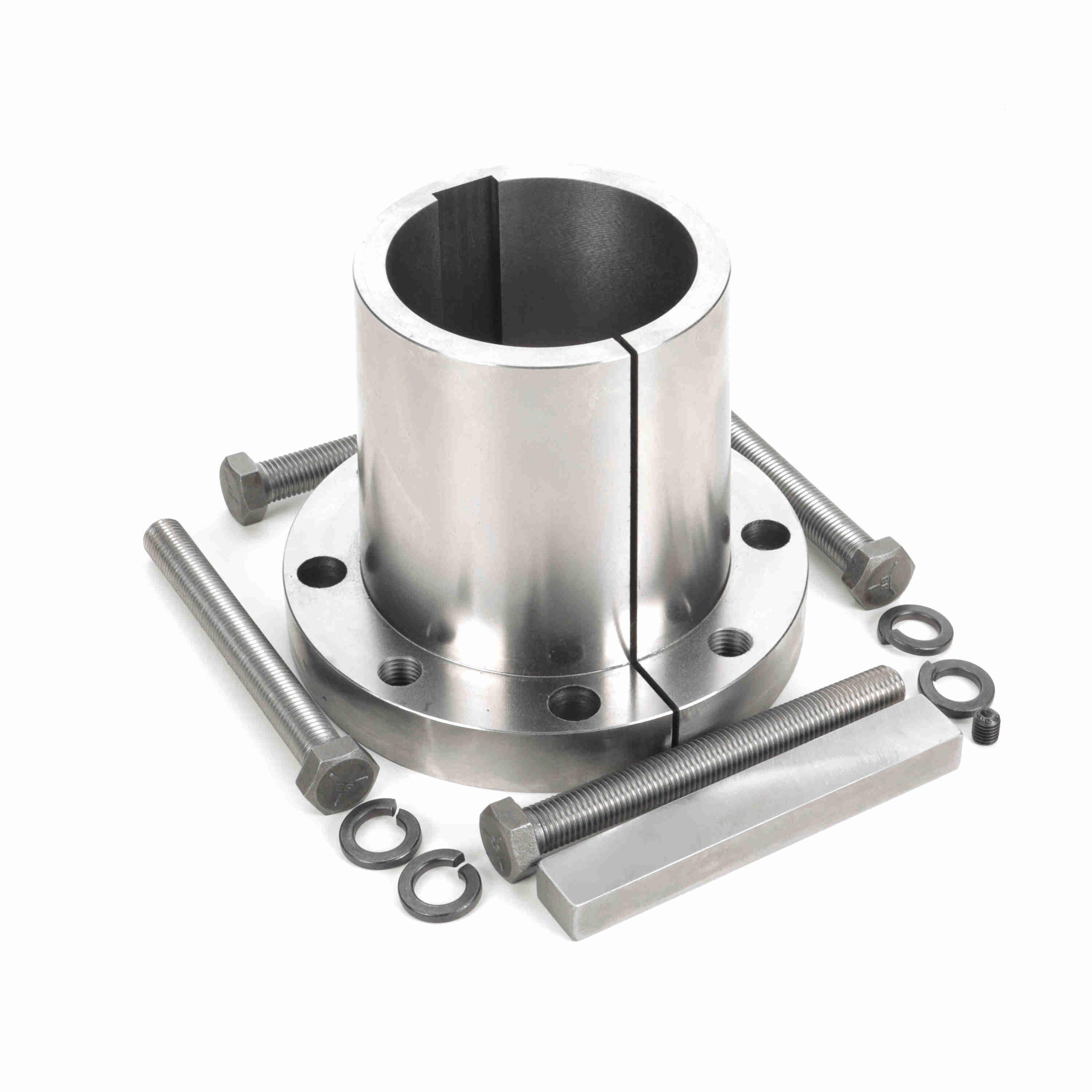

| D | 1075829 | 5 7/16" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,959.17 | |
| A | 1075845 | 5 9/16" | 1 1/2" x 3/4" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €2,818.26 | |
| A | 1075860 | 5 11/16" | 1 1/2" x 3/4" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | - | €3,077.51 | |
| A | 1075753 | 5" | 1 1/2" x 5/8" | 8 1/2" | 8.14" | 1 1/2" | Type N | 150000 lbs.-in. | 7" | €1,415.47 |
