BONOMI Check Valves
Filter
A
B
C
D
E
F
G| Style | Model | Seat Material | Cracking Pressure | Max. Water Pressure | Overall Height | Pipe Size, Tube Size | Max. Steam Pressure | For Media | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 100012LF-1-1/2 | Buna N | 0.5 psi | 400 psi | 2 7/8" | 1 1/2" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €99.79 | |
| A | 100012LF-1/2 | Buna N | 0.5 psi | 400 psi | 1 3/8" | 1/2" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €21.99 | |
| B | 100712LF-1/2 | Buna N | 0.5 psi | 200 psi | 1 3/8" | 1/2" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €41.76 | |
| A | 100012LF-1-1/4 | Buna N | 0.5 psi | 400 psi | 2.406" | 1 1/4" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €62.03 | |
| A | 100012LF-1/4 | Buna N | 0.5 psi | 400 psi | 1.062" | 1/4" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €21.47 | |
| A | 100012LF-2-1/2 | Buna N | 0.5 psi | 400 psi | 4.391" | 2 1/2" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €253.17 | |
| B | 100712LF-1 | Buna N | 0.5 psi | 200 psi | 1.938" | 1" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €67.58 | |
| C | 100012LF-3/8 | Buna N | 0.5 psi | 400 psi | 1.062" | 3/8" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €22.69 | |
| B | 100712LF-1-1/4 | Buna N | 0.5 psi | 200 psi | 2.406" | 1 1/4" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €109.99 | |
| A | 100012LF-3/4 | Buna N | 0.5 psi | 400 psi | 1.719" | 3/4" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €29.50 | |
| B | 100712LF-3/4 | Buna N | 0.5 psi | 200 psi | 1.656" | 3/4" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €53.32 | |
| B | 100712LF-1-1/2 | Buna N | 0.5 psi | 200 psi | 2 7/8" | 1 1/2" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €146.54 | |
| A | 100012LF-2 | Buna N | 0.5 psi | 400 psi | 3.453" | 2" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €115.99 | |
| A | 100012LF-4 | Buna N | 0.5 psi | 400 psi | 6.422" | 4" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €527.68 | |
| B | 100712LF-2 | Buna N | 0.5 psi | 200 psi | 3.453" | 2" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €190.88 | |
| A | 100012LF-1 | Buna N | 0.5 psi | 400 psi | 1.938" | 1" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €37.13 | |
| A | 100012LF-3 | Buna N | 0.5 psi | 400 psi | 5 1/4" | 3" | Not Rated | Gas, Oil, Water | -4°F to +210°F | €349.78 | |
| D | S250-1 1/2 | FKM | 0.5 psi | 250 psi | 3.078" | 1 1/2" | Not Rated | Gas, Oil, Water | -4°F to +302°F | €104.44 | |
| E | 100003-3 | FKM | 0.5 psi | 400 psi | 5 1/4" | 3" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €286.30 | |
| E | 100003-3/4 | FKM | 0.5 psi | 400 psi | 1.719" | 3/4" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €23.48 | |

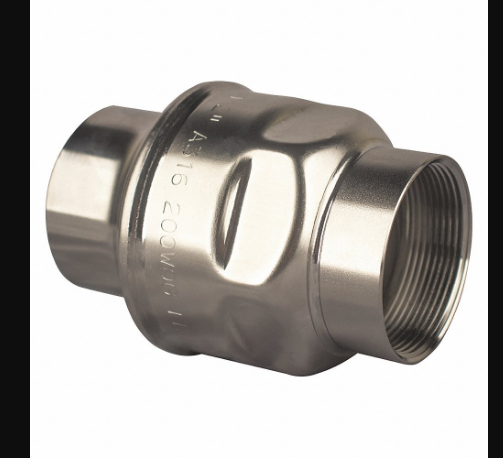

| D | S250-3/4 | FKM | 1/2 psi | 250 psi | 1.734" | 3/4" | Not Rated | - | - | €55.27 | |
| D | S250-11/4 | FKM | 0.5 psi | 250 psi | 2.438" | 1 1/4" | Not Rated | Gas, Oil, Water | -4°F to +302°F | €86.00 | |
| D | S250-2 | FKM | 0.5 psi | 250 psi | 3 1/2" | 2" | Not Rated | Gas, Oil, Water | -4°F to +302°F | €181.21 | |
| E | 100003-1-1/4 | FKM | 0.5 psi | 400 psi | 2.406" | 1 1/4" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €47.48 | |
| D | S250-1 | FKM | 0.5 psi | 250 psi | 2.094" | 1" | Not Rated | Gas, Oil, Water | -4°F to +302°F | €64.49 | |
| E | 100003-1/2 | FKM | 0.5 psi | 400 psi | 1 3/8" | 1/2" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €16.87 | |
| E | 100003-2 | FKM | 0.5 psi | 400 psi | 3.453" | 2" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €105.90 | |
| E | 100003-4 | FKM | 0.5 psi | 400 psi | 6.422" | 4" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €413.70 | |
| D | S250-1/2 | FKM | 0.5 psi | 250 psi | 1.266" | 1/2" | Not Rated | Gas, Oil, Water | -4°F to +302°F | €50.67 | |
| E | 100003-2-1/2 | FKM | 0.5 psi | 400 psi | 4.391" | 2 1/2" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €203.48 | |
| E | 100003-3/8 | FKM | 0.5 psi | 400 psi | 1.062" | 3/8" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €16.21 | |
| E | 100003-1-1/2 | FKM | 0.5 psi | 400 psi | 2 7/8" | 1 1/2" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +366°F | €74.80 | |
| F | S800-1/4 | PTFE | 0.5 psi | 800 psi | 1.344" | 1/4" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €74.97 | |

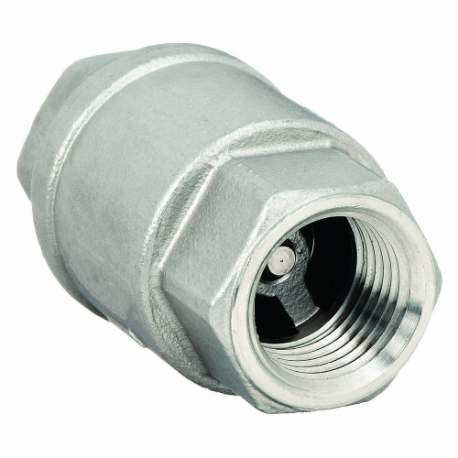

| G | S800-1/2 | PTFE | 0.5 psi | 800 psi | 1.344" | 1/2" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €84.08 | |

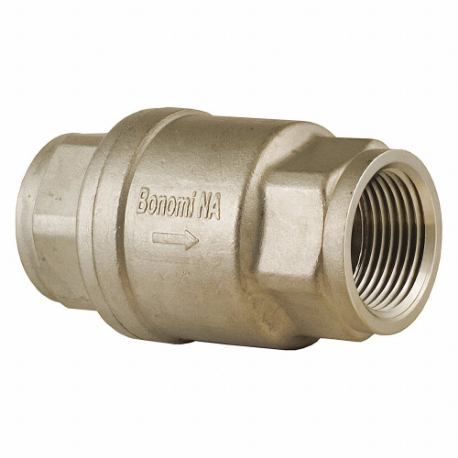

| F | S800-2 | PTFE | 0.5 psi | 800 psi | 3.562" | 2" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €364.65 | |
| F | S800-1 | PTFE | 0.5 psi | 800 psi | 2 1/8" | 1" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €141.30 | |
| F | S800-3/8 | PTFE | 0.5 psi | 800 psi | 1.344" | 3/8" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €74.97 | |
| F | S800-3/4 | PTFE | 0.5 psi | 800 psi | 1.812" | 3/4" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €122.11 | |
| F | S800-11/4 | PTFE | 0.5 psi | 800 psi | 2.469" | 1 1/4" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €229.74 | |
| F | S800-11/2 | PTFE | 0.5 psi | 800 psi | 2 7/8" | 1 1/2" | 125 psi WSP | Gas, Oil, Steam, Water | -4°F to +400°F | €300.41 | |
| E | 100003-1 | Viton | 1/2 psi | 400 psi | 1.938" | 1" | 125 psi WSP | - | - | €30.67 |
