BATTALION Template Hinge
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Mounting | Material | Holes Per Leaf | Bearing Type | Height | Frame Leaf Width | Frame Leaf Thickness | Load Capacity | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1BYX5 | Full Mortise | Steel | 4 | Plain | 4 1/2" | - | - | 75 lbs. | 3 | - | RFQ
|

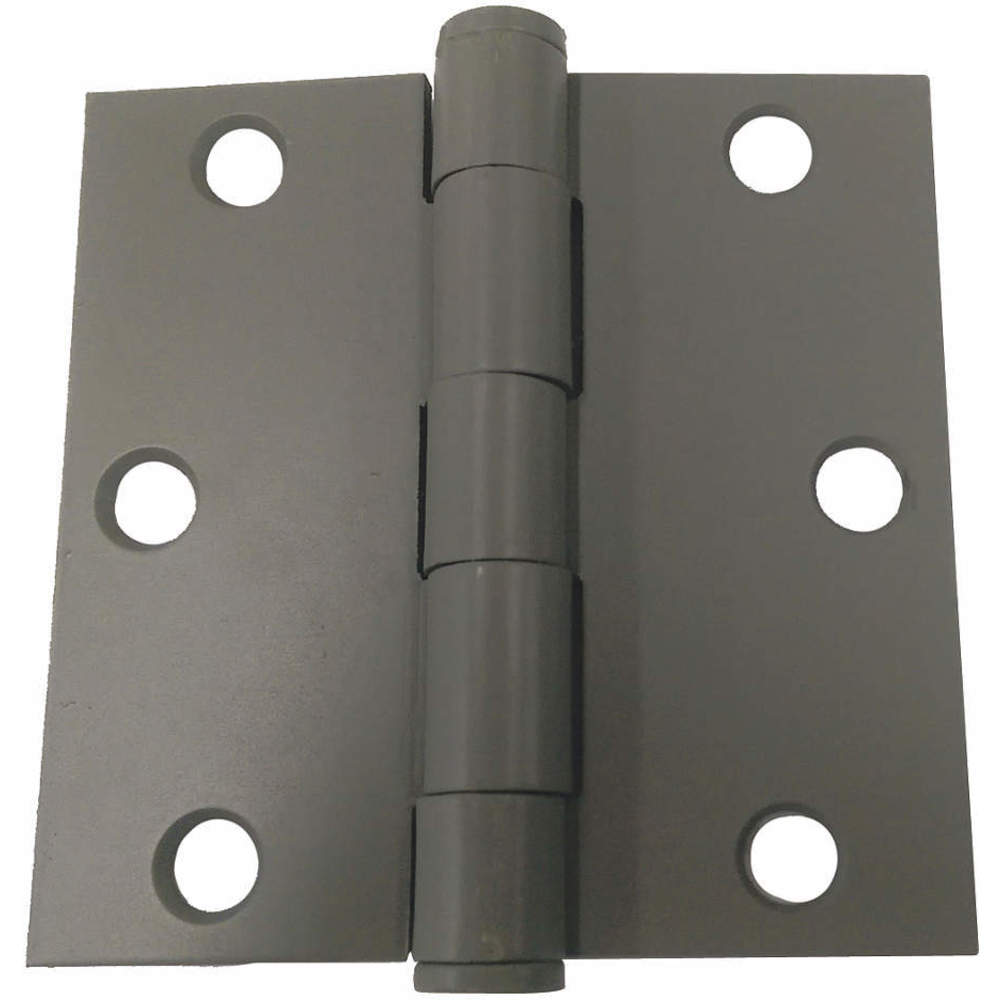

| B | 4PA28 | Full Mortise | Steel | 3.0 | Plain | 3 1/2" | 1 1/2" | 0.123" | 45 lbs. | 1 | €15.35 | |
| C | 4PA63 | Full Mortise | Steel | 3.0 | Plain | 3" | 1 1/4" | 0.08" | - | 1 | €7.12 | |

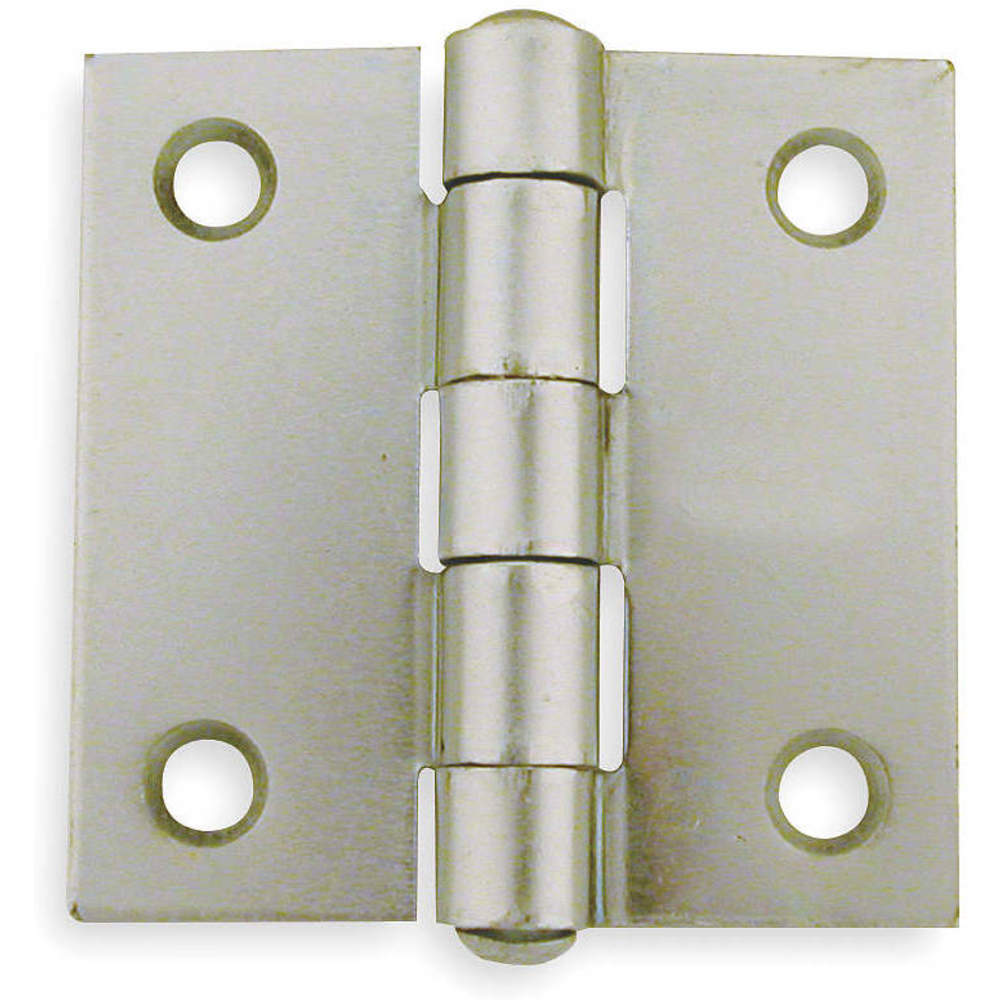

| D | 4PA62 | Full Mortise | Steel | 2.0 | Plain | - | 1" | 0.077" | - | 1 | €6.62 | |
| E | 4PA61 | Full Mortise | Steel | 4.0 | Plain | 4" | 1 3/4" | 0.088" | - | 1 | €11.13 | |

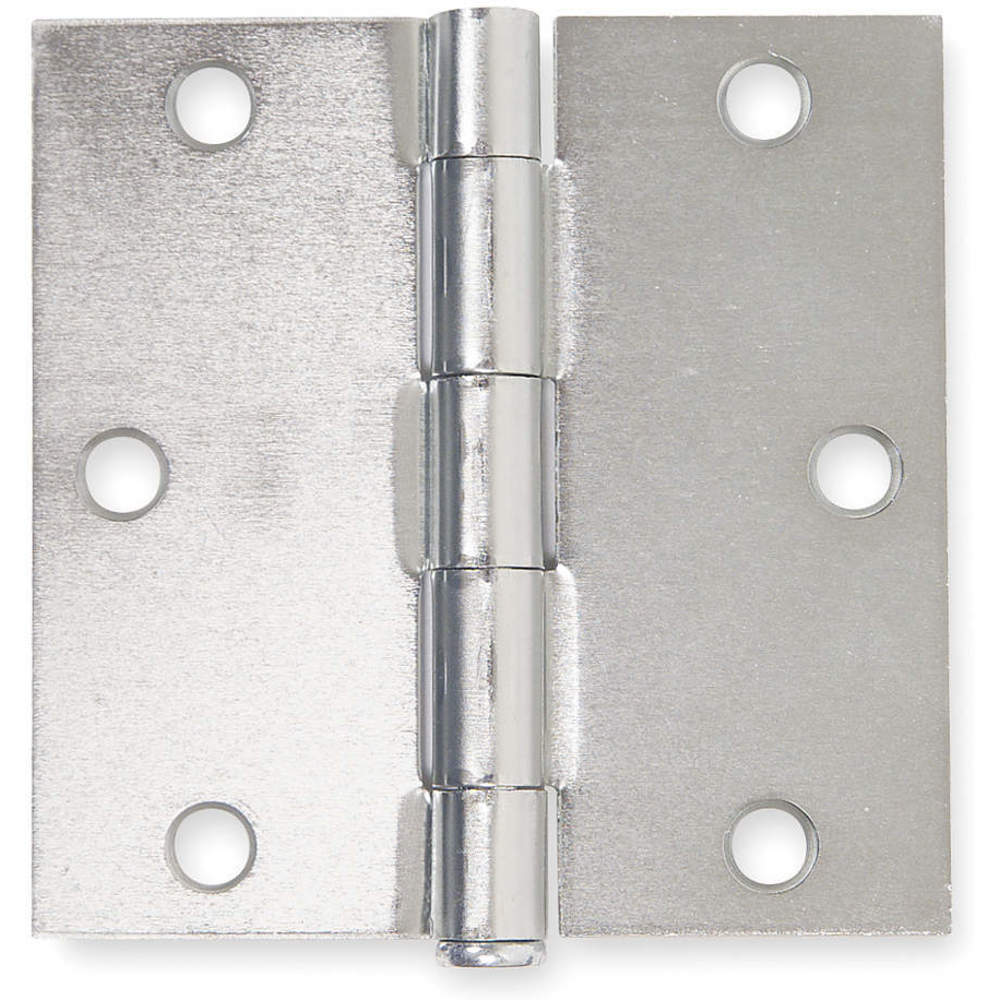

| F | 4PA60 | Full Mortise | Steel | 3.0 | Plain | 3 1/2" | 1 1/2" | 0.088" | - | 1 | €8.51 | |

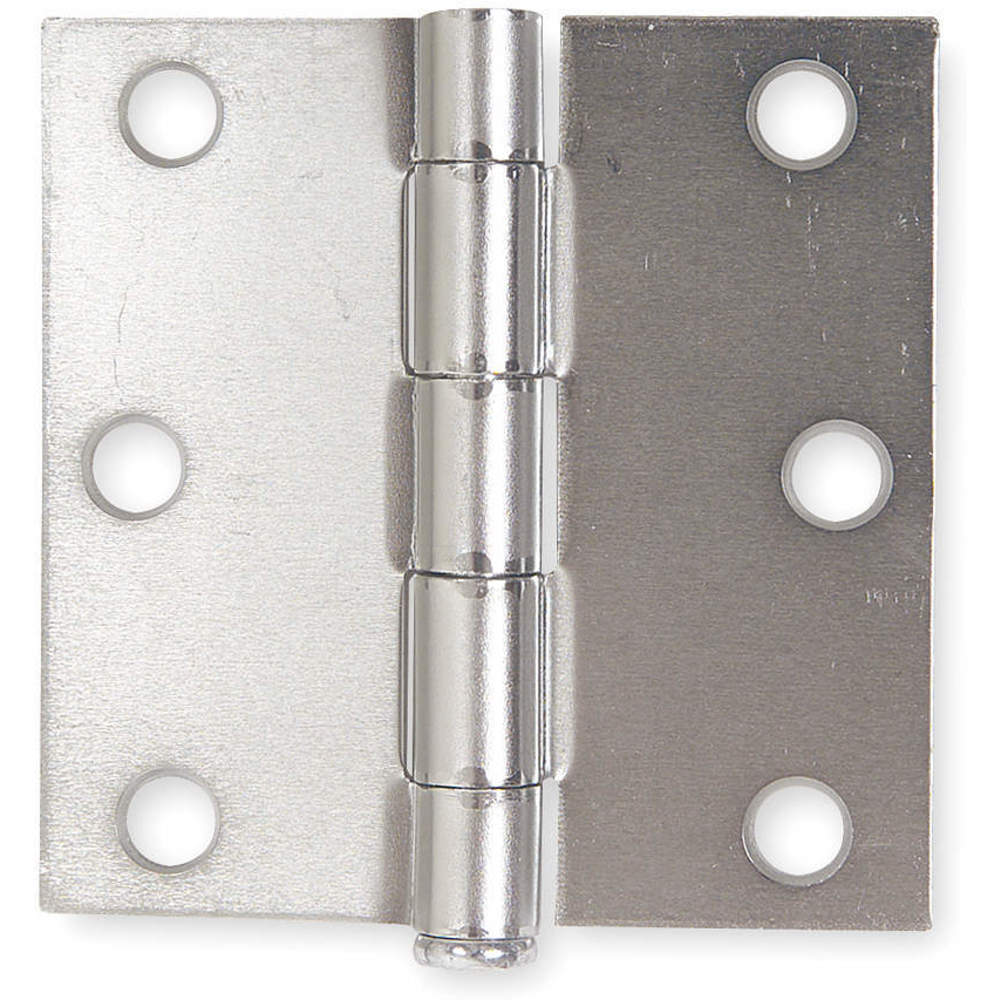

| G | 4PA59 | Full Mortise | Steel | 3.0 | Plain | 3" | 1 1/4" | 0.078" | - | 1 | €5.91 | |

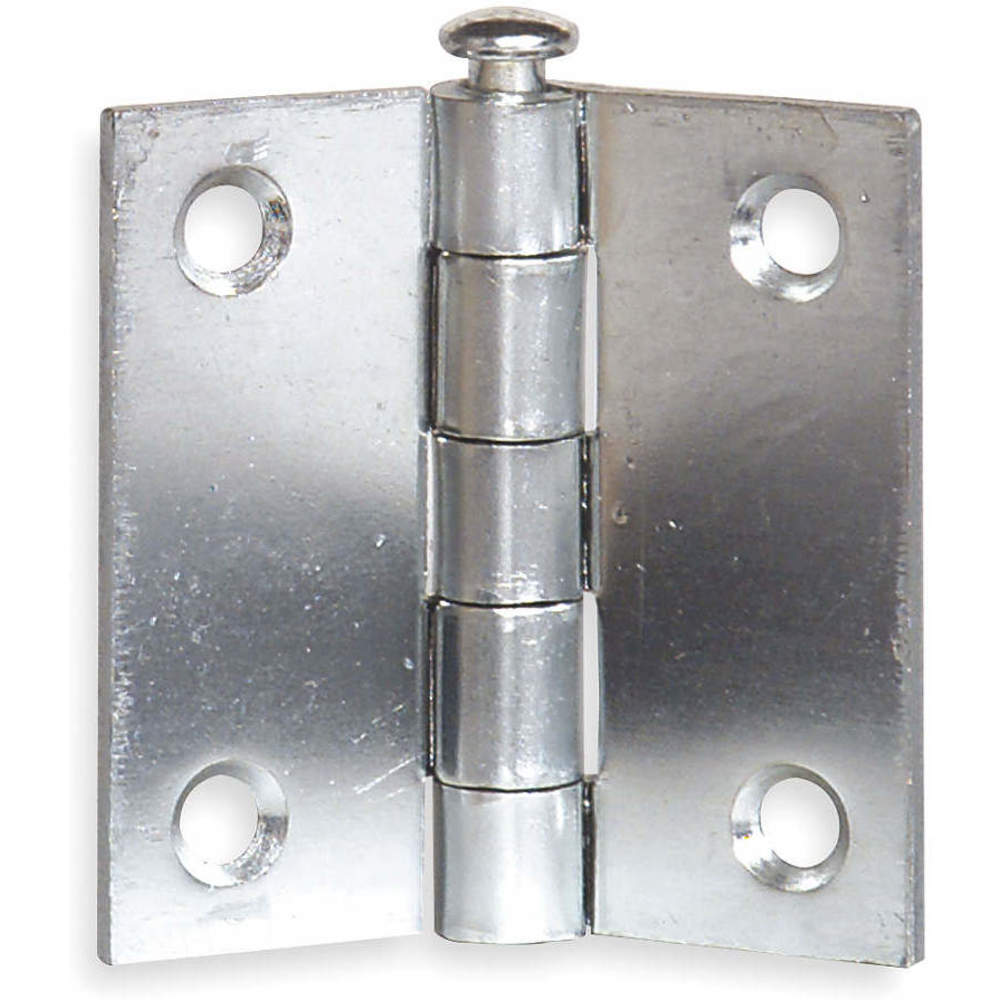

| H | 4PA58 | Full Mortise | Steel | 2.0 | Plain | - | 1" | 0.077" | - | 1 | €5.05 | |

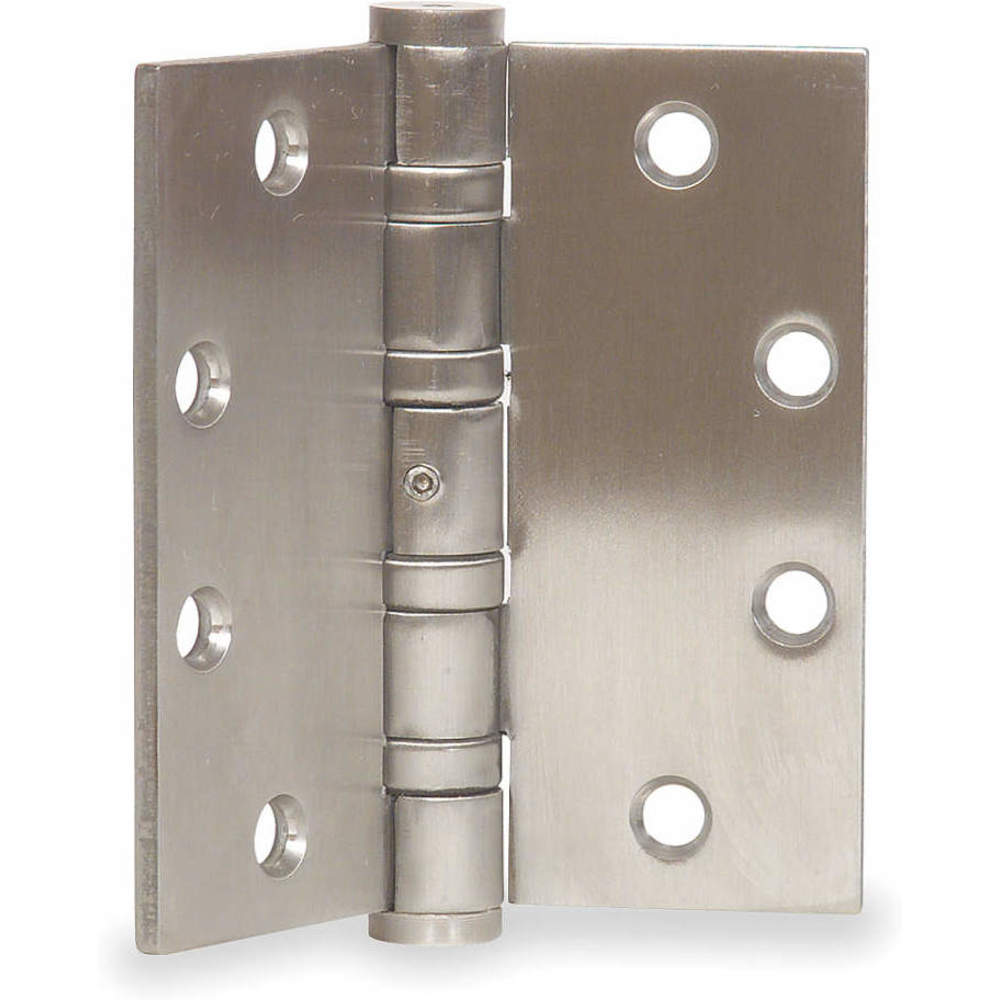

| I | 4PA50 | Full Mortise | Stainless Steel | 4 | Ball | 4 1/2" | - | - | - | 1 | - | RFQ
|
| J | 4PA47 | Full Mortise | Steel | 4.0 | Ball | 5" | 2" | 0.19" | 140 lbs. | 1 | €100.92 | |
| K | 4PA38 | Full Mortise | Steel | 4.0 | Ball | 4 1/2" | 2" | 0.134" | - | 1 | €34.81 | |

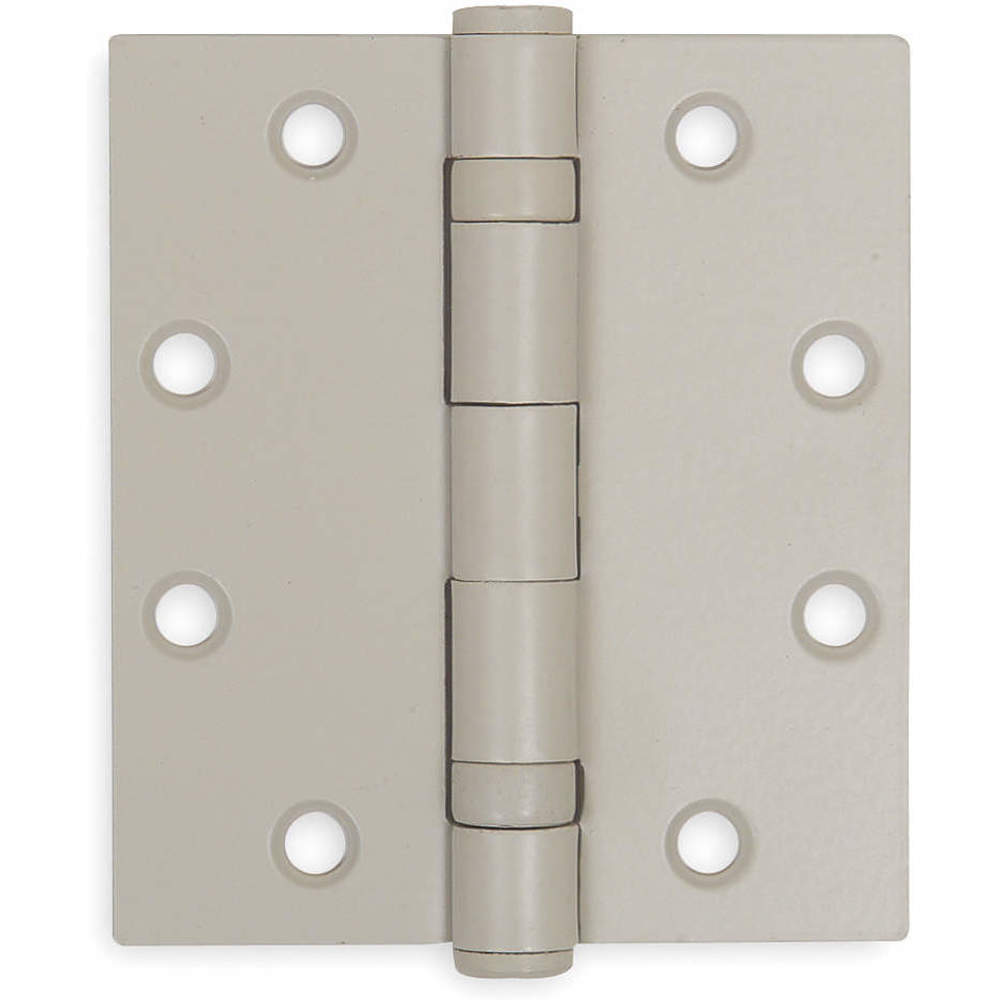

| L | 4PA35 | Full Mortise | Steel | 4 | Ball | 4 1/2" | - | - | - | 1 | - | RFQ
|
| M | 4PA29 | Full Mortise | Steel | 4.0 | Plain | 4" | 1 3/4" | 0.13" | 75 lbs. | 1 | €17.04 | |

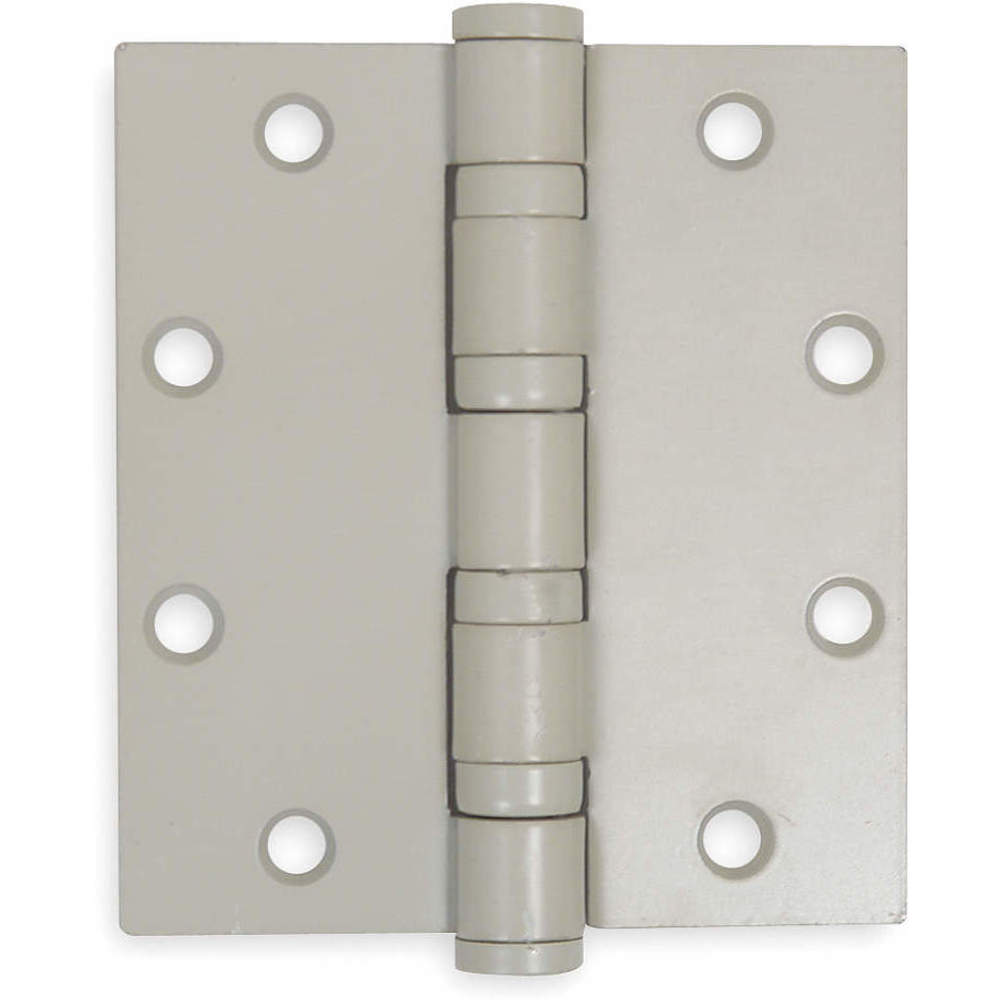

| J | 3HUA5 | Full Mortise | Steel | 4.0 | Ball | 5" | 1 3/4" | 0.19" | 140 lbs. | 1 | - | RFQ
|
| J | 3HUA3 | Full Mortise | Steel | 4.0 | Ball | 4 1/2" | 1 3/4" | 0.18" | 140 lbs. | 1 | €57.22 | |

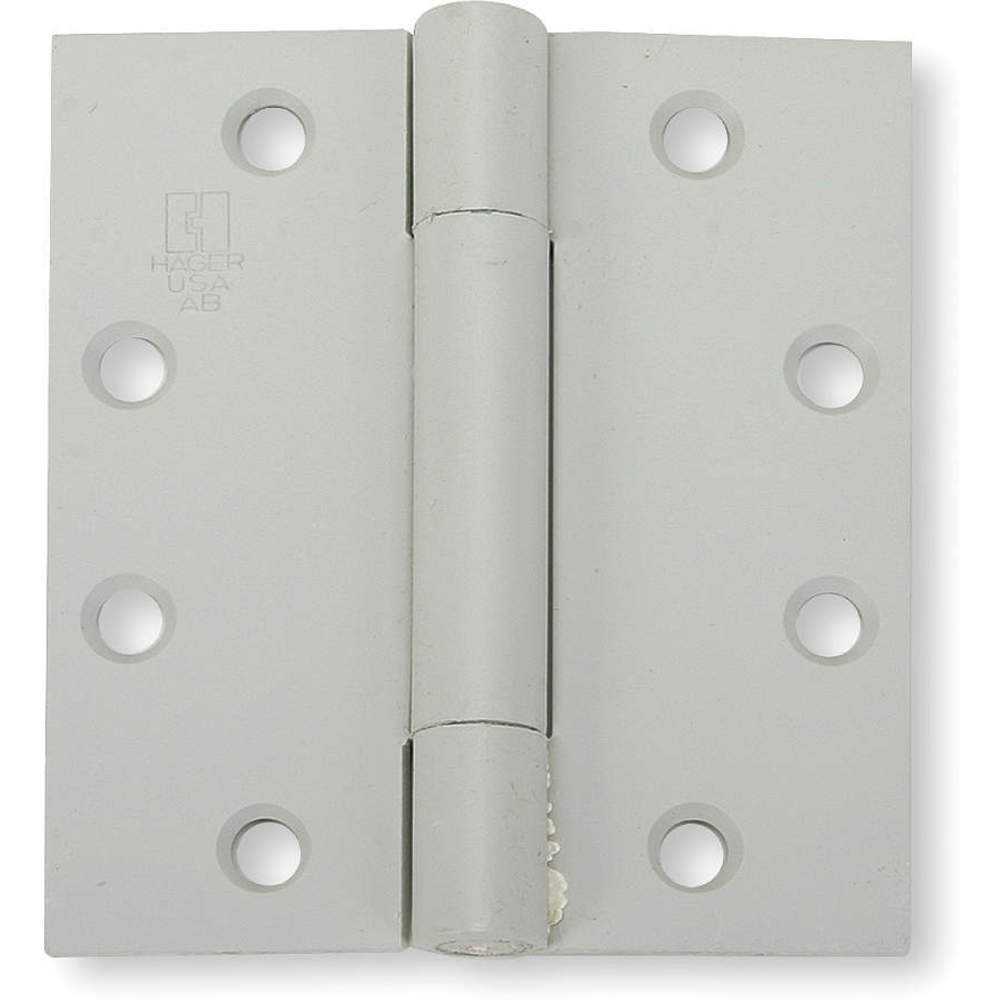

| N | 3HTZ2 | Full Mortise | Steel | 4.0 | Ball | 4" | 1 3/4" | 0.13" | 75 lbs. | 1 | €29.29 | |

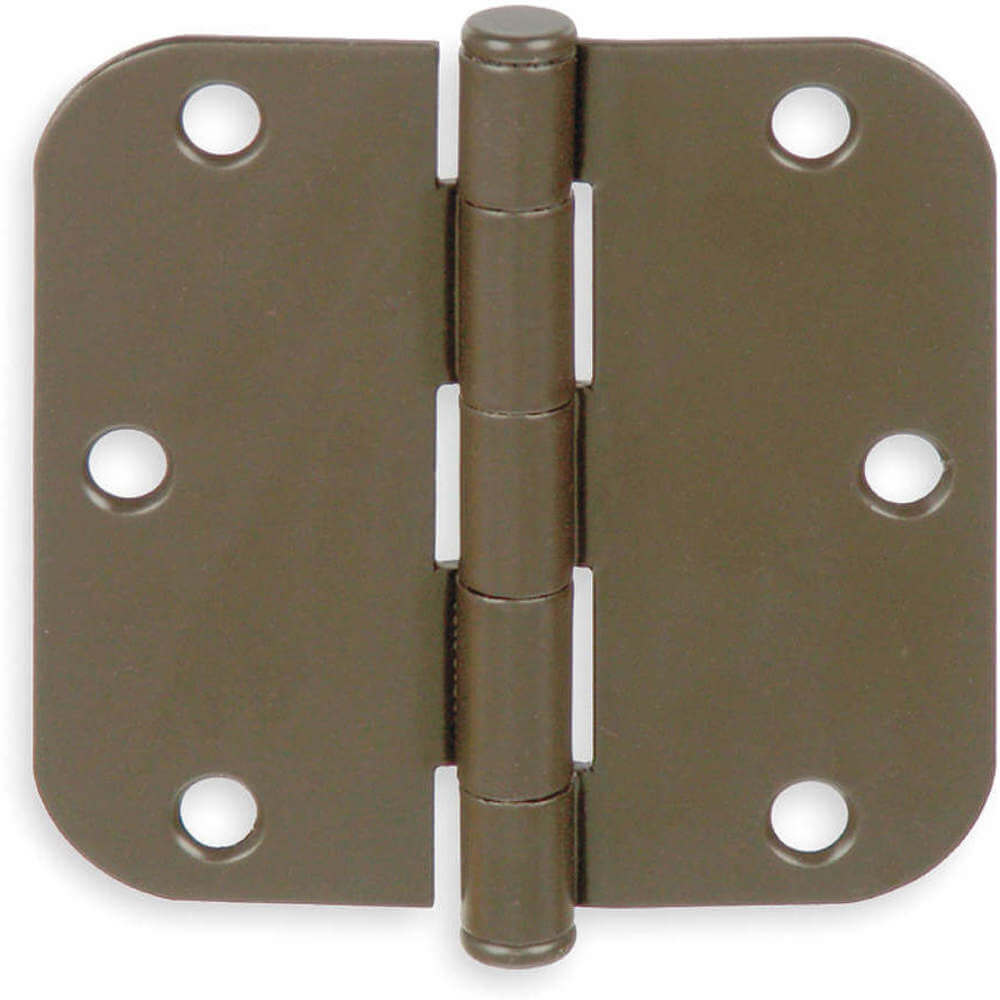

| O | 1XMB9 | Full Mortise | Steel | 3.0 | Plain | 3 1/2" | 1 1/2" | 0.078" | - | 2 | €8.67 | |
| P | 1WAN2 | Full Mortise | Steel | 3.0 | Plain | 3 1/2" | 1 1/2" | 0.087" | - | 2 | €24.74 | |
| Q | 1RBY5 | Full Mortise | Stainless Steel | 2.0 | Plain | 2 1/2" | 1" | 0.077" | - | 2 | - | RFQ
|

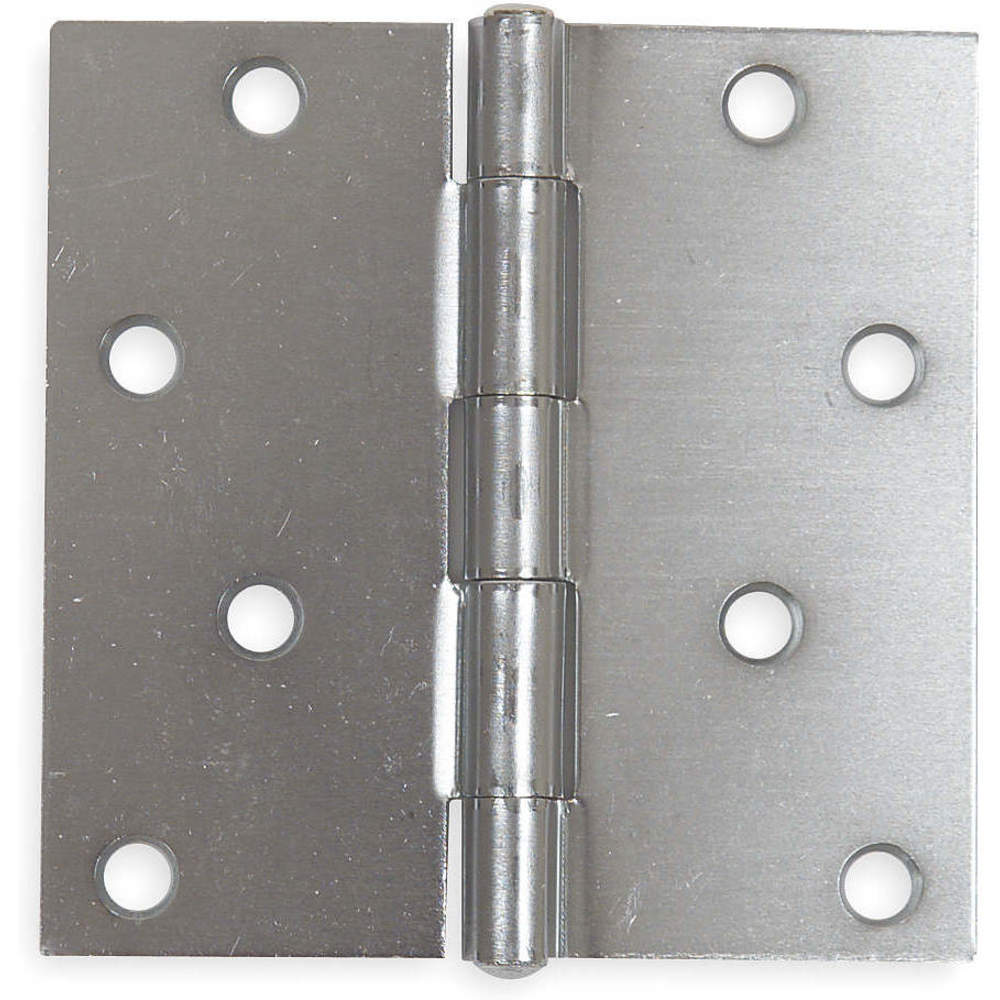

| R | 4PA64 | Full Mortise | Steel | 4.0 | Plain | 4" | 1 3/4" | 0.088" | - | 1 | €10.93 | |
| S | 1RBT5 | Full Surface | Steel | 2.0 | Plain | 1 1/2" | 5/8" | 0.045" | - | 1 | €2.07 | |

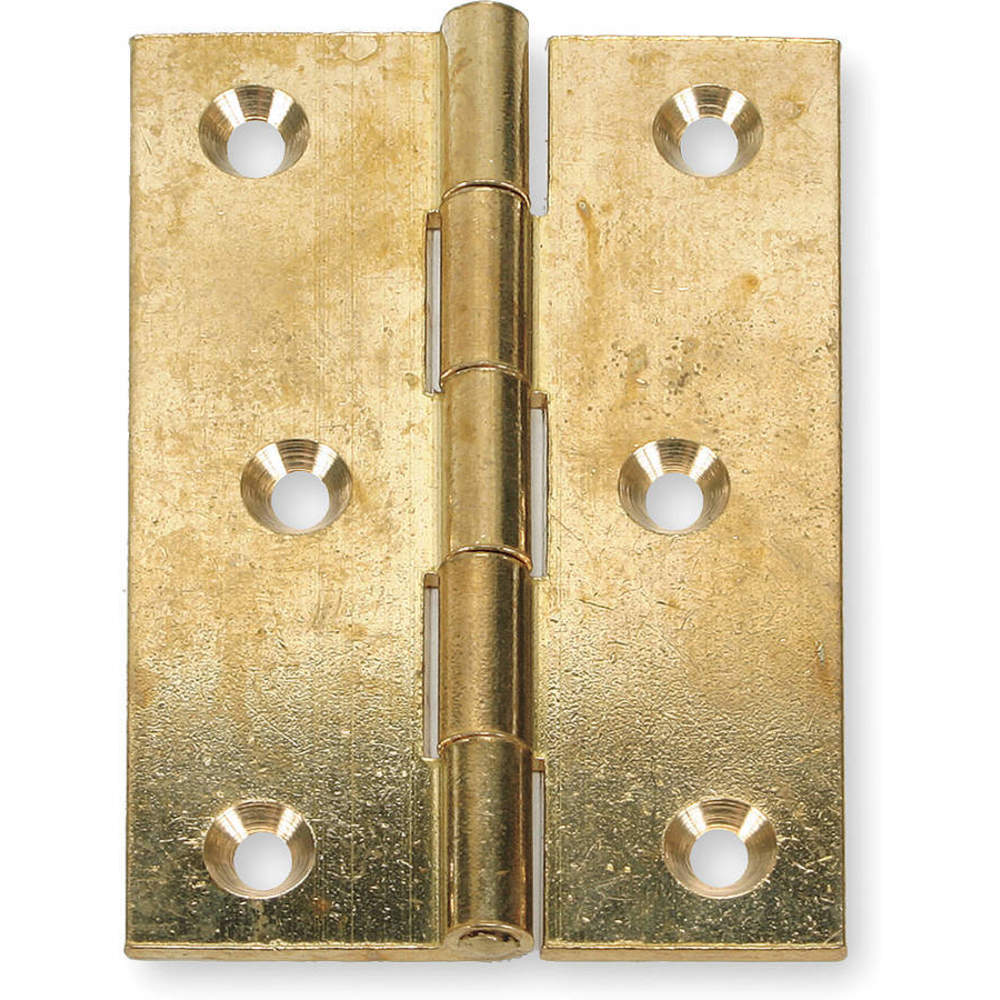

| T | 3HTR5 | Full Surface | Steel | 3.0 | Plain | 3" | 1" | 0.082" | - | 1 | €25.28 | |

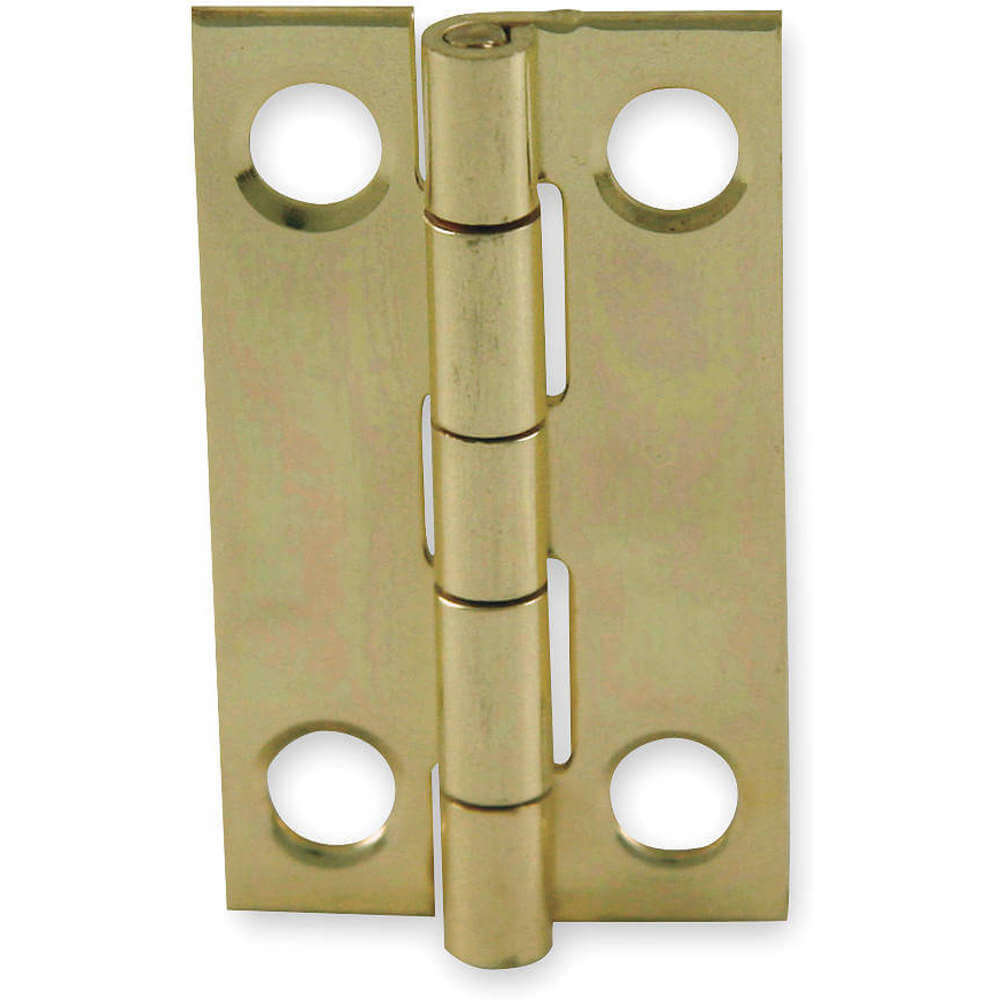

| U | 1XMC4 | Full Surface | Brass | 2.0 | Plain | 1 1/2" | 7/16" | 0.04" | - | 2 | €6.37 | |

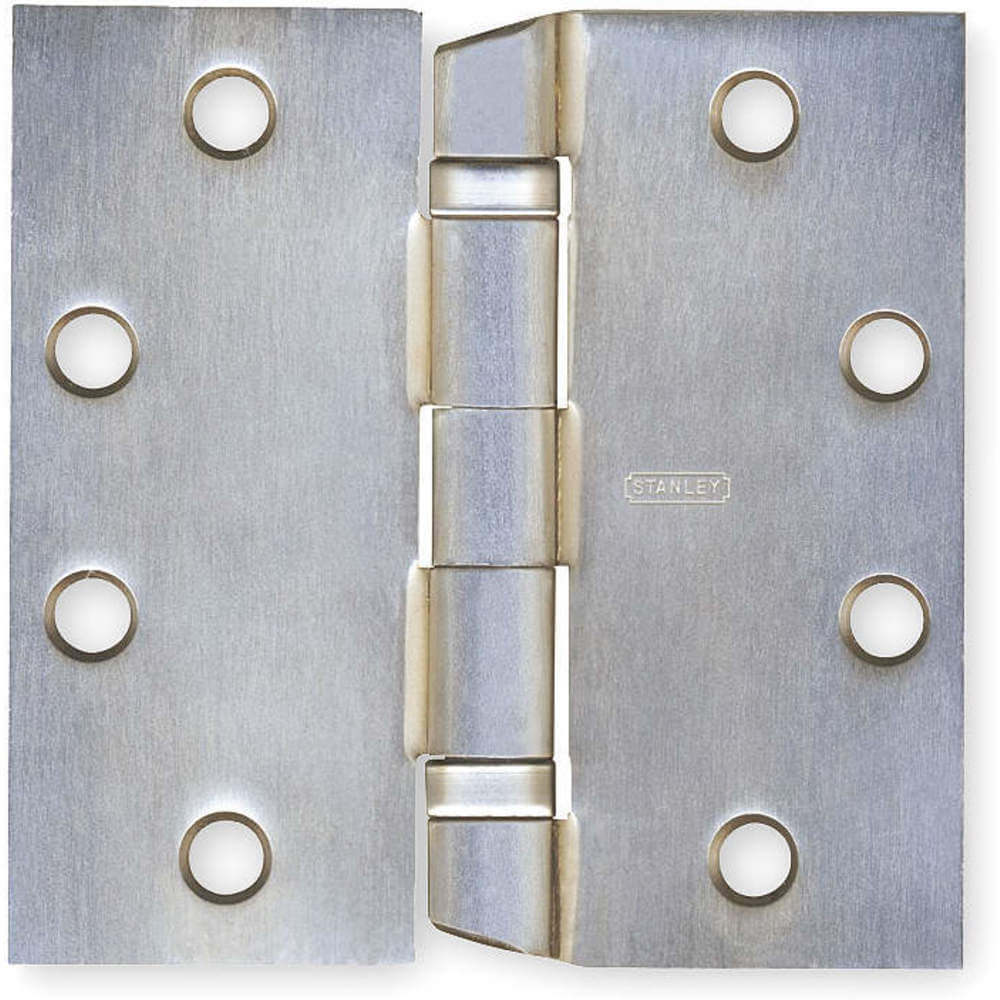

| V | 1XLY5 | Full Surface | Steel | 4.0 | Ball | 4 1/2" | 2" | 0.134" | 250 lbs. | 1 | - | RFQ
|
| W | 1RBU5 | Full Surface | Steel | 3.0 | Plain | 3" | 1" | 0.065" | - | 2 | €8.16 | |
| X | 1RBU3 | Full Surface | Steel | 2.0 | Plain | 2 1/2" | 7/8" | 0.056" | - | 2 | €5.47 | |
| Y | 1RBT7 | Full Surface | Steel | 3.0 | Plain | 2 1/2" | 7/8" | 0.056" | - | 1 | €2.90 |
