ARMSTRONG WORLD INDUSTRIES Steam Traps
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N| Style | Model | Condensate Capacity | Max. Operating Pressure | Steam Trap Type | Body Material | Distance Between Inlet And Outlet Port | Max. Operating Temp. | Body Material Grade | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B2311C-2 | - | - | - | - | - | - | - | - | €330.28 | |
| A | B2311C-1 | - | - | - | - | - | - | - | - | €328.46 | |
| B | 800-075-150 | 600 lbs./hr. | 150 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €239.91 | |
| C | 1811-075-400 | 600 lbs./hr. | 400 psi | - | - | - | - | Grade 304L | Inverted Bucket | €524.73 | |
| D | 800-050-150 | 600 lbs./hr. | 150 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €234.55 | |
| C | 1811-050-400 | 600 lbs./hr. | 400 psi | - | - | - | - | Grade 304L | Inverted Bucket | €520.90 | |
| D | 800-075-080 | 700 lbs./hr. | 80 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €250.95 | |
| D | 800-050-080 | 700 lbs./hr. | 80 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €287.04 | |
| E | 881-100-250 | 750 lbs./hr. | 250 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €370.88 | |
| D | 811-075-250 | 750 lbs./hr. | 250 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €337.61 | |
| D | 811-050-250 | 750 lbs./hr. | 250 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €360.90 | |
| E | 881-075-250 | 750 lbs./hr. | 250 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €347.26 | |
| E | 881-050-250 | 750 lbs./hr. | 250 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €351.07 | |
| D | 811-100-250 | 750 lbs./hr. | 250 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €310.71 | |
| F | 2011-400 | 800 lbs./hr. | 400 psi | Inverted Bucket | Stainless Steel | 3 15/16" | 800°F | Grade 304L | Inverted Bucket | €520.90 | |
| F | 2011-125 | 850 lbs./hr. | 125 psi | Inverted Bucket | Stainless Steel | 3 15/16" | 800°F | Grade 304L | Inverted Bucket | €557.52 | |
| C | 1811-050-200 | 900 lbs./hr. | 200 psi | Inverted Bucket | Stainless Steel | 4 5/16" | 800°F | Grade 304L | Inverted Bucket | €564.25 | |
| C | 1811-075-125 | 900 lbs./hr. | 125 psi | Inverted Bucket | Stainless Steel | 4 5/16" | 800°F | Grade 304L | Inverted Bucket | €520.90 | |
| D | 811-075-125 | 950 lbs./hr. | 125 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €369.82 | |
| E | 881-075-125 | 950 lbs./hr. | 125 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €374.77 | |
| E | 881-100-125 | 950 lbs./hr. | 125 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €348.64 | |
| D | 811-100-125 | 950 lbs./hr. | 125 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €326.77 | |
| D | 811-050-125 | 950 lbs./hr. | - | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €393.28 | |
| E | 881-050-125 | 950 lbs./hr. | 125 psi | - | - | - | - | Cast Iron | Inverted Bucket | €351.93 | |
| D | 811-075-030 | 1000 lbs./hr. | 30 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €310.71 | |
| E | 881-075-030 | 1000 lbs./hr. | 30 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €349.27 | |
| E | 881-050-030 | 1000 lbs./hr. | 30 psi | - | - | - | - | Cast Iron | Inverted Bucket | €357.70 | |
| D | 811-050-030 | 1000 lbs./hr. | 30 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €316.31 | |
| D | 811-100-030 | 1000 lbs./hr. | 30 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €310.71 | |
| E | 881-100-030 | 1000 lbs./hr. | 30 psi | Inverted Bucket | Cast Iron | 5" | 450°F | Cast Iron | Inverted Bucket | €370.88 | |

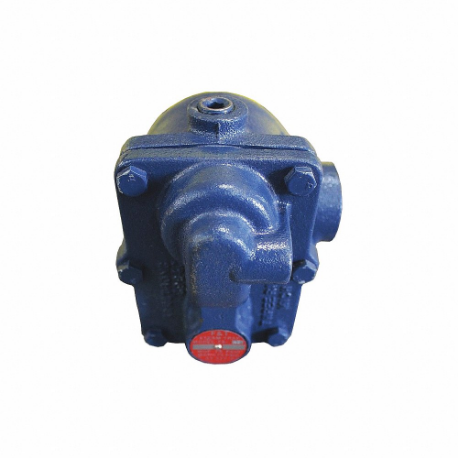

| G | 175AI4 | 1100 lbs./hr. | 175 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €704.28 | |
| H | 175AI2 | 1100 lbs./hr. | 175 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €615.18 | |
| H | 175AI3 | 1100 lbs./hr. | 175 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €615.18 | |
| H | 175A4 | 1150 lbs./hr. | 175 psi | Float and Thermostatic | Cast Iron | 3" | - | Cast Iron | Float And Thermostatic | €723.81 | |
| H | 175A3 | 1150 lbs./hr. | 175 psi | Float and Thermostatic | Cast Iron | 3" | - | Cast Iron | Float And Thermostatic | €582.61 | |
| I | 15BI3 | 1200 lbs./hr. | 15 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €334.93 | |

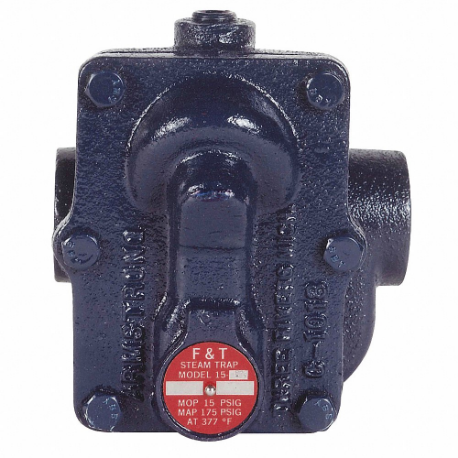

| I | 15BI2 | 1200 lbs./hr. | 15 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €371.14 | |
| J | 15B2 | 1200 lbs./hr. | 15 psi | Float and Thermostatic | Cast Iron | 2 3/4" | - | Cast Iron | Float And Thermostatic | €363.31 | |
| J | 15B3 | 1200 lbs./hr. | 15 psi | Float and Thermostatic | Cast Iron | 2 3/4" | - | Cast Iron | Float And Thermostatic | €377.80 | |
| I | 30BI3 | 1200 lbs./hr. | 30 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €427.57 | |
| E | 882-050-250 | 1300 lbs./hr. | 250 psi | Inverted Bucket | Cast Iron | 3 7/8" | 450°F | Cast Iron | Inverted Bucket | €637.60 | |
| J | 30B3 | 1400 lbs./hr. | 30 psi | Float and Thermostatic | Cast Iron | 2 3/4" | - | Cast Iron | Float And Thermostatic | €433.96 | |
| J | 30B2 | 1400 lbs./hr. | 30 psi | Float and Thermostatic | Cast Iron | 2 3/4" | - | Cast Iron | Float And Thermostatic | €427.87 | |
| C | 1822-100-650 | 1500 lbs./hr. | 650 psi | Inverted Bucket | Stainless Steel | 5" | 600°F | Grade 304L | Inverted Bucket | €1,317.46 | |
| C | 1822-100-250 | 1500 lbs./hr. | 250 psi | Inverted Bucket | Stainless Steel | 5" | 600°F | Grade 304L | Inverted Bucket | €1,371.88 | |
| K | WT-1-075-400 | 1600 lbs./hr. | 400 psi | Thermostatic | Stainless Steel | 4 13/16" | - | Grade 304L | Thermostatic | €693.93 | |

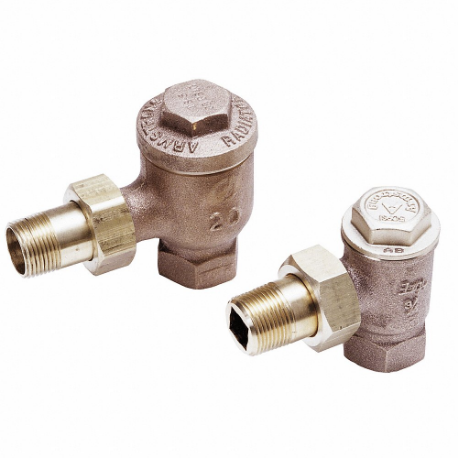

| L | TS2A-075 | 1600 lbs./hr. | 50 psi | Thermostatic | Bronze | 2 7/8" | - | Bronze | Thermostatic | €283.41 | |

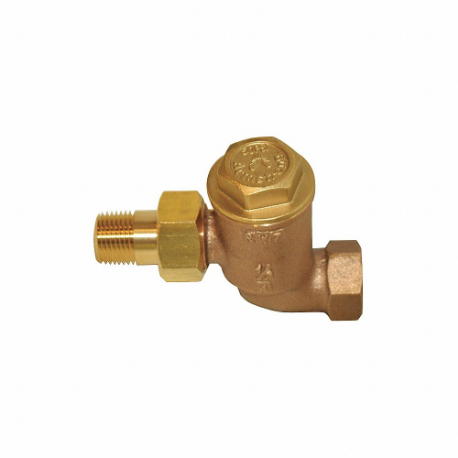

| M | TS2S-075 | 1600 lbs./hr. | 50 psi | Thermostatic | Bronze | 4 1/2" | - | Bronze | Thermostatic | €277.89 | |
| K | WT-1-050-400 | 1600 lbs./hr. | 400 psi | Thermostatic | Stainless Steel | 4 1/2" | - | Grade 304L | Thermostatic | €714.83 | |
| L | TS2A-050 | 1600 lbs./hr. | 50 psi | Thermostatic | Bronze | 2 9/16" | - | Bronze | Thermostatic | €193.17 | |
| M | TS2S-050 | 1600 lbs./hr. | 50 psi | Thermostatic | Bronze | 4" | - | Bronze | Thermostatic | €228.85 | |
| H | 75AI4 | 1800 lbs./hr. | 75 psi | - | - | - | - | Cast Iron | Float And Thermostatic | €704.28 | |
| H | 75AI2 | 1800 lbs./hr. | 75 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €615.18 | |
| H | 75AI3 | 1800 lbs./hr. | 75 psi | Float and Thermostatic | Cast Iron | 5 1/2" | - | Cast Iron | Float And Thermostatic | €627.98 | |
| H | 75A3 | 1800 lbs./hr. | 75 psi | Float and Thermostatic | Cast Iron | 3" | - | Cast Iron | Float And Thermostatic | €620.47 | |
| H | 754A4 | 1800 lbs./hr. | 75 psi | Float and Thermostatic | Cast Iron | 5 1/8" | - | Cast Iron | Float And Thermostatic | €673.31 | |
| N | CD33S-050-600 | 1900 lbs./hr. | 600 psi | Thermodynamic | Stainless Steel | 3 1/2" | 752°F | Stainless Steel | Disc | €586.77 | |

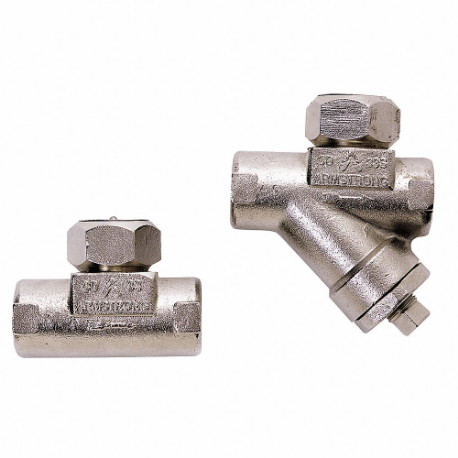

| N | CD33-050-600 | 1900 lbs./hr. | 600 psi | Thermodynamic | Stainless Steel | 3 5/16" | 752°F | Stainless Steel | Disc | €532.41 | |
| N | CD33S-075-600 | 1900 lbs./hr. | 600 psi | Thermodynamic | Stainless Steel | 3 1/2" | 752°F | Stainless Steel | Disc | €668.64 | |
| N | CD33-075-600 | 1900 lbs./hr. | 600 psi | Thermodynamic | Stainless Steel | 3 5/16" | 752°F | Stainless Steel | Disc | €816.85 | |
| E | 882-050-030 | 2000 lbs./hr. | 30 psi | Inverted Bucket | Cast Iron | 3 7/8" | 450°F | Cast Iron | Inverted Bucket | €625.16 |
