APPROVED VENDOR Gt Timing Belt Pulleys
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M| Style | Model | Material | Pitch Dia. | Face Width | Pitch | No. Of Teeth | For Belt Width | Flange Type | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1448P202517 | Cast Iron | 14.437" | 1.13" | - | 144 | 20 mm | Flangeless | - | €1,146.74 | |
| B | 3614P402517 | Cast Iron | 6.316" | 2.13" | - | 36 | 40 mm | With Flanges | - | €352.93 | |
| C | 328P501210 | Cast Iron | 3.208" | 2.38" | - | 32 | 50 mm | With Flanges | - | €323.72 | |
| B | 3314P402012 | Cast Iron | 5.79" | 2.13" | - | 33 | 40 mm | With Flanges | - | €388.02 | |
| A | 908P121610 | Cast Iron | 9.023" | 3/4" | - | 90 | 12 mm | Flangeless | - | €359.19 | |
| D | 908P202517 | Cast Iron | 9.023" | 1.13" | 8 mm | 90 | 20 mm | No Flanges | 1 3/4" | €506.55 | |
| A | 908P302517 | Cast Iron | 9.023" | 1 1/2" | - | 90 | 30 mm | Flangeless | - | €520.63 | |
| A | 908P503020 | Cast Iron | 9.023" | 2.38" | - | 90 | 50 mm | Flangeless | - | €716.12 | |
| B | 3514P402012 | Cast Iron | 6.141" | 2.13" | - | 35 | 40 mm | With Flanges | - | €347.71 | |
| E | 358P201610 | Cast Iron | 3.509" | 1.13" | - | 35 | 20 mm | With Flanges | - | €239.34 | |
| F | 358P301610 | Cast Iron | 3.509" | 1 1/2" | - | 35 | 30 mm | With Flanges | - | €258.66 | |
| G | 3614P552517 | Cast Iron | 6.316" | 2 3/4" | - | 36 | 55 mm | With Flanges | - | €434.80 | |
| A | 9014P553020 | Cast Iron | 15.79" | 2 3/4" | - | 90 | 55 mm | Flangeless | - | €1,455.30 | |
| H | 3614P853020 | Cast Iron | 6.316" | 4" | - | 36 | 85 mm | With Flanges | - | €489.05 | |
| E | 368P201610 | Cast Iron | 3.609" | 1.13" | - | 36 | 20 mm | With Flanges | - | €241.29 | |
| F | 368P301610 | Cast Iron | 3.609" | 1 1/2" | 8 mm | 36 | 30 mm | With Flanges | 1 1/2" | €264.59 | |

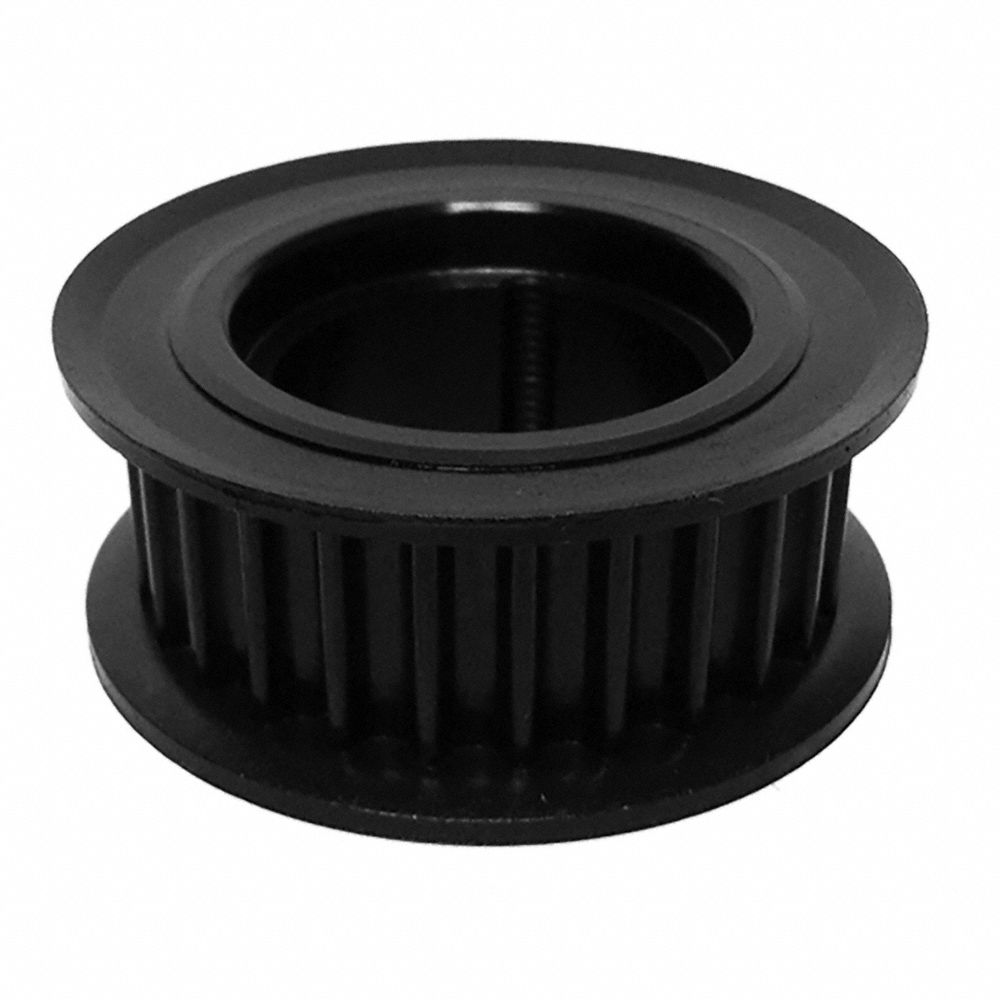

| E | 338P201210 | Cast Iron | 3.308" | 1.13" | - | 33 | 20 mm | With Flanges | - | €232.82 | |

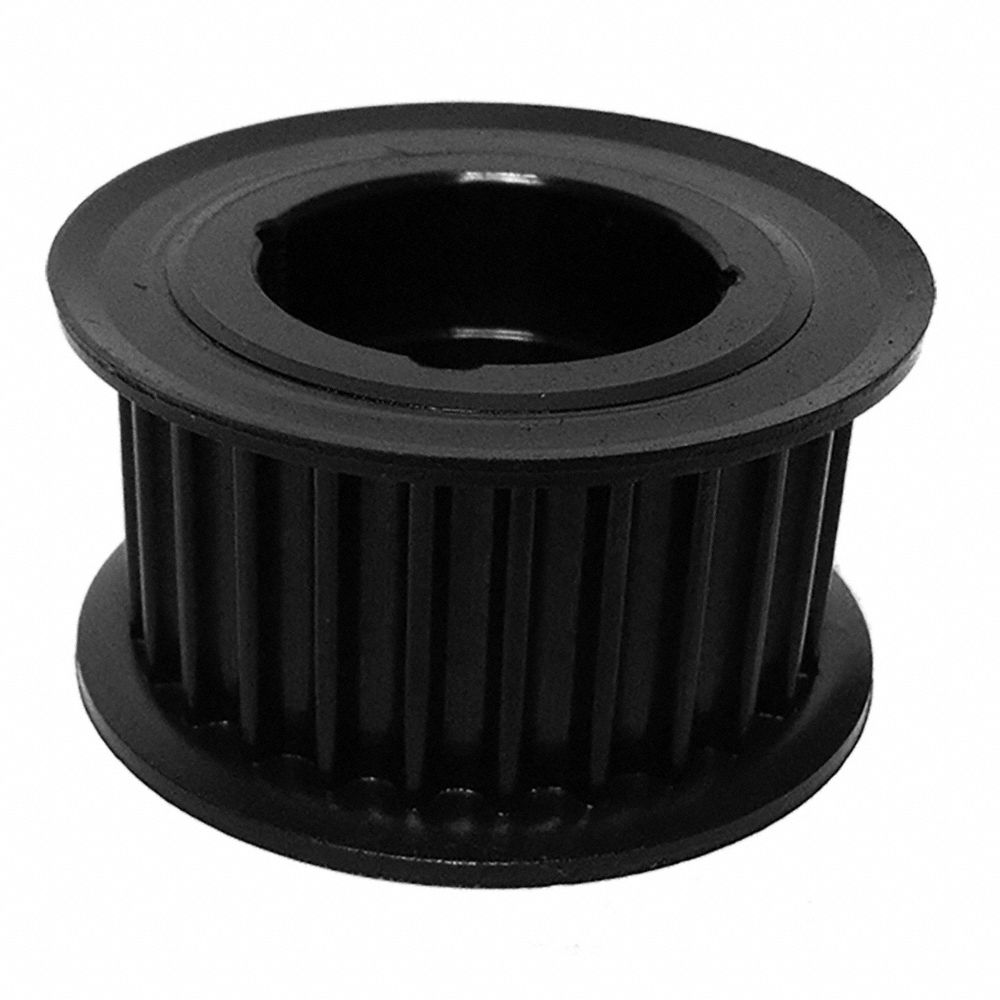

| F | 338P301210 | Cast Iron | 3.308" | 1 1/2" | - | 33 | 30 mm | With Flanges | - | €243.27 | |
| B | 3414P402012 | Cast Iron | 5.965" | 2.13" | - | 34 | 40 mm | With Flanges | - | €391.11 | |
| G | 3414P552517 | Cast Iron | 5.965" | 2 3/4" | - | 34 | 55 mm | With Flanges | - | €417.24 | |
| H | 3414P852517 | Cast Iron | 5.965" | 4" | - | 34 | 85 mm | With Flanges | - | €476.03 | |
| I | 348P121210 | Cast Iron | 3.409" | 1" | - | 34 | 12 mm | With Flanges | - | €154.65 | |
| F | 328P301210 | Cast Iron | 3.208" | 1 1/2" | - | 32 | 30 mm | With Flanges | - | €241.29 | |
| I | 328P121210 | Cast Iron | 3.208" | 1" | - | 32 | 12 mm | With Flanges | - | €141.41 | |
| A | 11214P553020 | Cast Iron | 19.65" | 2 3/4" | - | 112 | 55 mm | Flangeless | - | €1,566.59 | |
| A | 16814P553020 | Cast Iron | 29.475" | 2 3/4" | - | 168 | 55 mm | Flangeless | - | €2,591.27 | |
| B | 3114P402012 | Cast Iron | 5.439" | 2.13" | 14 mm | 31 | 40 mm | With Flanges | 2 1/8" | €371.78 | |
| J | 488P502012 | Cast Iron | 4.812" | 2.38" | - | 48 | 50 mm | With Flanges | - | €411.63 | |
| K | 488P852012 | Cast Iron | 4.812" | 3 3/4" | 8 mm | 48 | 85 mm | With Flanges | 3 3/4" | €519.26 | |
| A | 1448P302517 | Cast Iron | 14.437" | 1 1/2" | - | 144 | 30 mm | Flangeless | - | €1,180.72 | |

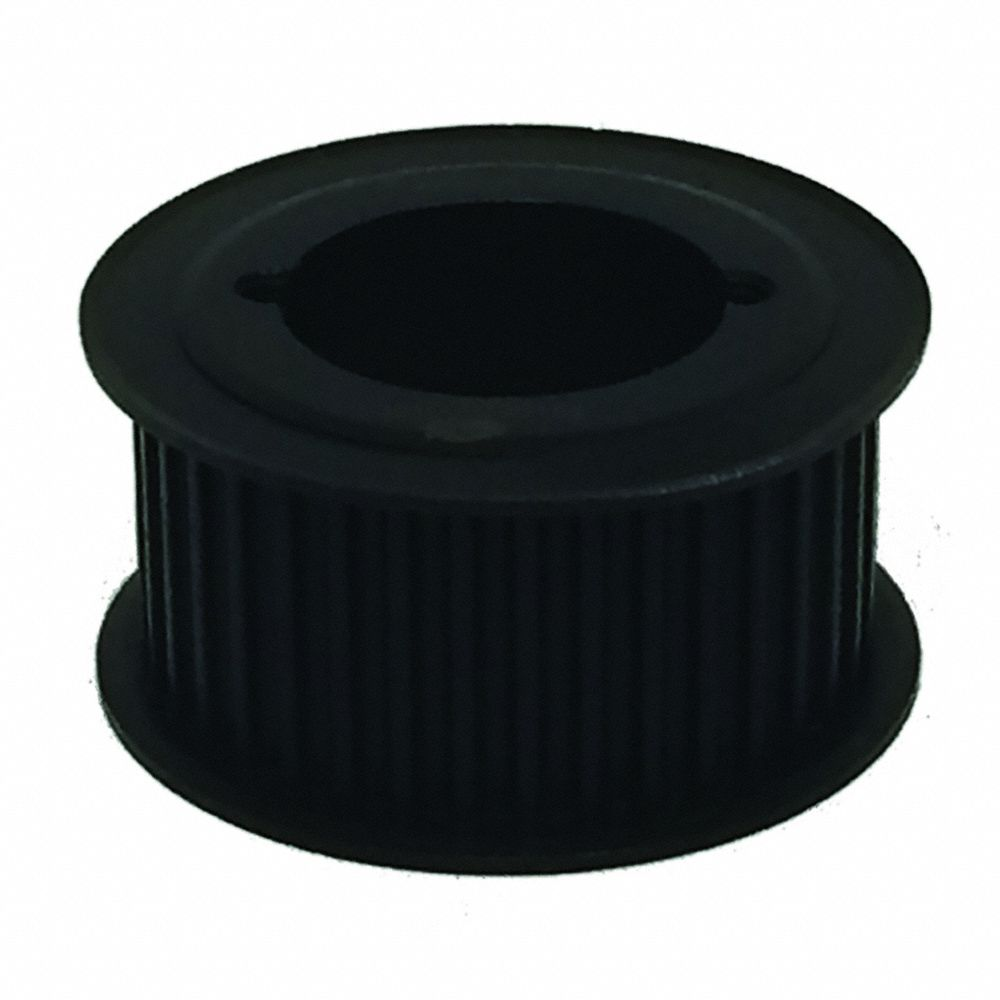

| L | 1125P252012 | Cast Iron | 7.018" | 1 7/25" | - | 112 | 25 mm | Flangeless | - | €292.21 | |
| A | 14414P403020 | Cast Iron | 25.264" | 2.13" | - | 144 | 40 mm | Flangeless | - | €1,857.03 | |
| A | 1448P503020 | Cast Iron | 14.437" | 2.38" | - | 144 | 50 mm | Flangeless | - | €1,435.82 | |
| A | 19214P403020 | Cast Iron | 33.686" | 2.13" | - | 192 | 40 mm | Flangeless | - | €2,896.14 | |
| A | 1928P503020 | Cast Iron | 19.249" | 2.38" | - | 192 | 50 mm | Flangeless | - | €1,761.71 | |
| K | 728P853020 | Cast Iron | 7.218" | 3 3/4" | 8 mm | 72 | 85 mm | With Flanges | 3 3/4" | €630.23 | |
| H | 3214P852517 | Cast Iron | 5.614" | 4" | 14 mm | 32 | 85 mm | With Flanges | 4" | €438.07 | |
| B | 8014P403020 | Cast Iron | 14.036" | 2.13" | - | 80 | 40 mm | With Flanges | - | €1,083.18 | |
| G | 8014P553020 | Cast Iron | 14.036" | 2 3/4" | 14 mm | 80 | 55 mm | With Flanges | 2 3/4" | €1,334.65 | |
| H | 8014P853535 | Cast Iron | 14.036" | 4" | - | 80 | 85 mm | With Flanges | - | €1,341.84 | |
| M | 805P151610 | Cast Iron | 5.013" | 22/25" | 5 mm | 80 | 15 mm | No Flanges | 1" | €223.60 | |
| L | 805P252012 | Cast Iron | 5.013" | 1 7/25" | - | 80 | 25 mm | Flangeless | - | €242.88 | |
| I | 808P121610 | Cast Iron | 8.02" | 3/4" | - | 80 | 12 mm | With Flanges | - | €375.07 | |
| E | 808P202517 | Cast Iron | 8.02" | 1.13" | - | 80 | 20 mm | With Flanges | - | €442.24 | |
| F | 388P301610 | Cast Iron | 3.81" | 1 1/2" | - | 38 | 30 mm | With Flanges | - | €272.46 | |
| G | 3214P552517 | Cast Iron | 5.614" | 2 3/4" | - | 32 | 55 mm | With Flanges | - | €481.44 | |
| A | 11214P403020 | Cast Iron | 19.65" | 2.13" | - | 112 | 40 mm | Flangeless | - | €1,411.95 | |
| A | 1128P503020 | Cast Iron | 11.229" | 2.38" | - | 112 | 50 mm | Flangeless | - | €901.09 | |
| G | 2814P552012 | Cast Iron | 4.912" | 2 3/4" | - | 28 | 55 mm | With Flanges | - | €422.33 | |

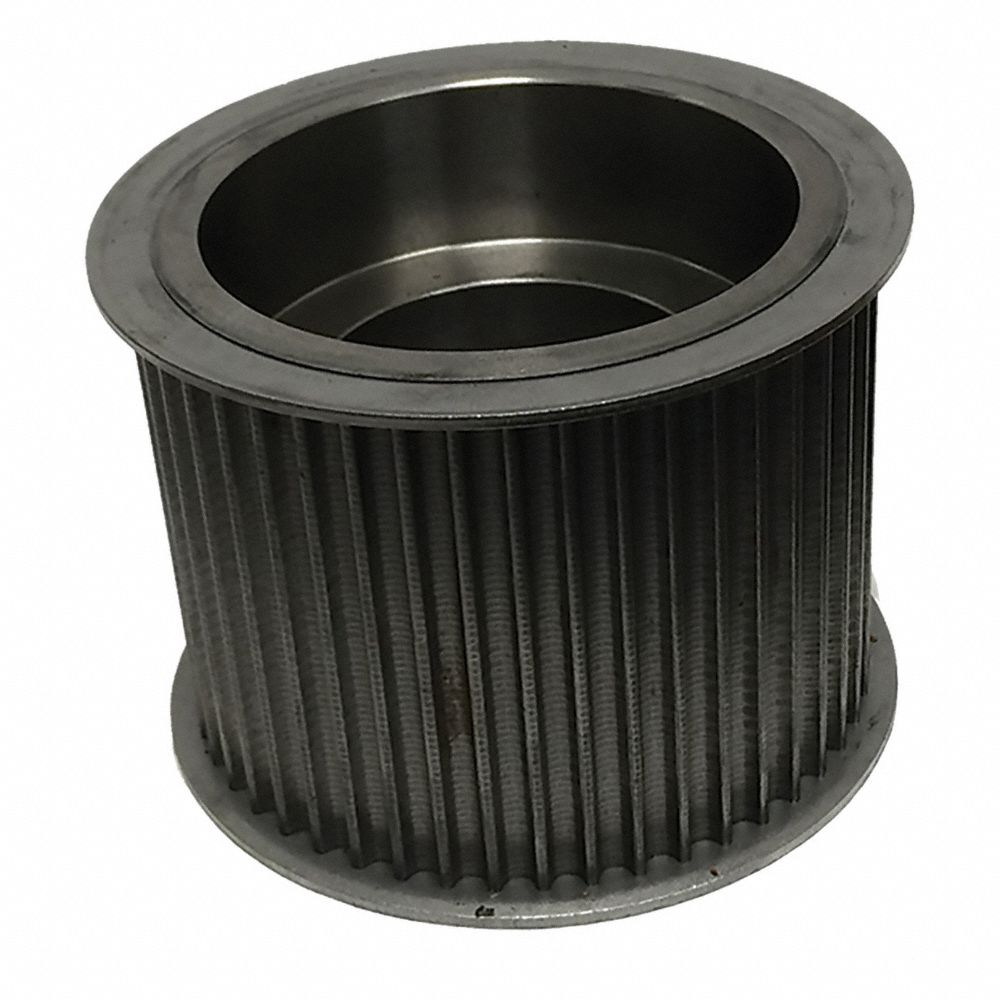

| K | 348P851615 | Cast Iron | 3.409" | 3 3/4" | - | 34 | 85 mm | With Flanges | - | €386.41 | |
| B | 3914P402517 | Cast Iron | 6.842" | 2.13" | - | 39 | 40 mm | With Flanges | - | €405.24 | |
| E | 398P201610 | Cast Iron | 3.91" | 1.13" | - | 39 | 20 mm | With Flanges | - | €261.05 | |
| F | 398P301610 | Cast Iron | 3.91" | 1 1/2" | - | 39 | 30 mm | With Flanges | - | €296.11 | |
| A | 9014P853535 | Cast Iron | 15.79" | 4" | - | 90 | 85 mm | Flangeless | - | €1,377.24 | |
| M | 905P151610 | Cast Iron | 5.639" | 22/25" | - | 90 | 15 mm | Flangeless | - | €249.98 | |
| L | 905P252012 | Cast Iron | 5.639" | 1 7/25" | - | 90 | 25 mm | Flangeless | - | €264.56 | |
| E | 348P201610 | Cast Iron | 3.409" | 1.13" | - | 34 | 20 mm | With Flanges | - | €233.44 | |
| F | 348P301610 | Cast Iron | 3.409" | 1 1/2" | - | 34 | 30 mm | With Flanges | - | €245.29 | |
| C | 348P501610 | Cast Iron | 3.409" | 2.38" | - | 34 | 50 mm | With Flanges | - | €352.93 | |
| A | 908P853020 | Cast Iron | 9.023" | 3 3/4" | - | 90 | 85 mm | Flangeless | - | €969.72 | |
| C | 388P501610 | Cast Iron | 3.81" | 2.38" | - | 38 | 50 mm | With Flanges | - | €361.56 |
