APPROVED VENDOR Clamp Type Elbows
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N| Style | Model | Flange Dia. | Bore Dia. | Centerline Bend Radius | Material Grade | Inside Dia. | |
|---|---|---|---|---|---|---|---|
| A | TC075ELL90 | 0.984" | - | - | Grade 304 | 5/8" | RFQ
|
| B | TC075ELL45 | 0.984" | - | - | Grade 304 | 5/8" | RFQ
|
| C | TC05ELL90 | 1" | 3/8" | 1 1/4" | Grade 304 | - | RFQ
|
| D | TC10ELL90 | 1.984" | 7/8" | 2" | Grade 304 | - | RFQ
|
| E | TC10ELL45 | 1.984" | 7/8" | - | Grade 304 | - | RFQ
|
| F | TC10ELL180 | 1.984" | 7/8" | - | Grade 304 | - | RFQ
|
| G | TC15ELL90 | 1.984" | 1 3/8" | 2 3/4" | Grade 304 | - | RFQ
|
| H | TC15ELL45 | 1.984" | 1 3/8" | - | Grade 304 | - | RFQ
|
| I | TC15ELL180 | 1.984" | - | - | Grade 304 | - | RFQ
|

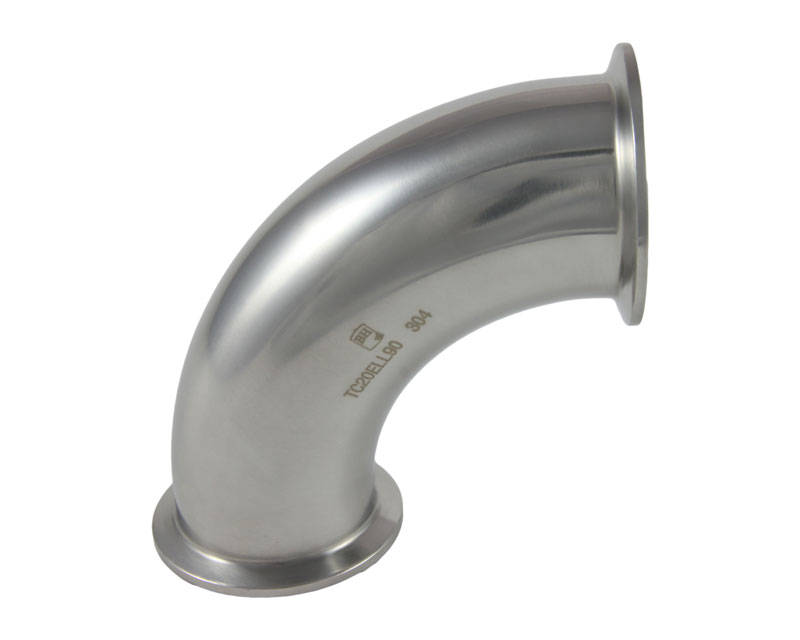

| J | TC20ELL90 | 2.516" | 1 7/8" | 3 1/2" | Grade 304 | - | RFQ
|
| K | TC20ELL180 | 2.516" | 1 7/8" | - | Grade 304 | - | RFQ
|

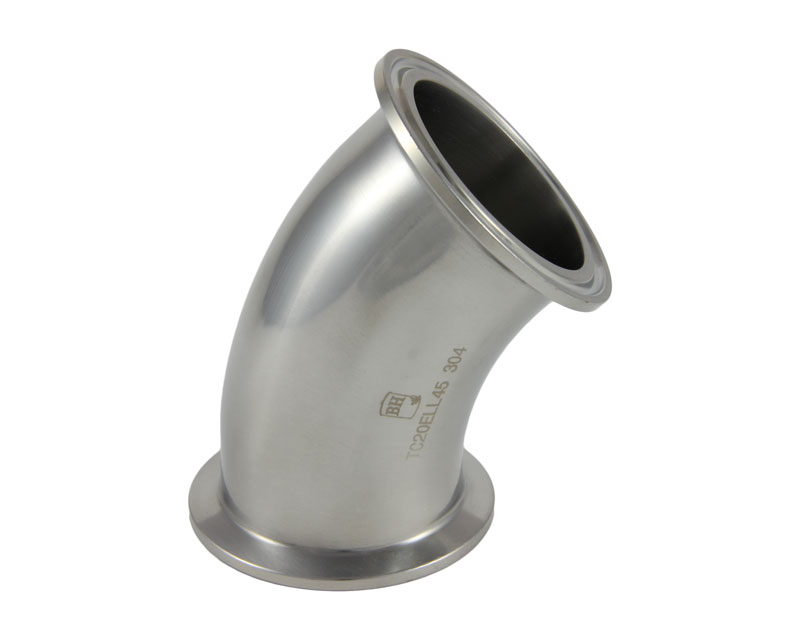

| L | TC20ELL45 | 2.516" | 1 7/8" | - | Grade 304 | - | RFQ
|
| M | TC30ELL90 | 3.579" | 2 7/8" | 5" | Grade 304 | - | RFQ
|
| N | TC40ELL90 | 4.682" | 3 7/8" | 6 5/8" | Grade 304 | - | RFQ
|
