ANVIL Beam Clamps


Anvil beam clamps or girder clamps balance or secure the wires, fixtures, threaded rods and other hardware to beam flanges. They provide safe fixing without the requirement for welding and drilling and are also ideal for use on pitched beams.

Filter

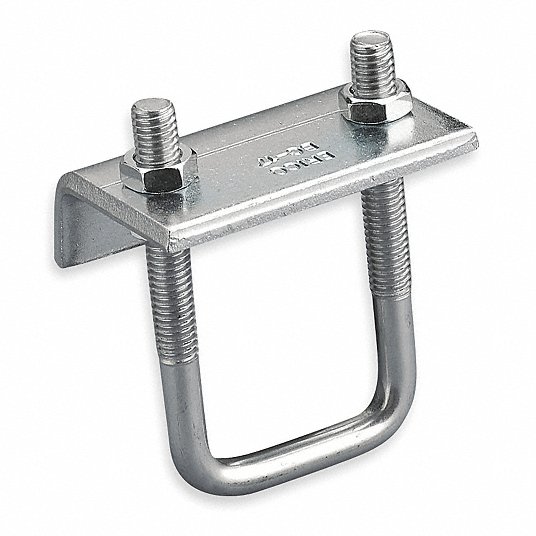

ANVIL FIG AS 2651A
ANVIL FIG 218B
ANVIL FIG AS 684C
ANVIL FIG AS 685D
ANVIL FIG AS 686E
ANVIL FIG AS 907F
ANVIL 2400235202G
ANVIL 0500300108H
ANVIL 0500104104I
StyleModelFinishMaterialSeriesLoad CapacityThicknessBolt SizeHeightClamp MaterialPrice
A
FIG AS 2651		---------
RFQ
B
FIG 218		-Malleable Iron-------
RFQ
C
FIG AS 684		---------
RFQ
D
FIG AS 685		---------
RFQ
E
FIG AS 686		---------
RFQ
F
FIG AS 907		---------
RFQ
F
FIG AS 998		---------
RFQ
G
2400235202		Electro Galvanized-FIG AS 2651 Series1000 lbs.-3/8"-16--€12.67
G
2400235228		Electro Galvanized-FIG AS 2651 Series---5"-€15.20
G
2400222903		Electro Galvanized-FIG AS 998 Series-3/8"---€26.89
H
0500300108		GalvanizedCarbon SteelFIG 66 Series-1/4"---€33.34
I
0500104104		PlainForged Steel-2160 lbs.---Forged Steel€246.82
G
2400235277		Zinc Trivalent Chromium-FIG AS 2651 Series1000 lbs.-3/8"-16--€21.00
G
2400235285		Zinc Trivalent Chromium-FIG AS 2651 Series--3/8"-16--€21.55

Working Mechanism

  • First, spread the jaws of the beam clamp, so that the mouth is broad enough to fit over the beam.
  • Use the screw handle to tightly attach the clamp over the beam to make sure it is protected enough before connecting any loads.
  • As you do not want the load to slide or fall during the lifting process.

Features

  • Anvil beam clamps feature a ductile iron body with a heavy-duty steel cup point set screw and locknut.
  • These beam clamps offer clamping to bar joists that are directly under roof installations.
  • They allow offset clamping installations of a vertical hanger rod from the edge of the beam flange.

Standards and Approvals

  • UL

Frequently Asked Questions

Can beam clamps be employed for sideloading?

Standard beam clamps are engineered for in-line use only and not for sideloading.

Can beam clamps be employed for lifting tasks?

Beam clamps, also called girder clamps, can be employed for lifting and suspending heavy-duty items.
