ADVANTECH Wire Cloth Sieves
Filter
A
B
C
D
E
F
G
H| Style | Model | Type | Screen Material | Outside Dia. | Frame Material | Opening Size | Wire Dia. | Frame Inside Dia. | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | L3-S80 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 180 µm | 0.125 mm | 3" | 5/8" | €227.23 | |
| B | L3-M5 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 5 µm | - | 3" | 3 1/4" | €2,483.17 | |
| A | L3-S12 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 1.7 mm | 0.8 mm | 3" | 5/8" | €234.24 | |
| A | L3-S100 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 150 µm | 0.09 mm | 3" | 5/8" | €224.27 | |
| A | L3-S10 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 2 mm | 0.9 mm | 3" | 5/8" | €234.24 | |
| B | L3-M90 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 90 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M70 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 70 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M100 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 100 µm | - | 3" | 3 1/4" | €1,877.36 | |
| B | L3-M85 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 85 µm | - | 3" | 3 1/4" | €1,540.21 | |
| C | L3-M150 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 150 µm | - | 3" | 3 1/4" | €1,877.36 | |
| B | L3-M75 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 75 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M50 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 50 µm | - | 3" | 3 1/4" | €1,540.21 | |
| A | L3-S14 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 1.4 mm | 0.71 mm | 3" | 5/8" | €234.24 | |
| B | L3-M15 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 15 µm | - | 3" | 3 1/4" | €1,921.18 | |
| B | L3-M3 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 3 µm | - | 3" | 3 1/4" | €2,483.17 | |
| B | L3-M125 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 125 µm | - | 3" | 3 1/4" | €1,877.36 | |
| B | L3-M10 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 10 µm | - | 3" | 3 1/4" | €1,921.18 | |

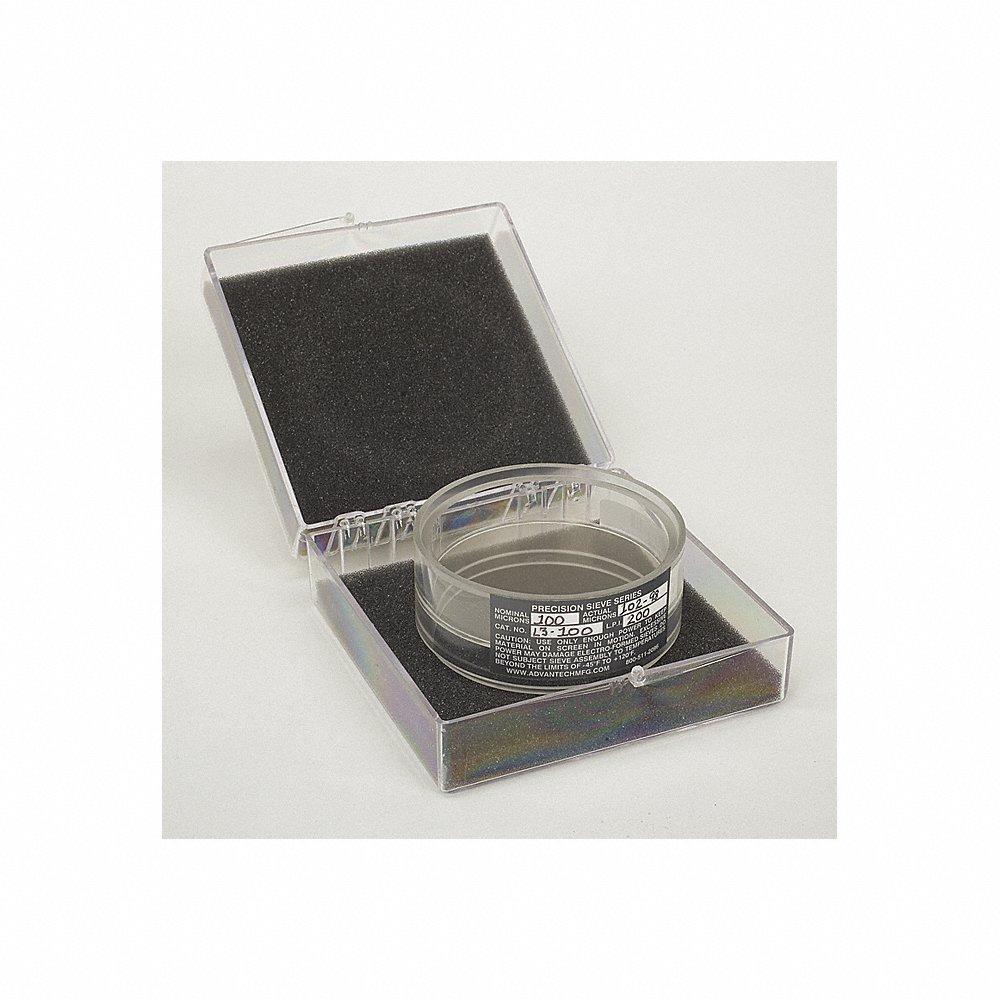

| C | L3-M25 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 25 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M60 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 60 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M40 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 40 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M20 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 20 µm | - | 3" | 3 1/4" | €1,921.18 | |
| B | L3-M105 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 105 µm | - | 3" | 3 1/4" | €1,877.36 | |
| B | L3-M65 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 65 µm | - | 3" | 3 1/4" | €1,540.21 | |
| A | L3-S120 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 125 µm | 0.09 mm | 3" | 5/8" | €224.27 | |
| A | L3-S140 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 106 µm | 0.071 mm | 3" | 5/8" | €237.37 | |
| A | L3-S40 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 425 µm | 0.28 mm | 3" | 5/8" | €227.23 | |
| D | L3-S45 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 355 µm | 0.224 mm | 3" | 5/8" | €234.24 | |
| A | L3-S70 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 212 µm | 0.14 mm | 3" | 5/8" | €227.23 | |
| A | L3-S7 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 2.8 mm | 1.12 mm | 3" | 5/8" | €233.75 | |
| A | L3-S635 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 20 µm | 0.02 mm | 3" | 5/8" | €779.52 | |
| A | L3-S230 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 63 µm | 0.045 mm | 3" | 5/8" | €287.37 | |
| A | L3-S60 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 250 µm | 0.16 mm | 3" | 5/8" | €214.70 | |
| A | L3-S6 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 3.35 mm | 1.25 mm | 3" | 5/8" | €233.12 | |
| A | L3-S500 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 25 µm | 0.025 mm | 3" | 5/8" | €693.53 | |
| A | L3-S50 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 300 µm | 0.2 mm | 3" | 5/8" | €214.70 | |
| A | L3-S5 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 4 mm | 1.4 mm | 3" | 5/8" | €232.84 | |
| A | L3-S450 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 32 µm | 0.028 mm | 3" | 5/8" | €669.18 | |
| A | L3-S4 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 4.75 mm | 1.6 mm | 3" | 5/8" | €233.12 | |
| A | L3-S16 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 1.18 mm | 0.63 mm | 3" | 5/8" | €233.44 | |
| A | L3-S35 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 500 µm | 0.315 mm | 3" | 5/8" | €214.70 | |
| A | L3-S325 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 45 µm | 0.032 mm | 3" | 5/8" | €407.25 | |
| A | L3-S30 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 600 µm | 0.4 mm | 3" | 5/8" | €227.23 | |
| A | L3-S3.5 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 5.6 mm | 1.59 mm | 3" | 5/8" | €234.24 | |
| D | L3-S270 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 53 µm | 0.036 mm | 3" | 5/8" | €336.41 | |
| A | L3-S25 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 710 µm | 0.45 mm | 3" | 5/8" | €234.24 | |
| A | L3-S200 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 75 µm | 0.05 mm | 3" | 5/8" | €243.43 | |
| A | L3-S20 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 850 µm | 0.5 mm | 3" | 5/8" | €214.70 | |
| A | L3-S18 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 1 mm | 0.56 mm | 3" | 5/8" | €214.70 | |
| A | L3-S170 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 90 µm | 0.063 mm | 3" | 5/8" | €237.37 | |
| B | L3-M80 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 80 µm | - | 3" | 3 1/4" | €1,540.21 | |
| A | L3-S8 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 2.36 mm | 1 mm | 3" | 5/8" | €233.12 | |
| A | L3-S400 | Clear Acrylic Frame | Stainless Steel | 3 1/2" | Acrylic | 38 µm | 0.03 mm | 3" | 5/8" | €542.96 | |
| B | L3-M45 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 45 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M95 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 95 µm | - | 3" | 3 1/4" | €1,877.36 | |
| B | L3-M55 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 55 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M35 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 35 µm | - | 3" | 3 1/4" | €1,540.21 | |
| B | L3-M30 | Clear Acrylic Frame | Nickel | 3 1/2" | Acrylic | 30 µm | - | 3" | 3 1/4" | €1,540.21 | |
| E | CS12 | Test Sieve Cover | Stainless Steel | 12" | - | - | - | 12" | - | €81.94 | |
| F | PS12HX | Test Sieve Pan | Stainless Steel | 12" | Stainless Steel | - | - | 12" | 1" | €192.33 | |

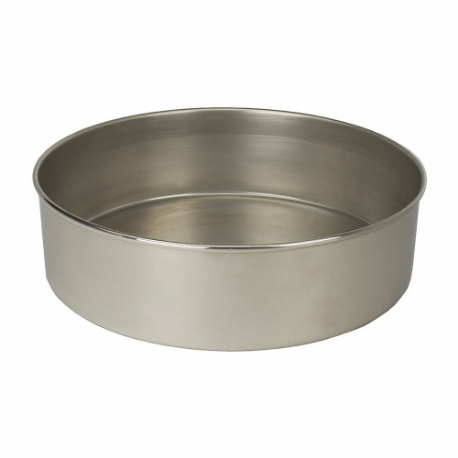

| G | PS12FX | Test Sieve Pan | Stainless Steel | 12" | Stainless Steel | - | - | 12" | 2" | €192.33 | |
| H | PS12IX | Test Sieve Pan | Stainless Steel | 12" | Stainless Steel | - | - | 12" | - | €187.84 |
