BRADY Valve Lockout Devices

Filter

BRADY -

Plug Valve Lockout, Polypropylene

Style	Model	Max. Number Of Padlocks	Lockout Color	Temp. Range	Color	Lockout Material	For Maximum Padlock Shackle Diameter	Price
A	113231	1	Red	-25°F to +200°F	Red	Polypropylene	3/8"	€49.97
A	113232	1	Red	-25°F to +200°F	Red	Polypropylene	3/8"	€48.90
B	113233	1	Red	-25°F to +200°F	Red	Polypropylene	-	€78.45
C	113234	1	Red	-25°F to +200°F	Red	Polypropylene	-	€80.87

BRADY -

Ball Valve Lockouts

Style	Model	For Minimum Pipe Size	For Maximum Pipe Size	Max. Number Of Padlocks	Temp. Range	Height	For Maximum Padlock Shackle Diameter	Lockout Material	Overall Depth	Price
A	121540	1/2"	2"	0	-40°F to +194°F	4 1/4"	5/16"	Steel	1.95"	€80.75
B	65666	1/4"	1"	8	-40°F to +248°F	1 1/8"	9/32"	Nylon	3.1"	€47.73

BRADY -

Ball Valve Lockout, Polypropylene

Style	Model	For Minimum Pipe Size	For Maximum Pipe Size	Max. Number Of Padlocks	Lockout Color	Color	For Maximum Handle Thickness	Overall Depth	For Maximum Handle Width	Price
A	BS07A-BU	1/2"	2 1/2"	4	Blue	Blue	1/2"	3.05"	1"	€45.10
B	BS07A-RD	1/2"	2 1/2"	4	Red	Red	1/2"	3.05"	1"	€45.10
C	BS07A-GN	1/2"	2 1/2"	4	Green	Green	1/2"	3.05"	1"	€45.10
D	BS07A-YW	1/2"	2 1/2"	4	Yellow	Yellow	1/2"	3.05"	1"	€45.10
E	BS08A-GN	2"	8"	1	Green	Green	1"	4.65"	1 3/4"	€91.41
F	BS08A-BU	2"	8"	6	Blue	Blue	1"	4.65"	1 3/4"	€85.11
G	BS08A-YW	2"	8"	6	Yellow	Yellow	1"	4.65"	1 3/4"	€85.11
H	BS08A-RD	2"	8"	6	Red	Red	1"	12"	1 3/4"	€85.11

BRADY -

Gate Valve Lockout, Polypropylene

Style	Model	Max. Number Of Padlocks	Lockout Color	Temp. Range	Color	For Maximum Handle Thickness	For Maximum Hand Wheel Diameter	For Minimum Hand Wheel Diameter	Height	Price
A	65586	1	Blue	-20°F to +300°F	Blue	1.25"	5"	2 1/2"	-	€36.73
B	65590	1	Yellow	-20°F to +300°F	Yellow	1 1/2"	2 1/2"	1"	-	€21.31
C	65589	1	Blue	-20°F to +300°F	Blue	4"	13"	10"	-	€107.12
D	65587	1	Blue	-20°F to +300°F	Blue	2 1/2"	6 1/2"	5"	-	€66.24
E	65585	1	Blue	-20°F to +300°F	Blue	1 1/2"	2 1/2"	1"	-	€22.41
F	65597	1	Green	-20°F to +300°F	Green	2 1/2"	6 1/2"	5"	-	€66.24
G	65595	1	Green	-20°F to +300°F	Green	1 1/2"	2 1/2"	1"	-	€22.50
H	65594	1	Yellow	-20°F to +300°F	Yellow	4"	13"	10"	-	€141.41
I	65593	1	Yellow	-20°F to +300°F	Yellow	3"	10"	6 1/2"	-	€64.66
J	65592	1	Yellow	-20°F to +300°F	Yellow	2 1/2"	6 1/2"	5"	-	€65.55
K	65564	1	Red	-25°F to +200°F	Red	4"	13"	10"	-	€108.61
L	65588	1	Blue	-20°F to +300°F	Blue	3"	10"	6 1/2"	-	€68.48
K	65562	1	Red	-25°F to +200°F	Red	2 1/2"	6 1/2"	5"	7 1/4"	€70.70
K	65560	1	Red	-25°F to +200°F	Red	1 1/2"	2 1/2"	1"	3"	€35.88
K	65563	1	Red	-25°F to +200°F	Red	3"	10"	6 1/2"	11"	€84.80
K	65561	1	-	-25°F to +200°F	Red	-	-	-	5 3/4"	€51.55
M	65599	1	Green	-20°F to +300°F	Green	4"	13"	10"	-	€129.63
N	65598	1	Green	-20°F to +300°F	Green	3"	10"	6 1/2"	-	€92.99
O	65596	1	Green	-20°F to +300°F	Green	1.25"	5"	2 1/2"	-	€47.16
P	65591	1	Yellow	-20°F to +300°F	Yellow	1.25"	5"	2 1/2"	-	€32.31
Q	64057	4	Red	-13°F to +194°F	Red	1 1/2"	2 1/2"	1"	7"	€79.99

BRADY -

Butterfly Valve Lockout, Nylon

Style	Model	Height	For Maximum Handle Thickness	For Minimum Handle Thickness	For Handle Type	Max. Number Of Padlocks	Lockout Color	Temp. Range	Color	Price
A	121504	5 1/2"	2 1/2"	1/8"	Lever Handle	4	Red	-20°F to +140°F	Red	€61.44
B	121505	7"	4"	2"	Lever Handle	4	Red	-20°F to +140°F	Red	€79.51

BRADY -

Lockout Valve Base, Steel/Nylon

Style	Model	Max. Valve Handle Thickness	For Handle Type	Max. Number Of Padlocks	Lockout Color	Temp. Range	Color	Lockout Material	Legend	Price
A	50924	0.6"	Large Levers, T Handle	2	Red	0°F to +250°F	Black, Red	Fiberglass Reinforced Nylon	No Legend	€108.73
B	50899	1.1"	Large Levers, T Handle	2	Red	0°F to +250°F	Black, Red	Fiberglass Reinforced Nylon	No Legend	€109.29

BRADY -

Blocking Arm, Steel/Nylon

Style	Model	Height	For Maximum Handle Thickness	Lockout Color	Temp. Range	Color	For Maximum Padlock Shackle Diameter	Lockout Material	Price
A	65402	6 1/5"	0.59"	Red	0°F to +250°F	Red	Not Applicable	Fiberglass Reinforced Nylon	€68.93
B	65403	7.15"	1.09"	Red	0°F to +250°F	Red	Not Applicable	Fiberglass Reinforced Nylon	€57.66

BRADY -

Ball Valve Lockout, Steel

Style	Model	Max. Number Of Padlocks	For Handle Type	For Minimum Pipe Size	For Maximum Pipe Size	Temp. Range	Height	Lockout Material	For Maximum Handle Thickness	Price
A	51390	1	Large Levers, T Handle	-	-	0°F to +250°F	1 1/2"	Fiberglass Reinforced Nylon	0.6"	€176.31
B	51388	1	Large Levers, T Handle	-	-	0°F to +250°F	2"	Fiberglass Reinforced Nylon	1.1"	€156.21
C	51392	1	Large Levers, T Handle	-	-	0°F to +250°F	2"	Fiberglass Reinforced Nylon	1.1"	€151.08
D	51394	1	-	-	-	0°F to +250°F	1 1/2"	-	-	€141.41
E	65692	6	Quarter Turn Handle	1/4"	1"	-30°F to +350°F	5"	Steel	0.31"	€54.65
F	65693	7	Quarter Turn Handle	1 1/4"	3"	-30°F to +350°F	3"	Steel	0.43"	€83.63
E	65669	8	Quarter Turn Handle	1 1/4"	3"	-30°F to +350°F	5"	Steel	0.43"	€69.01

BRADY -

Ball Valve Lockout Devices

Style	Model	Ball Valve Lockout Type	For Minimum Pipe Size	For Maximum Pipe Size	Max. Number Of Padlocks	Lockout Color	For Handle Type	Height	For Maximum Padlock Shackle Diameter	Price
A	151749	Cylinder Cover	1 1/4"	2"	1	Red	T Handle	2"	7/25"	€80.77
B	151748	Cylinder Cover	1/2"	1"	1	Red	T Handle	1 3/4"	7/25"	€57.69
C	121541	Permanent Mount	2"	4"	1	Red	Quarter Turn Handle	3.63"	5/16"	€148.40
D	175644	Strap On	3/8"	24"	4	Black, Red	-	3.614"	7/25"	€65.61

BRADY -

Flange Lockout Devices

Style	Model	Height	For Maximum Flange Width	For Maximum Nut Diameter	For Minimum Flange Width	For Minimum Nut Diameter	Max. Number Of Padlocks	Lockout Color	For Maximum Padlock Shackle Diameter	Price
A	149228	14 3/5"	3"	1 3/8"	1/2"	1/2"	4	-	7/25"	€158.80
B	149229	17 3/5"	14"	2 1/4"	3"	29/32"	4	Red	7/25"	€180.24
C	149230	24 3/5"	48"	3 5/16"	14"	1 3/8"	4	Red	7/25"	€238.30

BRADY -

Gate Valve Lockout Devices

Style	Model	Max. Number Of Padlocks	Lockout Color	Height	For Maximum Padlock Shackle Diameter	Lockout Material	For Maximum Handle Thickness	For Minimum Hand Wheel Diameter	Outside Dia.	Price
A	145585	1	Clear	3"	3/8"	Styrene Acrylonitrile	4"	10"	14 2/5"	€210.37
B	145581	1	Clear	1 2/5"	3/8"	Styrene Acrylonitrile	1 1/2"	1"	3 3/25"	€38.85
C	145584	1	Clear	3"	3/8"	Styrene Acrylonitrile	4"	6 1/2"	11 1/5"	€83.00
D	145582	1	Clear	1.9"	3/8"	Styrene Acrylonitrile	1 1/4"	2 1/2"	5 3/5"	€60.50
E	145583	1	Clear	2 1/5"	3/8"	Styrene Acrylonitrile	2 1/2"	5"	7 1/5"	€63.79
F	148648	2	Red	3.1"	8/25"	ABS Plastic	2"	3"	9.03"	€108.71
G	148647	2	Red	3.98"	8/25"	ABS Plastic	3"	7"	14 19/25"	€217.22
H	148646	2	Red	3.98"	8/25"	ABS Plastic	3"	13"	19.7"	€251.37

BRADY -

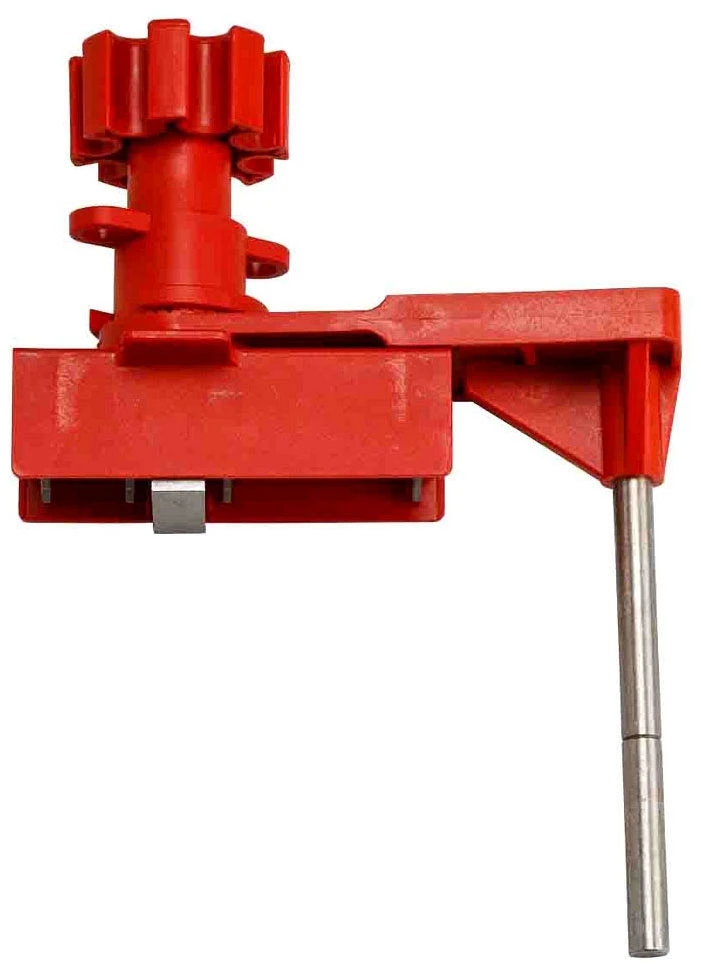

Universal Ball Valve Lockout, Red Fits Maximum Handle, 0.98 Inch

Model	Item	Price (ex. VAT)
65400	DJ3VCB	€108.06

BRADY -

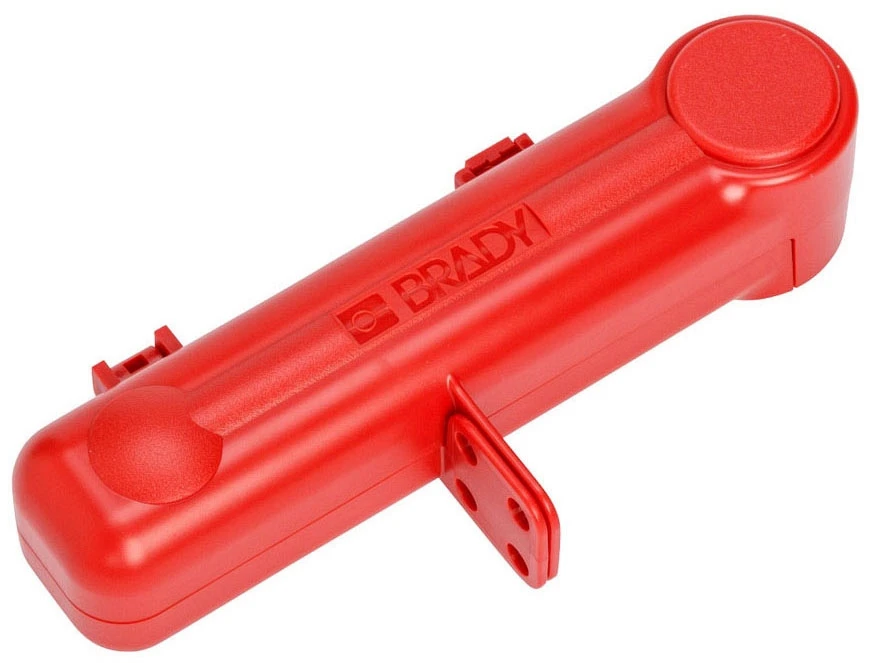

Butterfly Valve Lockout, ABS Plastic. 8.56 x 3.82 x 2.12 Inch, Red

Model	Item	Price (ex. VAT)
170220	DC6YNM	€42.48

BRADY -

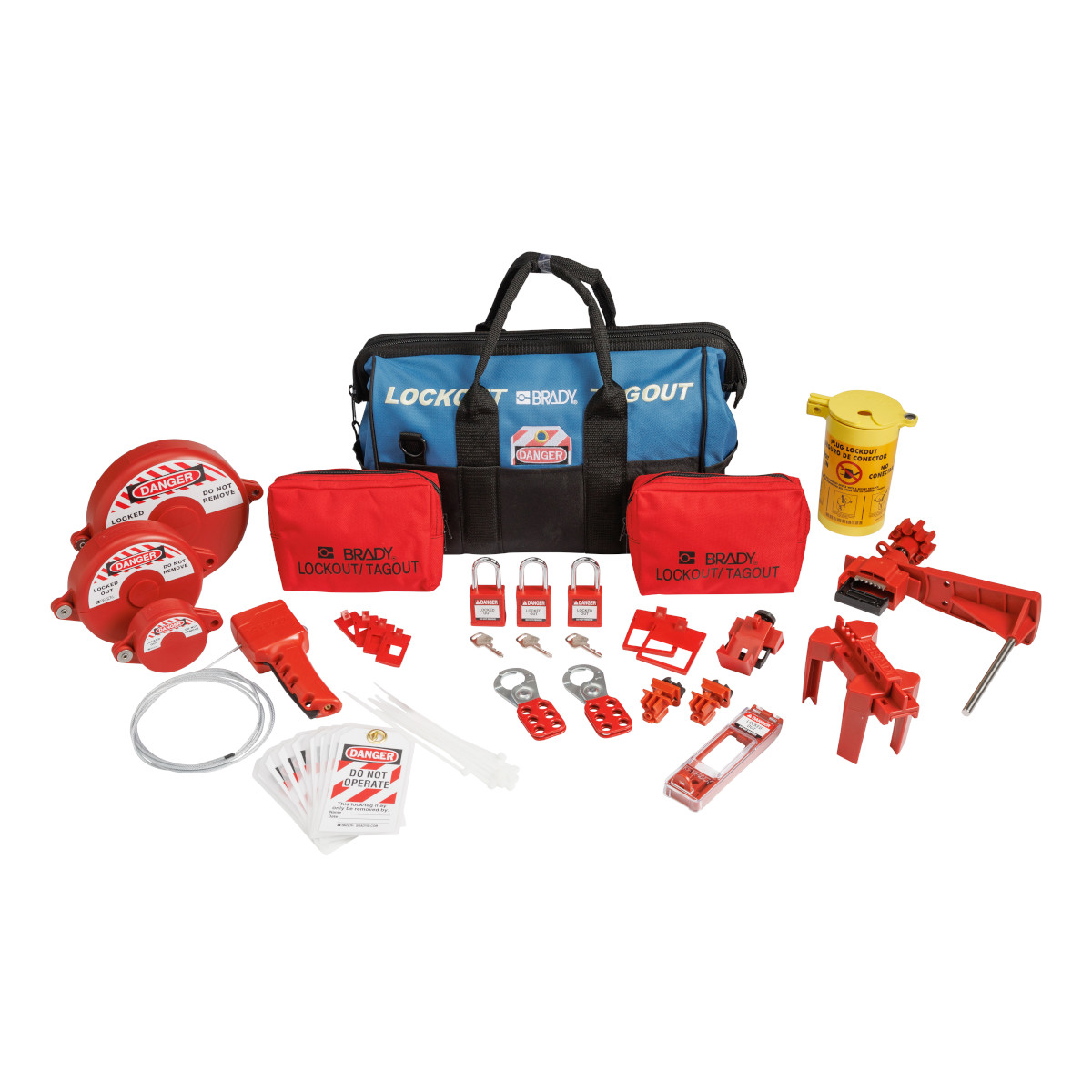

Valve Lockout Kit, Keyed Different Padlocks, Blue

Model	Item	Price (ex. VAT)
153672	DG4CWH	€518.16

BRADY -

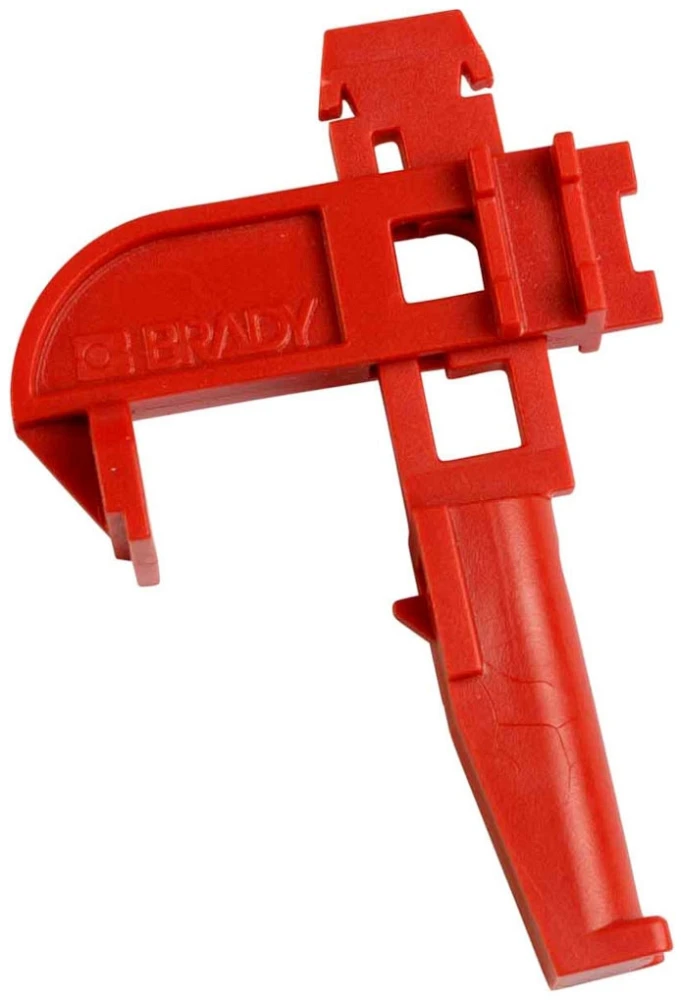

Modular Fuse Lockout, 2PK

Model	Item	Price (ex. VAT)
149282	DH7VFK	€45.37

BRADY -

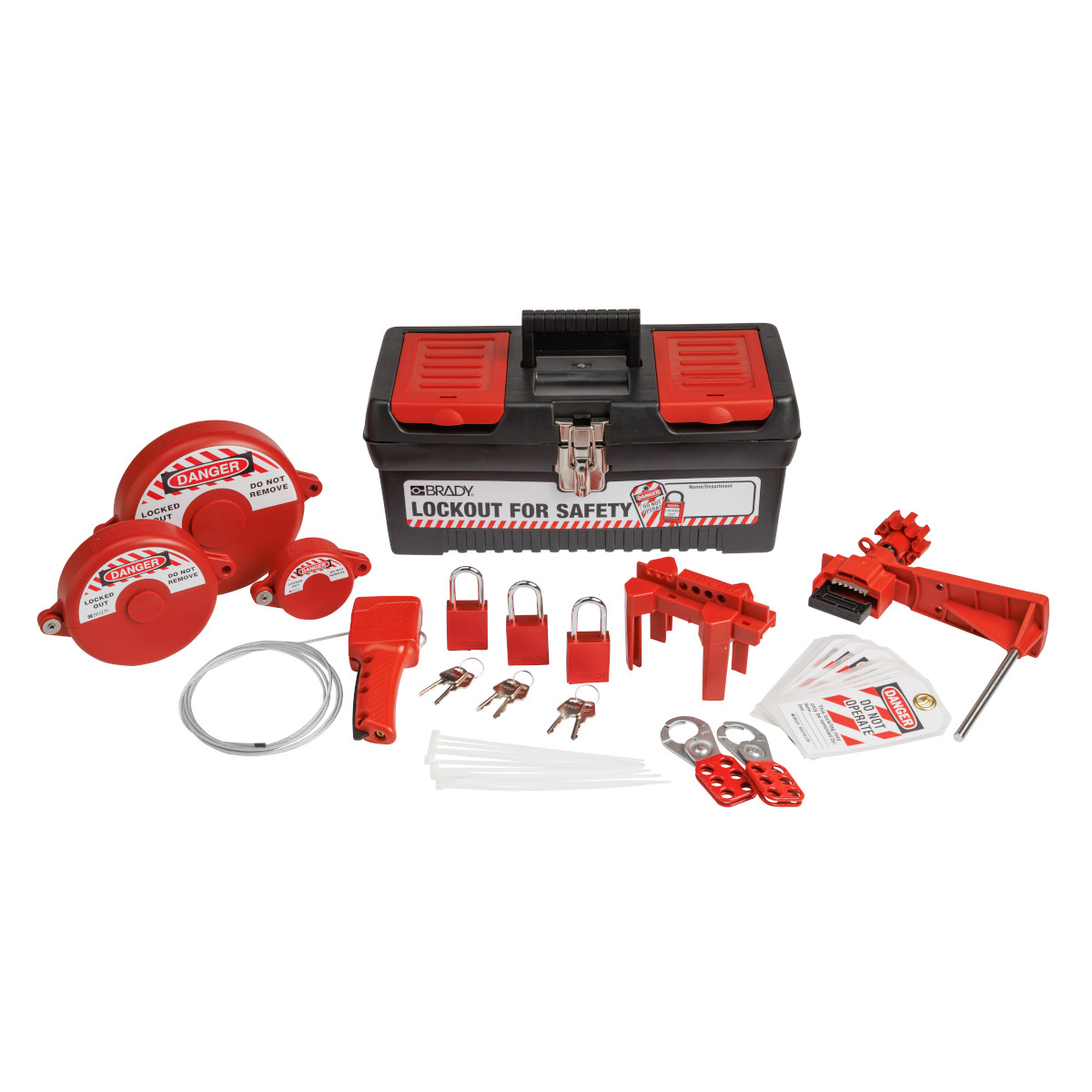

Valve Lockout Kit, Keyed Different Padlocks

Model	Item	Price (ex. VAT)
153671	DH3YYX	€313.23

BRADY -

Cylinder Tank Lockout, For 1 1/4 Inch Valve Wheel Dia, For 1 1/4 Inch Max Valve Stem Dia

Model	Item	Price (ex. VAT)
SD02M	AD2EJB	€27.48
