OSG Thread Mills

3 / 4 / 5 flute carbide thread mills suitable for creating internal or external threads. Available in different sizes, cutting diameters and shank diameters

Filter

OSG -

Thread Mill M8 65mm

Style	Model	Number Of Flutes	Thread Size	Length Of Cut	Primary Material Application	List Number	Cutting Length	Nomenclature	Shank Length	Price
A	3900012	3	M8 x 1.25	17.5 mm	Aluminum, Cast Iron, Steel	41100	0.69"	41100	47.5 mm	€444.80
A	3900011	3	M8 x 1	17 mm	Aluminum, Cast Iron, Steel	41100	0.67"	41100	48 mm	€444.80

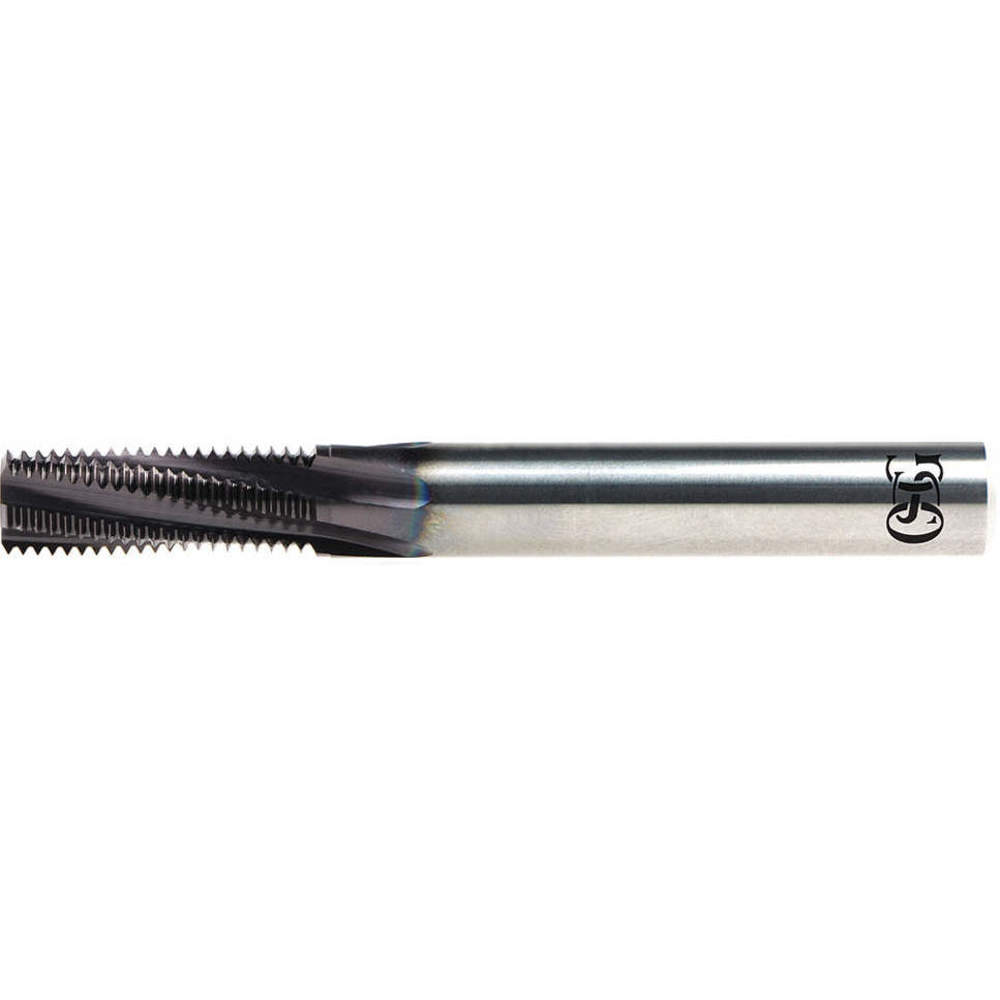

B	8304711	4	M8 x 1	17 mm	Steel	41150	0.67"	41150	48 mm	€481.86
B	8304712	4	M8 x 1.25	17.5 mm	Steel	41150	0.69"	41150	47.5 mm	€481.86

OSG -

Thread Mill M10 70mm

Style	Model	Number Of Flutes	Thread Size	Length Of Cut	Primary Material Application	List Number	Cutting Length	Nomenclature	Shank Length	Price
A	3900021	3	M10 x 1	21 mm	Aluminum, Cast Iron, Steel	41100	0.83"	41100	49 mm	€474.35
A	3900023	3	M10 x 1.5	22.5 mm	Aluminum, Cast Iron, Steel	41100	0.89"	41100	47.5 mm	€474.35
B	8304723	4	M10 x 1.5	22.5 mm	Steel	41150	0.89"	41150	47.5 mm	€513.44
B	8304721	4	M10 x 1	21 mm	Steel	41150	0.83"	41150	49 mm	€513.87

OSG -

Thread Mill M16 95mm

Style	Model	Number Of Flutes	Thread Size	Length Of Cut	Primary Material Application	List Number	Cutting Length	Nomenclature	Shank Length	Price
A	3900053	4	M16 x 1.5	34.5 mm	Aluminum, Cast Iron, Steel	41100	1 9/25"	41100	60.5 mm	€668.38
A	3900054	4	M16 x 2	34 mm	Aluminum, Cast Iron, Steel	41100	1.34"	41100	61 mm	€668.38
B	8304754	5	M16 x 2	34 mm	Steel	41150	1.34"	41150	61 mm	€675.80
B	8304753	5	M16 x 1.5	34.5 mm	Steel	41150	1 9/25"	41150	60.5 mm	€675.80

OSG -

Thread Mill M12 85mm

Style	Model	Number Of Flutes	Thread Size	Primary Material Application	List Number	Nomenclature	Pitch	Flutes	Length Of Cut	Price
A	3900032	4	M12 x 1.25	Aluminum, Cast Iron, Steel	41100	41100	1.25 mm	4	26.3 mm	€610.87
A	3900034	4	M12 x 1.75	Aluminum, Cast Iron, Steel	41100	41100	1.75 mm	4	26.3 mm	€610.87
B	8304734	5	M12 x 1.75	Steel	41150	41150	1.75 mm	5	26.3 mm	€661.76
B	8304732	5	M12 x 1.25	Steel	41150	41150	1.25 mm	5	26.3 mm	€661.76

OSG -

Thread Mill M20 105mm

Style	Model	Number Of Flutes	Thread Size	Length Of Cut	Primary Material Application	List Number	Cutting Length	Nomenclature	Shank Length	Price
A	3900073	4	M20 x 1.5	42 mm	Aluminum, Cast Iron, Steel	41100	1.65"	41100	63 mm	€677.47
A	3900075	4	M20 x 2.5	42.5 mm	Aluminum, Cast Iron, Steel	41100	1.67"	41100	62.5 mm	€677.47
B	8304775	5	M20 x 2.5	42.5 mm	Steel	41150	1.67"	41150	62.5 mm	€733.96
B	8304773	5	M20 x 1.5	42 mm	Steel	41150	1.65"	41150	63 mm	€733.96

OSG -

Helical Flute Thread Mills

Style	Model	Number Of Flutes	Overall Length	Shank Dia.	Primary Material Application	List Number	Thread Size	Finish	Cutting Length	Price

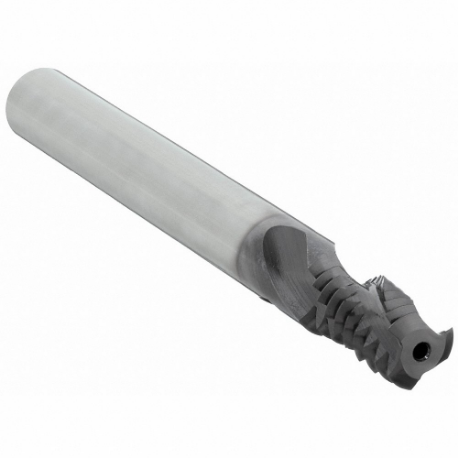

A	4100003511	3	3"	1/4"	Aluminum, Cast Iron, Steel	41000	5/16"-24	Exo	0.752"	€458.14
A	4100001211	3	3"	5/16"	Aluminum, Cast Iron, Steel	41000	3/8"-16	Exo	0.594"	€473.97
A	4100003611	3	3"	5/16"	Aluminum, Cast Iron, Steel	41000	3/8"-16	Exo	0.874"	€488.57
A	4100000911	3	3"	1/4"	Aluminum, Cast Iron, Steel	41000	1/4"-28	Exo	0.394"	€381.75
A	4100003311	3	3"	1/4"	Aluminum, Cast Iron, Steel	41000	1/4"-28	Exo	0.535"	€458.14
B	4100001511	3	3"	3/8"	Aluminum, Cast Iron, Steel	41000	7/16"-20	Exo	0.701"	€449.96

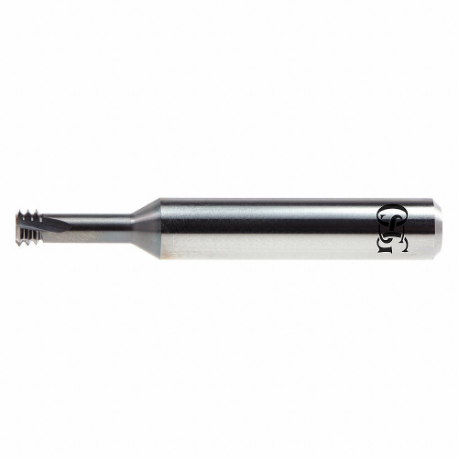

C	4120000215	3	1 5/8"	1/8"	All Materials	41200	#1-72	Stainless Steel	0.014"	€251.98
D	4120000115	3	1 5/8"	1/8"	All Materials	41200	#0-80	Stainless Steel	0.013"	€251.98
E	4110000111	3	60 mm	6 mm	Aluminum, Cast Iron, Steel	41100	M6 x 1	TiAlN	10 mm	€381.75
E	4110000611	3	70 mm	8 mm	Aluminum, Cast Iron, Steel	41100	M10 x 1.5	TiAlN	16.5 mm	€409.01
D	3900504	3	40 mm	6 mm	All Materials	41300	M5 x 0.80	WXS	2.4 mm	€308.59
E	4110000311	3	65 mm	6 mm	Aluminum, Cast Iron, Steel	41100	M8 x 1.25	TiAlN	13.8 mm	€381.75
C	4120000315	3	1 5/8"	1/8"	All Materials	41200	#1-64	Stainless Steel	0.016"	€251.98
F	3900495	3	40 mm	3 mm	All Materials	41300	M1 x 0.25	Stainless Steel	0.26 mm	€251.98
A	4100003711	3	3"	5/16"	Aluminum, Cast Iron, Steel	41000	3/8"-24	Exo	0.874"	€488.57

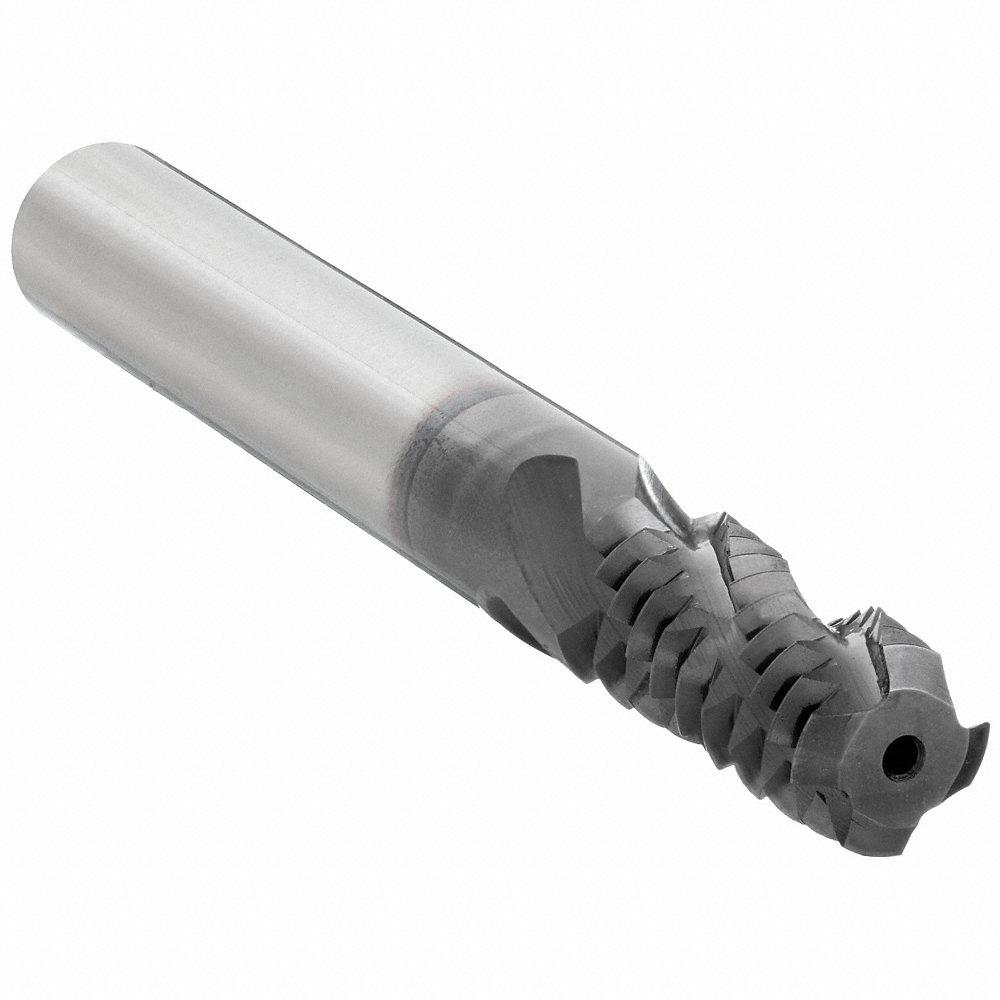

G	4100001411	3	3"	3/8"	Aluminum, Cast Iron, Steel	41000	7/16"-14	Exo	0.713"	€449.96
E	4110000511	3	70 mm	8 mm	Aluminum, Cast Iron, Steel	41100	M10 x 1.25	TiAlN	16.25 mm	€409.01

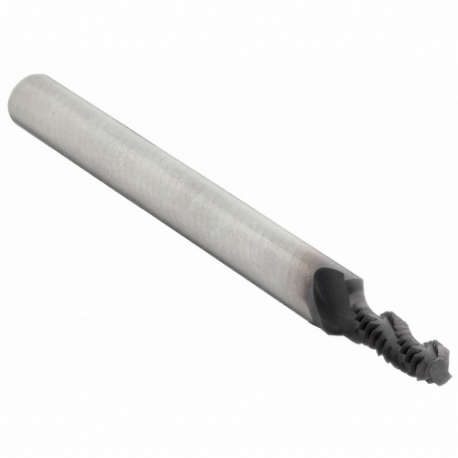

E	4110000411	3	70 mm	8 mm	Aluminum, Cast Iron, Steel	41100	M10 x 1	TiAlN	16 mm	€409.01
H	4200100211	3	3"	5/16"	Aluminum, Cast Iron, Steel	42001	1/8"-27	TiAlN	0.409"	€490.88
I	4200000211	3	3"	5/16"	Aluminum, Cast Iron, Steel	42000	1/16"-27	TiAlN	0.409"	€490.88
I	4200000111	3	3"	1/4"	Aluminum, Cast Iron, Steel	42000	1/16"-27	TiAlN	0.409"	€490.88
D	3900496	3	40 mm	3 mm	All Materials	41300	M1.2 x 0.25	Stainless Steel	0.26 mm	€251.98
B	4100003811	3	3"	3/8"	Aluminum, Cast Iron, Steel	41000	7/16"-14	Exo	1.071"	€521.87
B	4100003911	3	3"	3/8"	Aluminum, Cast Iron, Steel	41000	7/16"-20	Exo	1.051"	€521.87
A	4100001011	3	3"	1/4"	Aluminum, Cast Iron, Steel	41000	5/16"-18	Exo	1/2"	€450.71

OSG -

Thread Mill M24 120mm

Style	Model	Number Of Flutes	Thread Size	Length Of Cut	Primary Material Application	List Number	Cutting Length	Nomenclature	Shank Length	Price
A	41100	5	M24 x 1	51 mm	Aluminum, Cast Iron, Steel	41100	2.01"	41100	69 mm	€798.22
A	41100	5	M24 x 2	50 mm	Aluminum, Cast Iron, Steel	41100	1.97"	41100	70 mm	€798.22
B	8304784	6	M24 x 2	50 mm	Steel	41150	1.97"	41150	70 mm	€864.77
B	8304786	6	M24 x 3	51 mm	Steel	41150	2.01"	41150	69 mm	€864.77

OSG -

Thread Mills

Style	Model	Number Of Flutes	Thread Size	Length Of Cut	Overall Length	Shank Dia.	Primary Material Application	List Number	Cutting Length	Price
A	3900084	-	-	-	-	-	-	-	-	-	RFQ
A	1662500717	-	-	-	-	-	-	-	-	-	RFQ
B	1664500211	-	-	-	-	-	-	-	-	€281.12
C	1662500417	-	-	-	-	-	-	-	-	€249.69
C	1662500317	-	-	-	-	-	-	-	-	€249.69
B	1664500111	-	-	-	-	-	-	-	-	€290.31
A	3900086	-	-	-	-	-	-	-	-	-	RFQ
D	8331220	2	-	-	-	-	-	-	-	€185.66
E	3900001	3	M6 x 1	13 mm	60 mm	6 mm	Aluminum, Cast Iron, Steel	41100	0.51"	€444.80
F	4100003011	3	3/8"-32	0.563"	3"	5/16"	Aluminum, Cast Iron, Steel	41000	0.578"	€409.01
F	4100002911	3	5/16"-32	0.469"	3"	1/4"	Aluminum, Cast Iron, Steel	41000	0.484"	€381.75
F	4100002811	3	1/4"-32	0.374"	3"	1/4"	Aluminum, Cast Iron, Steel	41000	0.39"	€381.75
F	4100002411	4	7/8"-9	1.335"	4"	3/4"	Aluminum, Cast Iron, Steel	41000	1.389"	€702.60
G	8304701	4	M6 x 1	13 mm	60 mm	6 mm	Steel	41150	0.51"	€481.86
C	1662500117	4	-	-	-	-	-	-	-	€249.69
F	4100001811	4	9/16"-12	0.917"	4"	1/2"	Aluminum, Cast Iron, Steel	41000	0.958"	€618.26
G	8304744	5	M14 x 2	30 mm	85 mm	10 mm	Steel	41150	1.18"	€675.80

OSG -

Thread Mill M14 85mm

Style	Model	Number Of Flutes	Thread Size	Primary Material Application	List Number	Nomenclature	Pitch	Flutes	Length Of Cut	Price
A	3900043	4	M14 x 1.5	Aluminum, Cast Iron, Steel	41100	41100	1.5 mm	4	30 mm	€668.38
A	3900044	4	M14 x 2	Aluminum, Cast Iron, Steel	41100	41100	2 mm	4	30 mm	€668.38
B	8304743	5	M14 x 1.5	Steel	41150	41150	1.5 mm	5	30 mm	€675.80

OSG -

Thread Mill #12

Style	Model	Thread Size	Length Of Cut	Cutting Length	Thread Standard	Shank Length	Pitch	Neck Length	Number Of Flutes	Price

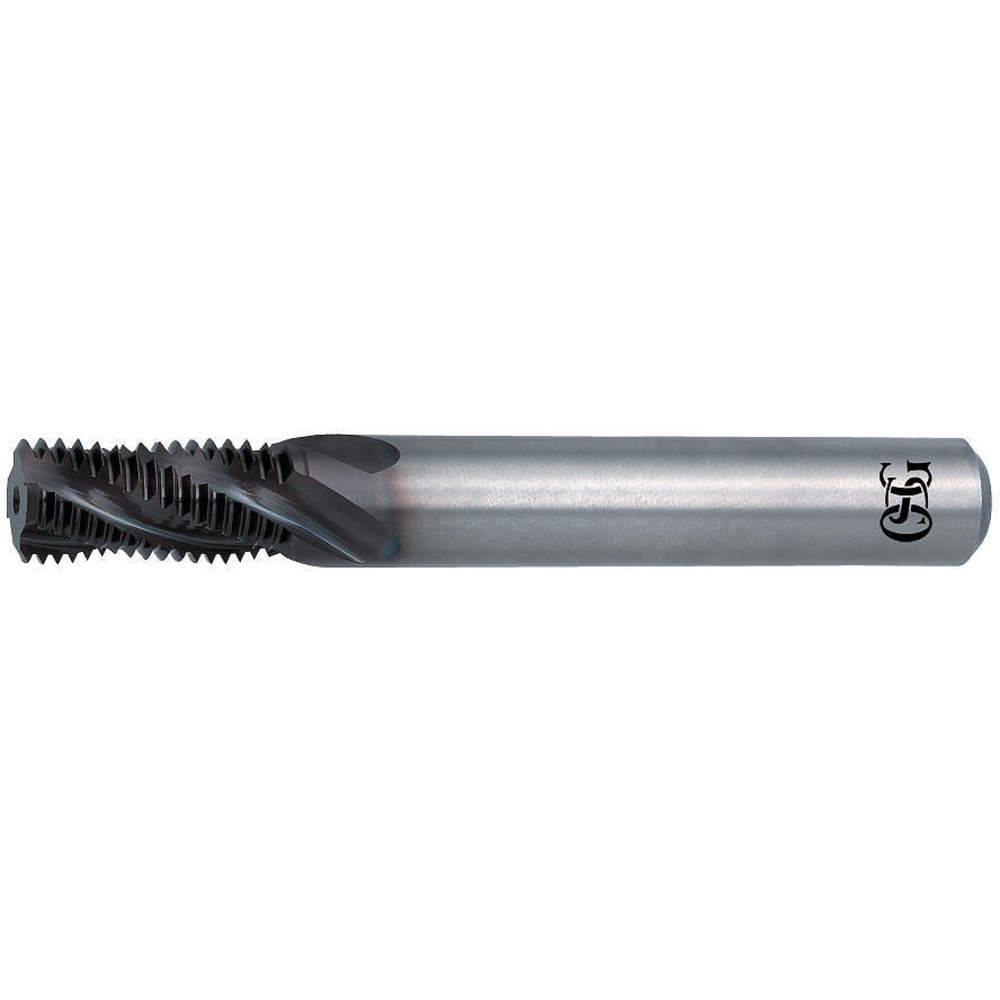

A	4100000611	#12-24	0.331"	0.354"	UNC	2.646"	24	0.37"	3	€385.77
A	4100000711	#12-28	0.323"	0.339"	Unf	2.661"	28	9/25"	3	€381.75
