MITUTOYO Thickness Gages

Dial thickness gauges used for quick measurement of small dimensions, such as the thickness of paper, film, wire, sheet metal and similar metals. Feature a grip handle to allow a comfortable hold, a spring-loaded plunger for exerting repeatable force and a thumb trigger for accurate pressure.

Filter

MITUTOYO -

546 Series Thickness Gauges

Style	Model	Range	Graduations	Color	Display Type	No. Of Indicator	Non Magnetic	Case Type	Max. Measuring Force	Price
A	546-139	-	0.2N	-	-	1	Yes	Case	5N	€422.38	RFQ

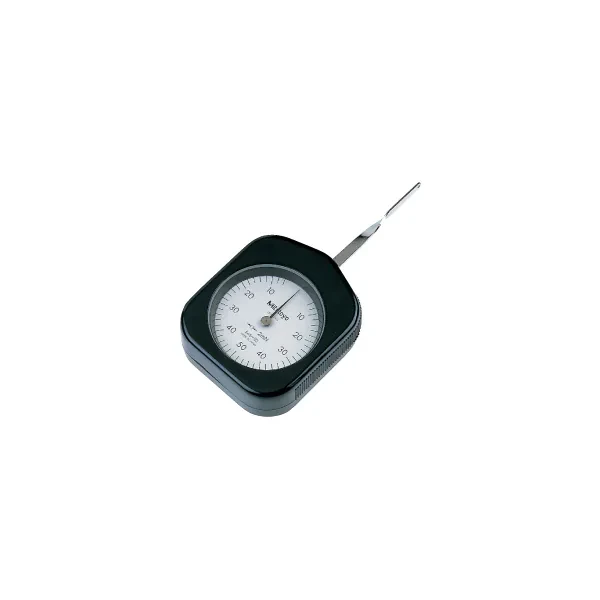

B	546-112	0.006N to 0.05N	2 mN	-	-	-	-	-	-	€379.01
B	546-133	0.01N to 0.1N	5 mN	-	-	-	-	-	-	€311.13
B	546-113	0.01N to 0.1N	5 N-m	-	Non Digital	-	-	-	-	€292.74
B	546-135	0.06N to 0.5N	0.02N	-	-	-	-	-	-	€311.13
B	546-115	0.06N to 0.5N	0.02N	Black	-	-	-	-	-	€268.70
B	546-136	0.1N to 1N	0.05N	Black	-	-	-	-	-	€350.73
B	546-118	0.3N to 3N	0.1N	-	Non Digital	-	-	-	-	€237.59

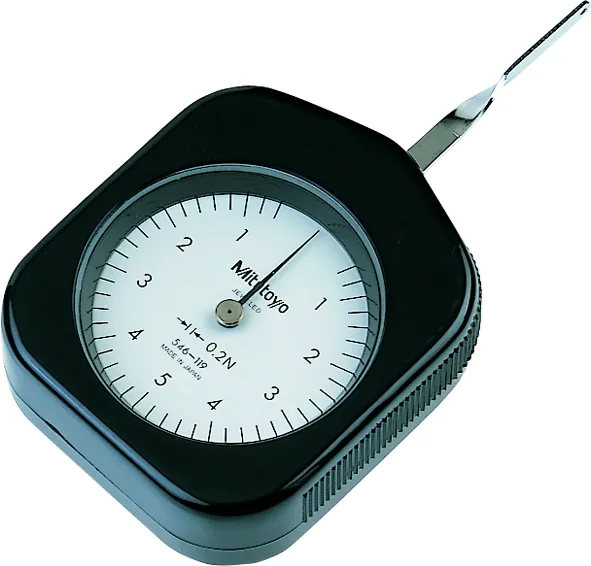

C	546-119	0.6N to 5N	0.2N	-	-	-	-	-	-	€261.00	RFQ
B	546-137	0.15N to 1.5N	0.05N	-	-	-	-	-	-	€308.30

MITUTOYO -

External Dial Caliper Thickness Gauges, Metric

Style	Model	Range	Type	Measuring Force	Graduation	Graduations	Mass	Protection	Inch-metric	Price
A	209-403	0 mm to 10 mm	Fig. 5	0.8N to 1.2N	0.005 mm	-	-	Ip 65	Metric	€974.15

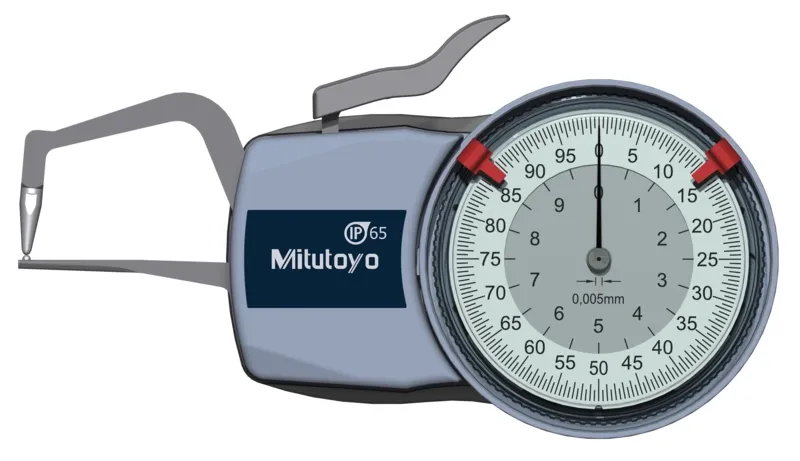

B	209-400	0 mm to 10 mm	Fig. 4	0.8N to 1.2N	0.005 mm	-	-	Ip 65	Metric	€604.00

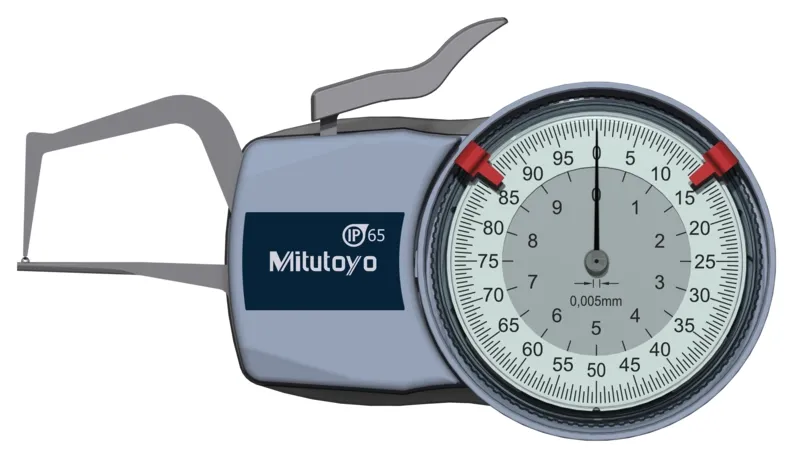

C	209-401	0 mm to 10 mm	Fig. 6	0.8N to 1.2N	0.005 mm	-	-	Ip 65	Metric	€604.00

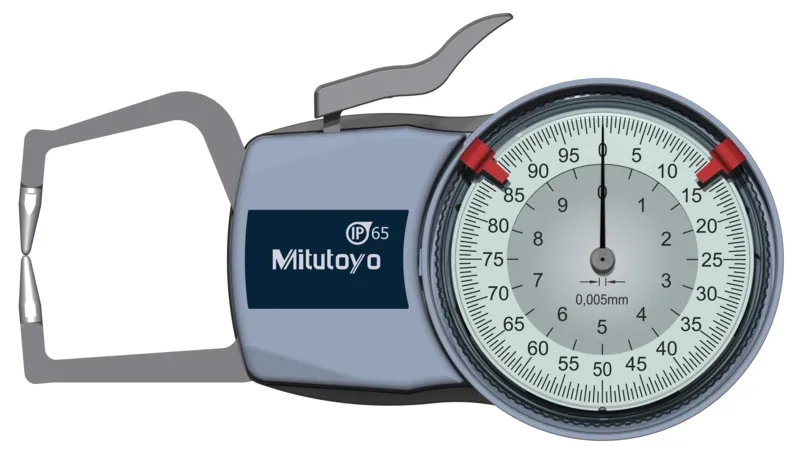

D	209-402	0 mm to 10 mm	Fig. 2	0.8N to 1.2N	0.005 mm	-	-	Ip 65	Metric	€604.00
E	209-404	0 mm to 20 mm	External	1.1N to 1.6N	-	0.01 mm	210g	IP 65	-	€894.95	RFQ

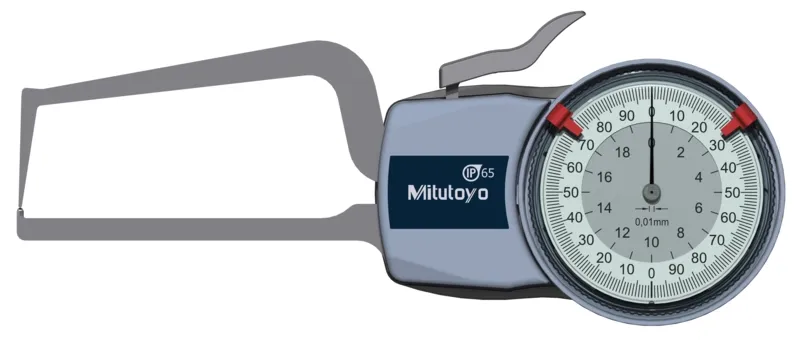

F	209-406	0 mm to 20 mm	Fig. 3	1.1N to 1.6N	0.01 mm	-	-	Ip 65	Metric	€604.00
E	209-405	0 mm to 20 mm	External	1.1N to 1.6N	-	0.01 mm	210g	IP 65	-	€958.31	RFQ
E	209-407	0 mm to 20 mm	External	1.1N to 1.6N	-	0.01 mm	200g	IP 65	-	€926.63	RFQ

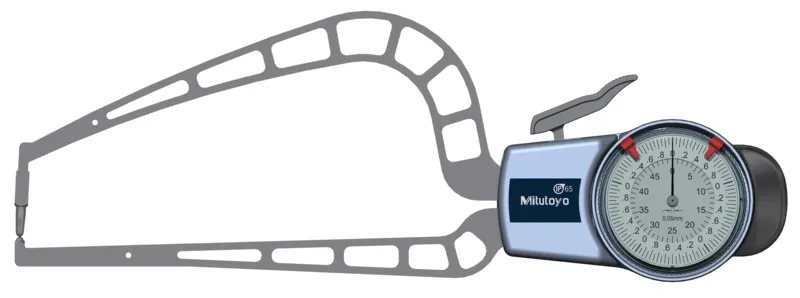

G	209-912	0 mm to 50 mm	Fig. 4	0.8N to 1.7N	0.05 mm	-	-	Ip 65	Metric	€697.00
E	209-911	0 mm to 50 mm	External	0.8N to 1.7N	-	0.05 mm	430g	IP 65	-	€959.63	RFQ
H	209-921	0 mm to 50 mm	External	0.8N to 1.7N	-	0.05 mm	430g	IP 65	-	€1,236.18

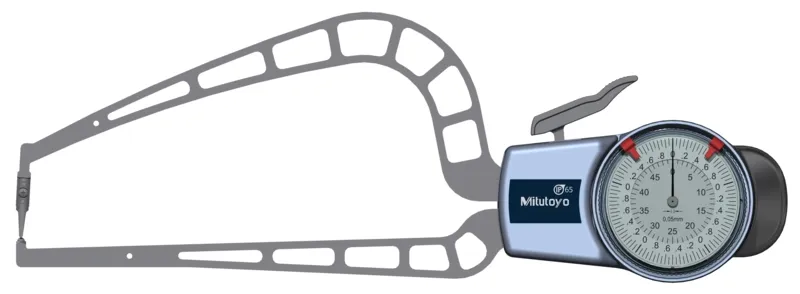

I	209-922	0 mm to 50 mm	Fig. 3	0.8N to 1.7N	0.05 mm	-	-	Ip 65	Metric	€689.00

MITUTOYO -

7 Series Thickness Gages

Style	Model	Range	Dimensions Type	Long Form Calibration Certificate	Accuracy	Graduations	Anvil Dia.	Dial Reading	Actuation Type	Price

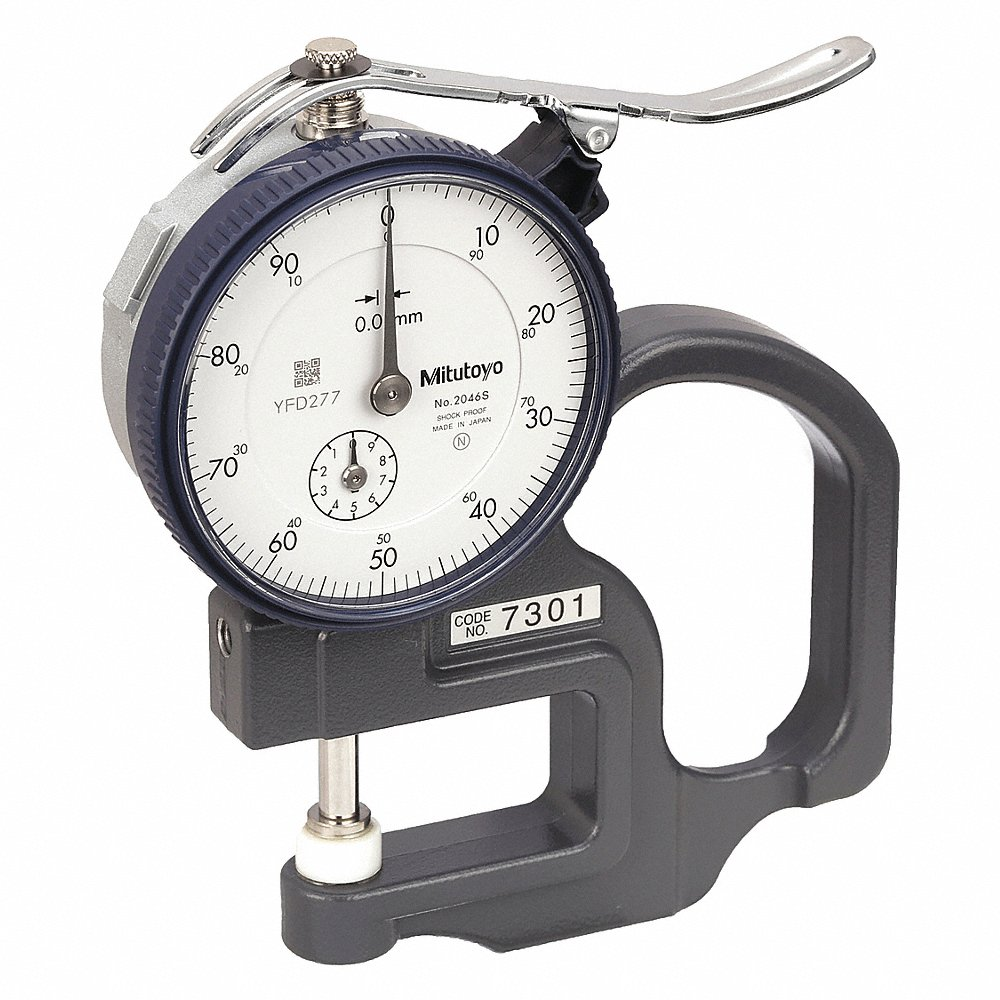

A	7301	0 mm to 10 mm	Metric	No	-0.015 mm to +0.015 mm	0.001 mm	3/8"	0-100	Trigger	€175.83
B	7321A	0 mm to 10 mm	-	-	-	-	-	-	-	€213.12
C	7323A	0 mm to 20 mm	-	-	-	-	-	-	-	€215.90

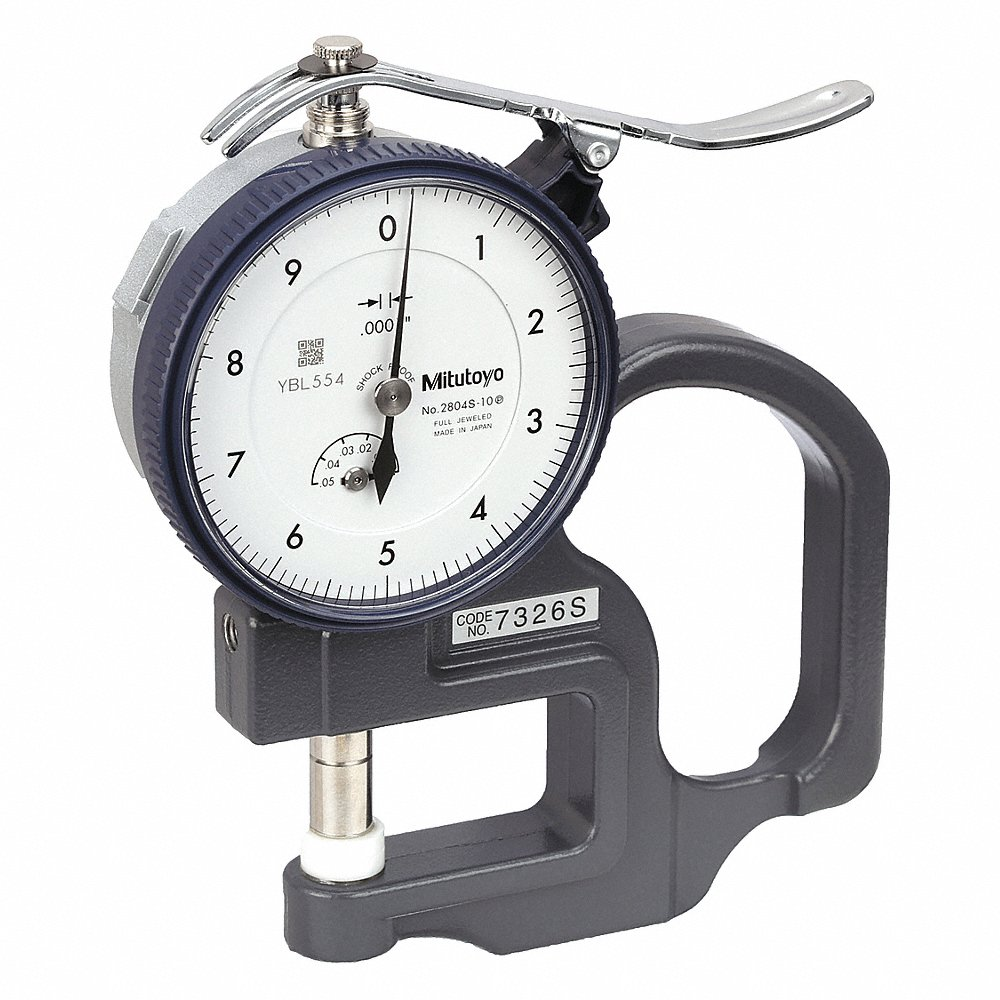

D	7326SCERT	0" to 0.05"	Inch	Yes	-0.0002" to +0.0002"	0.0001"	3/8"	0-10	Trigger	€406.56

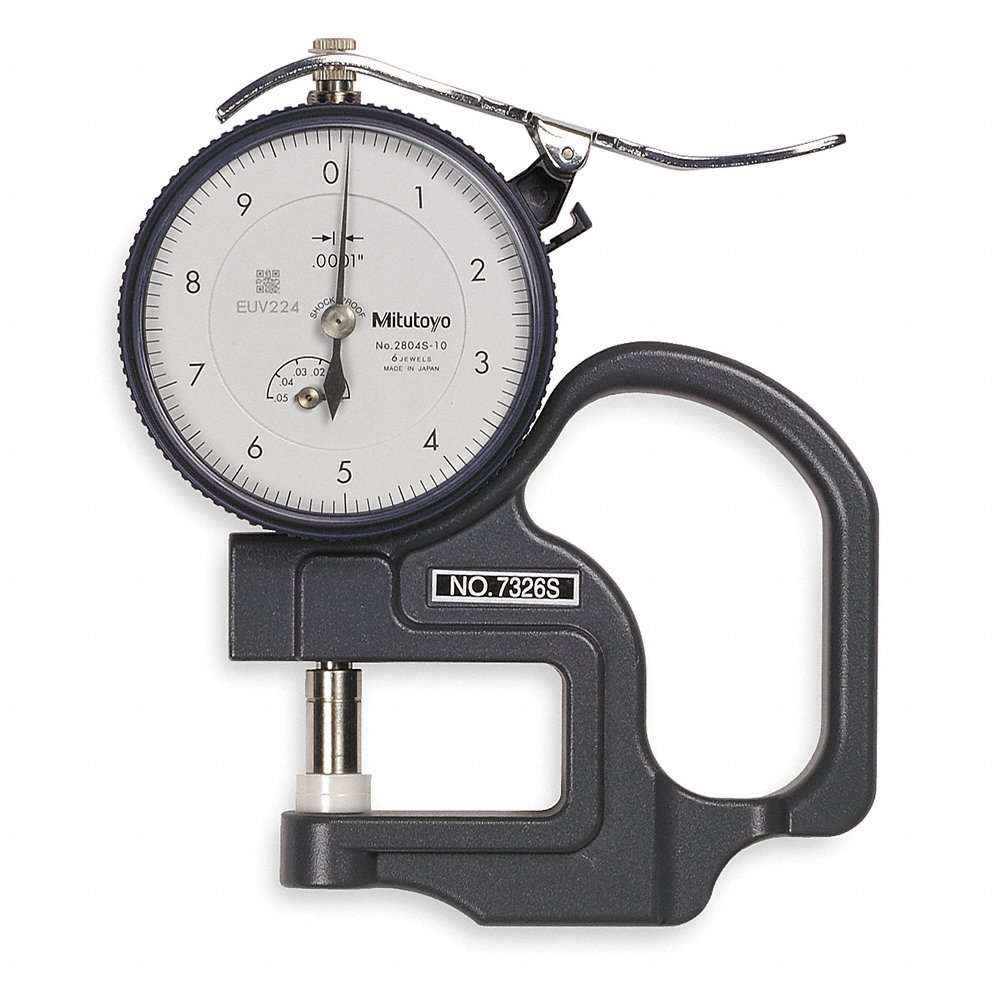

E	7326S	0" to 0.05"	Inch	No	-0.0002" to +0.0002"	0.0001"	3/8"	-	Trigger	€387.73
F	7304A	0" to 1"	Inch	No	-0.002" to +0.002"	0.001"	6 mm	0-100	Lever	€233.12
G	7300A	0" to 1/2"	Inch	No	-0.001" to +0.001"	0.001"	0.39"	0-100	Lever	€213.29
H	7300A W/CERT	0" to 1/2"	Inch	Yes	-0.001" to +0.001"	0.001"	-	0-100	-	€249.79

MITUTOYO -

547 Series Thickness Gauges

Style	Model	Type	Accuracy	Digital Step Switchable	Range	Max. Measuring Depth	Protection	Alarm	Anvil Dia.	Price
A	547-400a	6.3 Mm Carbide Tipped	+/-3 µm	No	0 mm to 12 mm	21 mm	IP42	Low Voltage, Setting Errors, Sensor Error, Display Overflow A.S.O.	1/4"	€1,239.47	RFQ
A	547-401a	D 6.3 Mm Carbide Tipped	-3 µm to +3 µm	Yes	0 mm to 12 mm	21 mm	IP42	Low Voltage, Setting Errors, Sensor Error, Display Overflow A.S.O.	-	€1,327.91	RFQ

MITUTOYO -

Series 188 Pitch Gauges

Style	Model	No. Of Leaves	Type	Price
A	188-102	20.5	Screw Pitch Gauge Sets	€54.90	RFQ
B	188-101	20.5	Screw Pitch Gauge Sets	€56.75	RFQ
C	188-130	22	Screw Pitch Gauge Sets	€54.10	RFQ

MITUTOYO -

Internal Dial Caliper Thickness Gauges, Inch

Style	Model	Measuring Force	Graduations	Mass	Type	Graduation	Inch-metric	Display Type	Ip Rating	Price
A	209-351	0.8N to 1.2N	-	-	Fig. 4	0.0002"	Inch	-	-	€887.03
B	209-350	0.8N to 1.2N	0.0002"	155g	Internal	-	-	Non Digital	IP65	€887.03	RFQ
B	209-361	1.1N to 1.6N	0.0005"	220g	-	-	-	-	-	€1,342.43	RFQ
B	209-356	1.1N to 1.6N	-	-	Fig. 3	0.0005"	Inch	-	-	€877.78	RFQ
B	209-352	1.1N to 1.6N	0.0005"	180g	Internal	-	-	Non Digital	IP65	€905.50	RFQ
B	209-354	1.1N to 1.6N	0.0005"	180g	Internal	-	-	Non Digital	IP65	€949.06	RFQ
B	209-363	1.1N to 1.6N	0.0005"	240g	-	-	-	-	-	€1,506.11	RFQ
B	209-360	1.1N to 1.6N	0.0005"	200g	-	-	-	-	-	€962.27	RFQ
B	209-359	1.1N to 1.6N	-	-	-	0.0005"	Inch	-	-	€982.07	RFQ
B	209-355	1.1N to 1.6N	-	-	-	0.0005"	Inch	-	-	€916.07	RFQ

MITUTOYO -

External Dial Caliper Thickness Gauges, Inch

Style	Model	Measuring Force	Graduations	Mass	Type	Display Type	Graduation	Range	Inch-metric	Price
A	209-916	0.8N to 1.7N	0.001"	430g	-	Analog Dial	-	-	-	€905.50	RFQ
A	209-917	0.8N to 1.7N	-	-	Fig. 4	-	0.001"	0" to 2"	Inch	€905.50	RFQ
A	209-454	1.1N to 1.6N	0.0005"	210g	-	-	-	-	-	€963.59	RFQ
A	209-456	1.1N to 1.6N	0.0005"	200g	External	Non Digital	-	-	-	€926.63	RFQ
A	209-453	1.2N to 1.6N	0.0002"	170g	-	-	-	-	-	€938.51	RFQ
A	209-450	1.2N to 1.6N	0.0002"	170g	External	Non Digital	-	-	-	€938.51	RFQ
B	209-451	1.2N to 1.6N	-	-	-	-	0.0002"	-	Inch	€916.07

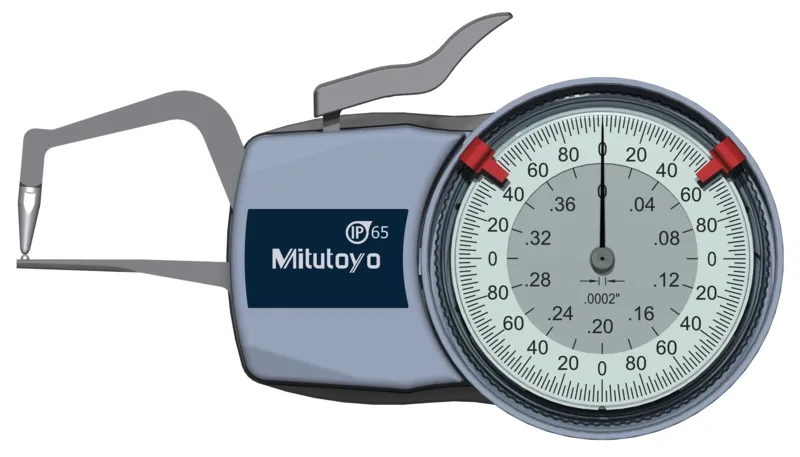

C	209-452	1.2N to 1.6N	-	-	Fig. 4	-	0.0002"	-	Inch	€604.00

MITUTOYO -

Internal Dial Caliper Thickness Gauges, Metric

Style	Model	Range	Measuring Force	Type	Graduation	Graduations	Mass	Inch-metric	Display Type	Price
A	209-300	2.5 mm to 12.5 mm	0.8N to 1.2N	-	-	0.005 mm	155g	-	-	€913.42	RFQ

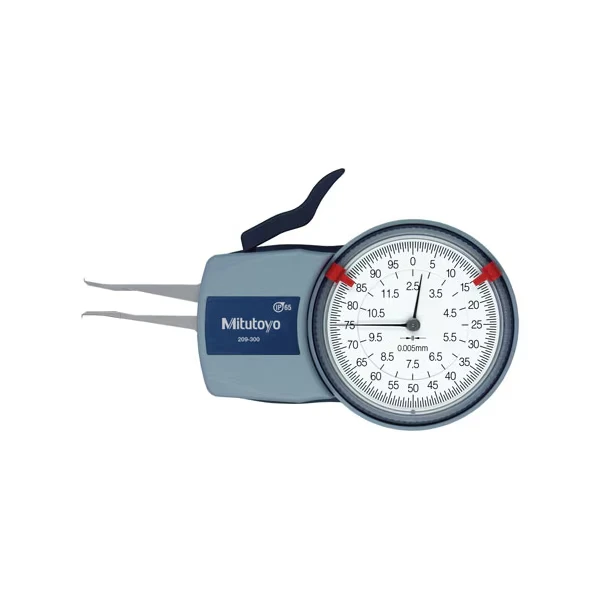

B	209-301	5 mm to 15 mm	0.8N to 1.2N	Fig. 4	0.005 mm	-	-	Metric	-	€926.63

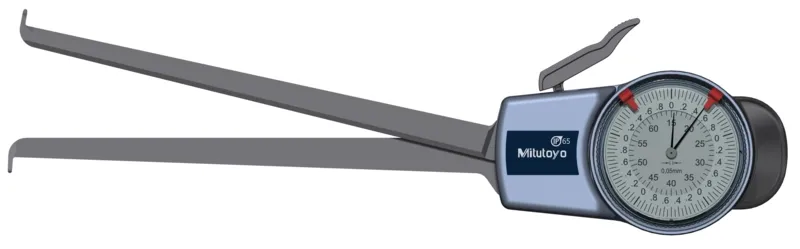

C	209-901	15 mm to 65 mm	0.9N to 1.9N	Fig. 4	0.05 mm	-	-	Metric	-	€954.65

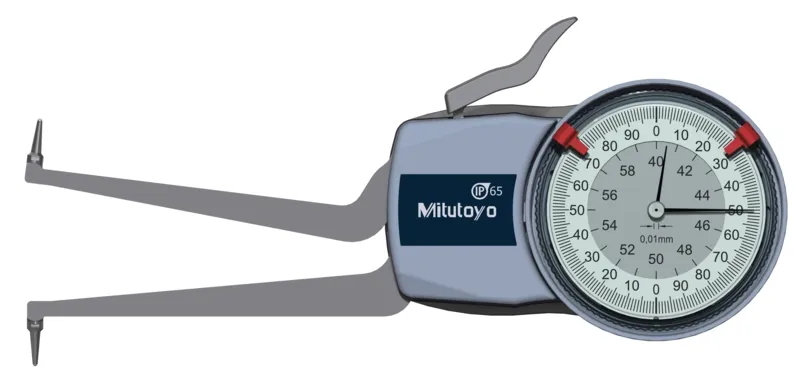

D	209-305	40 mm to 60 mm	1.1N to 1.6N	Fig. 3	0.01 mm	-	-	Metric	-	€604.00

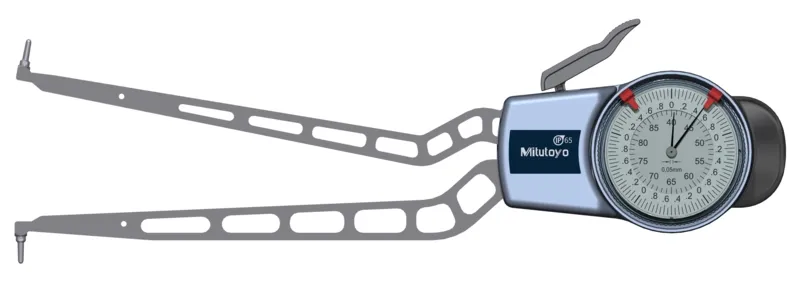

E	209-902	40 mm to 90 mm	0.9N to 1.9N	Fig. 3	0.05 mm	-	-	Metric	-	€697.00
A	209-306	50 mm to 70 mm	1.1N to 1.6N	Internal	-	0.01 mm	195g	-	Non Digital	€963.59	RFQ

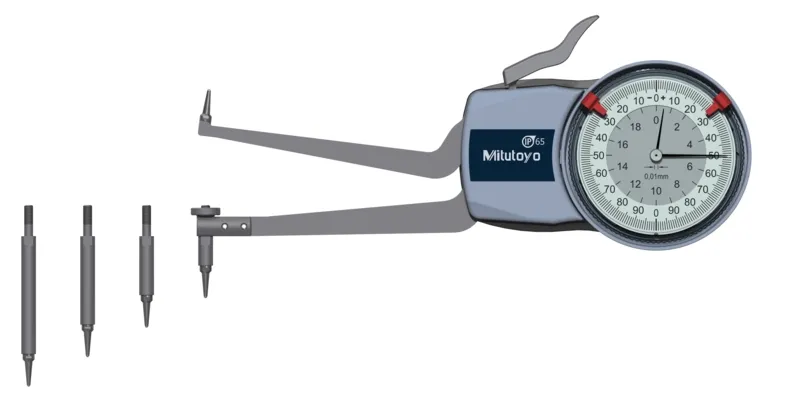

F	209-310	50 mm to 100 mm	1.1N to 1.6N	Fig. 5	0.01 mm	-	-	Metric	-	€914.00
A	209-307	60 mm to 80 mm	1.1N to 1.6N	Internal	-	0.01 mm	200g	-	Non Digital	€974.15	RFQ

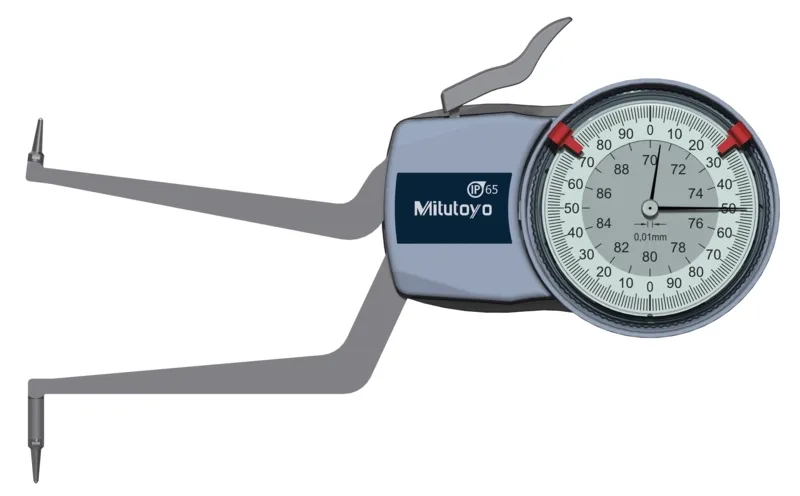

G	209-308	70 mm to 90 mm	1.1N to 1.6N	Fig. 3	0.01 mm	-	-	Metric	-	€604.00

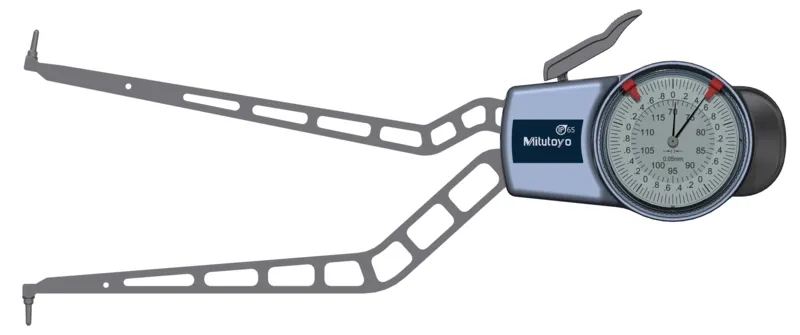

H	209-903	70 mm to 120 mm	0.9N to 1.9N	Fig. 3	0.05 mm	-	-	Metric	-	€800.00

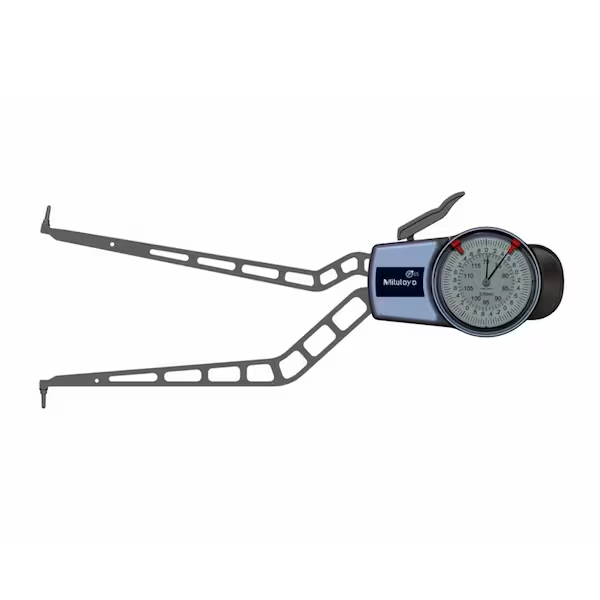

I	209-309	80 mm to 100 mm	1.1N to 1.6N	Internal	-	0.01 mm	200g	-	Non Digital	€860.63	RFQ
A	209-311	90 mm to 140 mm	1.1N to 1.6N	Internal	-	0.01 mm	230g	-	Non Digital	€1,463.86	RFQ

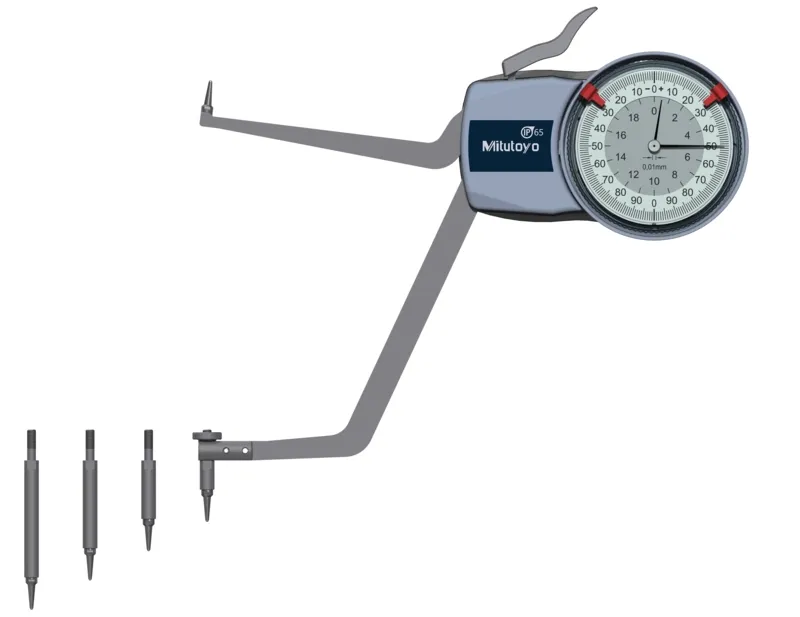

J	209-312	130 mm to 180 mm	1.1N to 1.6N	Fig. 5	0.01 mm	-	-	Metric	-	€980.00

MITUTOYO -

547 Series Thickness Gages

Style	Model	Anvil Dia.	Throat Depth	Long Form Calibration Certificate	Max. Measurement	Resolution	Contact Type	Compatible Spc Cable	Flat Contact Dia.	Price

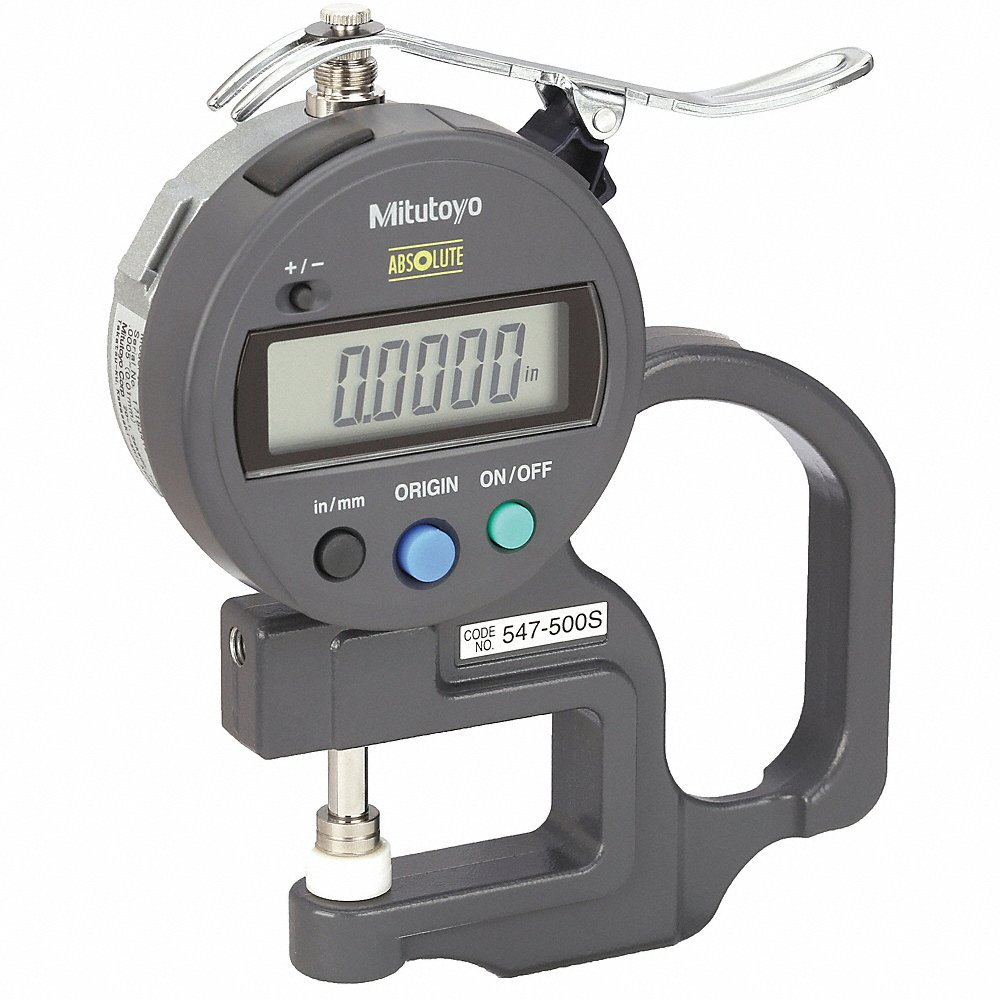

A	547-500S	0.248"	30 mm	No	0.47"	0.0005 mm, 0.01 mm	Flat Anvil	MFR. No. 905338	0.248"	€470.84
A	547-500SCERT	0.248"	30 mm	Yes	12 mm	0.0005", 0.01 mm	Flat Anvil	MFR. No. 905338	-	€707.40

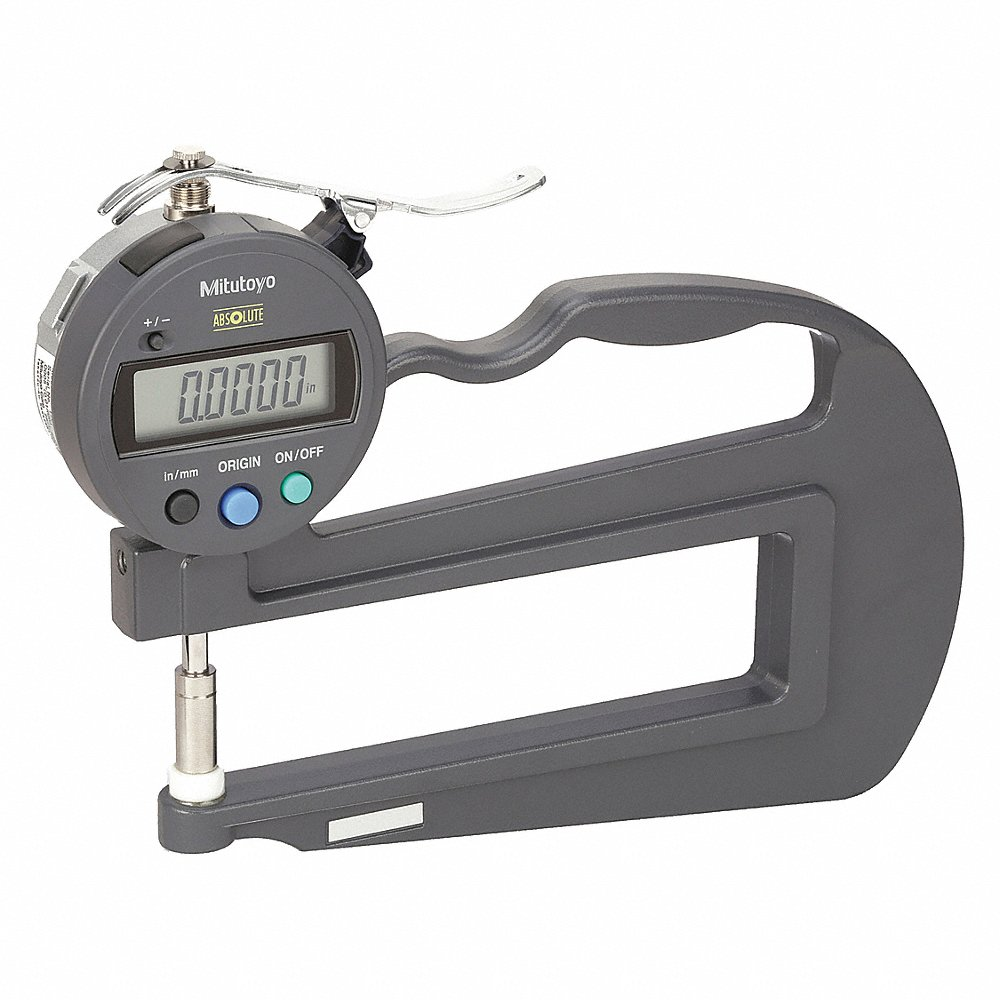

B	547-520S	2/5"	120 mm	No	0.47"	0.0005", 0.01 mm	Flat	Mfr. No. 905338, Mfr. No. 905409	2/5"	€515.41

MITUTOYO -

209 Series Thickness Gauges

Style	Model	Range	Type	Measuring Force	Power Supply	Protection	Material	Digital/analog	Inch-metric	Price

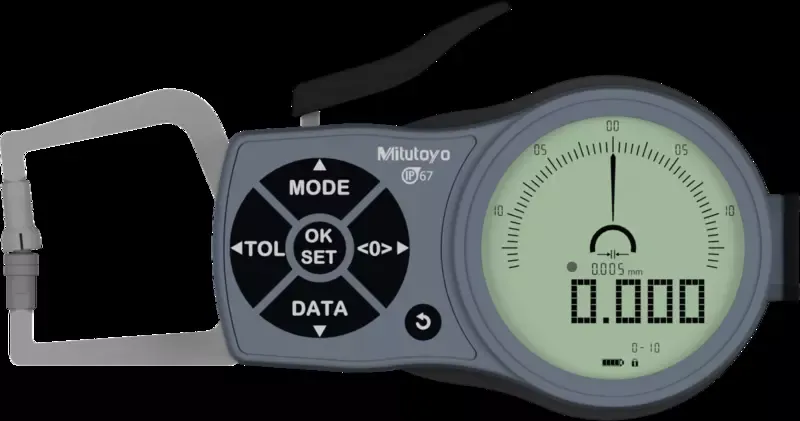

A	209-931	0 mm to 10 mm	Fig. 3	0.8N to 1.2N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	Metric/Inch	€620.00

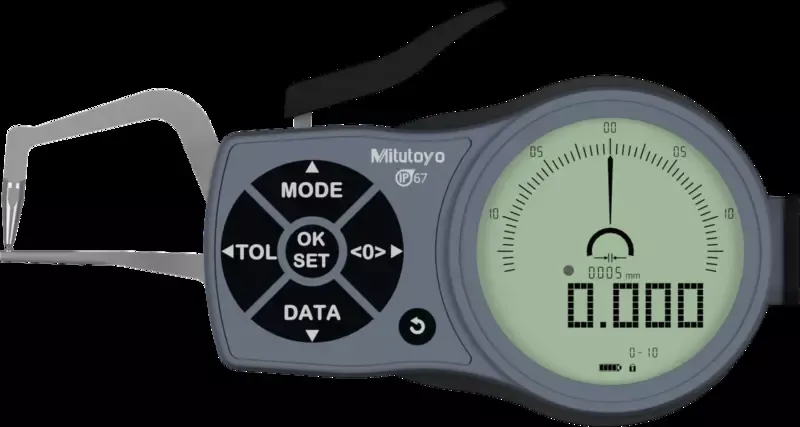

B	209-943	0 mm to 10 mm	Fig. 2	0.8N to 1.2N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	Metric/Inch	€888.17

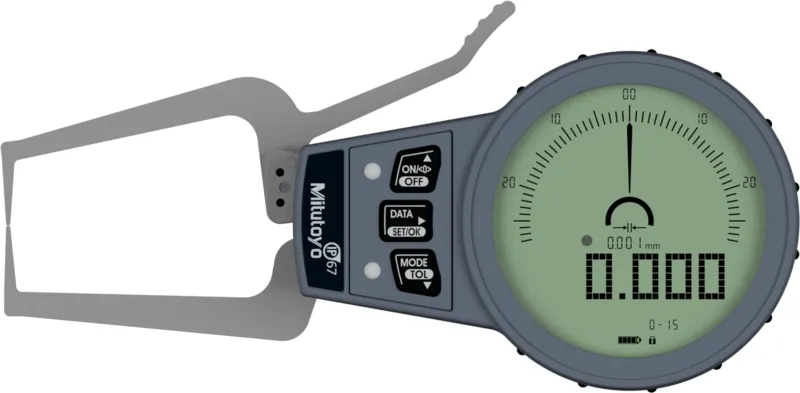

C	209-926	0 mm to 15 mm	Fig. 1	1.3N to 1.5N	Lithium-Polymer Power Pack	Ip 67	-	-	Metric/Inch	€770.00

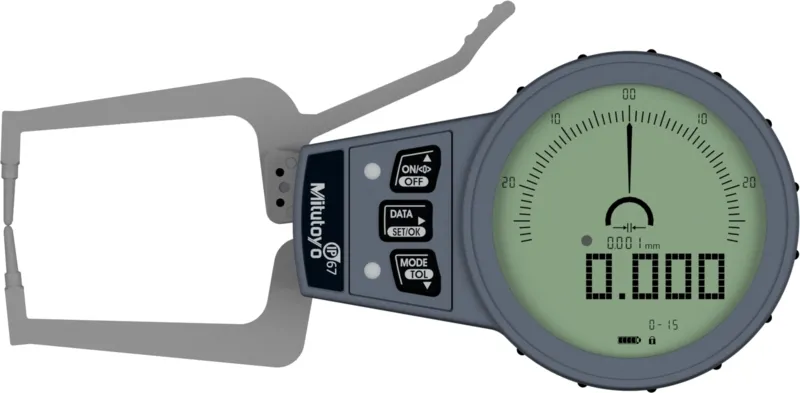

D	209-925	0 mm to 15 mm	Fig. 2	1.3N to 1.5N	Lithium-Polymer Power Pack	Ip 67	-	-	Metric/Inch	€770.00
E	209-933	0 mm to 20 mm	Fig. 2	1.1N to 1.6N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	Metric/Inch	€1,131.22	RFQ

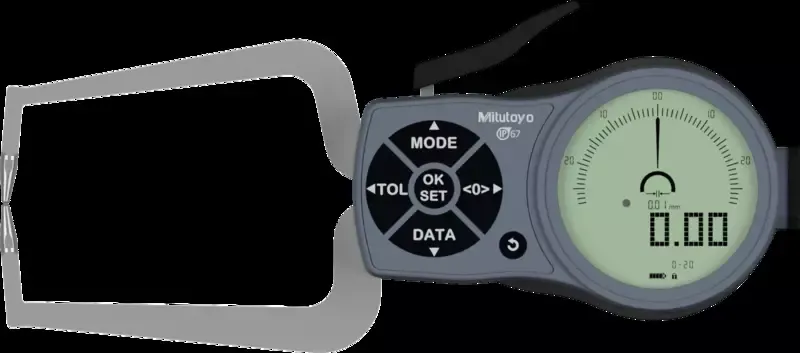

F	209-932	0 mm to 20 mm	Fig. 1	1.1N to 1.6N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	Metric/Inch	€858.47
E	209-951	0 mm to 30 mm	Fig. 1	0.9N to 1.6N	2 Batteries Lr03 (Aaa)	IP67	-	Digital	Metric/Inch	€1,087.66	RFQ
E	209-953	0 mm to 30 mm	External	0.9N to 1.6N	-	-	Steel	-	-	€996.58	RFQ

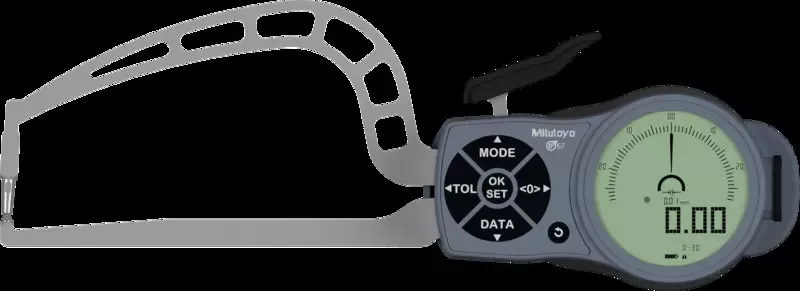

G	209-952	0 mm to 30 mm	Fig. 2	0.9N to 1.6N	2 Batteries Lr03 (Aaa)	IP67	-	Digital	Metric/Inch	€594.00
E	209-956	0 mm to 50 mm	Fig. 4	0.8N to 1.7N	2 Batteries Lr03 (Aaa)	IP67	-	Digital	Metric/Inch	€1,199.87	RFQ

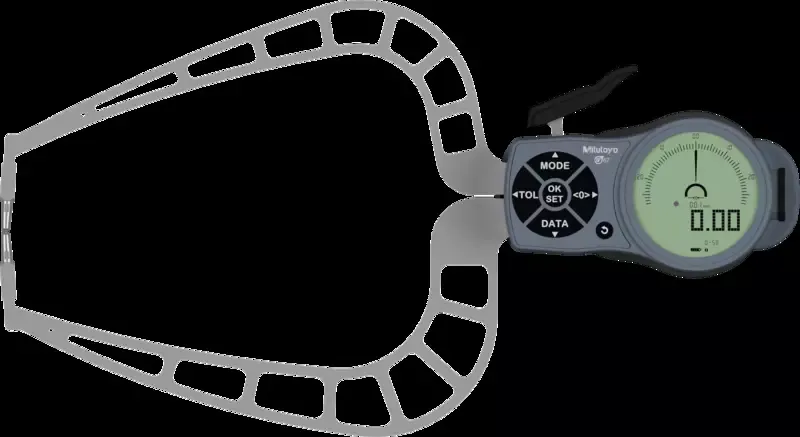

H	209-954	0 mm to 50 mm	Fig. 1	0.8N to 1.7N	2 Batteries Lr03 (Aaa)	IP67	-	Digital	Metric/Inch	€1,381.43

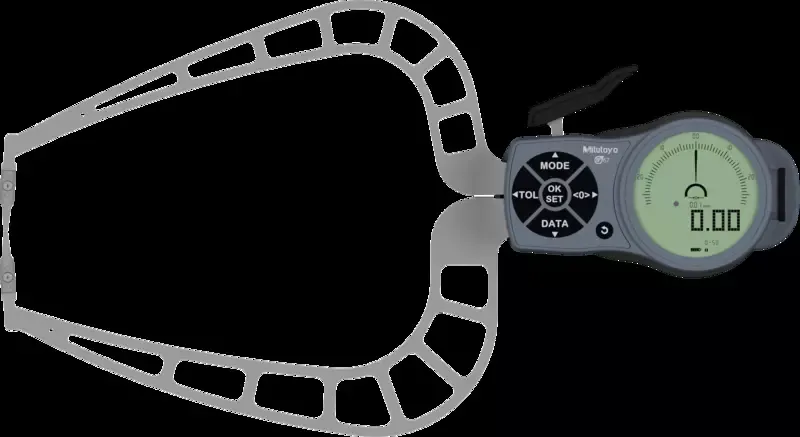

I	209-957	0 mm to 50 mm	Fig. 5	0.8N to 1.7N	2 Batteries Lr03 (Aaa)	IP67	-	Digital	Metric/Inch	€821.00

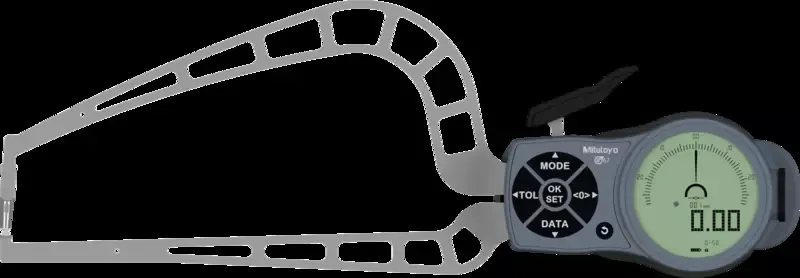

J	209-955	0 mm to 50 mm	Fig. 2	0.8N to 1.7N	2 Batteries Lr03 (Aaa)	IP67	-	Digital	Metric/Inch	€1,158.16

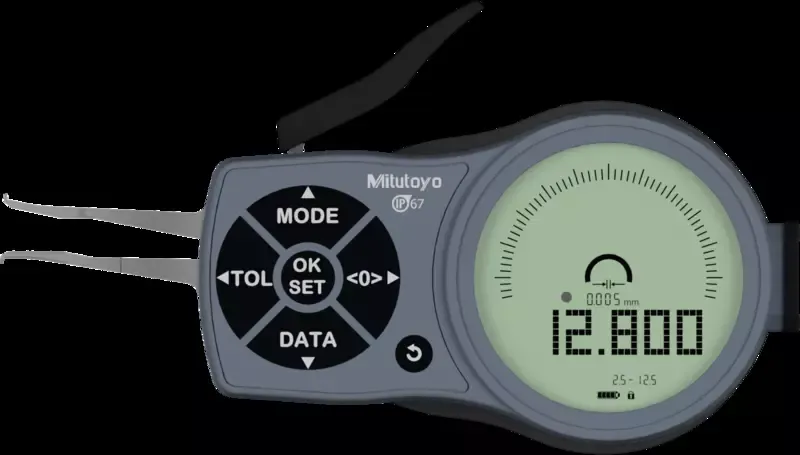

K	209-934	2.5 mm to 12.5 mm	Fig. 1	0.8N to 1.2N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	-	€620.00

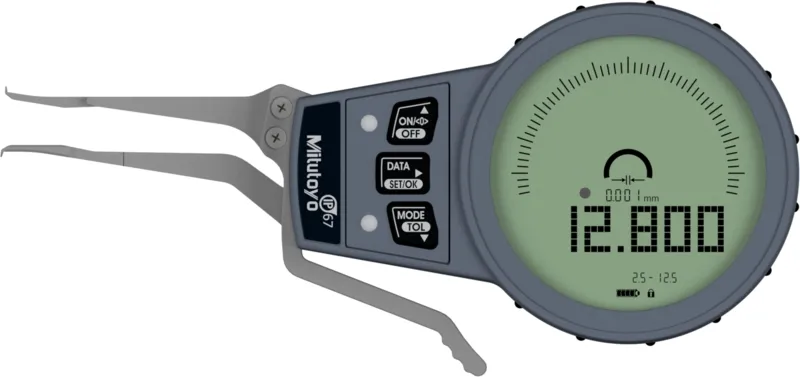

L	209-927	2.5 mm to 12.5 mm	Fig. 4	0.8N to 1.3N	Lithium-Polymer Power Pack	Ip 67	-	-	Metric/Inch	€770.00

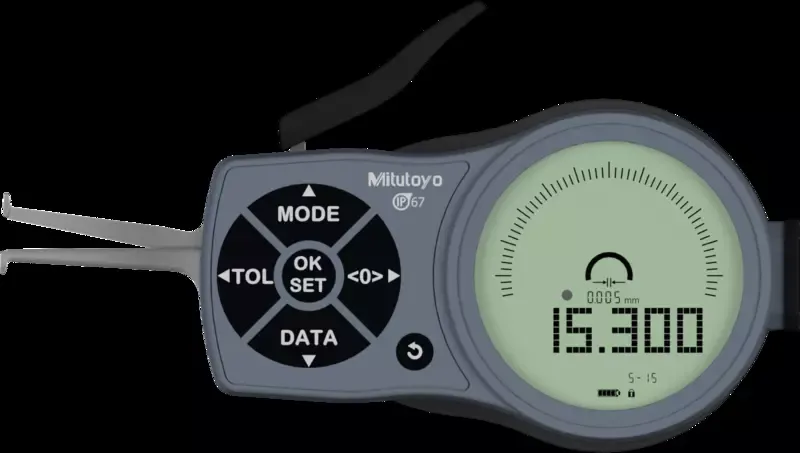

M	209-935	5 mm to 15 mm	Fig. 4	0.8N to 1.2N	2 Batteries Lr03 (Aaa)	IP67	-	Digital	-	€620.00

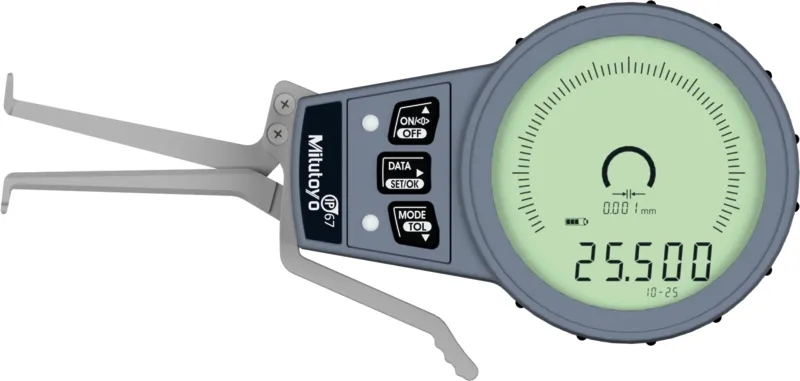

N	209-929	10 mm to 25 mm	Fig. 3	0.8N to 1.3N	Lithium-Polymer Power Pack	Ip 67	-	-	Metric/Inch	€844.00

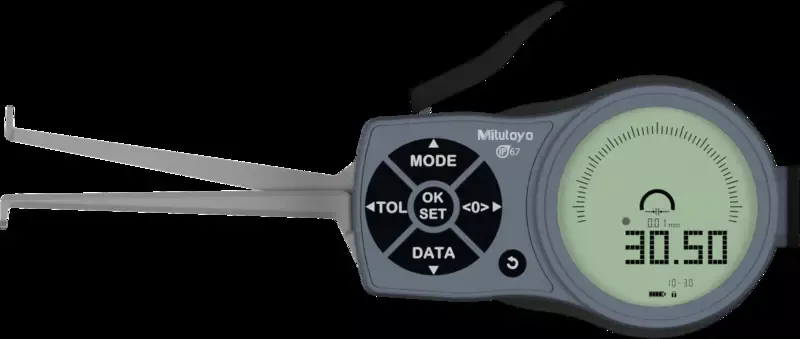

O	209-936	10 mm to 30 mm	Fig. 4	1.1N to 1.6N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	-	€896.65
E	209-944	13 mm to 43 mm	Fig. 4	1.2N to 1.7N	2.0 Batteries Lr3.0 (Aaa)	IP67	-	Digital	-	€1,087.66	RFQ

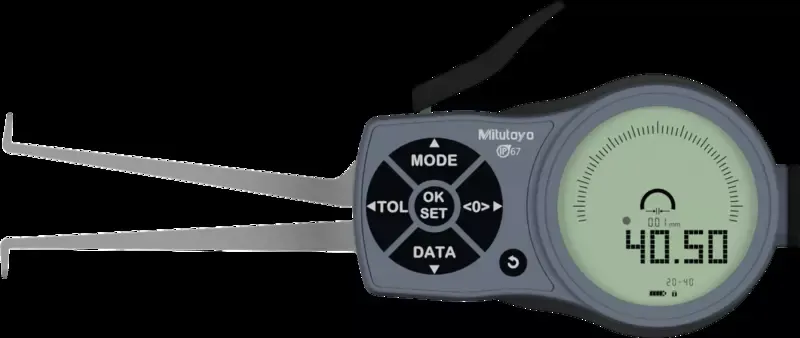

P	209-937	20 mm to 40 mm	Fig. 2	1.1N to 1.6N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	-	€830.02
E	209-946	30 mm to 60 mm	Fig. 3	1.2N to 1.7N	2.0 Batteries Lr3.0 (Aaa)	IP67	-	Digital	-	€1,087.66	RFQ

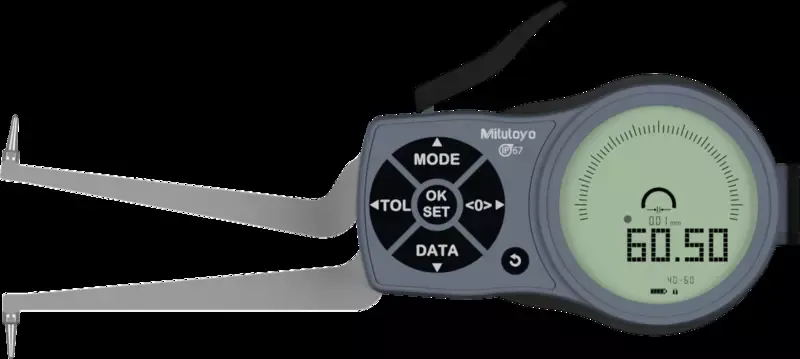

Q	209-939	40 mm to 60 mm	Fig. 3	1.1N to 1.6N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	-	€620.00

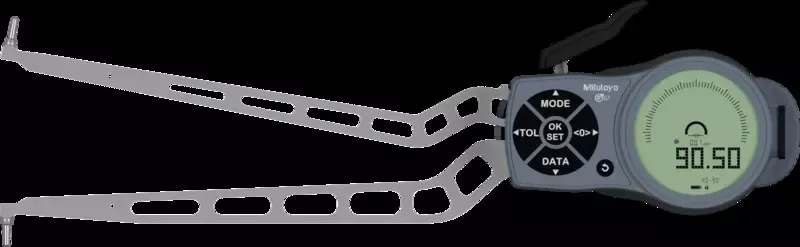

R	209-950	40 mm to 90 mm	Fig. 3	1N to 1.8N	2.0 Batteries Lr3.0 (Aaa)	IP67	-	Digital	-	€821.00
E	209-947	50 mm to 80 mm	Fig. 3	1.2N to 1.7N	2.0 Batteries Lr3.0 (Aaa)	IP67	-	Digital	-	€1,087.66	RFQ

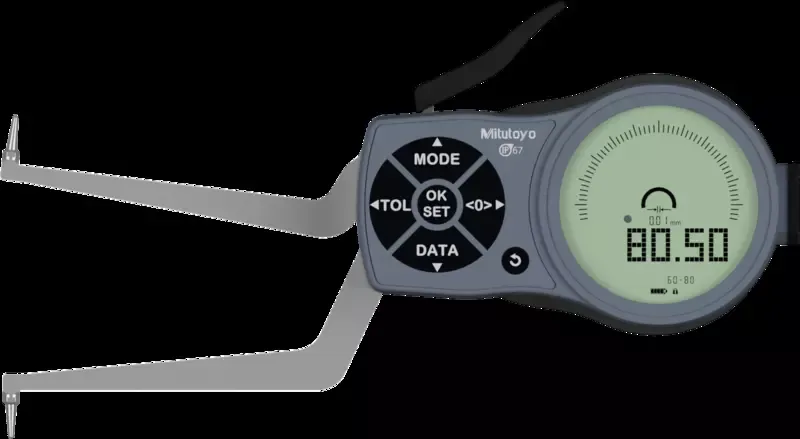

S	209-941	60 mm to 80 mm	Fig. 3	1.1N to 1.6N	2 Batteries Lr3 (Aaa)	IP67	-	Digital	-	€620.00

MITUTOYO -

7 Series Thickness Gauges

Style	Model	Range	Max. Measuring Depth	Inch-metric	Parallelism	Graduation	Contact Point	Indicator Number	Anvil Dia.	Price

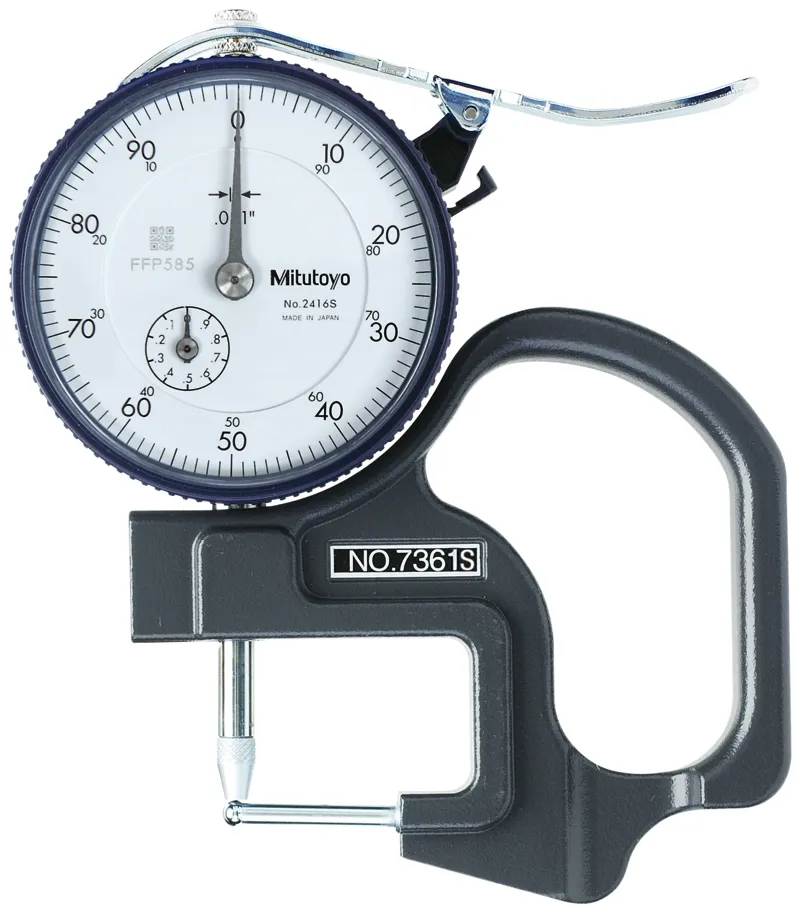

A	7361S	-	0.8"	Inch	5 µm	0.001"	Thread # 4-48UNF	-	-	€156.00
B	7322a	-	4.72"	Inch	5 µm	0.001"	Thread # 4-48UNF	-	-	€269.27	RFQ

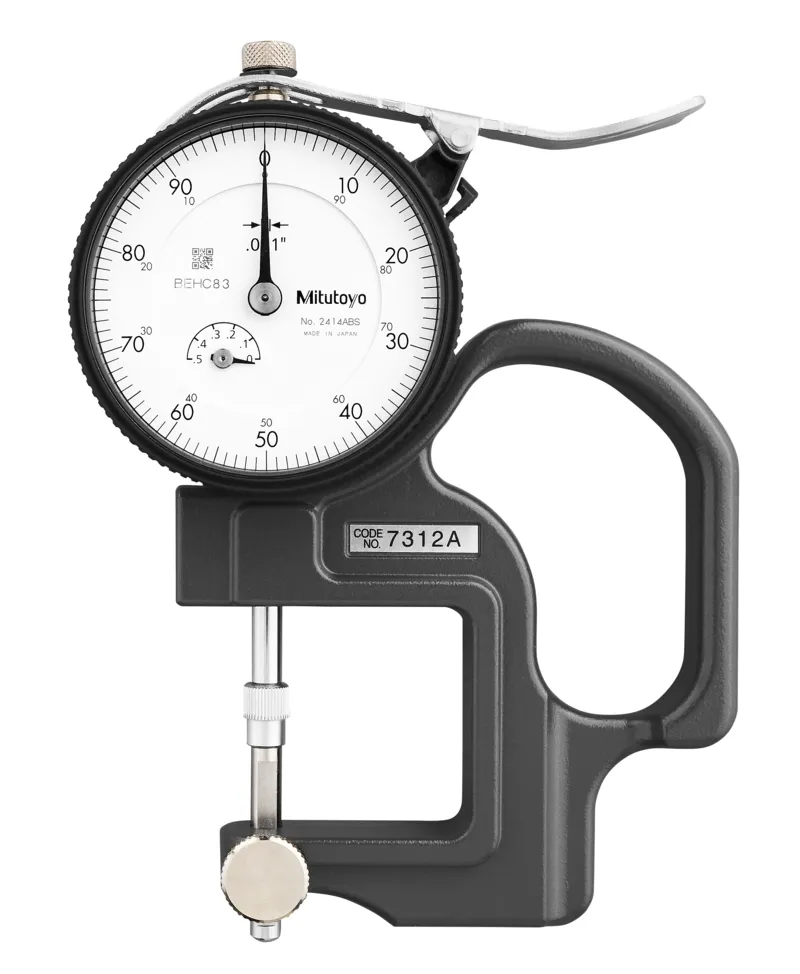

C	7312A	-	1.2"	Inch	5 µm	0.001"	Thread # 4-48UNF	-	-	€217.00
D	7316A	-	1.2"	Inch	5 µm	0.001"	Thread # 4-48UNF	-	-	€231.00
B	7327a	0 mm to 1 mm	30 mm	Metric	5 µm	0.001 mm	Thread M 2.5 x 0.45 mm	2,109AB-10	-	€291.70	RFQ

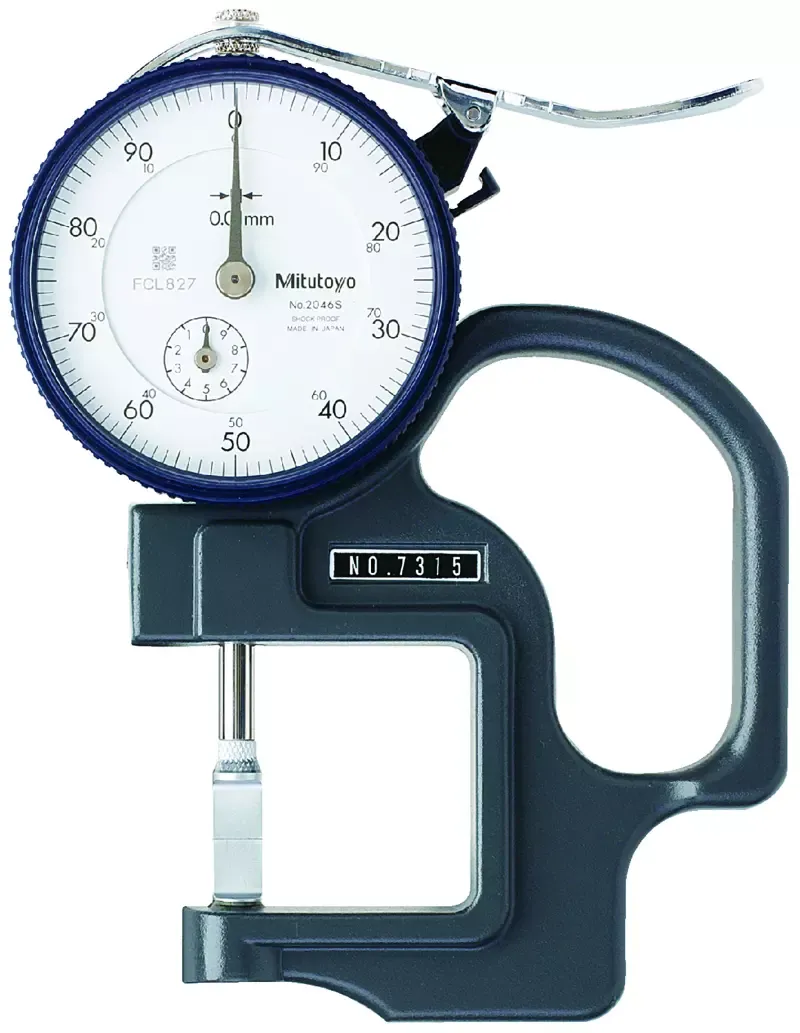

E	7315A	0 mm to 10 mm	30 mm	Metric	5 µm	0.01 mm	Thread M 2.5 x 0.45 mm	2,046AB	-	€169.00
F	7301A	0 mm to 10 mm	-	-	5 mm	-	-	-	3/8"	€159.71	RFQ

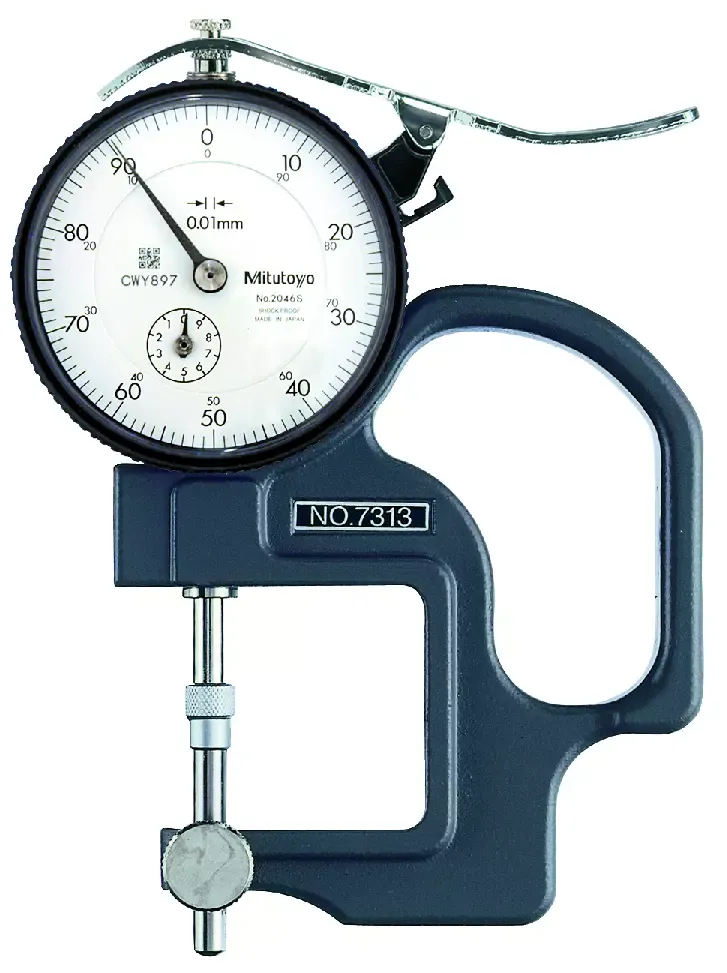

G	7313A	0 mm to 10 mm	30 mm	Metric	5 µm	0.01 mm	Thread M 2.5 x 0.45 mm	2,046AB	-	€157.00

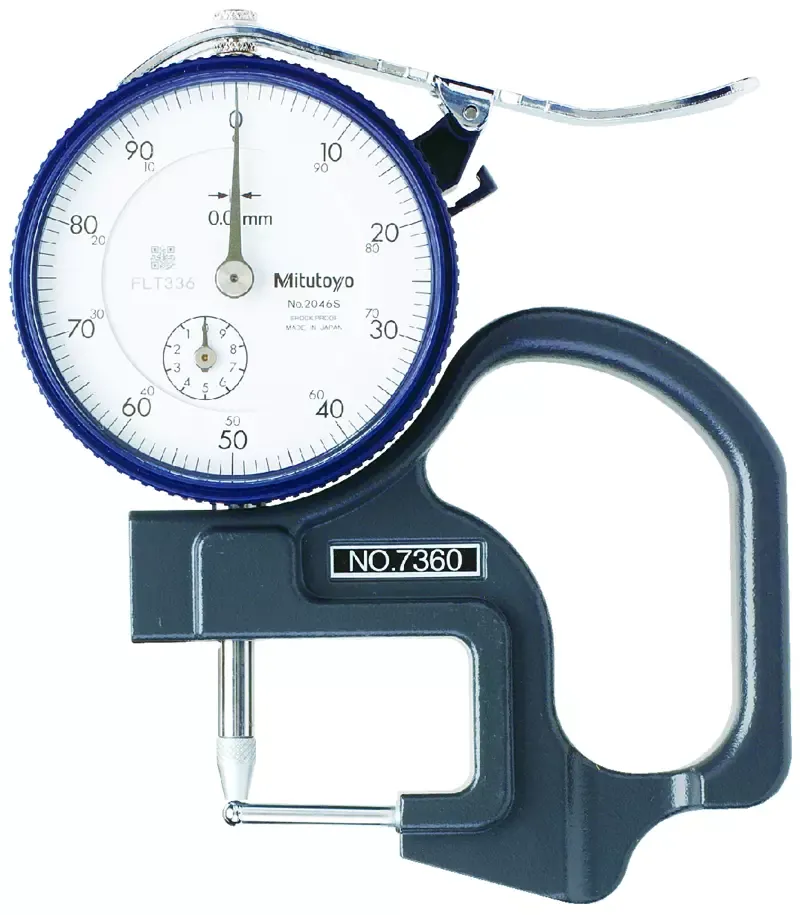

H	7360A	0 mm to 10 mm	20 mm	Metric	-	0.01 mm	Thread M 2.5 x 0.45 mm	2,046AB	-	€125.00
B	7305a	0 mm to 20 mm	30 mm	Metric	5 µm	0.01 mm	Thread M 2.5 x 0.45 mm	2,050AB	-	€220.42	RFQ

MITUTOYO -

Series 515 High-Accuracy Check Masters

Style	Model	MPN	Price
A	515-731	515-731	€4,986.95	RFQ
A	515-750	515-750	€6,167.03	RFQ
A	515-761	515-761	€7,696.90	RFQ
A	515-764	515-764	€18,295.19	RFQ
