TEMPCO Thermocouple Wire

Ideal for manufacturing a thermocouple assembly or extending a thermocouple signal from an instrument or a probe to a measuring instrument, particularly over long distances. Work accurately over a specified temperature range

Filter

Tempco thermocouple wires are ideal for manufacturing a thermocouple assembly or extending a thermocouple signal from an instrument or a probe to a measuring instrument particularly over long distances. The two wires of different metals are soldered into a junction to form a thermocouple.
TEMPCO -

Stranded J Thermocouple Wires

TEMPCO ECA00070A
TEMPCO ECA00071B
TEMPCO TCWR-1011C
StyleModelWire SizeInsulation MaterialJacket ColorWire LengthMaterial/connectorTermination TypeNumber Of ConductorsWire TypePrice
AECA0007020 AWGGlass Filled NylonSilver Over Red, White10 ft.Glass Filled NylonStandard Jack, Standard Plug2-€141.41
BECA0007120 AWGGlass Filled NylonSilver Over Red, White10 ft.Glass Filled Nylon-2-€126.56
AECA0007220 AWGGlass Filled NylonSilver Over Red, White25 ft.Glass Filled NylonStandard Jack, Standard Plug2-€278.87
BECA0007320 AWGGlass Filled NylonSilver Over Red, White25 ft.Glass Filled Nylon-2-€247.90
AECA0007420 AWGGlass Filled NylonSilver Over Red, White50 ft.Glass Filled NylonStandard Jack, Standard Plug2-€485.65
BECA0007520 AWGGlass Filled NylonSilver Over Red, White50 ft.Glass Filled Nylon-2-€446.53
CTCWR-101120 AWGFiberglassBrown100 ft.FiberglassNone2Type J€210.43
CTCWR-102320 AWGFiberglassBrown250 ft.FiberglassNone2Type J€524.49
CTCWR-101424 AWGFiberglassBrown100 ft.FiberglassNone2Type J€159.95
TEMPCO -

Stranded JX Thermocouple Wires

TEMPCO TCWR-1017A
StyleModelWire SizeConductor DesignInsulation MaterialJacket ColorNumber Of ConductorsWire LengthWire TypeAmbient Temp. RangePrice
ATCWR-101720 AWGStrandedPVCBlack2100 ft.-221°F€169.72
ATCWR-101924 AWGStrandedPVCBlack2100 ft.Type JX221°F€161.67
TEMPCO -

Solid JX Thermocouple Wires

TEMPCO TCWR-1005A
TEMPCO TCWR-1009B
StyleModelWire SizeWire LengthWire TypeConductor DesignInsulation MaterialJacket ColorNumber Of ConductorsAmbient Temp. RangePrice
ATCWR-100520 AWG100 ft.Type JXSolidPVCBlack2221°F€135.43
BTCWR-100920 AWG250 ft.Type JXSolidPVCBlack2221°F€249.12
BTCWR-101824 AWG100 ft.Type JXSolidPVCBlack2221°F€97.55
TEMPCO -

Stranded KX Thermocouple Wires

TEMPCO TCWR-1020A
StyleModelWire SizeConductor DesignInsulation MaterialJacket ColorNumber Of ConductorsWire LengthWire TypeAmbient Temp. RangePrice
ATCWR-102020 AWGStrandedPVCYellow2100 ft.-221°F€279.67
ATCWR-102224 AWGStrandedPVCYellow2100 ft.Type KX221°F€276.31
TEMPCO -

Wire Thermocouple Lead

TEMPCO TCWR-1006A
TEMPCO TCWR-1003B
TEMPCO TCWR-1004C
StyleModelWire TypeInsulation MaterialJacket ColorAmbient Temp. RangeMaterial/connectorWire SizeConductor DesignNumber Of ConductorsPrice
ATCWR-1006Type JFiberglassBrown900°FFiberglass20 AWGSolid2€174.30
BTCWR-1003Type KFiberglassBrown900°FFiberglass20 AWGSolid2€233.11
CTCWR-1004Type KXPVCYellow221°FPVC20 AWGSolid2€181.56
TEMPCO -

Thermocouple External Wire

TEMPCO ECA00080A
TEMPCO ECA00077B
TEMPCO TCWR-1008C
StyleModelWire SizeInsulation MaterialJacket ColorWire LengthAmbient Temp. RangeMaterial/connectorTermination TypeNumber Of ConductorsPrice
AECA0008020 AWGGlass Filled NylonSilver Over Red, Yellow50 ft.900°FGlass Filled NylonStandard Jack, Standard Plug2€511.21
AECA0007820 AWGGlass Filled NylonSilver Over Red, Yellow25 ft.900°FGlass Filled NylonStandard Jack, Standard Plug2€279.41
BECA0007720 AWGGlass Filled NylonSilver Over Red, Yellow-900°FGlass Filled Nylon-2€141.41
BECA0008120 AWGGlass Filled NylonSilver Over Red, Yellow50 ft.900°FGlass Filled Nylon-2€484.91
AECA0007620 AWGGlass Filled NylonSilver Over Red, Yellow10 ft.900°FGlass Filled NylonStandard Jack, Standard Plug2€154.10
CTCWR-100820 AWGPVCYellow250 ft.221°FPVCNone2€416.95
BECA0007920 AWGGlass Filled NylonSilver Over Red, Yellow25 ft.900°FGlass Filled Nylon-2€274.37
CTCWR-102124 AWGPVCYellow100 ft.221°FPVCNone2€163.12
TEMPCO -

Thermocouple Lead Wire

TEMPCO TCWR-1007A
TEMPCO TCWR-1010B
StyleModelWire SizeConductor DesignWire LengthWire TypeInsulation MaterialJacket ColorNumber Of ConductorsAmbient Temp. RangePrice
ATCWR-100720 AWGSolid250 ft.Type KFiberglassBrown2900°F€521.04
ATCWR-102420 AWGStranded250 ft.Type KFiberglassBrown2900°F€752.45
BTCWR-101020 AWGSolid250 ft.Type JFiberglassBrown2900°F€336.59
ATCWR-101220 AWGStranded100 ft.-FiberglassBrown2900°F€340.73
BTCWR-101324 AWGSolid100 ft.Type JFiberglassBrown2900°F€146.49
ATCWR-101524 AWGSolid100 ft.Type KFiberglassBrown2900°F€195.12
ATCWR-101624 AWGStranded100 ft.Type KFiberglassBrown2900°F€233.11
TEMPCO -

Thermocouple Wire, Type JX, 20 AWG, Black, 250 ft Wire Lg

Thermocouple Wire, Type JX, 20 AWG, Black, 250 ft Wire Lg
ModelItemPrice (ex. VAT)
TCW-102-103DA4AKB€270.00
TEMPCO -

Thermocouple Wire, Type K, 24 AWG, Brown, 250 ft Wire Lg

Thermocouple Wire, Type K, 24 AWG, Brown, 250 ft Wire Lg
ModelItemPrice (ex. VAT)
TCW-103-102DG7XVR€348.17
TEMPCO -

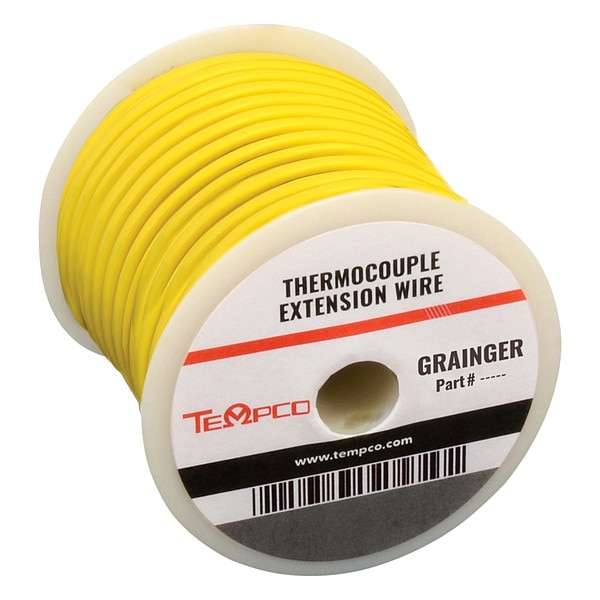

Thermocouple Wire, Type KX, 20 AWG, Yellow, 250 ft Wire Lg

Thermocouple Wire, Type KX, 20 AWG, Yellow, 250 ft Wire Lg
ModelItemPrice (ex. VAT)
TCW-117-102DE8YDE€498.80
TEMPCO -

Thermocouple Wire, Type KX, 24 AWG, Yellow, 250 ft Wire Lg

Thermocouple Wire, Type KX, 24 AWG, Yellow, 250 ft Wire Lg
ModelItemPrice (ex. VAT)
TCW-117-107DA6CZQ€269.02
TEMPCO -

Thermocouple Wire, Type JX, 24 AWG, Black, 250 ft Wire Lg

Thermocouple Wire, Type JX, 24 AWG, Black, 250 ft Wire Lg
ModelItemPrice (ex. VAT)
TCW-102-112DB3XAC€210.63
TEMPCO -

Thermocouple Wire, Type J, 24 AWG, Brown, 250 ft Wire Lg

Thermocouple Wire, Type J, 24 AWG, Brown, 250 ft Wire Lg
ModelItemPrice (ex. VAT)
TCW-101-102DJ3MJP€250.51
TEMPCO -

Thermocouple Lead Wire, 100 Ft, 2 Conductor, Insulation Material Fiberglass, Brown

Thermocouple Lead Wire, 100 Ft, 2 Conductor, Insulation Material Fiberglass, Brown
ModelItemPrice (ex. VAT)
TCWR-1049DF6YVR-
RFQ

Features

  • Tempco thermocouple wires are designed to work accurately over a specified insulation temperature range up to 221 degrees Fahrenheit, but the fibreglass / glass filled nylon constructed wires can go up to 900 degrees F in selected models.
  • They feature PVC, fibreglass or BX armour over glass-filled nylon constructed insulation to withstand harsh environments and high temperatures.
  • These units are available in stranded and solid wire types for secured electrical connections.
  • They allow spade lugs with BX connection and / or standard jack & standard plug termination techniques.
  • The MTA0156 model features magnesium oxide insulation for high thermal conductivity.
  • All these models are available in K, KX, JX and J conductor types, as specified by ANSI.

Working Mechanism

  • Two wires of different metals are soldered into a junction to form a thermocouple.
  • Another junction, known as the reference junction, is located at the other end of the signal wires, often as a component of the input instrument.
  • A thermoelectric potential (emf) proportionate to the temperature differential between the two junctions is produced while heating the sensor junction.

Standards and Approvals

  • ANSI

Frequently Asked Questions

What is the colour coding system in Tempco thermocouple wires?

  • The ANSI Type J single conductor construction thermocouple wires are available in two colours - the negative JN wires in red and the positive JP wires in white.
  • The ANSI Type K Duplex insulated thermocouple wires feature an overall brown-coloured body with the inner colours yellow and red for positive and negative configurations, respectively.
  • The ANSI Type JX thermocouple extension wires feature an overall black-coloured body with the inner colours white and red for positive and negative configurations, respectively.
  • The ANSI Type KX Duplex construction insulated thermocouple extension wires have an overall yellow-coloured body with the inner colours yellow and red for positive and negative configurations, respectively.

What is the difference between stranded and solid wire types?

Stranded wires are thin, bundled wires that are insulated and compressed with non-conductive materials, allowing them to easily fit (by bending or twisting) in cramped spaces or intricate geometries. Solid wires are heavier & thicker than stranded ones and are used where high currents are required. These units are resistant to extreme environmental conditions, frequent movement and weather.

What is the wire size of these thermocouple wires?

They have wire sizes ranging up to 24 AWG.
