SQUARE D Thermal Units

Used to protect controllers, motors and branch-circuit conductors from excessive heating and over-current conditions. Capable of tripping the circuit assembly within 20 seconds or less. Available in amperage ratings ranging from 0.3 to 19.2A

Filter

SQUARE D -

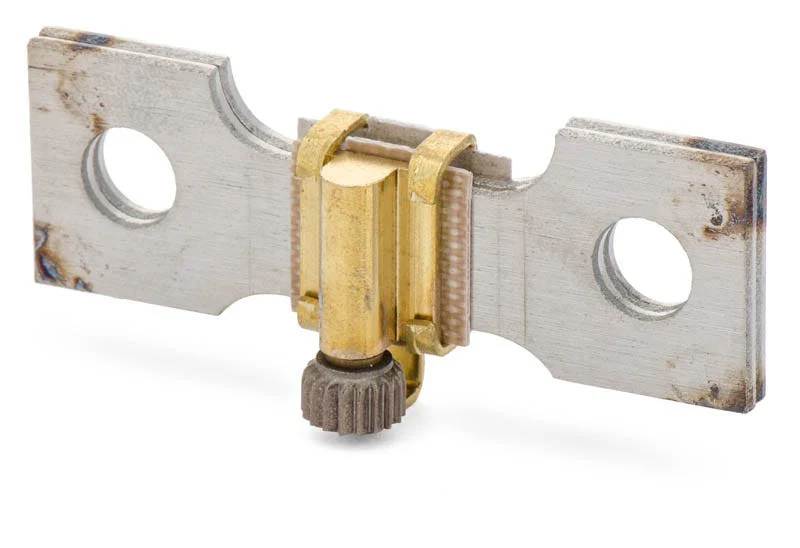

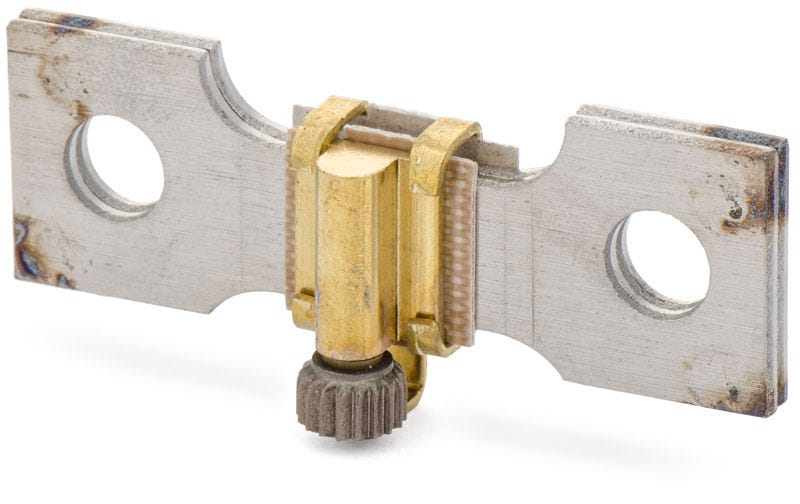

CC Series, Thermal Unit

Style	Model	Nema Size	Returnability	Fl Amps @ 3 Phase/size 3/standard Enclosure	Fl Amp @ 3 Phase, Size 3, Open, Large Enclosure	Fl Amp @ 3 Phase/ Size 4/ Standard Enclosure	Fl Amp @ 3 Phase/ Size 4/ Open & Large Enclosure	Compatible Frame Size	Motor Tripping Class	Price
A	CC64.3	-	Yes	40A	42.6A	43.5A	48.2A	-	Class 20	€104.74
A	CC196.0	-	Yes	86A	-	117A	133A	-	Class 20	€68.22
A	CC121.0	-	Yes	66.3A	70.9A	78.1A	84.7A	-	Class 20	€66.30
A	CC112.0	-	Yes	63.5A	67.7A	72.4A	79A	-	Class 20	€65.04
A	CC68.5	-	Yes	42.8A	45.8A	46.8A	52.4A	-	Class 20	€104.74
A	CC74.6	-	Yes	45.3A	48.3A	50A	56.4A	-	Class 20	€104.74
A	CC54.5	3	Yes	34.9A	37.3A	-	-	CC, S	Class 20	€104.74
A	CC59.4	3	Yes	37.6A	40.1A	-	-	CC, S	Class 20	€104.74
A	CC39.6	3	Yes	26.3A	28.1A	-	-	CC, S	Class 20	€104.74
A	CC36.4	3	Yes	24.5A	26.1A	-	-	CC, S	Class 20	€104.74
A	CC46.6	3	Yes	30A	32.1A	-	-	CC, S	Class 20	€104.74
A	CC42.7	3	Yes	28.2A	30A	-	-	CC, S	Class 20	€104.74
A	CC50.1	3	Yes	32.3A	34.7A	-	-	CC, S	Class 20	€104.74
A	CC219.0	4	Yes	-	-	133A	-	CC, S	Class 20	€64.51
A	CC208.0	4	Yes	-	-	123A	-	CC, S	Class 20	€64.97
A	CC156.0	NEMA 3, NEMA 4	Yes	73.7A	80.2A	93.9A	104A	CC, S	Class 20	€70.70
A	CC143.0	NEMA 3, NEMA 4	Yes	70.9A	76.5A	86.5A	98.1A	CC, S	Class 20	€70.70
A	CC103.0	NEMA 3, NEMA 4	Yes	61.3A	65.1A	66.2A	77A	CC, S	Class 20	€70.70
A	CC167.0	NEMA 3, NEMA 4	Yes	76.5A	83.1A	100A	113A	CC, S	Class 20	€70.70
A	CC87.7	NEMA 3, NEMA 4	Yes	53.4A	56.8A	57.5A	66.1A	CC, S	Class 20	€104.74
A	CC180.0	NEMA 3, NEMA 4	Yes	78.4A	86A	112A	123A	CC, S	Class 20	€70.70
A	CC94.0	NEMA 3, NEMA 4	Yes	57.4A	60.9A	61.8A	71.4A	CC, S	Class 20	€104.74
A	CC132.0	NEMA 3, NEMA 4	Yes	69A	73.9A	80.7A	91.1A	CC, S	Class 20	€65.41
A	CC81.5	NEMA 3, NEMA 4	Yes	49.1A	52.6A	54.9A	61.2A	CC, S	Class 20	€104.74

SQUARE D -

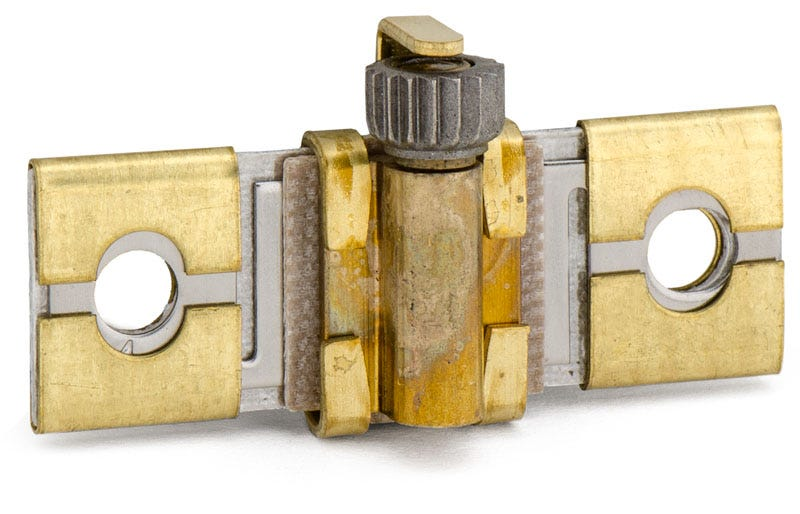

Thermal Unit

Style	Model	Compatible Frame Size	Fl Amps @ 3 Phase/size 00, 0, 1/standard Enclosure	Fl Amps @ 3 Phase/size 00, 0, 1/open & Large Enclosure	Fl Amps @ 1 Phase/size 00, 0, 1/standard Enclosure	Motor Tripping Class	Returnability	Compatible With Grainger Part No	Fl Amps @ 1 Phase/size 00, 0, 1/open & Large Enclosure	Price
A	A8.38	-	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A1.99	-	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
B	B1.67	-	1.14A	1.18A	1.22A	Class 20	Yes	-	1.28A	€67.03
B	B0.63	-	0.44A	0.46A	0.45A	Class 20	Yes	1H41, 1H411, 1H412, 1H413, 1H414, 1H415, 1H416, 1H417, 2BW14, 2BW2, 2BW21, 2BW22, 2BW23, 2BW25, 2BW31, 2BW35, 2BW7, 2PYD9, 2PYE6	0.48A	€67.03
B	B0.44	-	0.3A	0.31A	0.31A	Class 20	Yes	-	0.33A	€67.03
B	B79.0	-	-	-	-	Class 20	Yes	-	-	€67.03
B	B17.5	-	10.5A	11.3A	11.8A	Class 20	Yes	-	12.3A	€67.03
B	B0.51	-	0.34A	0.36A	0.34A	Class 20	Yes	1H41, 1H411, 1H412, 1H413, 1H414, 1H415, 1H416, 1H417, 2BW14, 2BW2, 2BW21, 2BW22, 2BW23, 2BW25, 2BW31, 2BW35, 2BW7, 2PYD9, 2PYE6	0.36A	€67.03
C	DD112.0	-	-	-	-	Class 20	Yes	-	-	€104.74
A	A7.65	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A.95	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A6.99	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A9.25	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A9.85	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A4.79	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A4.32	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A3.95	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A17.9	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A1.16	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A1.02	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A25.2	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A1.25	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A1.39	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A1.54	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66
A	A1.63	A, S	-	-	-	Class 20	Yes	1H385, 1H386, 1H387, 1H388, 1H389, 1H39, 1H392, 1H393, 2BV58, 2BV66, 2BV67, 2BV71, 2BV72, 48P274, 48P276, 48P277	-	€68.66

SQUARE D -

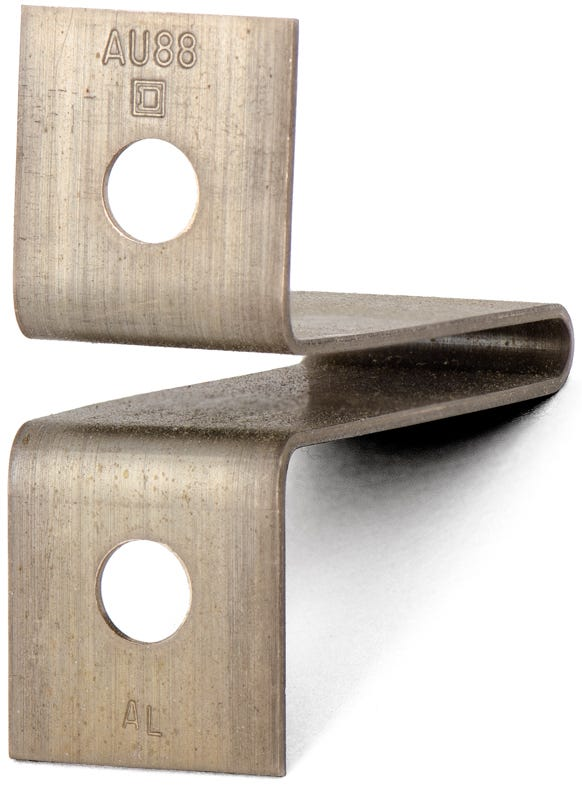

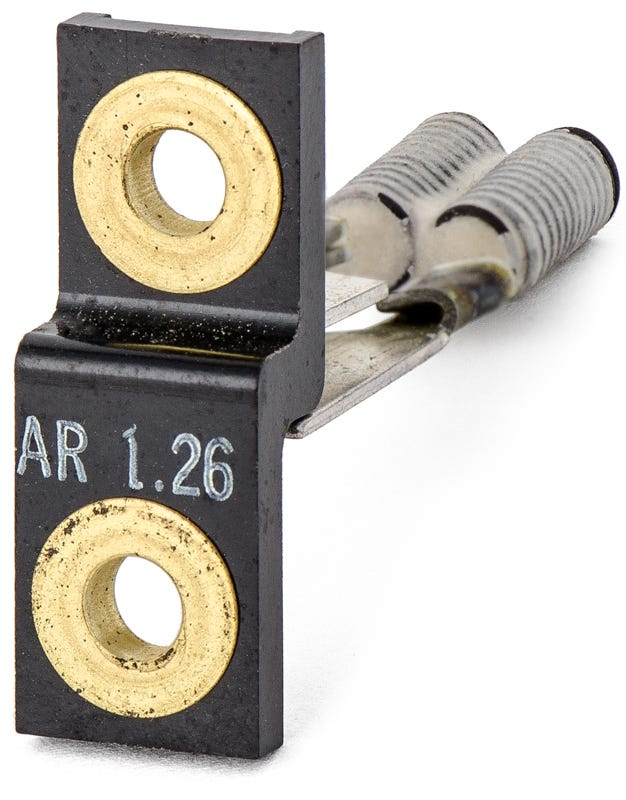

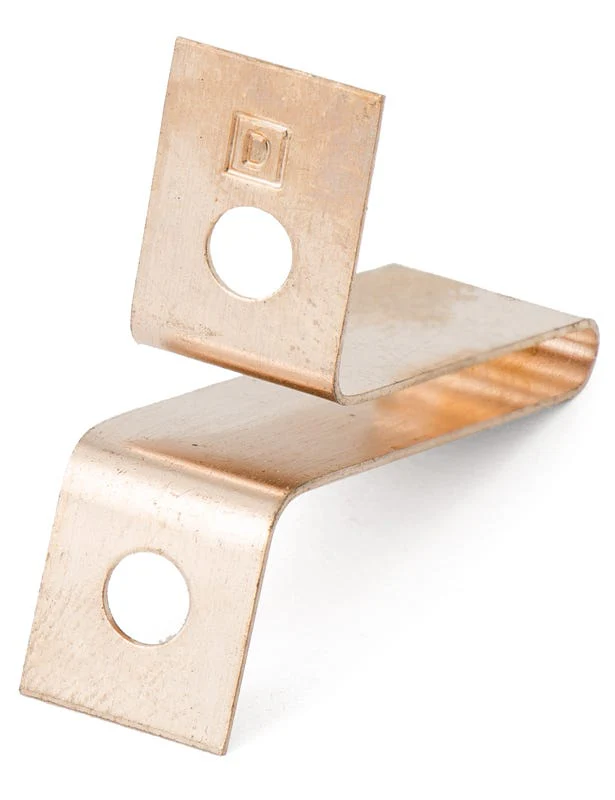

Heater Element

Model	Item	Price (ex. VAT)
CC28.8	EC2TDK	€104.74

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
CC31.0	EC2TDL	€76.55

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR12.4	EC2RRQ	€76.39

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR2.98	EC2RRZ	€76.39

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR2.71	EC2RRY	€76.39

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR2.46	EC2RRX	€76.39

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR2.24	EC2RRW	€76.39

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR17.6	EC2RRU	€76.39

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR15.4	EC2RRT	€60.02	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR13.6	EC2RRR	€60.02	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR2.04	EC2RRV	-	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR27.0	EC2RTC	-	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
DD185.0	EC2TJN	-	RFQ

SQUARE D -

Heater Element, 87-100 A

Model	Item	Price (ex. VAT)
C114	EC2RWK	-	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR5.30	EC2RTN	-	RFQ

SQUARE D -

Heater Element, 25.9-30.4 A

Model	Item	Price (ex. VAT)
C34	EC2RWP	-	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AU56.0	EC2RVF	-	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AR10.2	EC2RRN	-	RFQ

SQUARE D -

Heater Element

Model	Item	Price (ex. VAT)
AU38.0	EC2RVC	-	RFQ
