GAST Rotary Vane Compressor/Vacuum Pump

Gast 1 / 3-phase compressors/vacuum pumps are ideal for continuous-duty applications like vacuum forming, circulation therapy and pond aeration. They feature self-lubricating and self-adjusting sealed bearings & vanes to ensure a pulse-free airflow.

Filter

GAST -

Compressor And Vacuum Pumps

GAST 10D1126-401-7049B

A

GAST 15D1150-401-7054B

B

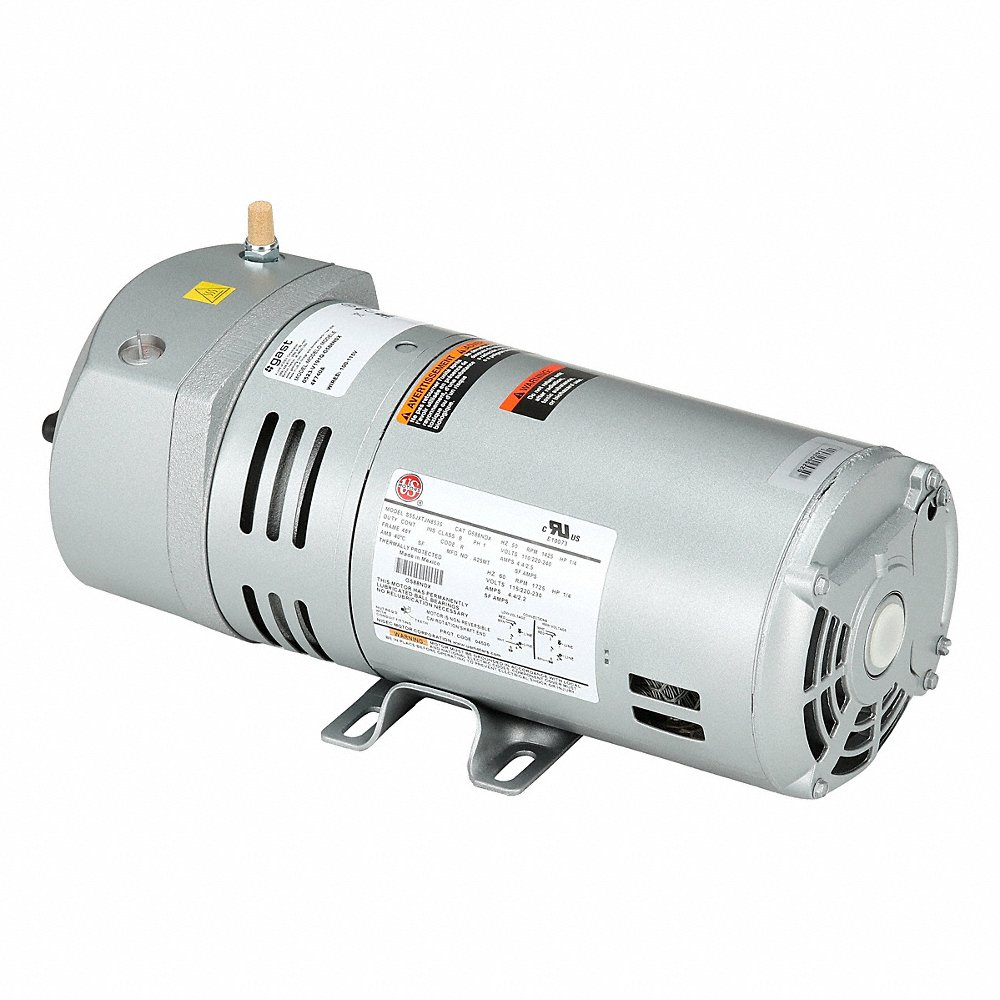

GAST 0523-V191Q-G588NDX

C

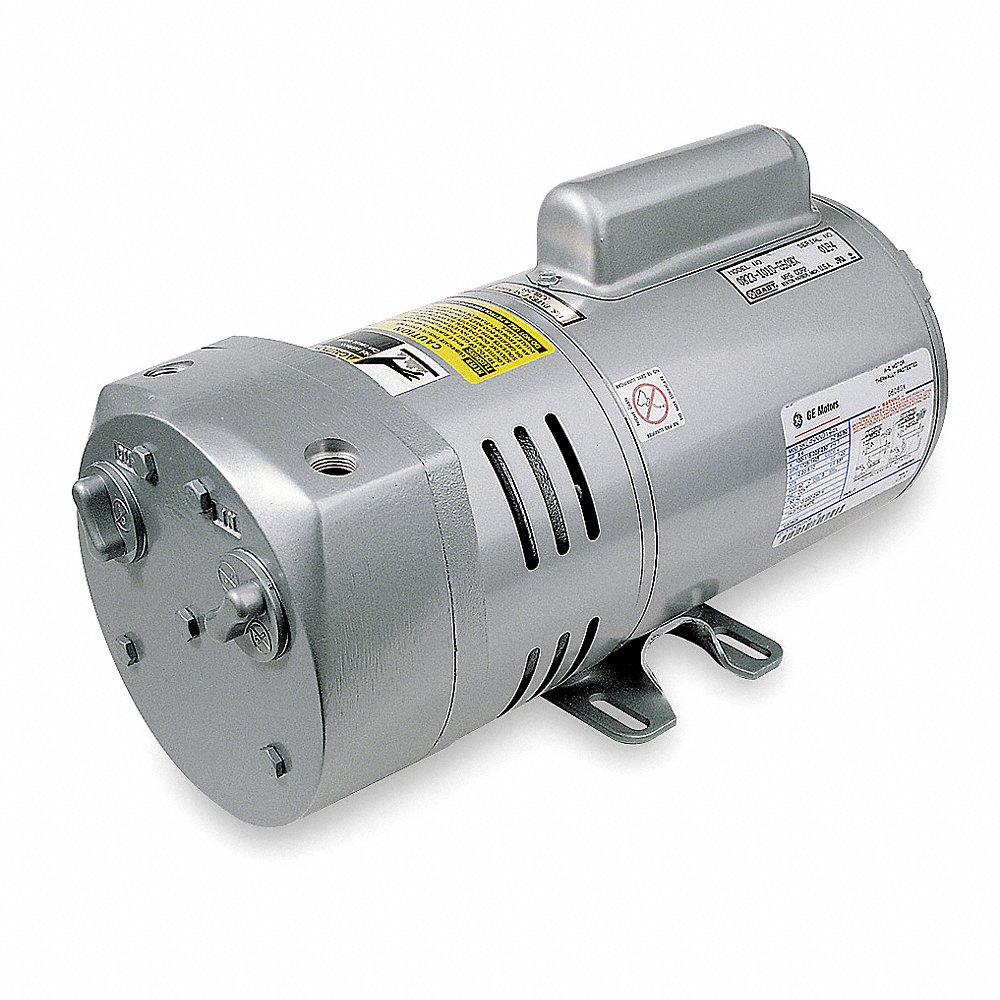

GAST 1023-V131Q-G608NEX

D

E

GAST 22D1180-201-1002

F

Style	Model	Max. Pressure	Voltage	Max. Vacuum Pressure	Overall Height	Overall Width	Inlet Type	Outlet Size	Outlet Type	Price
A	10D1126-401-7049B	-	-	-	-	-	-	-	-	€384.24
B	15D1150-401-7054B	-	-	-	-	-	-	-	-	€723.69
C	0523-V191Q-G588NDX	-	-	-	-	-	-	-	-	€890.42
D	1023-V131Q-G608NEX	-	-	-	-	-	-	-	-	€1,298.03
E	1550-600	15 psi	-	20 in. hg	6.46"	7"	NPT	1/2"	NPT	€1,275.88
F	22D1180-201-1002	25 psi	12V	-	-	-	-	-	-	€431.63

GAST -

Rotary Vane Compressors/Vacuum Pumps

GAST 1023-V131Q-SG608X

A

GAST 1023-V2-G608NEX

B

GAST 1023-101Q-G608NEX

C

GAST 0523-101Q-G588NDX

D

GAST 1423-103Q-G626X

E

F

Style	Model	Max. Vacuum Pressure	Overall Height	Phase	Overall Width	Outlet Size	Frequency	Housing Material	Amps	Price
A	1023-V131Q-SG608X	26 in. hg	8.34"	1	6 1/2"	-	50/60 Hz	Cast Iron	-	-	RFQ
A	0823-V131Q-SG608X	26 in. hg	8.34"	1	6 1/2"	3/8"	50/60 Hz	Cast Iron	12.2/6.1A	-	RFQ
B	1023-V2-G608NEX	26 in. hg	9 24/25"	1	9.58"	3/8"	50/60 Hz	Gray Iron	8A	€2,094.27
C	1023-101Q-G608NEX	26 in. hg	8 3/5"	1	6 1/2"	3/8"	50/60 Hz	Gray Iron	8A	€1,564.20
A	1023-251Q-G279	26 in. hg	7.3"	3	9 3/25"	3/8"	50/60 Hz	Cast Iron	2.6/1.3A	€1,737.46
D	0523-101Q-G588NDX	26 in. hg	6 9/25"	1	5.63"	1/4"	50/60 Hz	Gray Iron	2.5A	€971.28
E	1423-103Q-G626X	26 in. hg	8 4/5"	1	6 1/2"	3/8"	50/60 Hz	Cast Iron	13/6.5A	€1,674.80
F	7Z778	27 in. hg	11.31"	1	-	3/4"	60 Hz	Cast Iron	8.4/4.6-4.2A	€3,006.97
F	7Z779	27 in. hg	11.31"	1	7.63"	3/4"	60 Hz	Cast Iron	10/5A	€2,525.53
F	7Z782	27 in. hg	11.59"	1	5 17/25"	3/4"	60 Hz	Cast Iron	15.2/8.2-7.6A	€2,563.20

GAST -

Separate Drive Rotary Vane Pumps

A

B

GAST 3040-V115A

C

D

E

F

G

H

I

Style	Model	Max. Vacuum Pressure	Overall Height	Overall Width	Outlet Size	Duty Cycle	Hp	Flow @ 60 Hz	Flow @ 50 Hz	Price
A	2565-V2A	-	-	-	-	100%	1 1/2 hp	21 CFM	16.5 CFM	€1,807.07
B	3040-V29B	-	-	-	-	100%	2 hp	40 CFM	31 CFM	€3,008.28
C	3040-V115A	20 in. hg	12"	13 1/2"	1"	100%	2 hp	40 CFM	31 CFM	€2,793.44
D	2567-V108	26.5 in. hg	13.23"	18"	3/4"	Continuous	1 1/2 hp	-	-	€1,622.70
D	2067-V108	26.5 in. hg	13 3/25"	-	3/4"	Continuous	-	-	-	-	RFQ
E	2065-V2A	28 in. hg	14.31"	12.38"	3/4"	100%	1 hp	17 CFM	14 CFM	€2,279.22
F	2567-P102	28 in. hg	11 12/25"	7 13/25"	-	100%	1 1/2 hp	21 CFM	17 CFM	€2,341.59
G	2567-V1	28 in. hg	15.29"	11 12/25"	3/4"	100%	1 1/2 hp	21 CFM	17 CFM	€2,659.08
H	2567-V103	28 in. hg	13.23"	11 12/25"	3/4"	100%	1 1/2 hp	21 CFM	17 CFM	€1,832.10
I	1065-V2A	28 in. hg	14.38"	9.38"	1/2"	100%	1/2 hp	8.5 CFM	7.3 CFM	€1,714.24

GAST -

2567 Series Rotary Vane Pumps, Separate Drive

A

Style	Model	Max. Pressure	Flow @ 60 Hz	Flow @ 50 Hz	Hp	Duty Cycle	Max. Vacuum @ 50 Hz	Vanes	Price
A	2567-101	15 psi	21 CFM	17 CFM	1 1/2 hp	100%	28 in. hg	4	€1,722.60
A	2567-V105	15 psi	21 CFM	17 CFM	1 1/2 hp	100%	28 in. hg	4	-	RFQ

GAST -

2067 Series Rotary Vane Pumps, Separate Drive

A

Style	Model	Max. Pressure	Flow @ 60 Hz	Flow @ 50 Hz	Hp	Duty Cycle	Max. Vacuum @ 50 Hz	Vanes	Price
A	2067-V103	15 psi	17 CFM	14 CFM	1 hp	100%	28 in. hg	4	€1,577.39
A	2067-101	15 psi	17 CFM	14 CFM	1 hp	100%	28 in. hg	4	€1,306.93

GAST -

1531 Series Rotary Vane Pumps, Motor Mounted

GAST 1531-107B-G288X

A

Style	Model	Voltage	Max. Pressure	Flow @ 60 Hz	Flow @ 50 Hz	Duty Cycle	Max. Vacuum @ 50 Hz	Vanes	Flow Dc
A	1531-107B-G288X	100-110/100-115V	10 psi	1.5 CFM	1.3 CFM	100%	21 in. hg	4	-	RFQ
A	1531-107B-G557X	110-115V	10 psi	1.5 CFM	1.3 CFM	100%	21 in. hg	4	2.4 CFM	RFQ
A	1531-107B-G289X	220-240V	10 psi	1.5 CFM	1.3 CFM	100%	21 in. hg	4	-	RFQ

GAST -

1023 Series Rotary Vane Pumps, Motor Mounted

GAST 1023-101CQ-G608NEX

A

GAST 1023-101-G608NEX

B

Style	Model	Max. Pressure	Flow @ 60 Hz	Flow @ 50 Hz	Duty Cycle	Max. Vacuum @ 50 Hz	Vanes	Price
A	1023-101CQ-G608NEX	10 psi	10 CFM	8.5 CFM	100%	26 in. hg	-	€1,735.80
A	1023-V103-G278E	10 psi	10 CFM	8.5 CFM	100%	26 in. hg	-	€1,559.04
A	1023-V103-G608NEX	10 psi	10 CFM	8.5 CFM	100%	26 in. hg	4	€2,097.48
B	1023-101-G608NEX	10 psi	10 CFM	8.5 CFM	100%	26 in. hg	4	-	RFQ
A	1023-101BQ-G608NEX	10 psi	10 CFM	8.5 CFM	100%	26 in. hg	-	€1,553.71
A	1023-322Q-G608NEX	10 psi	10 CFM	8.5 CFM	100%	26 in. hg	-	-	RFQ

GAST -

0823 Series Rotary Vane Pumps, Motor Mounted

GAST 0823-101Q-G273

A

Style	Model	Max. Pressure	Flow @ 60 Hz	Flow @ 50 Hz	Duty Cycle	Max. Vacuum @ 50 Hz	Vanes	Price
A	0823-101Q-G273	10 psi	8 CFM	6.5 CFM	100%	26 in. hg	-	€1,886.28
A	0823-101Q-G279	10 psi	8 CFM	6.5 CFM	100%	26 in. hg	4	€3,055.80
A	0823-V103-G279	10 psi	8 CFM	6.5 CFM	100%	26 in. hg	-	-	RFQ
A	0823-101Q-G608NEX	10 psi	8 CFM	6.5 CFM	100%	26 in. hg	4	€1,815.00

GAST -

0523 Series Rotary Vane Pumps, Motor Mounted

GAST 0523-545Q-G588NDX

A

GAST 0523-V3A-G588NDX

B

GAST 0523-V4-G588NDX

C

GAST 0523-101Q-G181D

D

Style	Model	Voltage	Max. Pressure	Duty Cycle	Flow @ 60 Hz	Flow @ 50 Hz	Max. Vacuum @ 50 Hz	Vanes	Flow	Price
A	0523-545Q-G588NDX	110/220-240/115/220-230V	10 psi	100%	4.5 CFM	4 CFM	26 in. hg	4	-	€1,240.20
A	0523-101-G588NDX	110/220-240/115/220-230V	10 psi	100%	4.5 CFM	4 CFM	26 in. hg	4	-	-	RFQ
A	0523-101BQ-G588NDX	110/220-240/115/220-230V	10 psi	100%	4.5 CFM	4 CFM	26 in. hg	-	-	-	RFQ
B	0523-V3A-G588NDX	110/220-240/115/220-230V	10 psi	100%	4.5 CFM	4 CFM	26 in. hg	-	-	-	RFQ
C	0523-V4-G588NDX	110/220-240/115/220-230V	10 psi	100%	4.5 CFM	4 CFM	26 in. hg	4	-	€1,466.51
D	0523-101Q-G181D	208-220/440V	10 psi	100%	-	-	-	4	4.5 CFM	-	RFQ

GAST -

Motor Mounted Rotary Vane Pumps

GAST 1023-101Q-G279

A

GAST 1423-101Q-G625

B

GAST 1423-101Q-G626X

C

GAST 0523-V4-SG588DX

D

Style	Model	Overall Height	Outlet Size	Phase	Overall Width	Duty Cycle	Frequency	Amps	Flow @ 60 Hz	Price
A	1023-101Q-G279	-	-	-	-	100%	-	-	10 CFM	€1,888.97
B	1423-101Q-G625	8.78"	3/8"	3	6 1/2"	100%	50/60 Hz	4.1A	13 CFM	€1,862.88
C	1423-101Q-G626X	8.78"	3/8"	1	-	100%	50/60 Hz	6.7A	13 CFM	€1,869.14
D	0523-V4-SG588DX	10.47"	1/4"	1	8.03"	Continuous	60 Hz	4.5A	-	-	RFQ

GAST -

Pump Vacuum 1/4 Hp

Pump Vacuum 1/4 Hp

Model	Item	Price (ex. VAT)
0523-V191Q-G588DX	AD7LAL	-	RFQ

GAST -

Rotary Vane Pump, Motor Mounted, 1/15 HP, 1.03 Bar Max Pressure

Rotary Vane Pump, Motor Mounted, 1/15 HP, 1.03 Bar Max Pressure

Model	Item	Price (ex. VAT)
0532-101-G621X	DZ2MLG	-	RFQ
