TEST-TITE Pipe And Test Plugs

Pneumatic test plugs suitable for use in drain and sewage piping systems to temporarily stop the flow. Made from natural rubber and come equipped with a chain and a ring / tag. Mechanical pipe plugs also available

Filter

TEST-TITE -

Pneumatic PR Test Plugs

TEST-TITE 83585

A

TEST-TITE 83586

B

TEST-TITE 83587

C

TEST-TITE 83588

D

Style	Model	For Pipe Size	For Maximum Pipe Inside Diameter	For Minimum Pipe Inside Diameter	Deflated Length	Required Inflation Pressure	Pipe Size	For Maximum Pipe Size	For Minimum Pipe Size	Price
A	83585	1 1/4" to 1 1/2"	1 1/2"	1.49"	4"	45 psi	1 1/4", 1 1/2"	1 1/2"	1 1/4"	€58.71
B	83586	1 3/4" to 2 1/4"	2"	2.05"	3"	40 psi	2"	2 1/4"	1 3/4"	€59.64
C	83587	2 1/4" to 3 1/4"	3"	3.07"	3.63"	35 psi	2", 2 1/2", 3"	3 1/4"	2 1/4"	€60.82
D	83588	3 1/4" to 4 1/4"	4"	-	5 1/4"	30 psi	4"	4 1/4"	3 1/4"	€70.70

TEST-TITE -

Combination Cleanout Test Plugs, T-Cone

TEST-TITE 86420

A

Style	Model	For Pipe Size	For Minimum Pipe Inside Diameter	For Maximum Pipe Inside Diameter	Nominal Size	Height	Head Type	Plug Seal Location	Plug Seal Material	Price
A	86420	6"	5.77"	6 2/25"	6"	2.35"	Raised Square	Inside Pipe	Polyurethane	€24.22
A	86435	8"	7 19/25"	8.03"	8"	3"	Raised Square	Inside Pipe	Polyurethane	€52.20

TEST-TITE -

Twist N Seal Pipe Sealing Plugs

TEST-TITE 83785

A

TEST-TITE 83784

B

TEST-TITE 83790

C

Style	Model	Construction	Price
A	83785	Stainless Steel	€311.89
B	83784	Stainless Steel	€188.01
A	83783	Stainless Steel	€175.59
A	83782	Stainless Steel	€155.95
C	83790	Stainless Steel	€633.27

TEST-TITE -

Mechanical Test Plugs

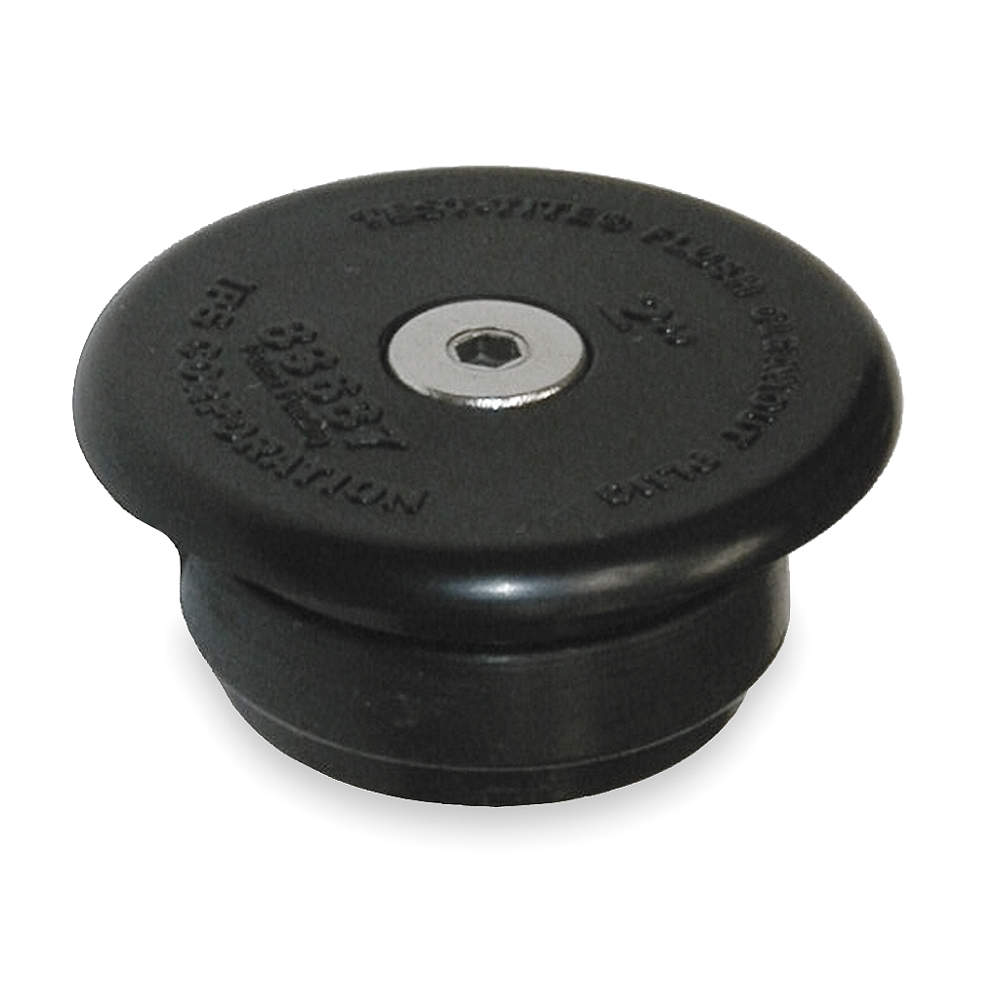

TEST-TITE 83687

A

TEST-TITE 86375

B

Style	Model	Head Type	Plug Seal Location	For Pipe Size	For Minimum Pipe Inside Diameter	For Maximum Pipe Inside Diameter	Material	Plug Type	Nominal Size	Price
A	83687	Flush Hex Bolt	End Of Pipe	2"	2 1/4"	2.45"	Plastic, Stainless Steel	Cleanout, Mechanical	2"	€21.67
A	83688	Flush Hex Bolt	End Of Pipe	3"	3 11/25"	3.55"	Plastic, Stainless Steel	Cleanout, Mechanical	3"	€23.45
A	83689	Flush Hex Bolt	End Of Pipe	3 1/2"	3 3/4"	3.85"	Plastic, Stainless Steel	Cleanout, Mechanical	3 1/2"	€28.27
A	83690	Flush Hex Bolt	End Of Pipe	4"	4.41"	4.53"	Plastic, Stainless Steel	Cleanout, Mechanical	4"	€29.90
B	86375	Raised Square	Inside Pipe	1 1/2"	1 12/25"	1.65"	Plastic	Mechanical, T Cone	-	€7.00
B	86385	Raised Square	Inside Pipe	2"	1.9"	2.17"	Plastic	Mechanical, T Cone	-	€6.79
B	86390	Raised Square	Inside Pipe	3"	2 4/5"	3.1"	Plastic	Mechanical, T Cone	3"	€7.36
B	86400	Raised Square	Inside Pipe	4"	3.78"	4.06"	Plastic	Mechanical, T Cone	4"	€13.43

TEST-TITE -

Multi-Size Pneumatic Test Plugs

TEST-TITE 83212

A

Style	Model	For Pipe Size	For Minimum Pipe Inside Diameter	For Maximum Pipe Inside Diameter	Maximum Back Pressure (air)	Maximum Back Pressure (water)	Deflated Dia.	Deflated Length	Required Inflation Pressure	Price
A	83212	1 1/4" to 2"	1.18"	2 1/4"	17 psig	30 Ft. Of Head	4 1/2"	1.18"	40 psi	€86.06
A	83234	3" to 4"	2.63"	4 1/4"	13 psig	30 Ft. Of Head	5 1/2"	3 22/25"	35 psi	€107.28
A	83246	4" to 6"	3.41"	6 1/4"	13 psig	30 Ft. Of Head	7 1/4"	5 3/4"	30 psi	€237.40
A	83248	4" to 8"	3.7"	8 1/4"	13 psig	30 Ft. Of Head	12"	10"	30 psi	€733.99
A	83282	8" to 12"	7.09"	12 1/4"	17 psig	40 Ft. Of Head	17 1/2"	15 3/4"	30 psi	€1,345.78
A	83216	10" to 16"	8 23/25"	16 1/4"	17 psig	40 Ft. Of Head	19.13"	17.13"	30 psi	€1,398.62
A	83633	12" to 24"	11.95"	24 1/4"	5 psig	12 Ft. Of Head	31"	28 3/4"	30 psi	€3,731.71
