GENERAL ELECTRIC Magnetic Starters With Thermal Overload

Equipped with a contactor and an electromagnetic overload relay to protect expensive motors from motor overload conditions. Can handle power supplies with amperage ratings ranging between 9 and 270 A. Available in coil voltage ratings of 120, 240 and 480 VAC

Filter

GENERAL ELECTRIC -

CR306 Series, Starters, AC, Non-Reversing

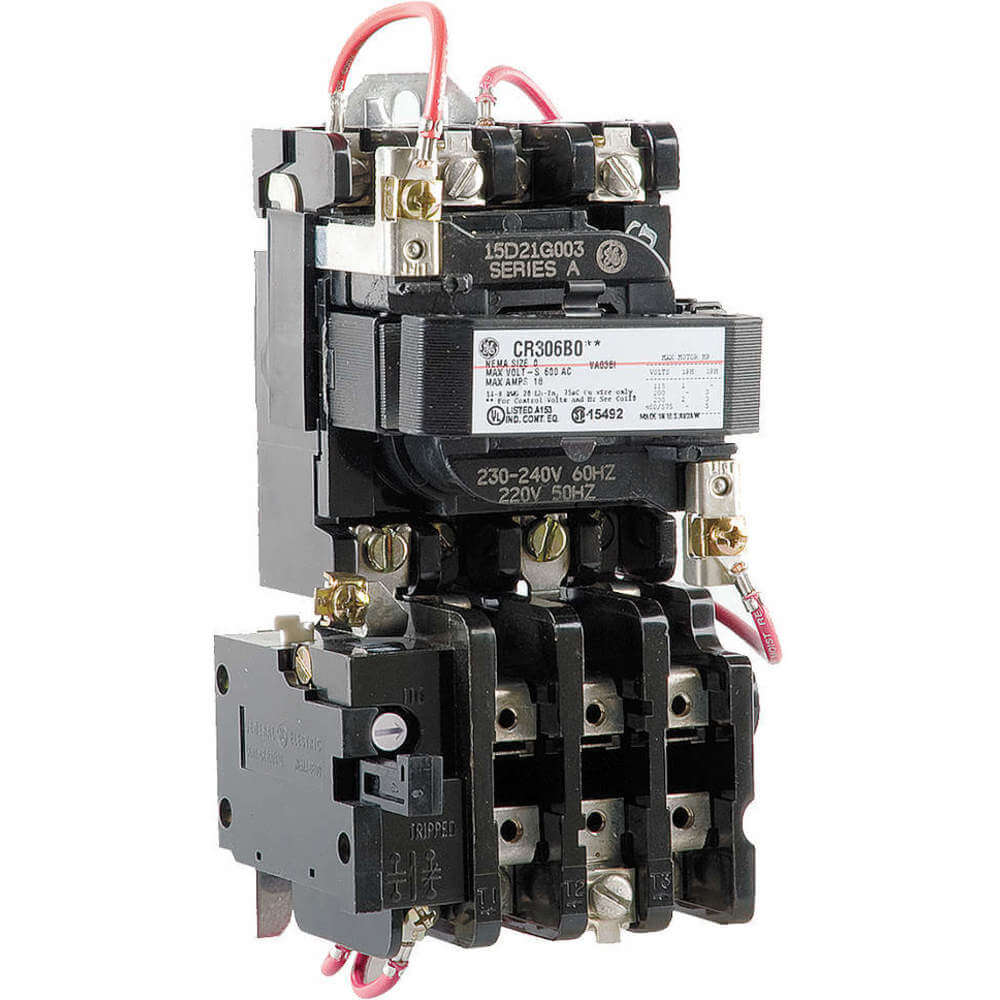

GENERAL ELECTRIC CR306B003

A

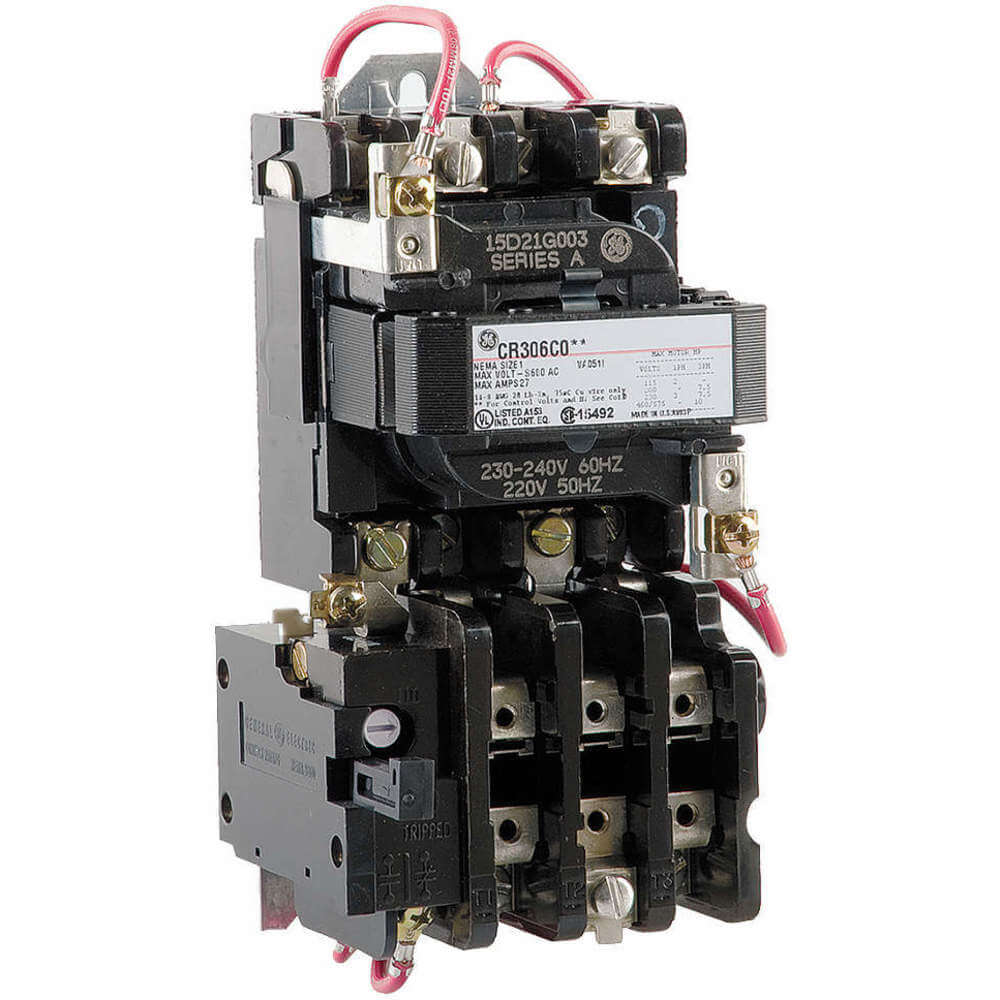

GENERAL ELECTRIC CR306C003

B

GENERAL ELECTRIC CR306B103

C

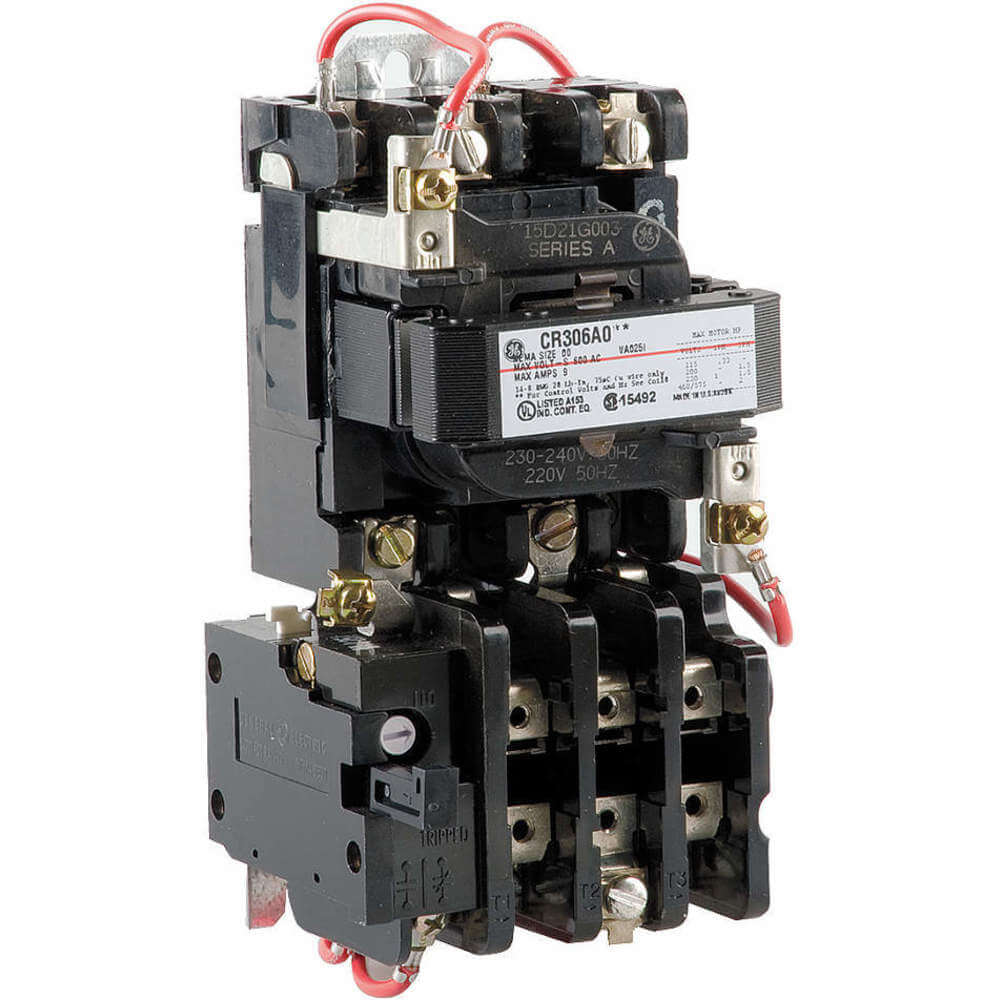

GENERAL ELECTRIC CR306A003

D

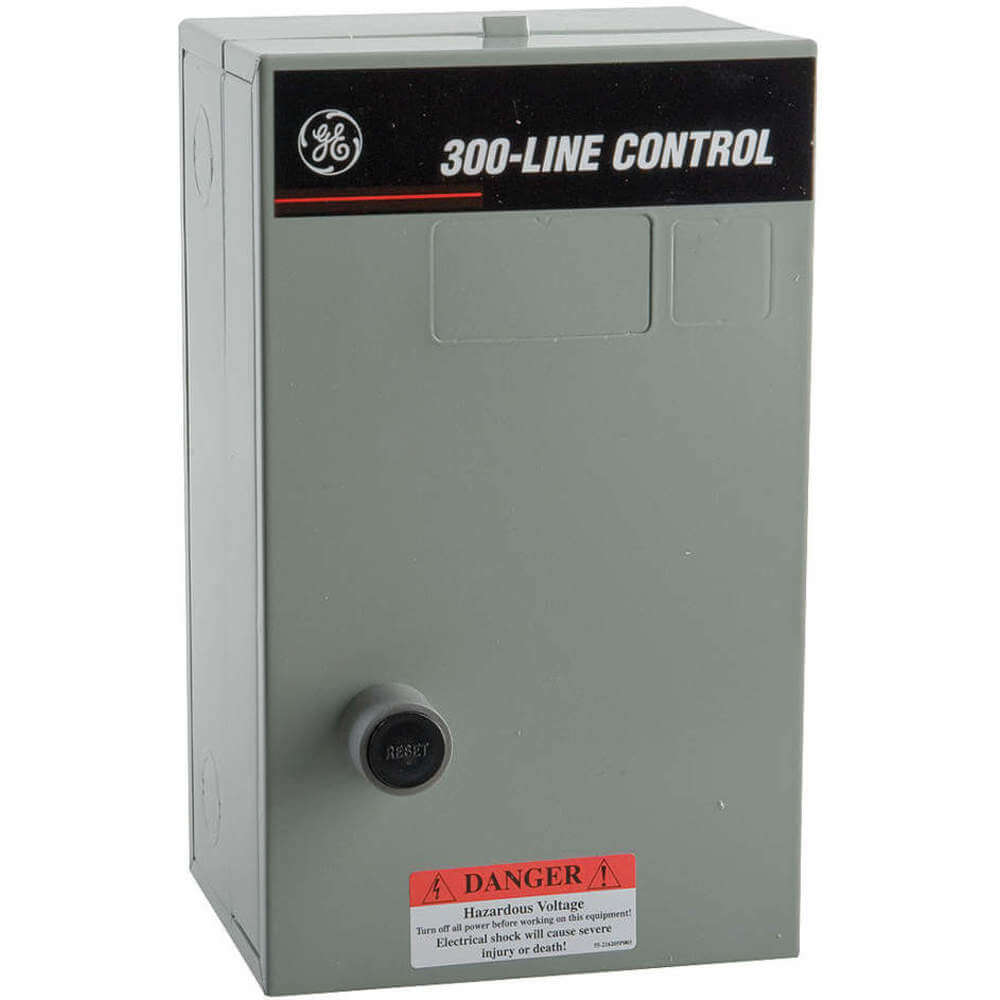

GENERAL ELECTRIC CR306A103

E

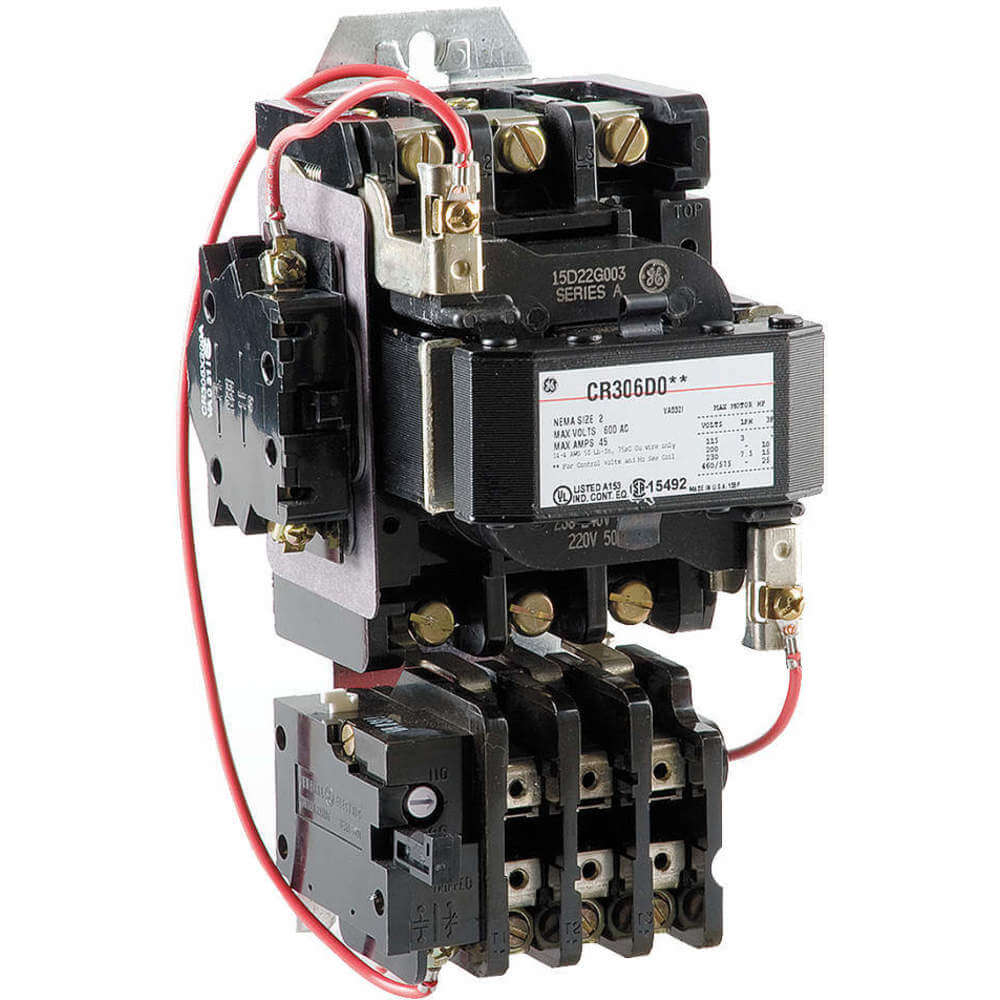

GENERAL ELECTRIC CR306D003

F

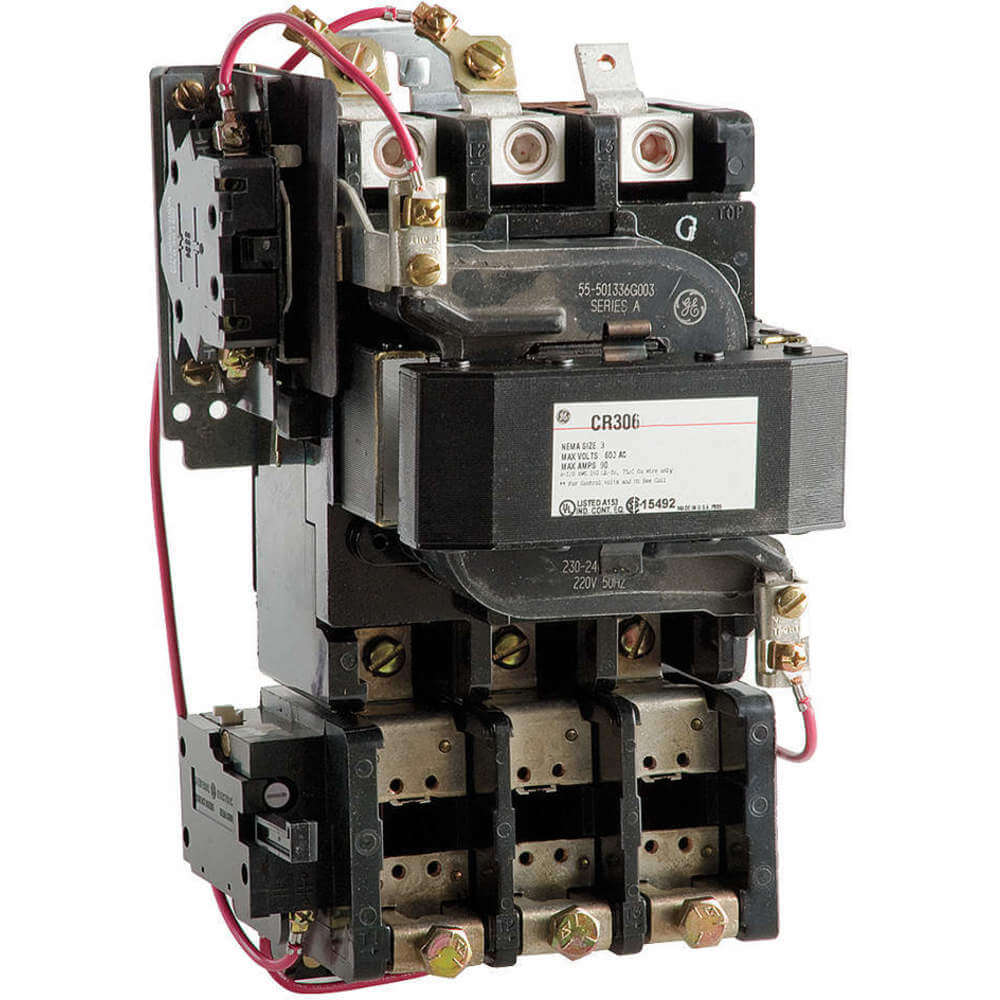

GENERAL ELECTRIC CR306E003

G

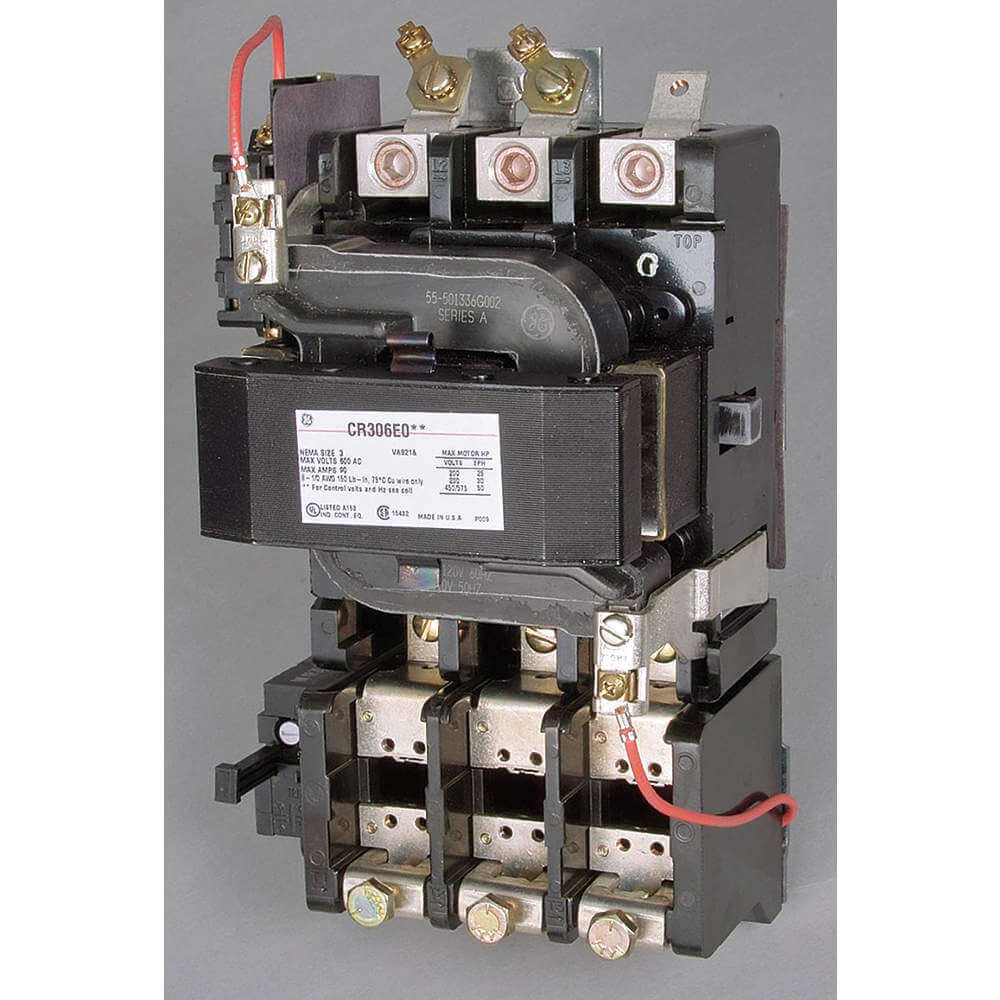

GENERAL ELECTRIC CR306E103

H

Style	Model	Nema Size	Amps Ac	Hp @ 3 Phase - 575v	Hp @ 3 Phase - 240v	Hp @ 3 Phase - 480v	Height	Hp @ 3 Phase - 208v	Depth	Price
A	CR306B003	-	18A	5 hp	3 hp	-	-	-	3.94"	€817.63
B	CR306C003	-	-	10 hp	7 1/2 hp	10 hp	-	7 1/2 hp	3.94"	€837.79
C	CR306B103	0	18A	5 hp	3 hp	-	-	-	-	€873.88
D	CR306A003	00	9A	2 hp	1 1/2 hp	2 hp	7 4/5"	1 1/2 hp	3.94"	€586.06
E	CR306A103	0	9A	2 hp	1 1/2 hp	2 hp	10"	1 1/2 hp	-	€625.48
C	CR306C103	1	-	10 hp	7 1/2 hp	10 hp	10"	7 1/2 hp	4.63"	€840.40
C	CR306D103	2	45A	25 hp	15 hp	25 hp	13 1/4"	10 hp	6.13"	€1,330.19
F	CR306D003	2	45A	25 hp	15 hp	25 hp	9 3/25"	-	5 1/2"	€1,352.78
G	CR306E003	3	90A	50 hp	-	50 hp	11.62"	25 hp	-	€1,655.48
H	CR306E103	3	-	50 hp	30 hp	50 hp	20 1/4"	25 hp	7.31"	€2,437.93
C	CR306F003	4	135A	100 hp	-	100 hp	11.62"	40 hp	6 1/2"	€3,675.22
E	CR306F103	4	135A	100 hp	50 hp	100 hp	25"	40 hp	7.31"	€3,814.38
C	CR306G103	5	270A	200 hp	100 hp	200 hp	45 3/25"	75 hp	11"	€12,013.45

GENERAL ELECTRIC -

230 to 240VAC, Magnetic Motor Starter

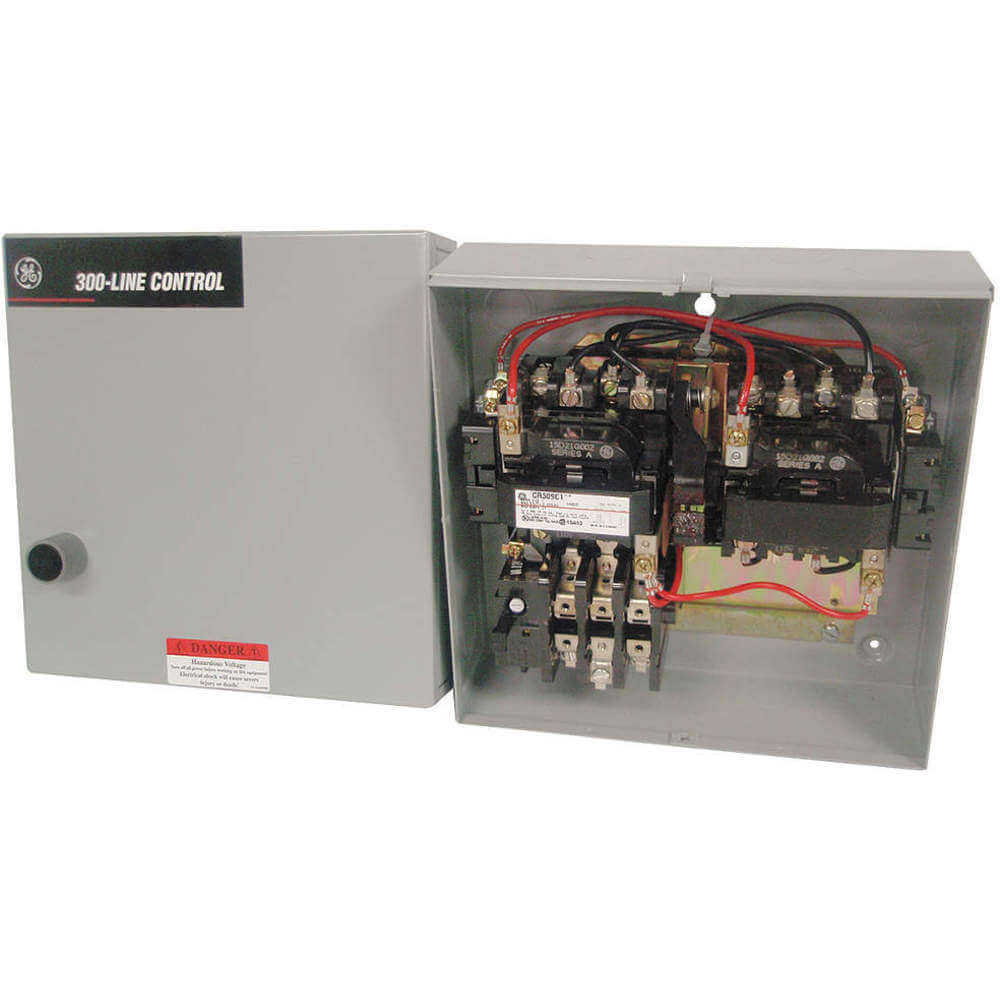

GENERAL ELECTRIC CR309C103

A

Style	Model	Nema Size	Height	Hp @ 3 Phase - 208v	Hp @ 3 Phase - 575v	Hp @ 3 Phase - 240v	Hp @ 3 Phase - 480v	Depth	Hp @ 3 Phase - 230v	Price
A	CR309C103	-	14"	7 1/2 hp	10 hp	7 1/2 hp	10 hp	4.59"	7 1/2 hp	€1,519.46
A	CR309B103	0	14"	3 hp	5 hp	3 hp	5 hp	4.59"	3 hp	€1,205.47
A	CR309C103AKA	1	7"	7 1/2 hp	10 hp	7 1/2 hp	10 hp	3.94"	7 1/2 hp	€1,845.40

GENERAL ELECTRIC -

460 to 480VAC, Magnetic Motor Starter

GENERAL ELECTRIC CR306B104

A

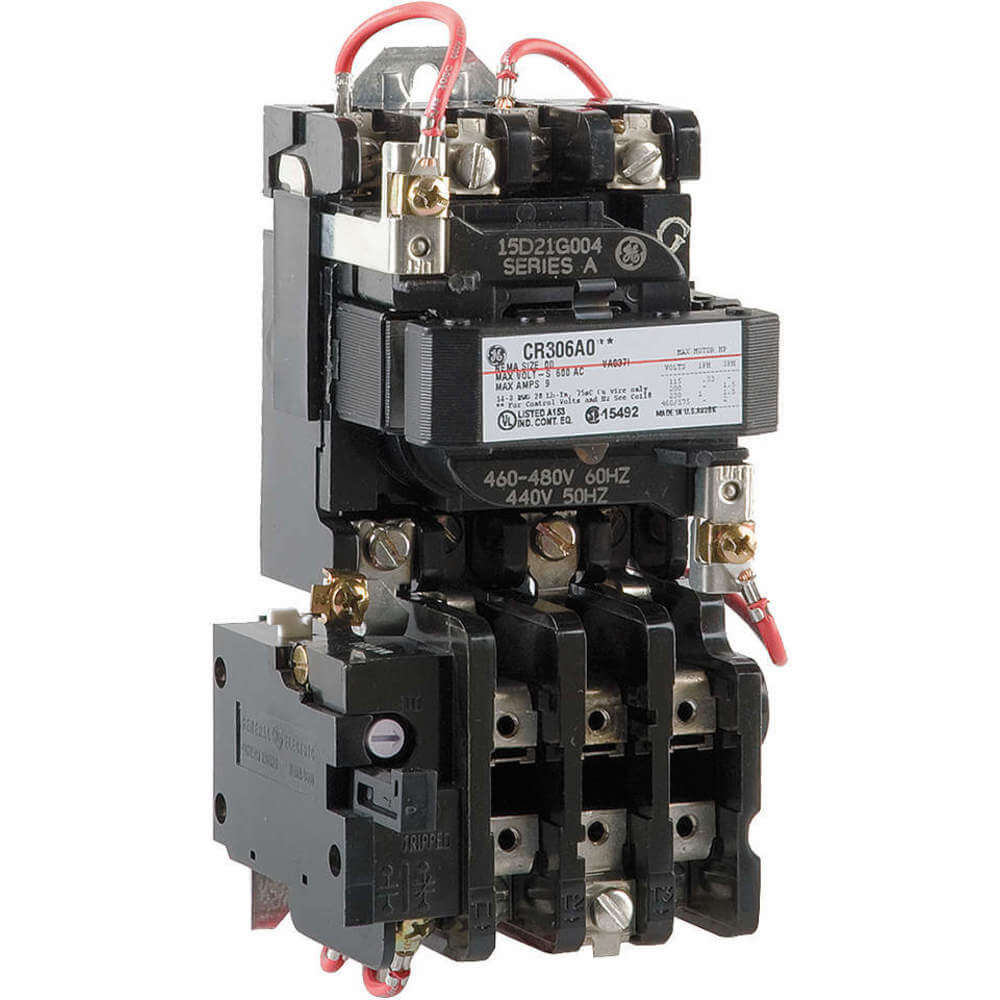

GENERAL ELECTRIC CR306A004

B

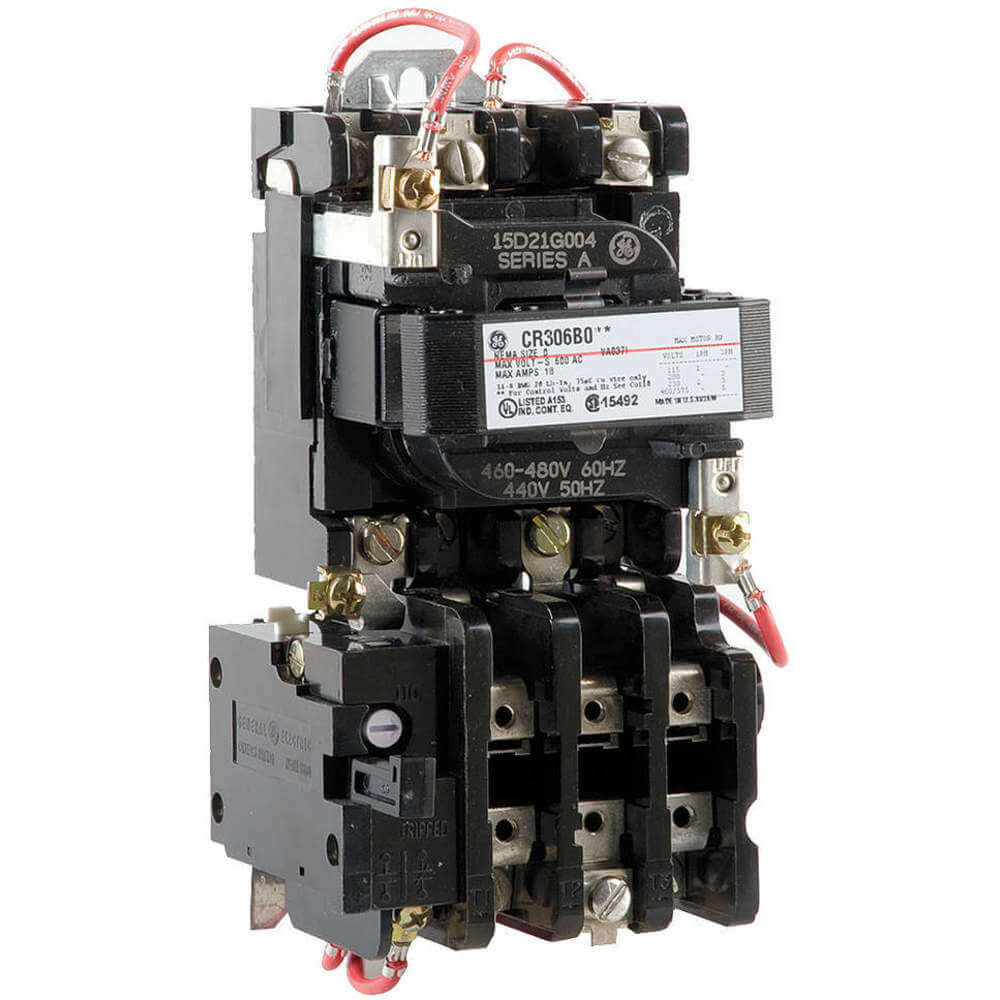

GENERAL ELECTRIC CR306B004

C

GENERAL ELECTRIC CR309B104

D

GENERAL ELECTRIC CR306A104

E

GENERAL ELECTRIC CR306C004

F

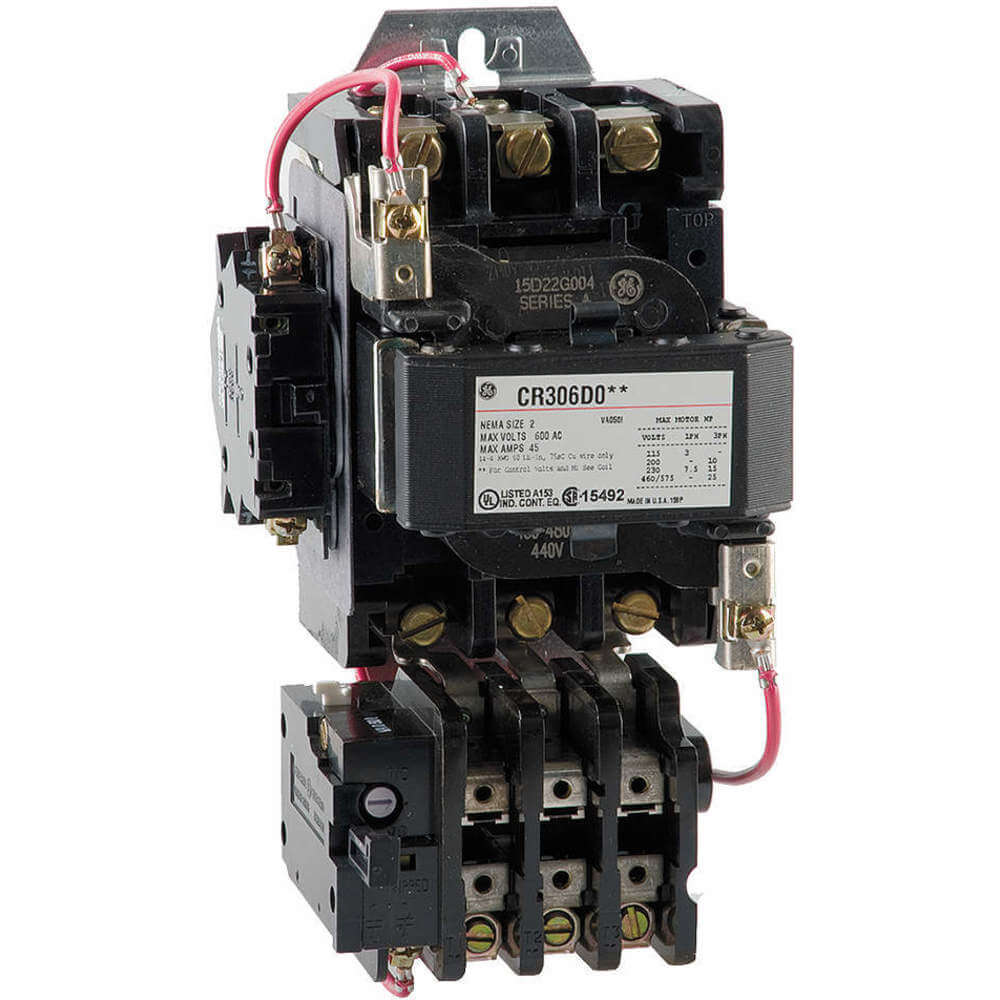

GENERAL ELECTRIC CR306D004

G

GENERAL ELECTRIC CR306E004

H

GENERAL ELECTRIC CR306E104

I

Style	Model	Nema Size	Amps Ac	Height	Hp @ 3 Phase - 575v	Hp @ 3 Phase - 240v	Hp @ 3 Phase - 480v	Depth	Action Type	Price
A	CR306B104	0	18A	10"	5 hp	3 hp	5 hp	4.63"	Nonreversing	€873.88
B	CR306A004	00	9A	7 4/5"	2 hp	1 1/2 hp	2 hp	3.94"	Nonreversing	€586.06
C	CR306B004	0	18A	7 4/5"	5 hp	3 hp	5 hp	3.94"	Nonreversing	€817.63
D	CR309B104	0	18A	14"	5 hp	3 hp	5 hp	4.59"	Reversing	€865.53
E	CR306A104	0	9A	10"	2 hp	1 1/2 hp	2 hp	4.63"	Nonreversing	€625.48
A	CR306C104	1	-	10"	10 hp	7 1/2 hp	10 hp	4.63"	Nonreversing	€840.40
F	CR306C004	1	-	7 4/5"	10 hp	7 1/2 hp	10 hp	3.94"	Nonreversing	€837.79
D	CR309C104AKA	1	-	7"	10 hp	7 1/2 hp	10 hp	3.94"	Reversing	€1,845.40
D	CR309C104	1	-	14"	10 hp	7 1/2 hp	10 hp	4.59"	Reversing	€1,519.46
A	CR306D104	2	45A	13 1/4"	25 hp	15 hp	25 hp	6.13"	Nonreversing	€1,330.19
G	CR306D004	2	45A	9 3/25"	25 hp	15 hp	25 hp	5 1/2"	Nonreversing	€1,352.78
H	CR306E004	3	90A	11.62"	50 hp	30 hp	50 hp	6 1/2"	Nonreversing	€1,655.48
I	CR306E104	3	90A	20 1/4"	50 hp	30 hp	50 hp	7.31"	Nonreversing	€2,437.93
H	CR306F004	4	135A	11.62"	100 hp	50 hp	100 hp	6 1/2"	Nonreversing	€3,675.22
A	CR306F104	4	135A	25"	100 hp	50 hp	100 hp	7.31"	Nonreversing	€3,814.38
A	CR306G104	5	270A	45 3/25"	200 hp	100 hp	200 hp	11"	Nonreversing	€12,013.45

GENERAL ELECTRIC -

115 to 120VAC, Magnetic Motor Starter, NEMA, 3 Pole

GENERAL ELECTRIC CR306B102

A

GENERAL ELECTRIC CR309B102

B

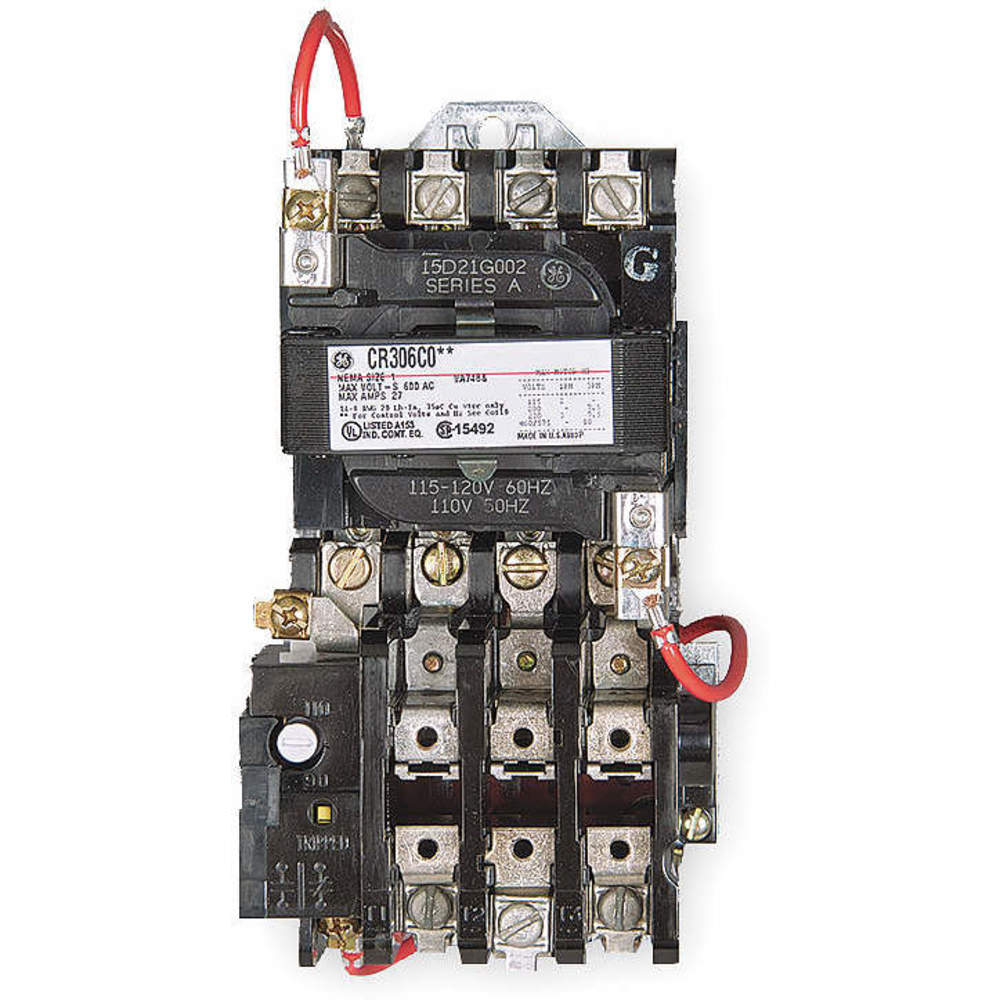

GENERAL ELECTRIC CR306B002

C

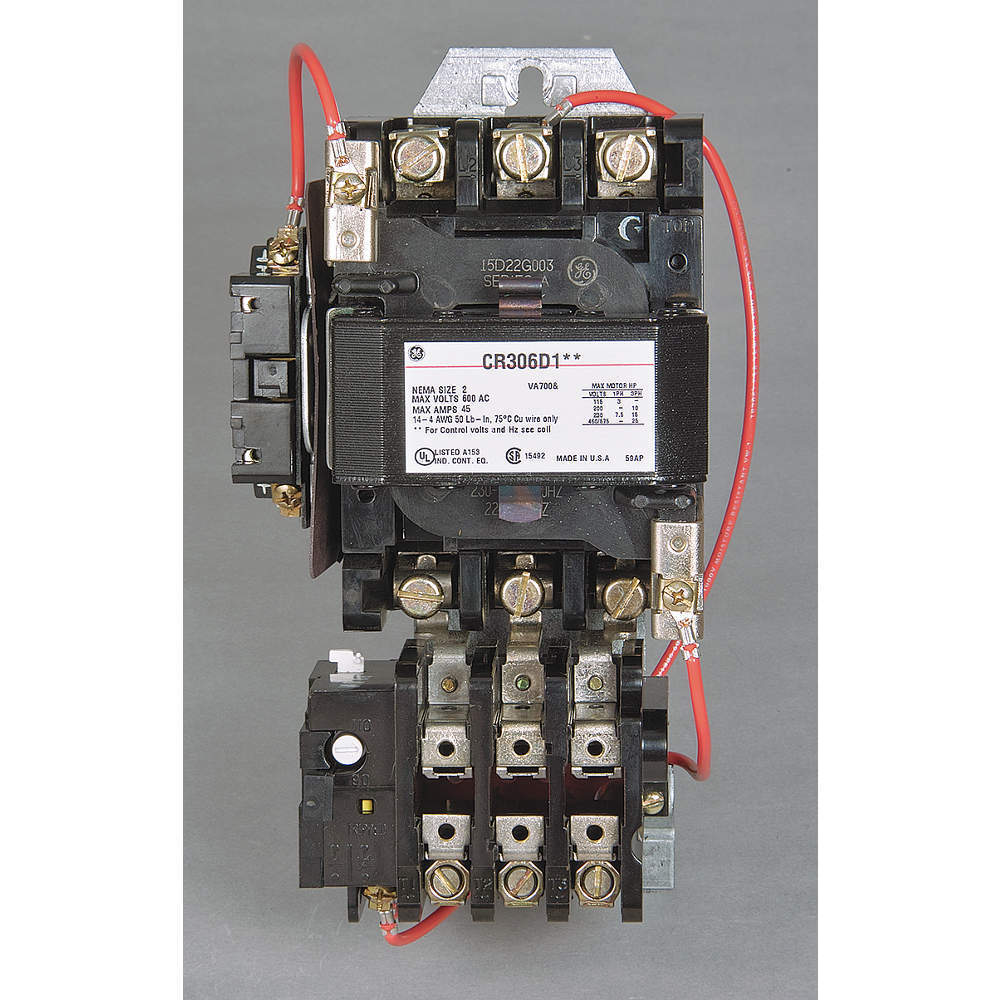

GENERAL ELECTRIC CR306D002

D

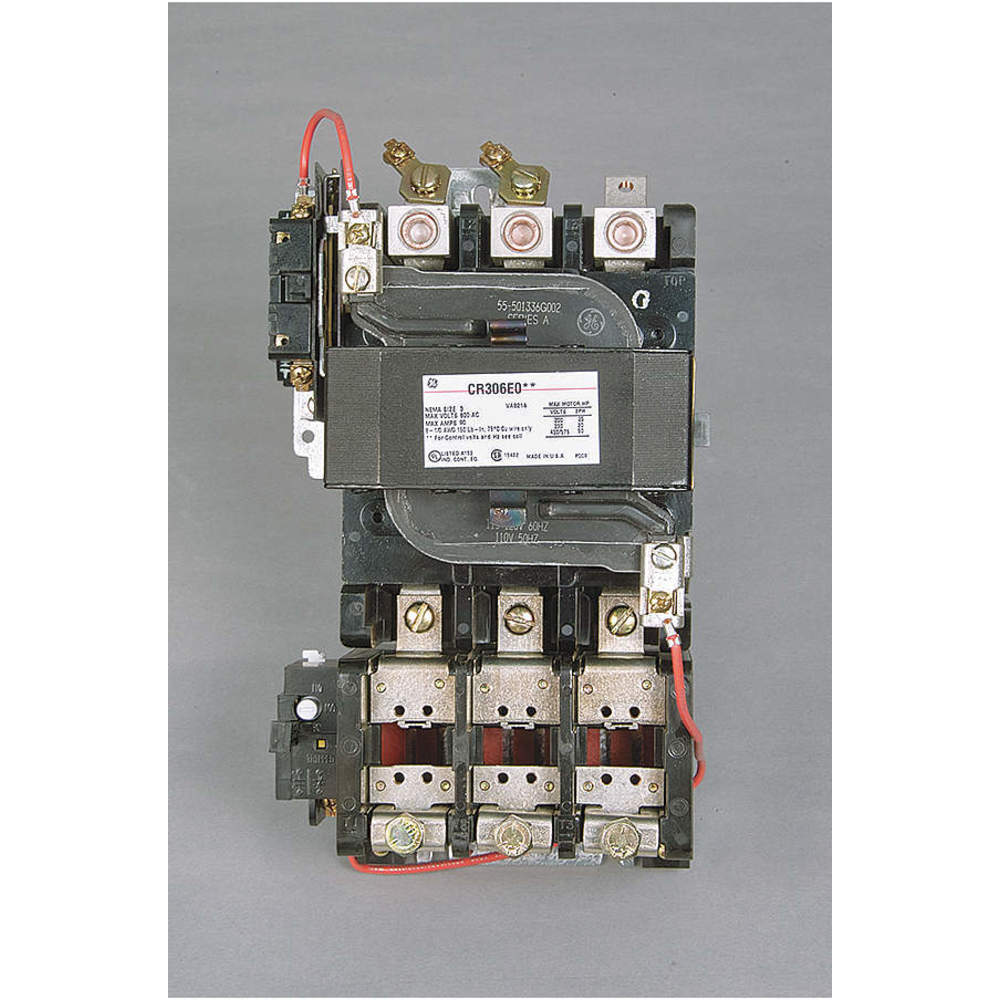

GENERAL ELECTRIC CR306E002

E

Style	Model	Nema Size	Amps Ac	Hp @ 3 Phase - 575v	Action Type	Height	Hp @ 3 Phase - 240v	Hp @ 3 Phase - 208v	Hp @ 3 Phase - 480v	Price
A	CR306B102	0	18A	5 hp	Nonreversing	10"	3 hp	3 hp	5 hp	€873.88
B	CR309B102	0	18A	5 hp	Reversing	14"	3 hp	3 hp	5 hp	€1,205.47
C	CR306B002	0	18A	5 hp	Nonreversing	7 4/5"	3 hp	3 hp	-	€817.63
A	CR306A002	00	9A	2 hp	Nonreversing	7 4/5"	1 1/2 hp	1 1/2 hp	2 hp	€586.06
A	CR306A102	0	9A	2 hp	Nonreversing	10"	1 1/2 hp	1 1/2 hp	2 hp	€625.48
A	CR306C102	1	-	10 hp	Nonreversing	10"	7 1/2 hp	7 1/2 hp	10 hp	€840.40
A	CR309C102AKA	1	-	10 hp	Reversing	7"	7 1/2 hp	7 1/2 hp	10 hp	€1,845.40
B	CR309C102	1	-	10 hp	Reversing	14"	7 1/2 hp	7 1/2 hp	10 hp	€1,519.46
C	CR306C002	1	-	10 hp	Nonreversing	7 4/5"	7 1/2 hp	-	10 hp	€837.79
D	CR306D002	2	45A	25 hp	Nonreversing	9 3/25"	15 hp	10 hp	25 hp	€1,349.72
A	CR306D102	2	45A	25 hp	Nonreversing	13 1/4"	15 hp	10 hp	25 hp	€1,330.19
A	CR306E102	3	90A	50 hp	Nonreversing	20 1/4"	30 hp	25 hp	50 hp	€2,437.93
E	CR306E002	3	90A	50 hp	Nonreversing	11.62"	30 hp	25 hp	50 hp	€1,655.48
A	CR306F102	4	135A	100 hp	Nonreversing	25"	-	40 hp	-	€3,814.38
E	CR306F002	4	135A	100 hp	Nonreversing	11.62"	50 hp	40 hp	100 hp	€3,675.22
A	CR306G102	5	270A	200 hp	Nonreversing	-	100 hp	-	200 hp	€11,953.39
