KERN AND SOHN Force Gauges

Filter

KERN AND SOHN -

CT P2 Series Shear Beam Measuring Cells
Kern and Sohn CT-P2 Series shear beam measuring cells are specialised sensors suitable for accurately measuring weight or compressive force. These units are compatible with a wide range of weighing devices, including platform scales, weigh hoppers, flush-mounted floor scales and others. They have welded construction that creates a hermetic seal to prevent ingress of moisture, contaminants or gases that might affect the accuracy of the device. These RoHS-complaint cells are available in 500 to 10000 kg load capacities, allowing for a wide range of weight measurement requirements. They feature mounting holes or interfaces that allow for secure attachment to the weighing platform and have a 4-wire connection to compensate for the resistance in the lead wires, minimising errors in accuracy.

Style	Model	Weighing Capacity	Nominal Weight	Price
A	CT 500-3P2	500 Kg	500 Kg	€82.40
B	CT 1000-3P2	1000 Kg	1000 Kg	€82.40
C	CT 3000-3P2	3000 Kg	3000 Kg	€100.00
D	CT 5000-3P2	5000 Kg	5000 Kg	€99.20
E	CT 10000-3P2	10000 Kg	10000 Kg	€142.40

KERN AND SOHN -

FS Series Digital Force Gauges

Style	Model	Readability	Case Width	Housing Height	Housing Length	Housing Dimension	Price
A	FS 2	-	-	-	-	-	€760.00
B	FS 4	-	-	-	-	-	€856.00
C	FS 4-20	0.004N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€944.00
D	FS 2-20	0.004N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€856.00
E	FS 2-50	0.01N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€856.00
F	FS 4-50	0.01N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€944.00
G	FS 2-100	0.02N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€856.00
H	FS 4-100	0.02N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€944.00
I	FS 2-200	0.04N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€856.00
J	FS 4-200	0.04N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€944.00
K	FS 2-500	0.1N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€856.00
L	FS 4-500	0.1N	71 mm	180 mm	31 mm	71 mm x 31 mm x 180 mm	€944.00

KERN AND SOHN -

FL-EXT Series Digital Force Gauges
Kern and Sohn FL-EXT Series digital force gauges accurately measure and display the force applied to an object. These gauges are commonly used in the quality control, research & development, production and material testing industries. They have a peak-hold function to capture measurement and freeze it for a short time. These force gauges feature a metal enclosure for structural rigidity. They are equipped with internal memory for storing up to 500 measurements. These force gauges are integrated with a capacity display for measurement reading and have a backlight for reading measurement in low-light conditions. They come in measurement ranges of 2500, 5000, 10000 and 20000N.

Style	Model	Readability	Measuring Capacity	Case Width	Housing Height	Housing Length	Display Type	Digit Size	Housing Material	Price
A	FL 2K	1N	2500N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€655.99
B	FL 5K	2N	5000N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€712.00
C	FL 10K	5N	10000N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€792.00
D	FL 20K	10N	20000N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€792.00

KERN AND SOHN -

FL Series Digital Force Gauges

Style	Model	Readability	Measuring Capacity	Case Width	Housing Height	Housing Length	Display Type	Digit Size	Housing Material	Price
A	FL 5	0.002N	5N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€456.00
B	FL 10	0.005N	10N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€456.00
C	FL 20	0.01N	25N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€456.00
D	FL 50	0.02N	50N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€456.00
E	FL 100	0.05N	100N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€456.00
F	FL 200	0.1N	250N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€456.00
G	FL 500	0.2N	500N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€456.00
H	FL 1K	0.5N	1000N	175 mm	30 mm	75 mm	LCD	8.5 mm	Aluminum	€520.01

KERN AND SOHN -

FK Series Digital Force Gauges

Style	Model	Readability	Case Width	Housing Length	Housing Dimension	Housing Height	Display Type	Digit Size	Battery Voltage	Price
A	FK 10	0.005N	195 mm	82 mm	195 mm x 82 mm x 35 mm	35 mm	LCD	18 mm	1.5V	€228.00
B	FK 25	0.01N	132 mm	84 mm	132 mm x 84 mm x 35 mm	35 mm	LCD	18 mm	1.5V	€228.00
C	FK 50	0.02N	195 mm	82 mm	195 mm x 82 mm x 35 mm	35 mm	LCD	18 mm	1.5V	€228.00
D	FK 100	0.05N	195 mm	84 mm	195 mm x 84 mm x 35 mm	35 mm	LCD	18 mm	1.5V	€228.00
E	FK 250	0.1N	195 mm	82 mm	195 mm x 82 mm x 35 mm	35 mm	LCD	18 mm	1.5V	€228.00
F	FK 500	0.2N	195 mm	84 mm	195 mm x 84 mm x 35 mm	35 mm	LCD	18 mm	1.5V	€228.00
G	FK 1K	0.5N	195 mm	84 mm	195 mm x 84 mm x 35 mm	35 mm	LCD	18 mm	1.5V	€228.00

KERN AND SOHN -

FH-UK Series Digital Force Gauges
KERN & SOHN FH-UK Series digital force gauges are used to precisely monitor and measure force exertion. They are used in quality control, research and manufacturing settings to provide accurate tension and compression measurements. These FH-UK Series digital force gauges are equipped with a clear and easy-to-read LCD screen for a quick assess to force values without confusion. They have durable plastic housing, enhancing their robustness while ensuring longevity in various working conditions. These force gauges have an operating temperature ranging from 10 to 40 degrees C. They can withstand a maximum force of up to 100 kN.

Style	Model	Readability	Display Type	Digit Size	Housing Material	Case Width	Housing Height	Housing Length	Housing Dimension	Price
A	FH 5UK	0.001N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€517.23
B	FH 2UK	0.001N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€517.23
C	FH 10UK	0.005N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€517.23
D	FH 20UK	0.01N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€517.23
E	FH 50UK	0.01N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€517.23
F	FH 100UK	0.05N	LCD	10 mm	Plastic	-	-	-	-	€517.23
G	FH 200UK	0.1N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€517.23
H	FH 500UK	0.1N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€517.23
I	FH 1KUK	0.5N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€848.57
J	FH 2KUK	1N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€848.57
A	FH 5KUK	1N	LCD	10 mm	Plastic	-	-	-	-	€1,066.77
K	FH 10KUK	5N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€1,252.66
L	FH 20KUK	10N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€1,252.66
M	FH 50KUK	10N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€1,454.70
N	FH 100KUK	50N	LCD	10 mm	Plastic	230 mm	36 mm	66 mm	230 mm x 66 mm x 36 mm	€1,632.49

KERN AND SOHN -

CT Q1 Series Shear Beam Measuring Cells

Style	Model	Weighing Capacity	Nominal Weight	Sensitivity	Price
A	CT 300-3Q1	300 Kg	300 Kg	2 mv/v	€176.00
B	CT 500-3Q1	500 Kg	500 Kg	-	€176.00
C	CT 750-3Q1	750 Kg	750 Kg	-	€176.00
D	CT 1000-3Q1	1000 Kg	1000 Kg	-	€176.00
E	CT 1500-3Q1	1500 Kg	1500 Kg	-	€176.00
F	CT 2000-3Q1	2000 Kg	2000 Kg	-	€176.00
G	CT 3000-3Q1	3000 Kg	3000 Kg	-	€347.99
H	CT 5000-3Q1	5000 Kg	5000 Kg	-	€347.99
I	CT 7500-3Q1	7500 Kg	7500 Kg	-	€456.00
J	CT 10000-3Q1	10000 Kg	10000 Kg	-	€456.00

KERN AND SOHN -

CT P1 Series Shear Beam Measuring Cells

Style	Model	Weighing Capacity	Nominal Weight	Sensitivity	Price
A	CT 500-3P1	500 Kg	500 Kg	3 mv/v	€78.40
B	CT 1000-3P1	1000 Kg	1000 Kg	-	€78.40
C	CT 1500-3P1	1500 Kg	1500 Kg	-	€78.40
D	CT 2500-3P1	2500 Kg	2500 Kg	-	€95.20
E	CT 3000-3P1	3000 Kg	3000 Kg	-	€95.20
F	CT 5000-3P1	5000 Kg	5000 Kg	-	€95.20
G	CT 10000-3P1	10000 Kg	10000 Kg	-	€138.40

KERN AND SOHN -

CR P1 Series Load Cells

Style	Model	Weighing Capacity	Nominal Weight	Sensitivity	Price
A	CR 60-3P1	60 Kg	60 Kg	1 mv/v	-	RFQ
B	CR 130-3P1	130 Kg	130 Kg	-	-	RFQ
C	CR 250-3P1	250 Kg	250 Kg	-	-	RFQ
D	CR 500-3P1	500 Kg	500 Kg	-	-	RFQ
E	CR 1000-3P1	1000 Kg	1000 Kg	-	€695.02
F	CR 2000-3P1	2000 Kg	2000 Kg	-	-	RFQ

KERN AND SOHN -

CR Y1 Series Measuring Cells

Style	Model	Weighing Capacity	Price
A	CR 500-1Y1	500 Kg	€216.00
B	CR 1000-1Y1	1000 Kg	€216.00
C	CR 5000-1Y1	5000 Kg	€216.00
D	CR 10000-1Y1	10000 Kg	€344.00
E	CR 20000-1Y1	20000 Kg	€344.00

KERN AND SOHN -

CP P1 Series Single Point Load Cells

Style	Model	Weighing Capacity	Nominal Weight	Platform Height	Platform Width	Weighing Platform Dimensions	Sensitivity	Material	Finish	Price
A	CP 3-5P1	3 Kg	-	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	-	RFQ
B	CP 3-3P1	3 Kg	3 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	2 mv/v	Aluminum	Anodized	€48.01
C	CP 5-3P1	5 Kg	5 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
D	CP 6-3P1	6 Kg	6 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
E	CP 8-3P1	8 Kg	8 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
F	CP 10-3P1	10 Kg	10 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
G	CP 15-3P1	15 Kg	15 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
H	CP 20-3P1	20 Kg	20 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
I	CP 30-3P1	30 Kg	30 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
J	CP 35-3P1	35 Kg	35 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
K	CP 40-3P1	40 Kg	40 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01
L	CP 50-3P1	50 Kg	50 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	-	-	-	€48.01

KERN AND SOHN -

CP Y1 Series Single Point Load Cells

Style	Model	Weighing Capacity	Platform Height	Platform Width	Weighing Platform Dimensions	Price
A	CP 3-2Y1	3 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	€26.39
B	CP 5-2Y1	5 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	€26.39
C	CP 10-2Y1	10 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	€26.39
D	CP 15-2Y1	15 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	€26.39
E	CP 20-2Y1	20 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	€26.39
F	CP 30-2Y1	30 Kg	350 mm	250 mm	250 mm x 350 mm x 0 mm	€26.39

KERN AND SOHN -

CP P9 Series Single Point Load Cells

Style	Model	Weighing Capacity	Nominal Weight	Platform Height	Platform Width	Weighing Platform Dimensions	Sensitivity	Price
A	CP 10-3P9	10 Kg	10 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	2 mv/v	-	RFQ
B	CP 20-3P9	20 Kg	20 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	-	-	RFQ
C	CP 50-3P9	50 Kg	50 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	-	€307.10
D	CP 100-3P9	100 Kg	100 Kg	800 mm	800 mm	800 mm x 800 mm x 0 mm	-	-	RFQ
E	CP 200-3P9	200 Kg	200 Kg	800 mm	800 mm	800 mm x 800 mm x 0 mm	-	€468.74
F	CP 300-3P9	300 Kg	300 Kg	800 mm	800 mm	800 mm x 800 mm x 0 mm	-	-	RFQ
G	CP 400-3P9	400 Kg	400 Kg	800 mm	800 mm	800 mm x 800 mm x 0 mm	-	-	RFQ
H	CP 500-3P9	500 Kg	500 Kg	800 mm	800 mm	800 mm x 800 mm x 0 mm	-	€468.74

KERN AND SOHN -

CP P7 Series Single Point Load Cells

Style	Model	Weighing Capacity	Platform Height	Platform Width	Weighing Platform Dimensions	Price
A	CP 30-3P7	30 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	€216.00
B	CP 50-3P7	50 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	€216.00
C	CP 75-3P7	75 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	€216.00
D	CP 100-3P7	100 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	€216.00
E	CP 150-3P7	150 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	€216.00

KERN AND SOHN -

CO Y4 Series Miniature Button Type Measuring Cells

Style	Model	Weighing Capacity	Nominal Weight
A	CO 5-Y4	5 Kg	5 Kg	RFQ
B	CO 10-Y4	10 Kg	10 Kg	RFQ

KERN AND SOHN -

CP P2 Series Single Point Load Cells

Style	Model	Weighing Capacity	Nominal Weight	Platform Height	Platform Width	Weighing Platform Dimensions	Sensitivity	Price
A	CP 100-3P2	100 Kg	100 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	2 mv/v	€64.81
B	CP 150-3P2	150 Kg	150 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	-	€64.81
C	CP 200-3P2	200 Kg	200 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	-	€64.81
D	CP 300-3P2	300 Kg	300 Kg	400 mm	400 mm	400 mm x 400 mm x 0 mm	-	€64.81
E	CP 400-3P2	400 Kg	400 Kg	450 mm	450 mm	450 mm x 450 mm x 0 mm	-	€64.81
F	CP 500-3P2	500 Kg	500 Kg	450 mm	450 mm	450 mm x 450 mm x 0 mm	-	€64.81

KERN AND SOHN -

CO Y3 Series Miniature Button Type Measuring Cells

Style	Model	Weighing Capacity	Nominal Weight
A	CO 5-Y3	5 Kg	5 Kg	RFQ
B	CO 10-Y3	10 Kg	10 Kg	RFQ

KERN AND SOHN -

Load Cells

Style	Model	Nominal Weight	Weighing Capacity	Sensitivity	Price
A	CK 300-0P2	0.3 Kg	300g	-	€39.60
B	CK 1000-0P3	1 Kg	1 Kg	-	-	RFQ
C	CD 10-2P2	10000 Kg	-	1.5 mv/v	€953.64
D	CD 10-3P1	10000 Kg	-	2 mv/v	€371.75
C	CD 20-2P2	20000 Kg	-	-	€953.64
D	CD 20-3P1	20000 Kg	-	-	-	RFQ
C	CD 30-2P2	30000 Kg	-	-	€1,527.43
D	CD 40-3P1	40000 Kg	-	-	€371.75
C	CD 50-2P2	50000 Kg	-	-	€1,705.23
D	CD 50-3P1	50000 Kg	-	-	€371.75
C	CD 100-2P2	100000 Kg	-	-	€2,990.21

KERN AND SOHN -

CP P3 Series Single Point Load Cells

Style	Model	Weighing Capacity	Nominal Weight	Platform Height	Platform Width	Weighing Platform Dimensions	Sensitivity	Material	Finish	Price
A	CP 30-3P3	-	-	400 mm	350 mm	350 mm x 400 mm x 0 mm	-	-	-	€60.81
B	CP 40-3P3	40 Kg	-	400 mm	350 mm	350 mm x 400 mm x 0 mm	-	-	-	€60.81
C	CP 50-3P3	50 Kg	50 Kg	400 mm	350 mm	350 mm x 400 mm x 0 mm	2 mv/v	Aluminum	Anodized	€60.81
D	CP 75-3P3	75 Kg	75 Kg	400 mm	350 mm	350 mm x 400 mm x 0 mm	-	-	-	€60.81
E	CP 100-3P3	100 Kg	-	400 mm	350 mm	350 mm x 400 mm x 0 mm	-	-	-	€61.60

KERN AND SOHN -

FA Series Mechanical Force Gauges

Style	Model	Readability	Case Width	Housing Height	Housing Length	Housing Dimension	Price
A	FA 10	0.05N	232 mm	51 mm	60 mm	232 mm x 60 mm x 51 mm	€192.00
B	FA 20	0.1N	232 mm	51 mm	60 mm	232 mm x 60 mm x 51 mm	€192.00
C	FA 100	0.5N	232 mm	51 mm	60 mm	232 mm x 60 mm x 51 mm	€192.00
D	FA 50	0.25N	232 mm	51 mm	60 mm	232 mm x 60 mm x 51 mm	€192.00
E	FA 200	1N	232 mm	51 mm	60 mm	232 mm x 60 mm x 51 mm	€192.00
F	FA 500	2.5N	232 mm	51 mm	60 mm	232 mm x 60 mm x 51 mm	€192.00
G	FA 300	2N	232 mm	51 mm	60 mm	232 mm x 60 mm x 51 mm	-	RFQ

KERN AND SOHN -

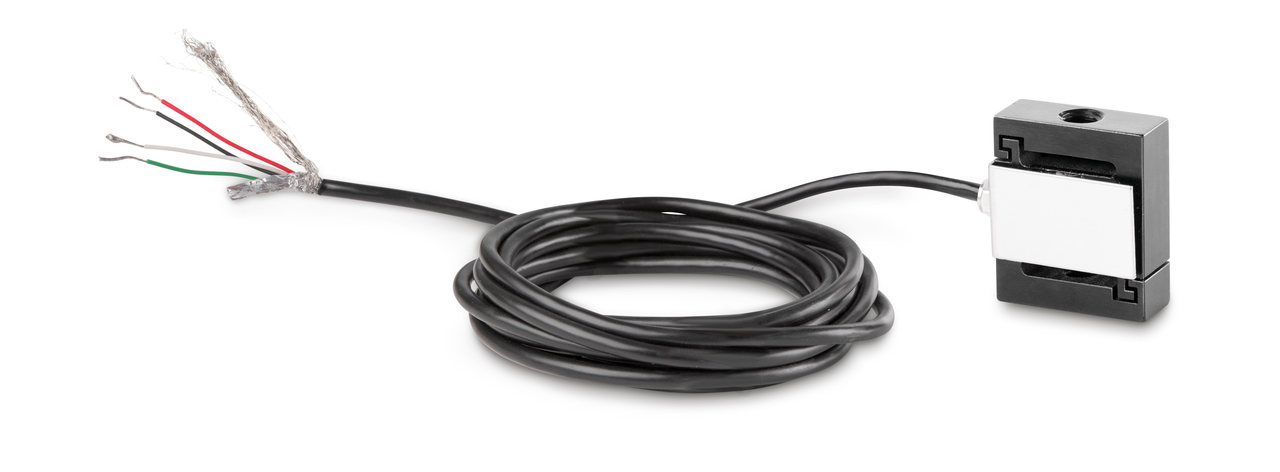

CS Y1 Series S Measuring Cell

Style	Model	Nominal Weight	Weighing Capacity	Nominal Load	Material	Price
A	CS 1-Y1	1 Kg	1 Kg	-	-	€275.99
B	CS 2-Y1	2 Kg	-	2 Kg	Stainless Steel	€275.99
C	CS 5-Y1	5 Kg	5 Kg	-	-	€275.99
D	CS 10-Y1	10 Kg	10 Kg	-	-	€275.99
E	CS 20-Y1	20 Kg	-	20 Kg	Stainless Steel	€275.99

12 3

Popular Search Queries

Keyed Shaft

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

KERN AND SOHN Force Gauges

FS Series Digital Force Gauges

FL Series Digital Force Gauges

FK Series Digital Force Gauges

CT Q1 Series Shear Beam Measuring Cells

CT P1 Series Shear Beam Measuring Cells

CR P1 Series Load Cells

CR Y1 Series Measuring Cells

CP P1 Series Single Point Load Cells

CP Y1 Series Single Point Load Cells

CP P9 Series Single Point Load Cells

CP P7 Series Single Point Load Cells

CO Y4 Series Miniature Button Type Measuring Cells

CP P2 Series Single Point Load Cells

CO Y3 Series Miniature Button Type Measuring Cells

Load Cells

CP P3 Series Single Point Load Cells

FA Series Mechanical Force Gauges

CS Y1 Series S Measuring Cell

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

KERN AND SOHN Force Gauges

Popular Search Queries

Explore More
