HEDLAND Flowmeter Accessories

Includes AC / DC latching flow switches in a sealed polypropylene enclosure and CE-certified 175 / 200 VDC reed switches used to control alarms, warning lights and relays

Filter

HEDLAND -

Flow Switch Ac Latching

HEDLAND H526-003

A

HEDLAND H526-004

B

Style	Model	Housing Material	Voltage	Type	Operating Temp. Range	Min. Amps	Connection Type	Nema Rating	Ip Rating	Price
A	H526-003	Polycarbonate	115V AC	AC Latching	+32°F to +158°F	25 mA	NPT	NEMA 12, 13	IP65	€322.87
B	H526-004	Polycarbonate	115V AC	AC Latching	+32°F to +158°F	25 mA	NPT	NEMA 12, 13	IP65	€322.87

HEDLAND -

Flow Switch Dc Latching

HEDLAND H526-005

A

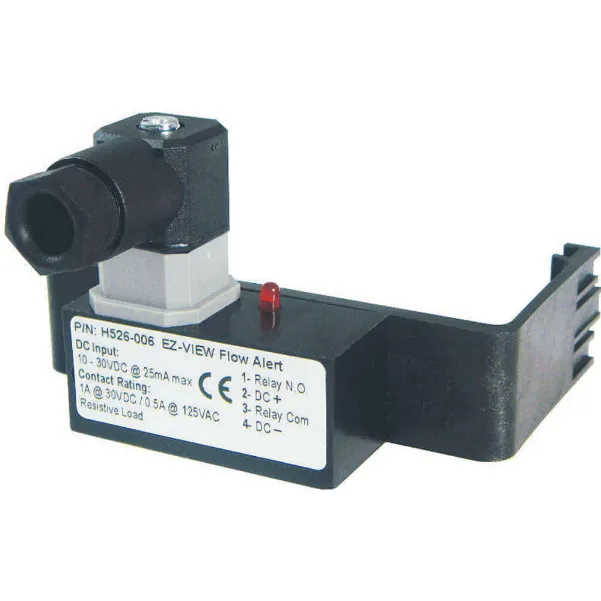

HEDLAND H526-006

B

Style	Model	Housing Material	Voltage	Type	Operating Temp. Range	Min. Amps	Connection Type	Nema Rating	Ip Rating	Price
A	H526-005	Polycarbonate	10-30V DC	DC Latching	+32°F to +158°F	25 mA	NPT	NEMA 12, 13	IP65	€322.87
B	H526-006	Polycarbonate	10-30V DC	DC Latching	+32°F to +158°F	25 mA	NPT	NEMA 12, 13	IP65	€334.43

HEDLAND -

Reed Switch

HEDLAND H526-008-NC

A

HEDLAND H526-008

B

Style	Model	Voltage	Type	Min. Amps	Wire Size	Housing Material	Operating Temp. Range	Connection Type	Nema Rating	Price
A	H526-008-NC	175V DC	Form-B, Nc	0.25A	20 AWG	Polycarbonate	+32°F to +250°F	NPT	NEMA 12, 13	€125.05
B	H526-008	175V DC	Reed Switch Form-C, SPDT	0.25A	-	Polycarbonate	+32°F to +250°F	NPT	NEMA 12, 13	€116.81
A	H526-008-NO	200V DC	Reed Switch Form-A, Normally Open (No)	1A	24 AWG	Polycarbonate	+32°F to +250°F	NPT	NEMA 12, 13	€120.92
