Anderson Metals Corp. Products Flared Tube Fittings

ANDERSON METALS CORP. PRODUCTS -

Male Connector, Low Lead, Brass

A

Style	Model	Max. Pressure	Max. Operating Pressure	Fitting Thread Size	Hex Size	Fitting Side A Tube Outside Dia.	Fitting Side B Connection Type	Fitting Side B Pipe Size	Fitting Material	Price
A	704048-1412	600 psi	600 psi	1 3/16"-14	1 1/4"	7/8"	FNPT	3/4"	Brass	€59.01
A	704048-0202	1000 psi	1000 psi	5/16"-24	7/16"	1/8"	MNPT	1/8"	Brass	€6.60

ANDERSON METALS CORP. PRODUCTS -

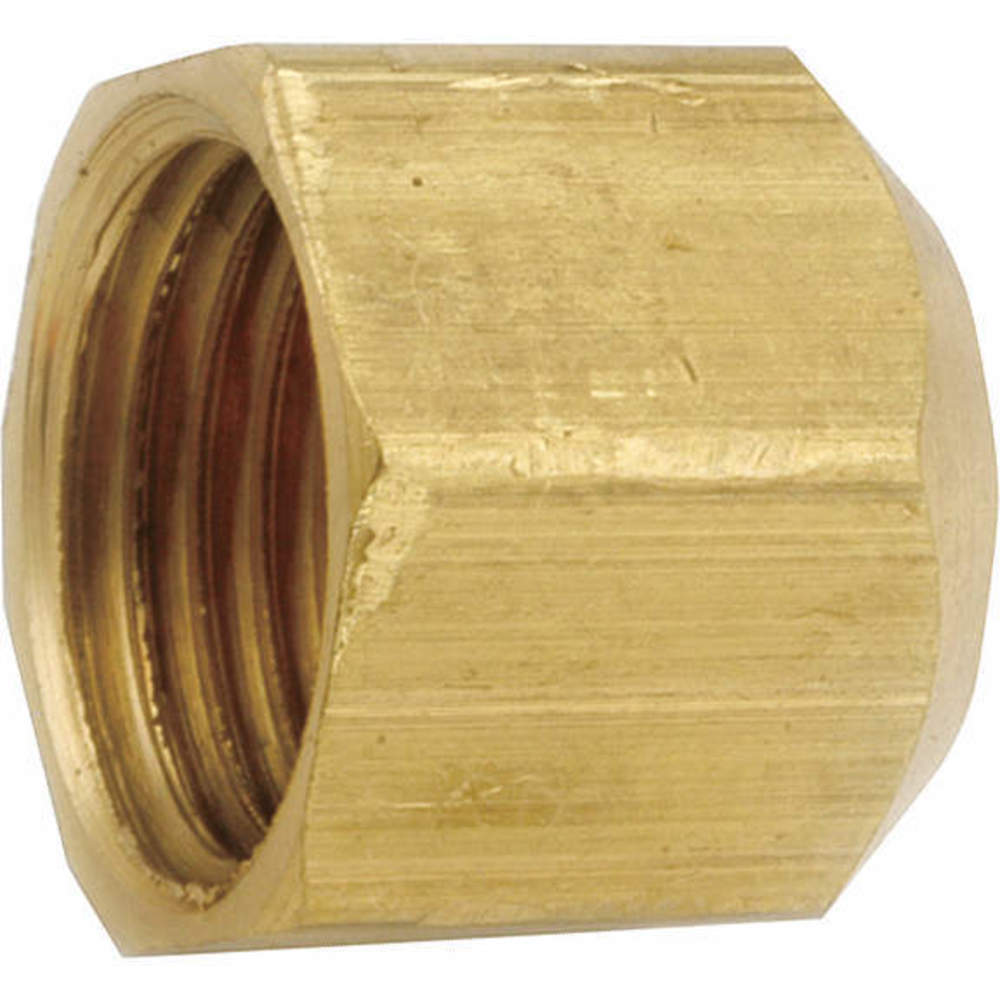

Cap, Female Flare 45 Degrees, Low Lead Brass

A

Style	Model	Max. Pressure	Max. Operating Pressure	Fitting Thread Size	Flare Thread Size	Hex Size	Tube Size	Fitting Tube Size Outside Dia.	Fitting Material	Price
A	704040-08	750 psi	750 psi	3/4"-16	3/4"-16	7/8"	-	1/2"	Brass	€5.46
A	704040-06	1000 psi	1000 psi	5/8"-18	5/8"-18	3/4"	3/8"	3/8"	Brass	€3.72
A	704040-04	1400 psi	1400 psi	7/16"-20	7/16"-20	7/16"	1/4"	1/4"	Brass	€2.19

ANDERSON METALS CORP. PRODUCTS -

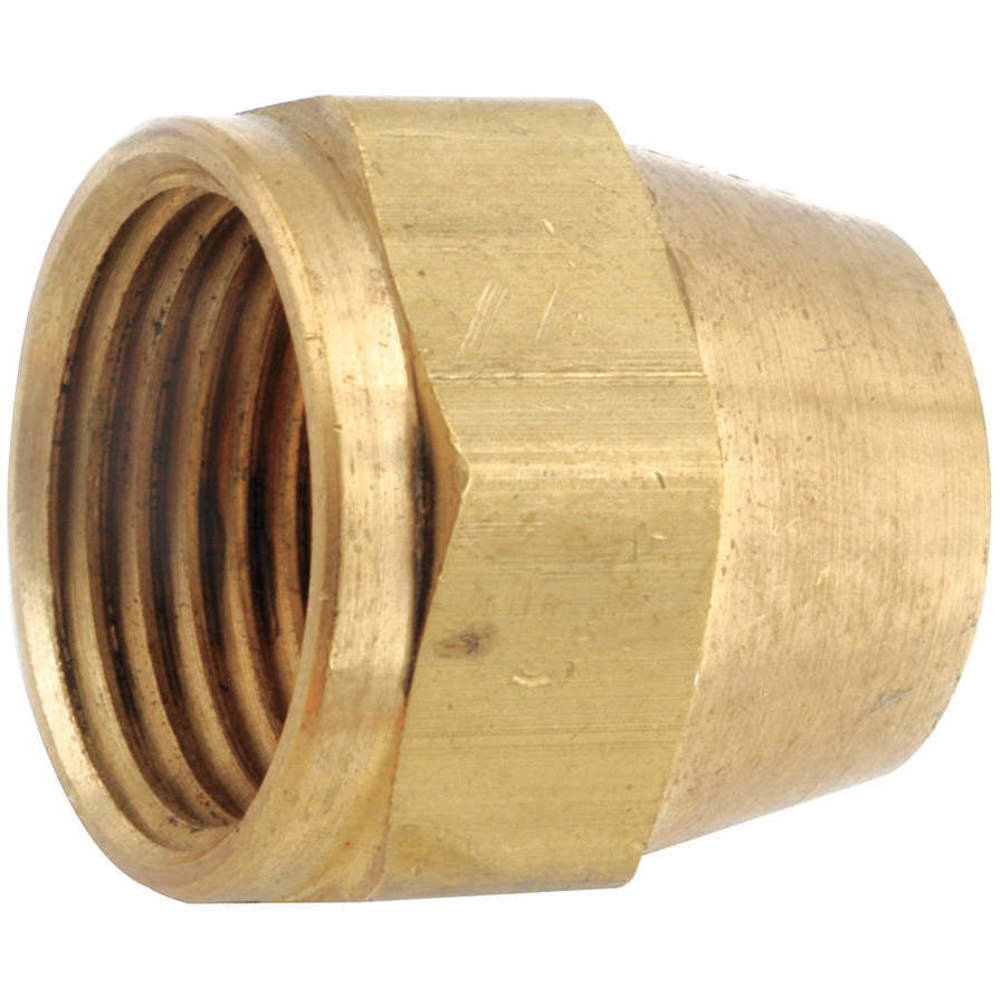

Short Nut

A

Style	Model	Max. Pressure	Max. Operating Pressure	Fitting Thread Size	Flare Thread Size	Hex Size	Compatible Tube Size (od)	Fitting Material	Temp.	Price
A	704014-08	750 psi	750 psi	3/4"-16	3/4"-16	7/8"	1/2"	Brass	-65°F to +250°F	€6.70
A	704014-06	1000 psi	1000 psi	5/8"-18	5/8"-18	3/4"	3/8"	Brass	-65°F to +250°F	€4.96
A	704014-04	1400 psi	1400 psi	7/16"-20	7/16"-20	9/16"	1/4"	Brass	-65°F to +250°F	€2.85

ANDERSON METALS CORP. PRODUCTS -

Male Connector, Flare x MNPT, Low Lead Brass

A

Style	Model	Flare Thread Size	Hex Size	Max. Operating Pressure	Fitting Thread Size	Max. Pressure	Tube Size	Fitting Side A Tube Outside Dia.	Fitting Side B Pipe Size	Price
A	704048-0608	3/4"-16	5/8"	1000 psi	5/8"-18	1000 psi	3/8"	3/8"	1/2"	€12.28
A	704048-0808	3/4"-16	3/4"	750 psi	3/4"-16	750 psi	-	1/2"	1/2"	€13.38
A	704048-0806	3/4"-16	3/4"	750 psi	3/4"-16	750 psi	-	1/2"	3/8"	€10.99
A	704048-0606	5/8"-18	5/8"	1000 psi	5/8"-18	-	3/8"	3/8"	3/8"	€8.59
A	704048-0604	5/8"-18	5/8"	-	-	-	3/8"	-	-	€7.40
A	704048-1008	7/8"-14	7/8"	650 psi	7/8"-14	650 psi	5/8"	5/8"	1/2"	€14.15
A	704048-0406	7/16"-20	7/16"	1000 psi	7/16"-20	1000 psi	-	1/4"	3/8"	€10.99
A	704048-0404	7/16"-20	7/16"	1000 psi	7/16"-20	1000 psi	-	1/4"	1/4"	€4.55
A	704048-0402	7/16"-20	7/16"	1000 psi	7/16"-20	1000 psi	-	1/4"	1/8"	€3.66

ANDERSON METALS CORP. PRODUCTS -

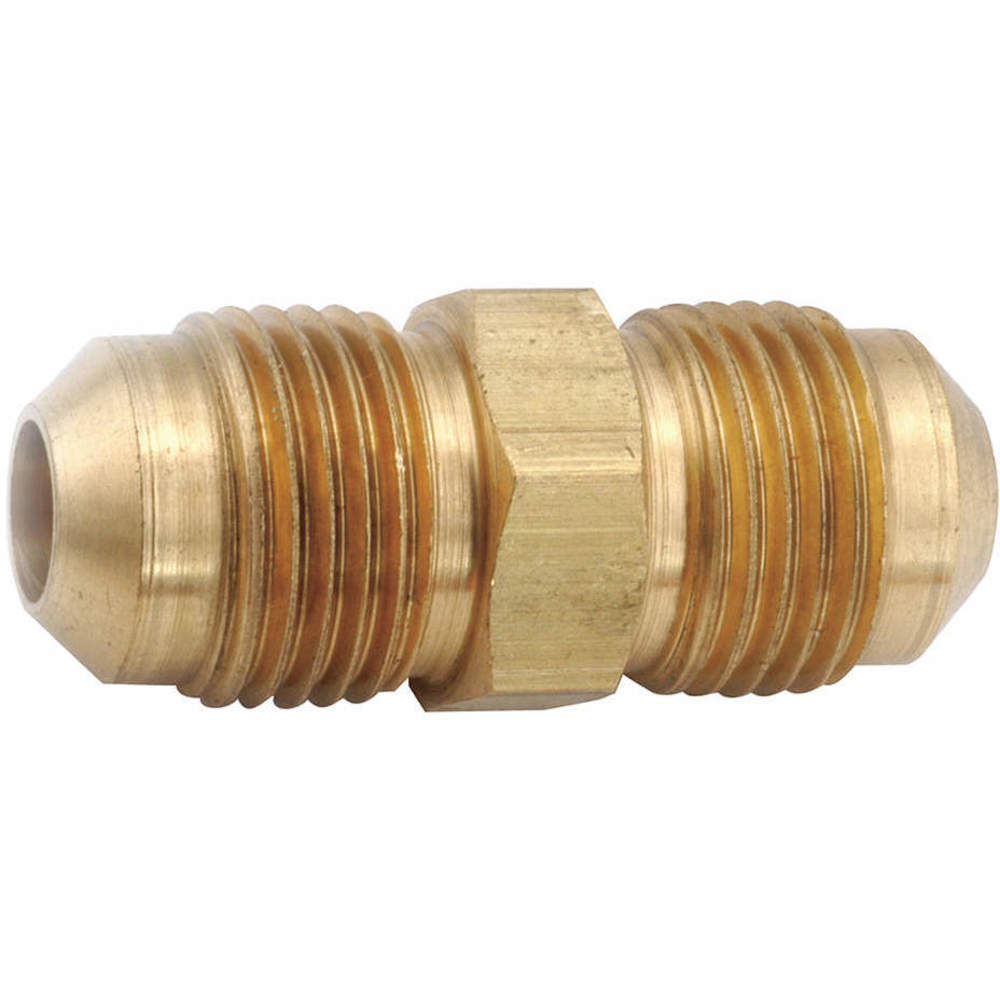

Male Union

A

Style	Model	Max. Pressure	Max. Operating Pressure	Fitting Thread Size	Flare Thread Size	Hex Size	Tube Size	Fitting Side A Tube Outside Dia.	Fitting Side B Tube Outside Dia.	Price
A	704042-08	750 psi	750 psi	3/4"-16	3/4"-16	3/4"	-	1/2"	1/2"	€13.49
A	704042-06	1000 psi	1000 psi	5/8"-18	5/8"-18	5/8"	3/8"	3/8"	3/8"	€9.31
A	704042-04	1400 psi	1400 psi	7/16"-20	7/16"-20	7/16"	1/4"	1/4"	1/4"	€4.34

ANDERSON METALS CORP. PRODUCTS -

Forged Nut

A

Style	Model	Max. Pressure	Max. Operating Pressure	Fitting Thread Size	Flare Thread Size	Hex Size	Compatible Tube Size (od)	Fitting Material	Temp.	Price
A	704018-10	650 psi	650 psi	7/8"-14	7/8"-14	1 1/16"	5/8"	Brass	-65°F to +250°F	€14.94
A	704018-08	750 psi	750 psi	3/4"-16	3/4"-16	15/16"	1/2"	Brass	-65°F to +250°F	€10.55
A	704018-06	1000 psi	1000 psi	5/8"-18	5/8"-18	13/16"	3/8"	Brass	-65°F to +250°F	€7.79
A	704018-04	1400 psi	1400 psi	7/16"-20	7/16"-20	5/8"	1/4"	Brass	-65°F to +250°F	€4.88

ANDERSON METALS CORP. PRODUCTS -

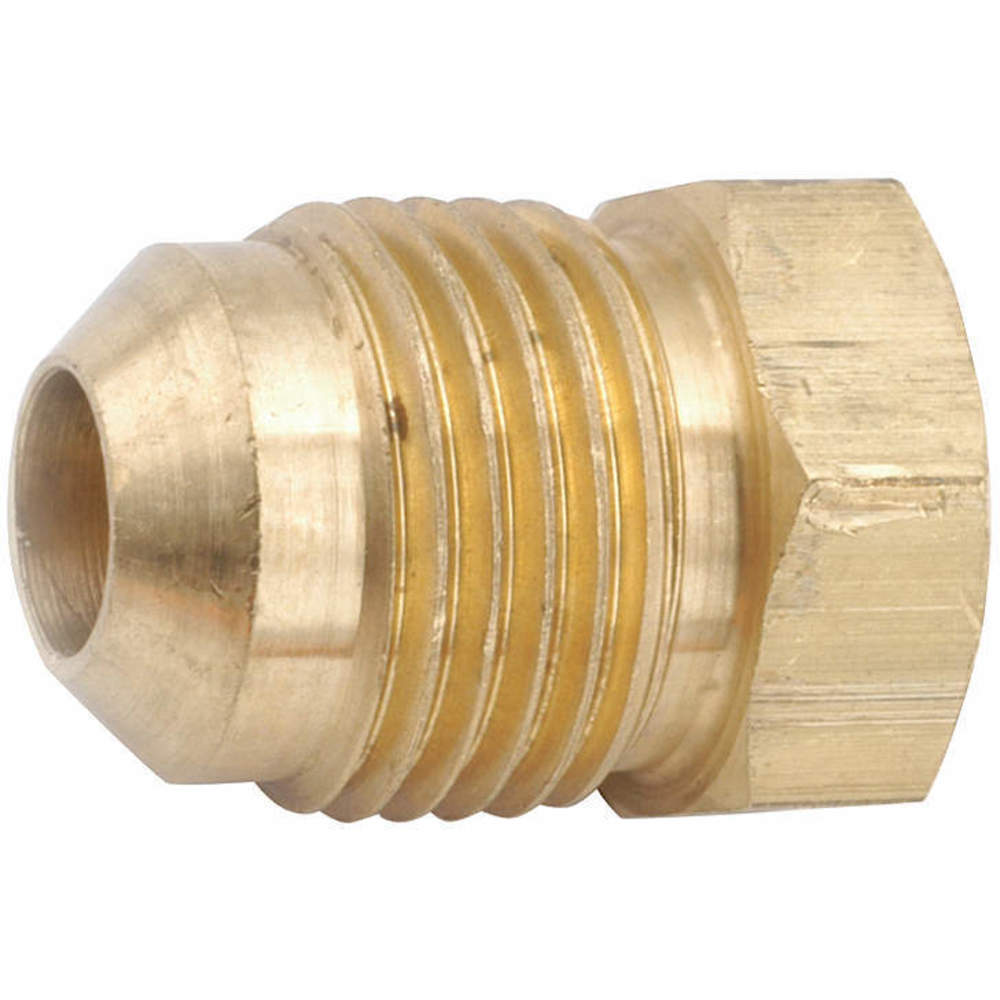

Plug

A

Style	Model	Max. Pressure	Max. Operating Pressure	Fitting Thread Size	Flare Thread Size	Hex Size	Fitting Tube Size Outside Dia.	Specific Fitting Shape	Fitting Material	Price
A	704039-08	750 psi	750 psi	3/4"-16	3/4"-16	7/8"	1/2"	Plug	Brass	€8.22
A	704039-06	1000 psi	1000 psi	5/8"-18	5/8"-18	3/4"	3/8"	Seal Plug	Brass	€5.43

ANDERSON METALS CORP. PRODUCTS -

Female Couplings

A

ANDERSON METALS CORP. PRODUCTS 704822-0606

B

Style	Model	Max. Pressure	Max. Operating Pressure	Tube Size	Fitting Thread Size	Hex Size	Fitting Side A Tube Outside Dia.	Fitting Side B Pipe Size	Temp.	Price
A	704046-1012	650 psi	650 psi	-	7/8"-14	1 1/4"	5/8"	3/4"	-65°F to +250°F	€20.31
A	704046-1006	650 psi	650 psi	5/8"	7/8"-14	7/8"	5/8"	3/8"	-65°F to +250°F	€20.93
A	704046-0612	1000 psi	1000 psi	3/8"	5/8"-18	1"	3/8"	3/4"	-65°F to +250°F	€18.75
B	704822-0606	1000 psi	-	3/8"	-	-	-	-	-65°F to +250°F	€15.58

ANDERSON METALS CORP. PRODUCTS -

Male Elbows, Flared Tube

A

ANDERSON METALS CORP. PRODUCTS 704049-0408

B

Style	Model	Max. Operating Pressure	Fitting Thread Size	Hex Size	Max. Pressure	Tube Size	Fitting Side A Tube Outside Dia.	Fitting Side B Connection Type	Fitting Side B Pipe Size	Price
A	704050-1008	650 psi	7/8"-14	7/8"	650 psi	5/8"	5/8"	FNPT	1/2"	€35.70
A	704050-1012	650 psi	7/8"-14	7/8"	650 psi	5/8"	5/8"	FNPT	3/4"	€32.01
A	704050-0812	750 psi	3/4"-16	7/8"	750 psi	-	1/2"	FNPT	1/2"	€27.44
B	704049-0408	1000 psi	7/16"-20	9/16"	-	-	1/4"	MNPT	1/2"	€22.63
A	704050-0612	1000 psi	5/8"-18	7/8"	1000 psi	3/8"	3/8"	FNPT	3/8"	€30.91

ANDERSON METALS CORP. PRODUCTS -

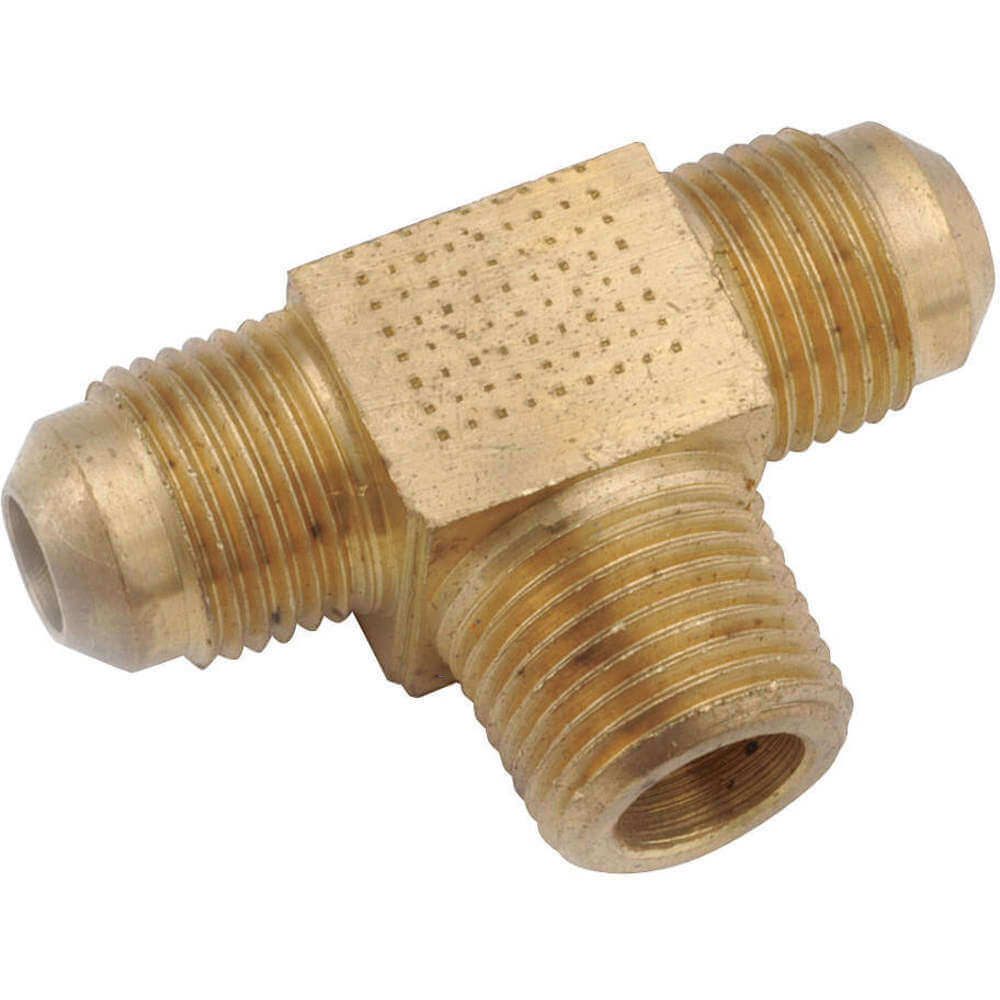

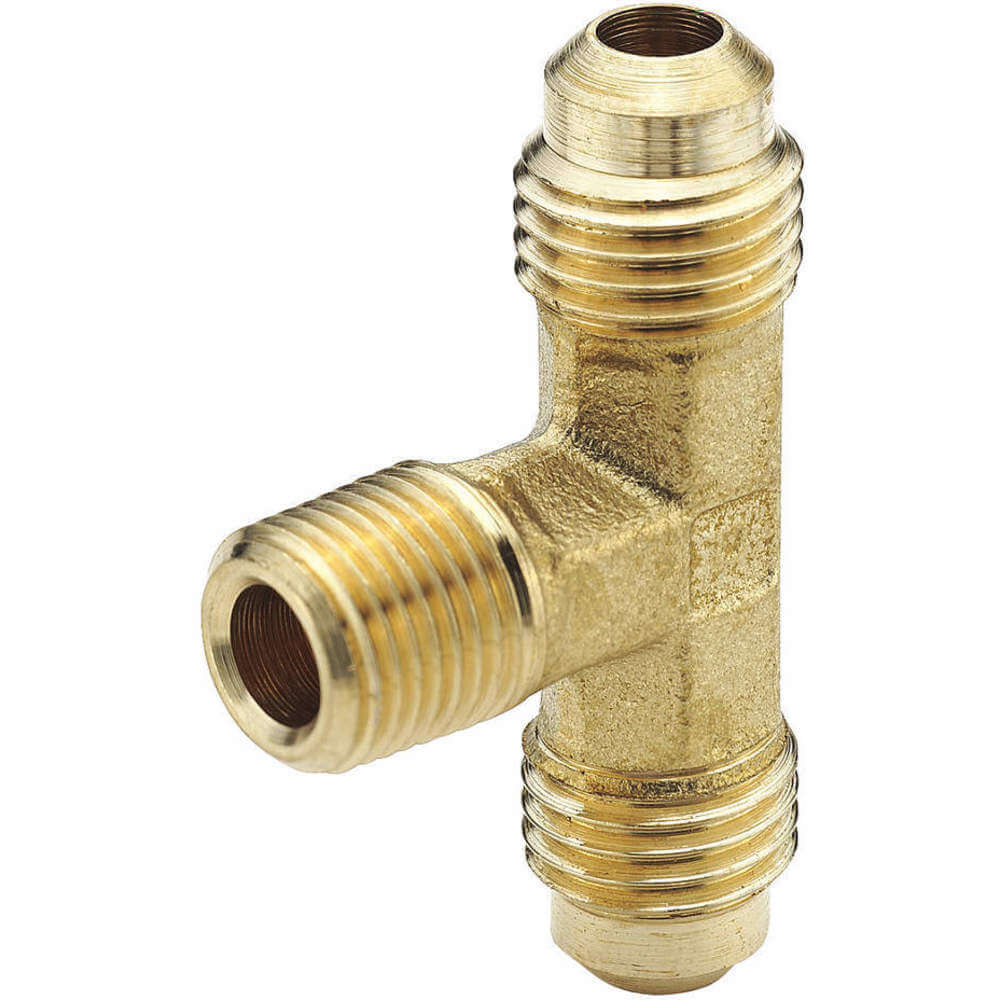

Branch Tees

A

ANDERSON METALS CORP. PRODUCTS 704045-0406

B

Style	Model	Max. Pressure	Max. Operating Pressure	Fitting Thread Size	Fitting Side A Tube Outside Dia.	Fitting Side B Pipe Size	Fitting Side B Tube Outside Dia.	Fitting Side C Pipe Size	Fitting Material	Price
A	704045-1008	650 psi	650 psi	7/8"-14	5/8"	5/8"	5/8"	1/2"	Brass	€54.98
B	704045-0406	1000 psi	1000 psi	7/16"-20	1/4"	1/4"	1/4"	3/8"	Brass	€32.65

ANDERSON METALS CORP. PRODUCTS -

Swivel Connectors

A

ANDERSON METALS CORP. PRODUCTS 704075-0806

B

Style	Model	Max. Operating Pressure	Fitting Thread Size	Max. Pressure	Tube Size	Fitting Side A Tube Outside Dia.	Fitting Side B Connection Type	Fitting Side B Tube Outside Dia.	Fitting Material	Price
A	704070-10	650 psi	7/8"-14	650 psi	5/8"	5/8"	Flare	5/8"	Brass	€33.94
A	704070-08	750 psi	3/4"-16	750 psi	-	1/2"	Inverted Flare	1/2"	Brass	€25.52
B	704075-0806	750 psi	3/4"-16	750 psi	3/8" x 1/2"	1/2"	Inverted Flare	3/8"	Brass	€41.52
A	704070-04	1000 psi	7/16"-20	-	-	1/4"	Flare	1/4"	Brass	€20.32
A	704070-06	1000 psi	5/8"-18	1000 psi	3/8"	3/8"	Inverted Flare	3/8"	Brass	€21.74
B	704075-0604	1000 psi	5/8"-18	1000 psi	1/4" x 3/8"	3/8"	Inverted Flare	1/4"	Brass	€41.29

ANDERSON METALS CORP. PRODUCTS -

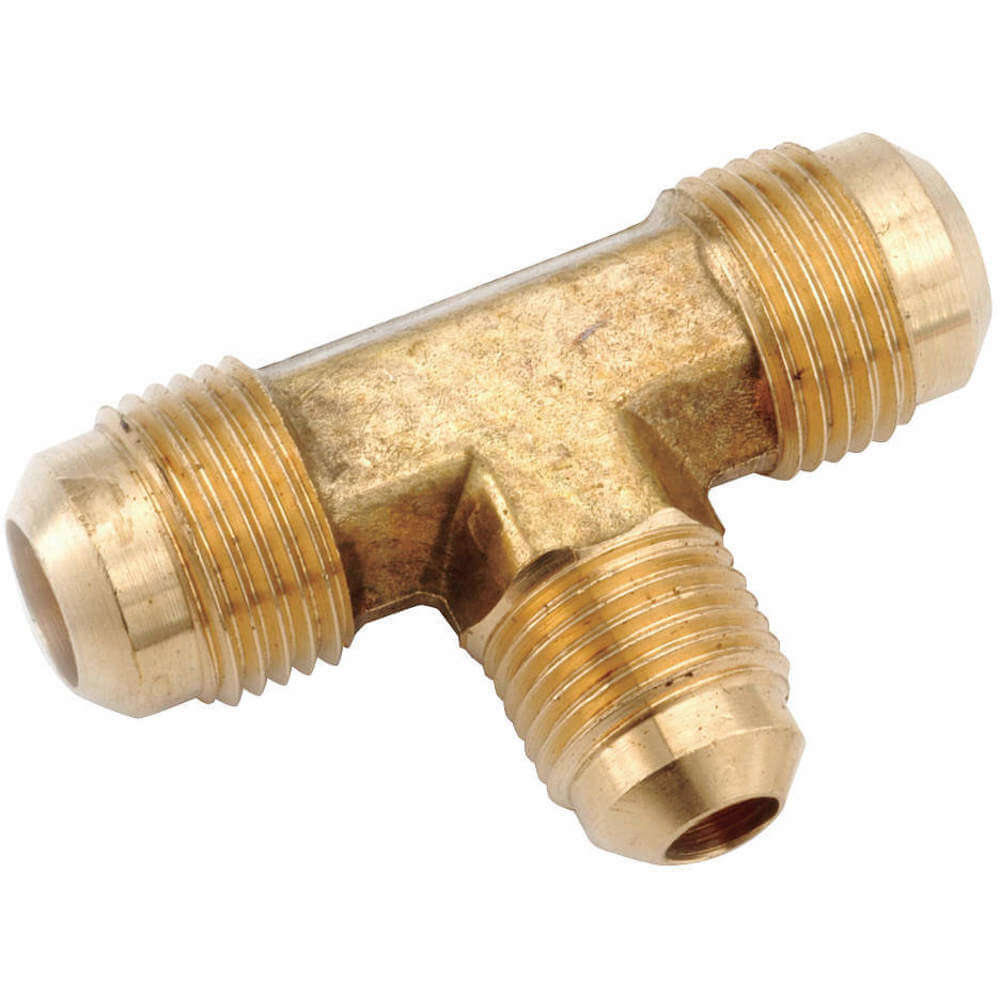

Reducing Tee, Low Lead, Brass

A

ANDERSON METALS CORP. PRODUCTS 704057-0806

B

Style	Model	Max. Operating Pressure	Tube Size	Fitting Thread Size	Max. Pressure	Fitting Side A Tube Outside Dia.	Fitting Side B Tube Outside Dia.	Specific Fitting Shape	Fitting Side C Connection Type	Price
A	704059-101008	650 psi	5/8" x 5/8" x 1/2"	7/8"-14	650 psi	5/8"	5/8"	Reducing Tee	Flared	€56.75
B	704057-0806	750 psi	3/8" x 1/2"	3/4"-16	750 psi	1/2"	3/8"	Reducing Elbow	-	€23.15
A	704059-060608	1000 psi	3/8" x 3/8" x 1/2"	5/8"-18	1000 psi	3/8"	3/8"	Reducing Tee	Flared	€30.56
A	704059-080806	1000 psi	1/2" x 1/2" x 3/8"	3/4"-16	-	1/2"	1/2"	Reducing Tee	Flared	€39.34
A	704059-080810	1000 psi	1/2" x 1/2" x 5/8"	3/4"-16	-	1/2"	1/2"	Reducing Tee	Flared	€51.71
A	704059-060604	1000 psi	3/8" x 3/8" x 1/4"	5/8"-18	1000 psi	3/8"	3/8"	Reducing Tee	MNPT	€22.70
