SPEEDAIRE Cylinder Mounting Hardware

Includes mounting kits, eye & clevis brackets, foot & flange mounts, mounting brackets, rod clevis & eyes, couplers and switch mounts for mounting a variety of air cylinders. Flange mounts prevent misalignments and provide strength & rigidity. Ideal for small-bore cylinders

Filter

SPEEDAIRE -

Rear Flange Mounting Kits

Style	Model	Bore Dia.	Overall Length	Material	Mounting Type	Mounting
A	6X470	1 1/2"	-	-	Flange	-	RFQ
A	5YCH9	3 1/4"	5 1/2"	Steel	Flange	Flange Bracket	RFQ

SPEEDAIRE -

Air Cylinder Side Lug Mounts
SPEEDAIRE side lug air cylinder mounting kits are used in various commercial and industrial facilities to mount air cylinders in desired mounting style. They are made from durable aluminium and are available in anodised and non-anodised options on Raptor Supplies.

Style	Model	Bore Dia.	Material	Mounting Type
A	1A254	1 1/2"	Aluminum	Lug	RFQ
A	1A256	2 1/2"	Aluminum	Lug	RFQ
A	1A255	2"	Aluminum	Lug	RFQ
A	1A258	4"	Aluminum	Lug	RFQ

SPEEDAIRE -

Mounting Nut

Style	Model	Overall Length	Material	Bore Dia.	Fits	Mounting Type	Mounting	Price
A	5VNX0	1 1/2"	Aluminum	1 1/2", 2"	1-1/2, 2" Bore	Threaded Nut	Cylinder Mounting Nut	€9.91
A	5VNX2	Not Applicable	Aluminum	-	-	Threaded Nut	Cylinder Mounting Nut	€42.34

SPEEDAIRE -

Mounting Hardware

Style	Model	Material	Overall Length	Bore Dia.	Fits	Mounting Type	Mounting	Price
A	5VLY2	Aluminum	2 1/2"	1 1/2", 2", 2 1/2"	-	Lug	Eye Bracket, Mounting Plate	€58.45
B	5VLY6	Aluminum	5 1/2"	3 1/4"	3-1/4" Bore	Flange	Flange Bracket	€61.85
B	5VLY7	Aluminum	6 1/4"	-	-	Flange	Flange Bracket	€76.66
C	5VMF0	Aluminum	52 mm	80 mm	80mm	Clevis	Clevis Bracket	€91.66
D	5VMF4	Aluminum	75 mm	40 mm	40mm	Clevis	Clevis Bracket	€66.40
D	5VMF5	Aluminum	95 mm	80 mm	80mm	Clevis	-	€77.21
E	5VMG1	Aluminum	115 mm	100 mm	100mm	Eye	Swivel Eye Bracket	€241.57
F	5VMG6	Aluminum	72 mm	50 mm	50mm	Clevis	Rod Clevis	€96.44
G	5VMH0	Aluminum	67 mm	63 mm	63mm	Pivot Bracket	Pivot Bracket	€70.70
G	5VMH2	Aluminum	96 mm	100 mm	100mm	Pivot Bracket	Pivot Bracket	€110.59
H	5VNW5	Aluminum	-	1 1/2"	1-1/2" Bore	Clevis	Rod Clevis	€54.98
H	5VNW6	Aluminum	2 1/4"	2"	-	Clevis	Rod Clevis	€54.98
H	5VNW8	Aluminum	3 3/8"	-	-	Clevis	Rod Clevis	€115.69
A	5VLY5	Steel	3 1/2"	-	-	Lug	Eye Bracket, Mounting Plate	€85.37

SPEEDAIRE -

Cylinder Mounting Hardwares

Style	Model	Material	Fits	Bore Dia.	Overall Length	Mounting Type	Overall Dia.	Mounting	For Bore Dia.	Price
A	5VNY1	-	1-1/8" Bore	1 1/8"	1 3/4"	Clevis	-	Rod Clevis	-	€41.15
B	5VNW9	Aluminum	1-1/8" Bore	1 1/8"	1 1/8"	Threaded Nut	-	Cylinder Mounting Nut	-	€6.25
C	NCG-F020	Aluminum	5THU7 To 5VDA3	20 mm	-	Flange	-	-	-	€6.52
D	5VMG0	Aluminum	80mm	80 mm	95 mm	Eye	-	Swivel Eye Bracket	-	€194.70
E	36NK63	Aluminum	4"	-	-	Clevis	4 1/2"	-	-	€95.93
F	36NK64	Aluminum	5"	-	5 1/2"	Clevis	5 1/2"	-	-	€124.43
B	5VNX1	Aluminum	2-1/2" Bore, 3" Bore	2 1/2", 3"	2 1/16"	Threaded Nut	-	-	-	€16.97
A	5VNW7	Aluminum	2-1/2 And 3" Bore	2 1/2", 3"	2 3/8"	Clevis	-	-	-	€76.88
C	NCG-F025	Aluminum	5VDA4 To 5TJF7	25 mm	-	Flange	-	-	-	€13.56
G	NCG-C020	Aluminum	5THU7 To 5VDA3	20 mm	-	Flange	-	-	-	€14.13
C	NCG-F032	Aluminum	5TJF8 To 5TJH6	32 mm	-	Flange	-	-	-	€21.97
C	NCG-F040	Aluminum	5TJH7 To 5TJK5	40 mm	-	Flange	-	-	-	€20.21
C	NCG-F050	Aluminum	5TJK6 To 5TJN4	50 mm	-	Flange	-	-	-	€23.97
C	NCG-F063	Aluminum	5TJN5 To 5TJR3	63 mm	-	Flange	-	-	-	€28.27
G	NCG-C025	Aluminum	5VDA4 To 5TJF7	25 mm	-	Flange	-	-	-	€17.24
H	NCG-C040	Aluminum	5TJH7 To 5TJK5	40 mm	-	Flange	-	-	-	€19.53
G	NCG-C050	Aluminum	5TJK6 To 5TJN4	50 mm	-	Flange	-	-	-	€22.53
G	NCG-C032	Aluminum	5TJF8 To 5TJH6	32 mm	-	Flange	-	-	-	€18.52
H	NCG-C063	Aluminum	5TJN5 To 5TJR3	63 mm	-	Flange	-	-	-	€30.19
I	36NK62	Aluminum	3.25"	-	3 3/4"	Clevis	3 3/4"	-	-	€77.12
J	36NK59	Aluminum	1.5"	-	-	Clevis	2"	-	-	€51.07
K	36NK60	Aluminum	2"	-	2 1/2"	Clevis	2 1/2"	-	-	€66.40
L	36NK61	Aluminum	2.5"	-	3"	Clevis	3"	-	-	€56.77
M	NCG-L025	Anodized Aluminum	5VDA4 To 5TJF7	25 mm	-	Foot	-	-	-	€7.48
N	BQP1-050	Composite	40mm And 50mm	40 mm, 50 mm	-	Autoswitch Clip	-	-	-	€14.13

SPEEDAIRE -

Rod Clevis With Pin

Style	Model	Bore Dia.	Overall Length	Fits	Material	Mounting Type	Mounting	Price
A	5VKW4	1 1/8"	1 11/16"	1.125"	Steel	Clevis	Rod Clevis	€7.86
A	5VKW2	1 1/16"	1 3/16"	1-1/16"	Steel	Clevis	Rod Clevis	€7.23

SPEEDAIRE -

Rod Clevis

Style	Model	Bore Dia.	Overall Length	Material	Fits	Mounting Type	Mounting	Price
A	5VLX7	4"	2 7/8"	Steel	3-1/4", 4", 5"	Clevis	Rod Clevis	€91.45
B	5VMG5	40 mm	56 mm	Aluminum	40mm	Clevis	Rod Clevis	€70.70
B	5VMG7	80 mm	87 mm	Aluminum	80mm	Clevis	Rod Clevis	€117.28

SPEEDAIRE -

Foot Bracket Steel

Style	Model	Bore Dia.	Overall Length	Fits	Material	Mounting Type	Mounting	Price
A	5VMD7	40 mm	52 mm	40mm	Steel	Foot	Foot Bracket	€37.09
A	5VMD8	50 mm	65 mm	50mm	Steel	Foot	Foot Bracket	€39.31
A	5VMD9	63 mm	75 mm	63mm	Steel	Foot	Foot Bracket	€45.77
A	5VME0	80 mm	95 mm	80mm	Steel	Foot	Foot Bracket	€60.10
A	5VME1	100 mm	115 mm	100mm	Steel	Foot	Foot Bracket	€67.15

SPEEDAIRE -

Foot Bracket Fits Cylinders

Style	Model	Bore Dia.	Overall Length	Fits	Mounting Type	Mounting	Material	Thread Type	Price
A	5VKV5	2"	3 1/8"	-	Foot	Foot Bracket	Aluminum	-	€21.38
A	5VKW5	3/4"	1 5/8"	-	Foot	Foot Bracket	Aluminum	NPT	€41.78
B	5VMG8	40 mm	-	40mm	Pivot Bracket	Pivot Bracket	Aluminum	-	€59.44
C	5VMG9	50 mm	65 mm	50mm	Pivot Bracket	Pivot Bracket	Aluminum	-	€70.70
C	5VMH1	80 mm	86 mm	80mm	Pivot Bracket	Pivot Bracket	Aluminum	-	€97.49

SPEEDAIRE -

Foot Bracket Aluminium

Style	Model	Overall Length	Bore Dia.	Fits	Material	Mounting Type	Mounting	Price
A	5VNX4	2 7/16"	1 1/2", 2"	1-1/2, 2" Bore	Aluminum	Foot	Foot Bracket	€67.43
A	5VNX5	3 9/16"	2 1/2", 3"	2-1/2, 3" Bore	Aluminum	Foot	Foot Bracket	€89.04
A	5VNX6	4 13/16"	-	-	Aluminum	Foot	Foot Bracket	€154.84

SPEEDAIRE -

Cylinder Mounting

Style	Model	Overall Length	Material	Fits	Bore Dia.	Mounting Type	Mounting	Thread Type	Price
A	5VKW3	1 1/2"	Aluminum	1.5"	1 1/2"	Pivot Bracket	Pivot Bracket	NPT	€12.04
A	5VKV9	1 1/8"	Aluminum	-	-	Pivot Bracket	Pivot Bracket	-	€6.73
B	5VKW6	1 3/8"	Aluminum	-	-	Foot	Foot Bracket	-	€13.42
C	5VKW0	1 3/16"	Steel	-	-	Clevis	Rod Clevis	-	€7.71
D	5VKW9	1 5/16"	Aluminum	-	-	Pivot Bracket	Pivot Bracket	NPT	€10.13
B	5VKV8	1 7/8"	Aluminum	-	-	Foot	Foot Bracket	-	€5.81
C	5VKV7	1 11/16"	Steel	1-3/4", 2", 2-1/2"	1 3/4", 2", 2 1/2"	Clevis	Rod Clevis	-	€13.10
B	5VKW1	2 1/2"	Aluminum	1-1/4", 1-1/2"	1 1/4", 1 1/2"	Foot	Foot Bracket	-	€8.95
D	5VKV6	3"	Aluminum	-	-	Pivot Bracket	Pivot Bracket	-	€16.76
A	5VKW7	3/4"	Aluminum	7/16"	-	Pivot Bracket	Pivot Bracket	NPT	€9.35
C	5VKW8	15/16"	Steel	-	-	Clevis	Rod Clevis	-	€7.69

SPEEDAIRE -

Flange Mount

Style	Model	Bore Dia.	Material	Mounting Type
A	6X474	2 1/2"	Steel	Flange	RFQ
A	6X472	2"	Steel	Flange	RFQ
A	6X478	3 1/4"	Steel	Flange	RFQ

SPEEDAIRE -

Clevis Bracket

Style	Model	Overall Length	Bore Dia.	Fits	Mounting	Material	Mounting Type	Price
A	5VNY2	2 1/4"	1 1/8"	1-1/8" Bore	Clevis Bracket	Aluminum	Clevis	€78.60
B	5VLY1	3 1/2"	1 1/2", 2", 2 1/2"	-	Clevis	Aluminum	Clevis	€85.79
A	5VNY3	3"	1 1/2", 2"	1-1/2, 2" Bore	Clevis Bracket	Aluminum	Clevis	€85.10
A	5VNY4	4"	2 1/2", 3"	2-1/2, 3" Bore	Clevis Bracket	Aluminum	Clevis	€92.13
A	5VNY5	5"	-	-	Clevis Bracket	Aluminum	Clevis	€187.05
C	5VME2	52 mm	40 mm	40mm	-	Aluminum	Clevis	€46.82
D	5VME7	52 mm	40 mm	40mm	Clevis Bracket	Aluminum	Clevis	€46.82
E	5VMG2	54 mm	40 mm	40mm	Clevis Bracket	Aluminum	Clevis	€30.28
F	5VMF3	65 mm	50 mm	50mm	Clevis Bracket	Aluminum	Clevis	€55.94
D	5VME3	65 mm	50 mm	50mm	-	Aluminum	Clevis	€62.83
D	5VME8	65 mm	50 mm	50mm	Clevis Bracket	Aluminum	Clevis	€62.83
E	5VMG3	72 mm	50 mm	-	Clevis Bracket	Aluminum	Clevis	€31.34
D	5VME4	75 mm	63 mm	63mm	-	Aluminum	Clevis	€66.40
D	5VME9	75 mm	63 mm	63mm	Clevis Bracket	Aluminum	Clevis	€70.70
E	5VMG4	90 mm	80 mm	-	Clevis Bracket	Aluminum	Clevis	€95.28
C	5VME5	95 mm	80 mm	80mm	-	Aluminum	Clevis	€84.91
D	5VMF1	115 mm	100 mm	100mm	Clevis Bracket	Aluminum	Clevis	€111.57
C	5VME6	115 mm	100 mm	100mm	-	Aluminum	Clevis	€111.57
G	5VMF6	115 mm	100 mm	100mm	Swivel Eye Bracket	Aluminum	Clevis	€111.57

SPEEDAIRE -

Rear Eye Bracket

Style	Model	Bore Dia.	Fits	Overall Length	Mounting	Material	Mounting Type	Price
A	5VMF7	40 mm	40mm	52 mm	Swivel Eye Bracket	Aluminum	Eye	€98.41
A	5VMF8	50 mm	50mm	-	Swivel Eye Bracket	Aluminum	Eye	€111.81
A	5VMF9	63 mm	63mm	75 mm	Rear Eye Bracket	Aluminum	Eye	€127.81

SPEEDAIRE -

Flange Bracket

Style	Model	Bore Dia.	Overall Length	Fits	Material	Mounting Type	Mounting	Price
A	5VNY0	-	5 1/4"	-	Aluminum	Flange	Flange Bracket	€141.41
B	5VLY0	1 1/2"	4 5/8"	2.5"	Aluminum	Flange	Flange Bracket	€47.81
A	5VNX8	1 1/2", 2"	3 1/4"	1-1/2, 2" Bore	Aluminum	Flange	Flange Bracket	€48.97
B	5VLX9	1 1/8"	4 1/8"	2"	Aluminum	Flange	Flange Bracket	€39.47
B	5VLX8	1 1/8"	3 3/8"	1.5"	Aluminum	Flange	Flange Bracket	€38.78
A	5VNX7	1 1/8"	-	1-1/8" Bore	Aluminum	Flange	Flange Bracket	€43.73
A	5VNX9	2 1/2", 3"	4 1/2"	2-1/2, 3" Bore	Aluminum	Flange	Flange Bracket	€70.70
B	5VMD2	40 mm	90 mm	40mm	Aluminum	Flange	Flange Bracket	€45.68
B	5VMD4	63 mm	120 mm	63mm	Aluminum	Flange	Flange Bracket	-	RFQ
B	5VMD6	100 mm	185 mm	100mm	Aluminum	Flange	Flange Bracket	€90.45

SPEEDAIRE -

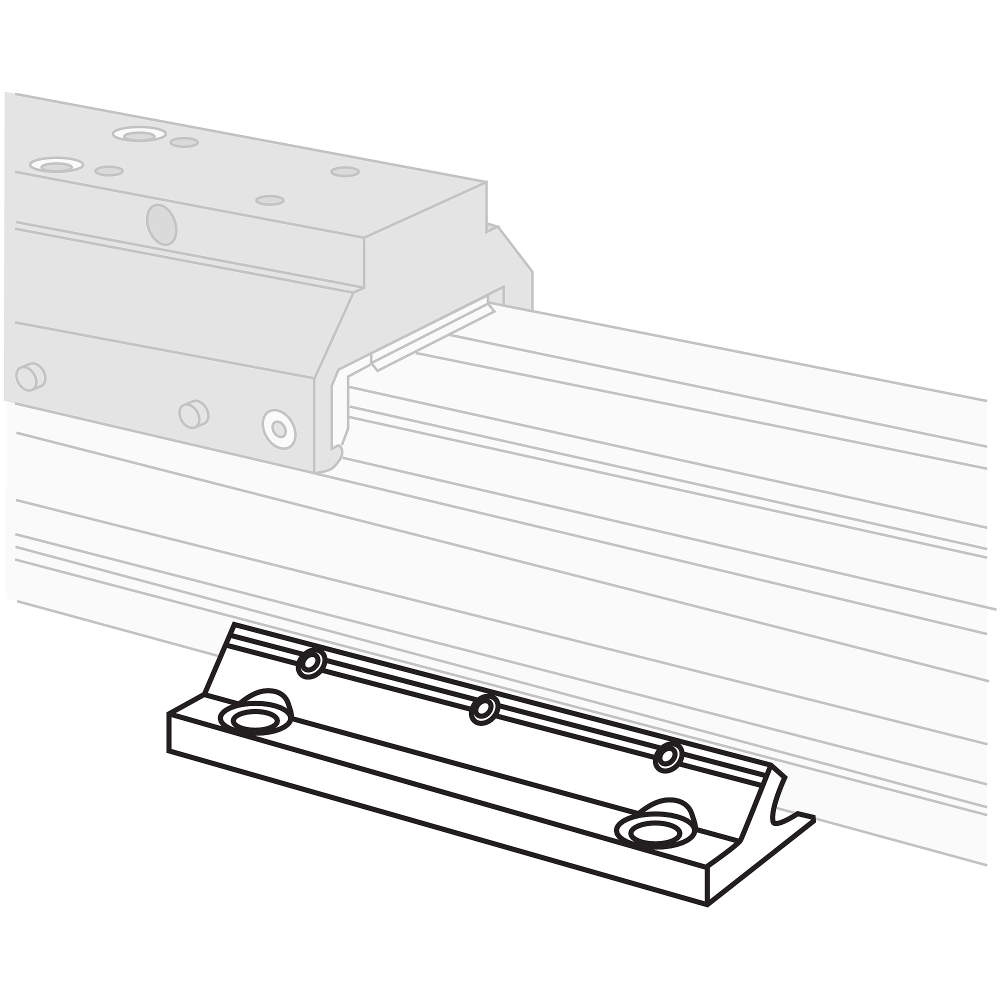

Mounting Center 2 In

Model	Item	Price (ex. VAT)
3FE51	AC9APU	-	RFQ

SPEEDAIRE -

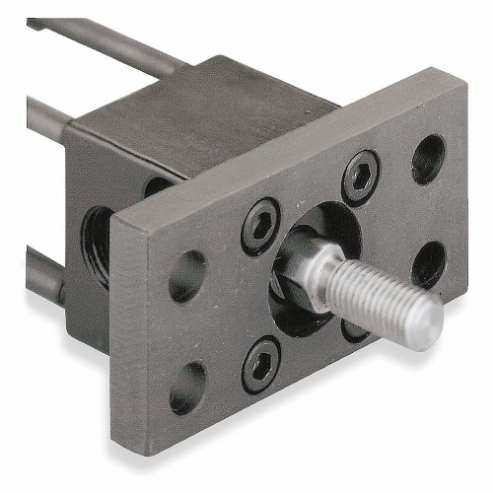

Mount Front Flange

Model	Item	Price (ex. VAT)
1A442	AA8TTE	-	RFQ
