LITTLE GIANT PUMPS Condensate Pumps

Designed for removing condensate (water) from air conditioners, condensing boilers, refrigerators & gas furnaces. Comprise a thermal overload protected motor to protect the sensitive components from excessive temperatures

Filter

Little Giant condensate pumps are used in closed circuit air cooling & heating units like HVAC systems and industrial boilers for circulating or transferring condensed water vapour away from...Read more
LITTLE GIANT PUMPS -

Vcl-45 Series Condensate Pumps

LITTLE GIANT PUMPS 553240A
StyleModelMax. Flow Rate @ 15 Ft.FrequencyCord LengthTank MaterialHousing MaterialWattagePhaseFlow Rate @ 5 Ft.Price
A5532406.3 GPM60 Hz2.9 ft.ABS PlasticPlastic185 WSingle7.3 GPM€653.05
A553245380 GPH50/60 Hz6 ft.ABSABS250 W1440 GPH€815.51
LITTLE GIANT PUMPS -

VCMA-20 Series Condensate Removal Pump

LITTLE GIANT PUMPS 554461A
StyleModelFrequencyMax. PressureOverall HeightHpPump TypeTank CapacityMax. Flow Rate @ 5 Ft.Max. Flow Rate @ 10 Ft.Price
A55446150/60 Hz7.4 psi7"1/30 hpStandard0.5 gal.1.2 GPM0.8 GPM€158.24
A55443560 Hz8.7 psi7.03"1/30 hpStandard0.5 gal.1.2 GPM0.8 GPM€137.71
LITTLE GIANT PUMPS -

VCMA-15 Series Condensate Removal Pump

LITTLE GIANT PUMPS 554411A
LITTLE GIANT PUMPS 554401B
StyleModelPump TypeMin. Temp.HpTank CapacityMax. Flow Rate @ 15 Ft.Intake Connection StyleDischarge Connection StyleTurn On LevelPrice
A554411Condensate Removal Pump140°F1/50 hp0.5 gal.-----
RFQ
B554401Condensate Removal Pump75°F1/50 hp0.5 gal.----€83.34
A554415Standard-1/50 hp0.5 gal.0 GPMOpenBarbed2 1/2"€164.81
LITTLE GIANT PUMPS -

Condensate Pump

LITTLE GIANT PUMPS 551320A
LITTLE GIANT PUMPS 553211B
LITTLE GIANT PUMPS 553201C
LITTLE GIANT PUMPS 554542D
LITTLE GIANT PUMPS 554425E

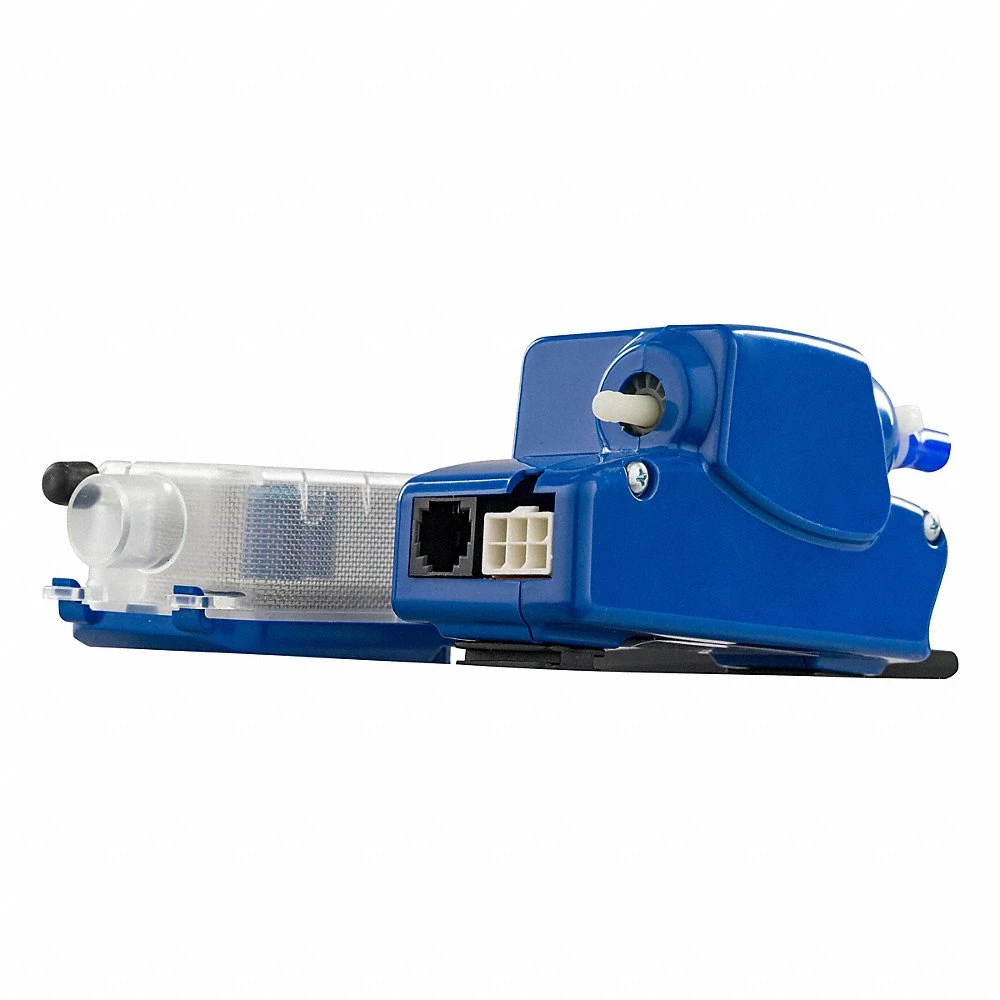

LITTLE GIANT PUMPS 553507F
LITTLE GIANT PUMPS 553101G

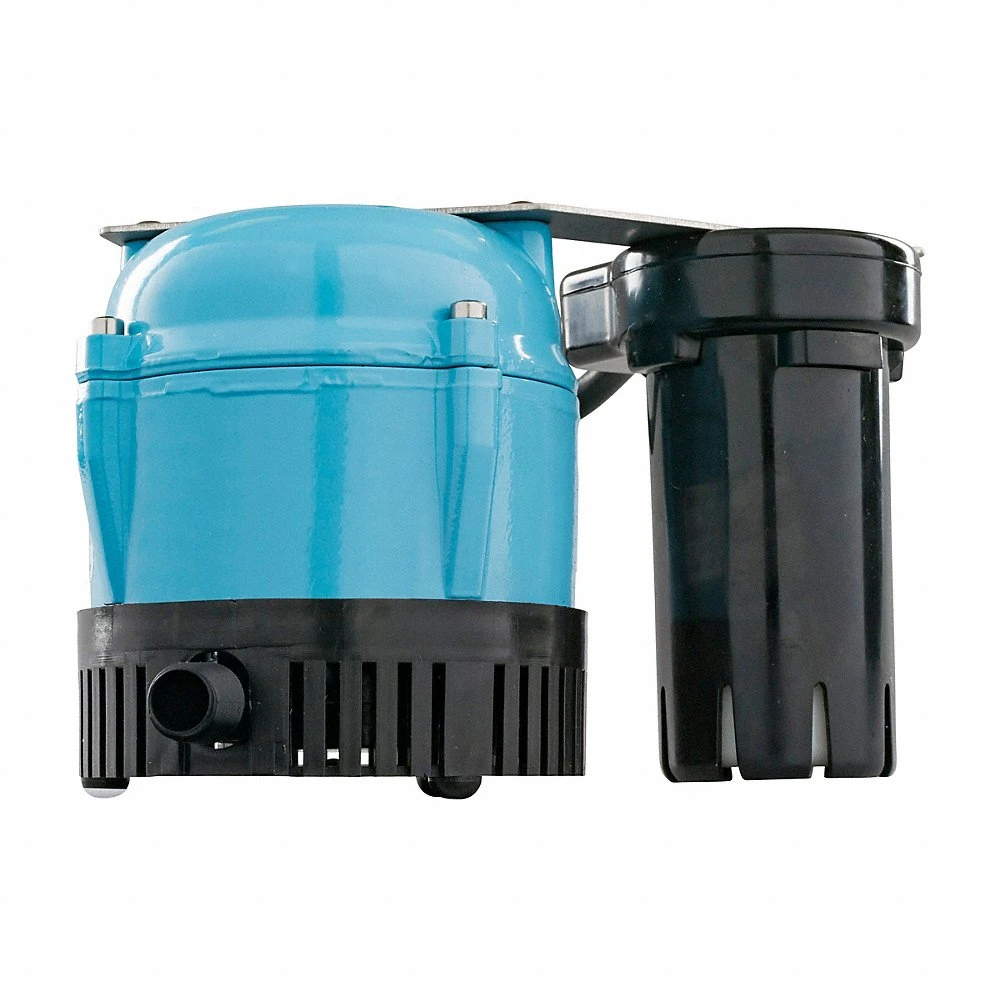

LITTLE GIANT PUMPS 550532H
LITTLE GIANT PUMPS 550521I
StyleModelHpPump TypeTank CapacityIntake Connection StyleDischarge Connection StyleTurn On LevelMax. Flow Rate @ 5 Ft.Max. Flow Rate @ 10 Ft.Price
A5513201/12 hpIn Pan1 gal.Screened SubmersibleMNPT4 1/2"--€522.36
B5532111/18 hpStandard1 gal.OpenBarbed3 1/2"--€321.22
C5532011/18 hpStandard1 gal.OpenBarbed3 1/2"4.2 GPM3.3 GPM€288.26
D5545421/30 hpStandard0.5 gal.OpenBarbed1 3/5"1.3 GPM1 GPM€167.99
E5544251/30 hpStandard0.5 gal.OpenBarbed2 1/2"--€145.70
F5535071/50 hpMini Split0.01 gal.OpenBarbed0.45"--€301.00
G5531011/50 hpStandard1 gal.OpenBarbed3 1/2"--€340.23
E5544051/50 hpStandard0.5 gal.OpenBarbed1.9"0.8 GPM0.4 GPM€152.79
H5505321/150 hpIn Pan0 gal.Screened SubmersibleBarbed1 3/4"2.4 GPM0 GPM€365.93
I5505211/150 hpIn Pan0 gal.Screened SubmersibleMNPT1 3/4"2.4 GPM0 GPM€296.51
LITTLE GIANT PUMPS -

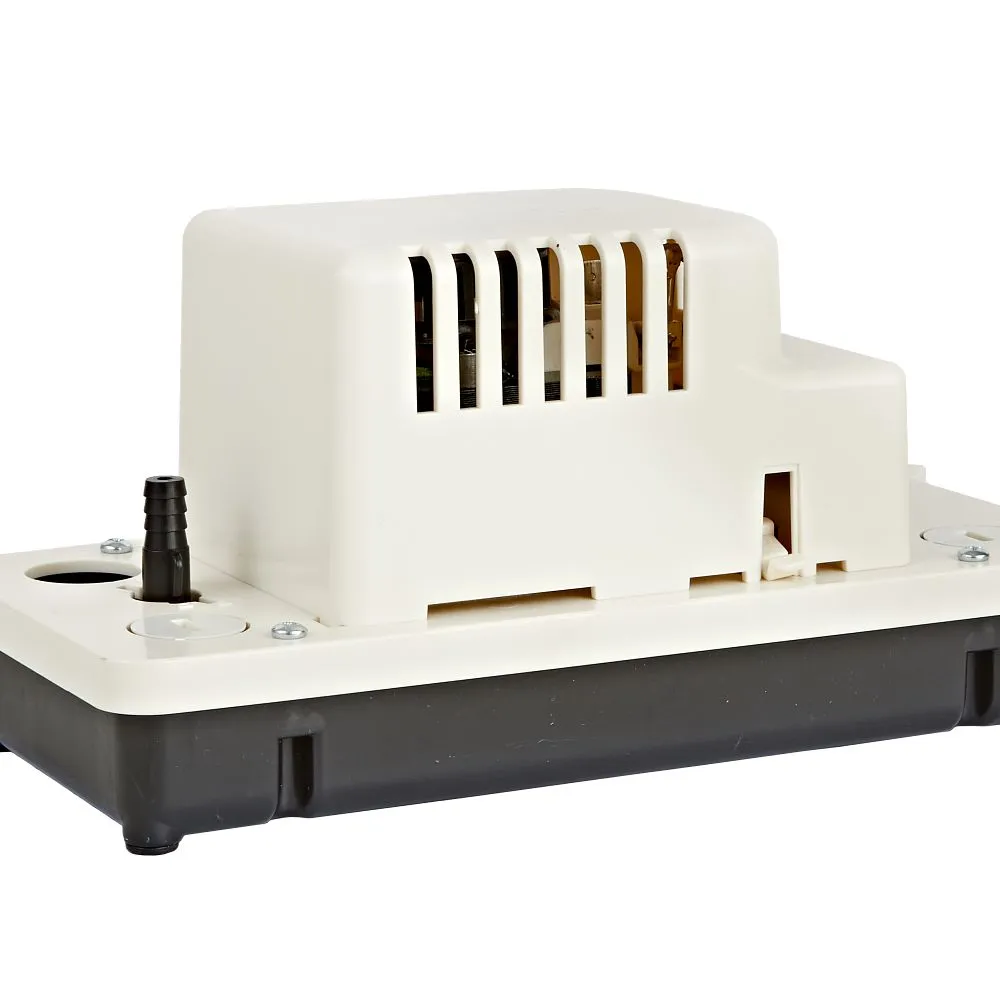

Low Profile Condensate Pump, 1/30 Hp, 230 V, 50/60 Hz

Low Profile Condensate Pump, 1/30 Hp, 230 V, 50/60 Hz
ModelItemPrice (ex. VAT)
554202101CV8PLL€228.70
LITTLE GIANT PUMPS -

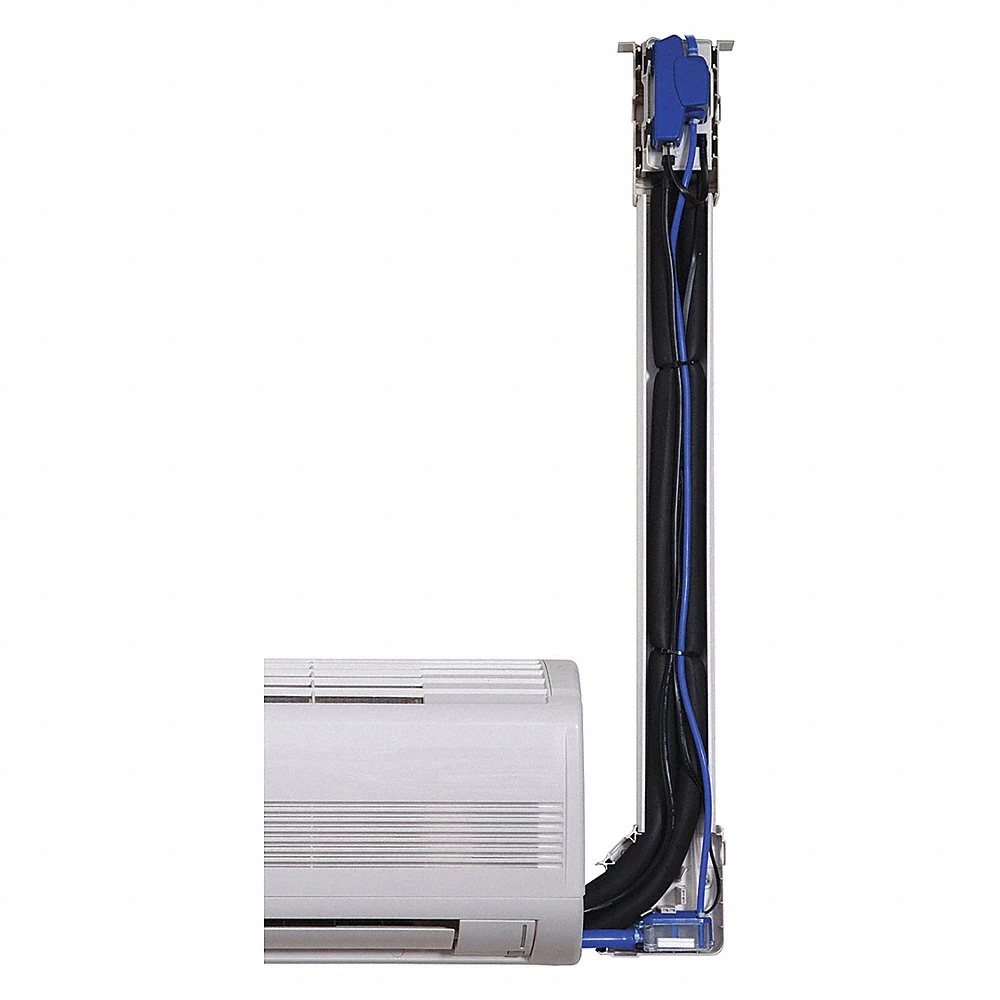

Condensate Removal Pump Reservoir, 110 To 240VAC, 1/4 Inch Outer Discharge

Condensate Removal Pump Reservoir, 110 To 240VAC, 1/4 Inch Outer Discharge
ModelItemPrice (ex. VAT)
553517CH6PBG€457.49
LITTLE GIANT PUMPS -

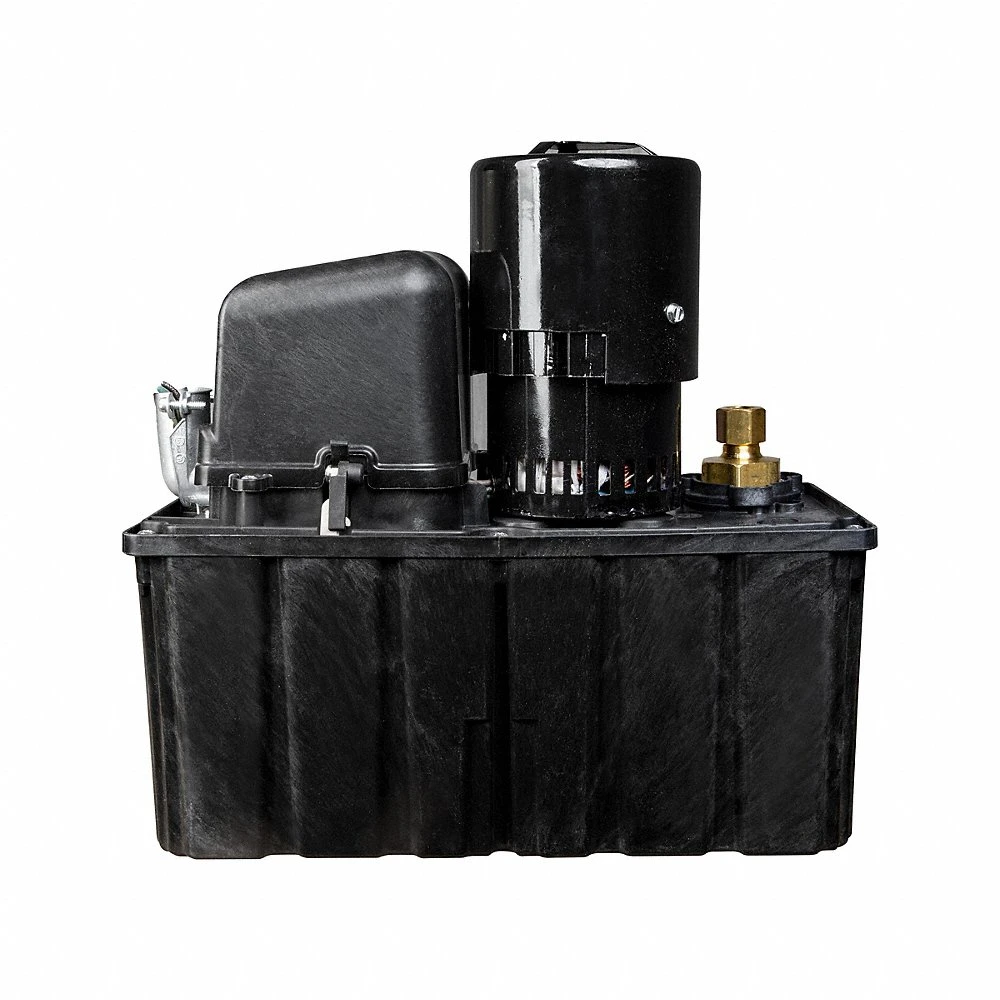

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/3 Hp, 380/460VAC

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/3 Hp, 380/460VAC
ModelItemPrice (ex. VAT)
553160104CR9QGQ€1,082.02
LITTLE GIANT PUMPS -

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/3 Hp, 208-230VAC

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/3 Hp, 208-230VAC
ModelItemPrice (ex. VAT)
553160102CR9QGP€1,015.79
LITTLE GIANT PUMPS -

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/3 Hp, 115VAC, 60 Ft

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/3 Hp, 115VAC, 60 Ft
ModelItemPrice (ex. VAT)
553160101CR9QGN€993.23
LITTLE GIANT PUMPS -

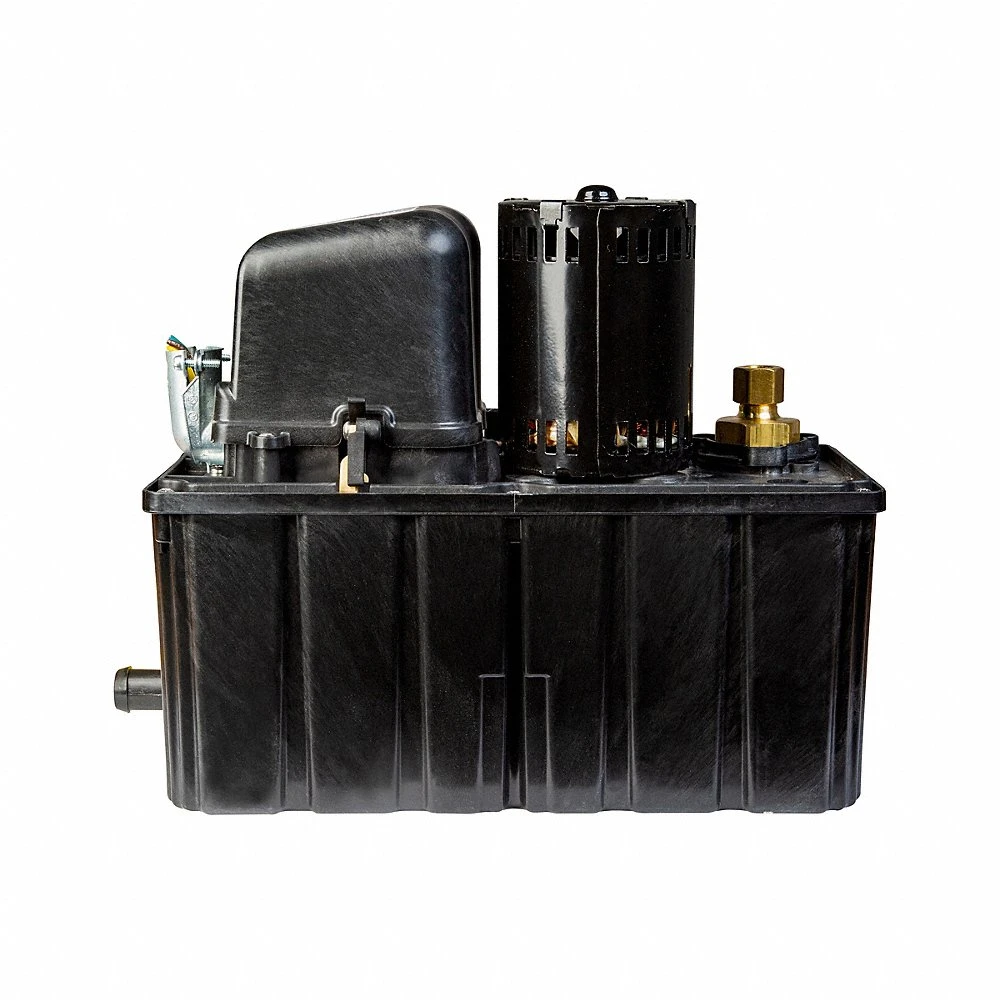

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/8 Hp, 208-230VAC

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/8 Hp, 208-230VAC
ModelItemPrice (ex. VAT)
553130102CR9QGT€870.66
LITTLE GIANT PUMPS -

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/8 Hp, 115VAC, 30 Ft

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/8 Hp, 115VAC, 30 Ft
ModelItemPrice (ex. VAT)
553130101CR9QGR€777.05
LITTLE GIANT PUMPS -

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/8 Hp, 277VAC, 30 Ft

Condensate Removal Pump, Plenum Rated/Std, 1 Gal Tank, 1/8 Hp, 277VAC, 30 Ft
ModelItemPrice (ex. VAT)
553130104CR9QGU€870.06
LITTLE GIANT PUMPS -

Low Profile Condensate Pump, 115 V, 60 Hz

Low Profile Condensate Pump, 115 V, 60 Hz
ModelItemPrice (ex. VAT)
554201101CV8PLK€165.42
LITTLE GIANT PUMPS -

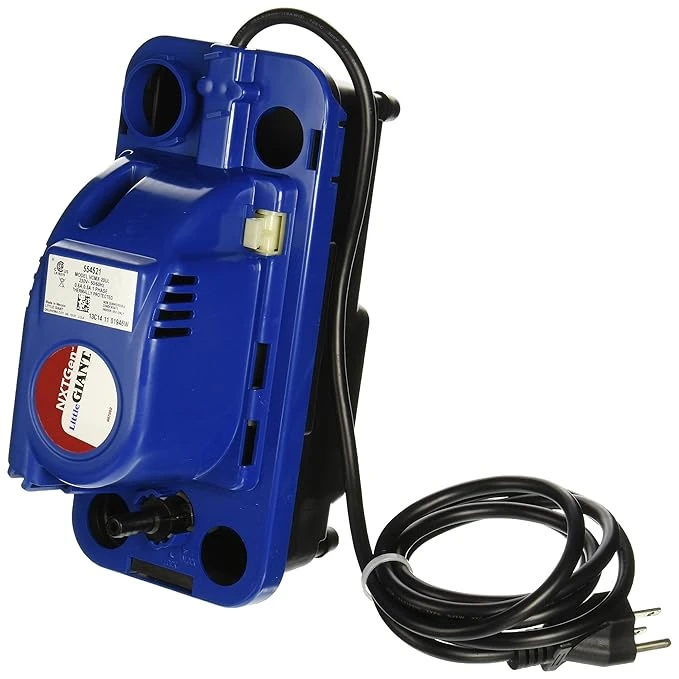

Sump Pump, 1/30 Hp, 230V

Sump Pump, 1/30 Hp, 230V
ModelItemPrice (ex. VAT)
554521BR7RTV-
RFQ
LITTLE GIANT PUMPS -

Condensate Removal Pump, 1/30 Hp, 230 V, 50/60 Hz

Condensate Removal Pump, 1/30 Hp, 230 V, 50/60 Hz
ModelItemPrice (ex. VAT)
554651CV8PLU-
RFQ
LITTLE GIANT PUMPS -

Condensate Removal Pump, 1/30 Hp, 230 V, 50/60 Hz

Condensate Removal Pump, 1/30 Hp, 230 V, 50/60 Hz
ModelItemPrice (ex. VAT)
554631CV8PLR-
RFQ
LITTLE GIANT PUMPS -

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz
ModelItemPrice (ex. VAT)
554650CV8PLT-
RFQ
LITTLE GIANT PUMPS -

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz
ModelItemPrice (ex. VAT)
554630CV8PLQ-
RFQ
LITTLE GIANT PUMPS -

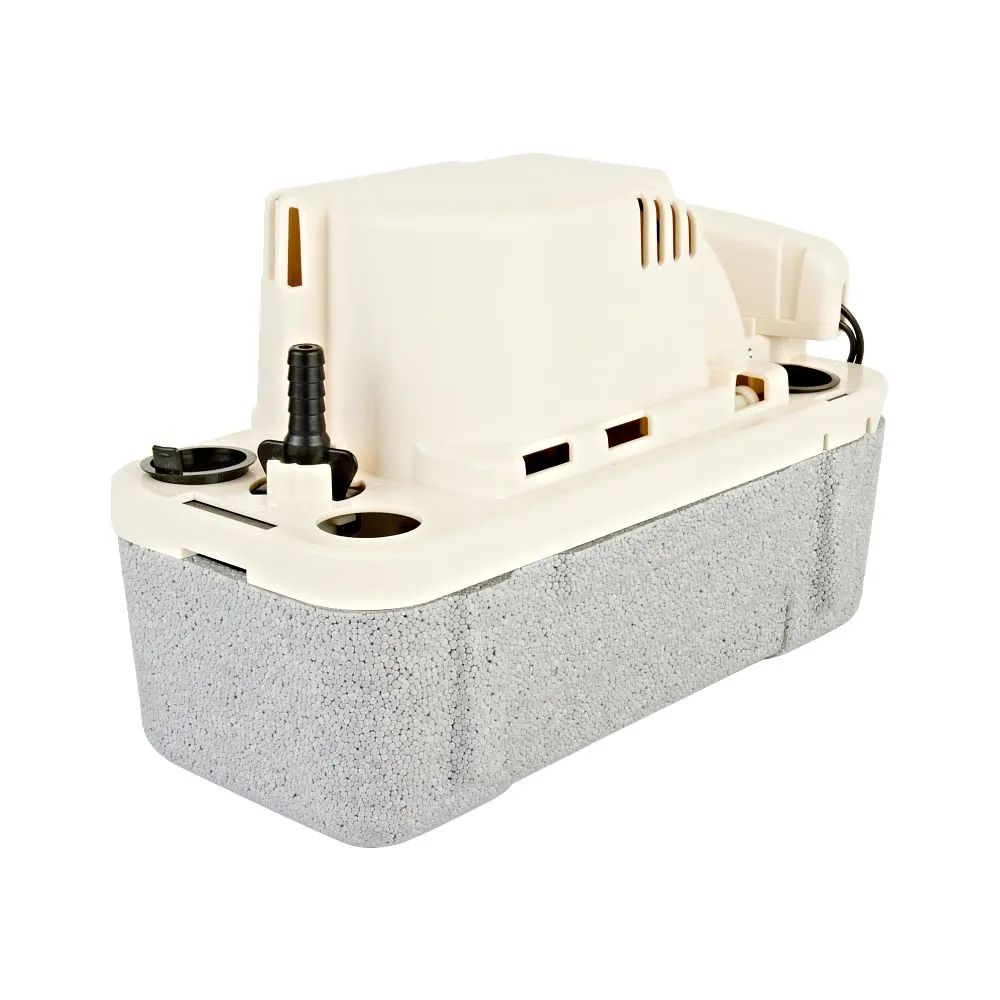

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz
ModelItemPrice (ex. VAT)
554642CV8PLP-
RFQ
LITTLE GIANT PUMPS -

Condensate Removal Pump, 1/30 Hp, 230 V, 50/60 Hz

Condensate Removal Pump, 1/30 Hp, 230 V, 50/60 Hz
ModelItemPrice (ex. VAT)
554621CV8PLN-
RFQ
LITTLE GIANT PUMPS -

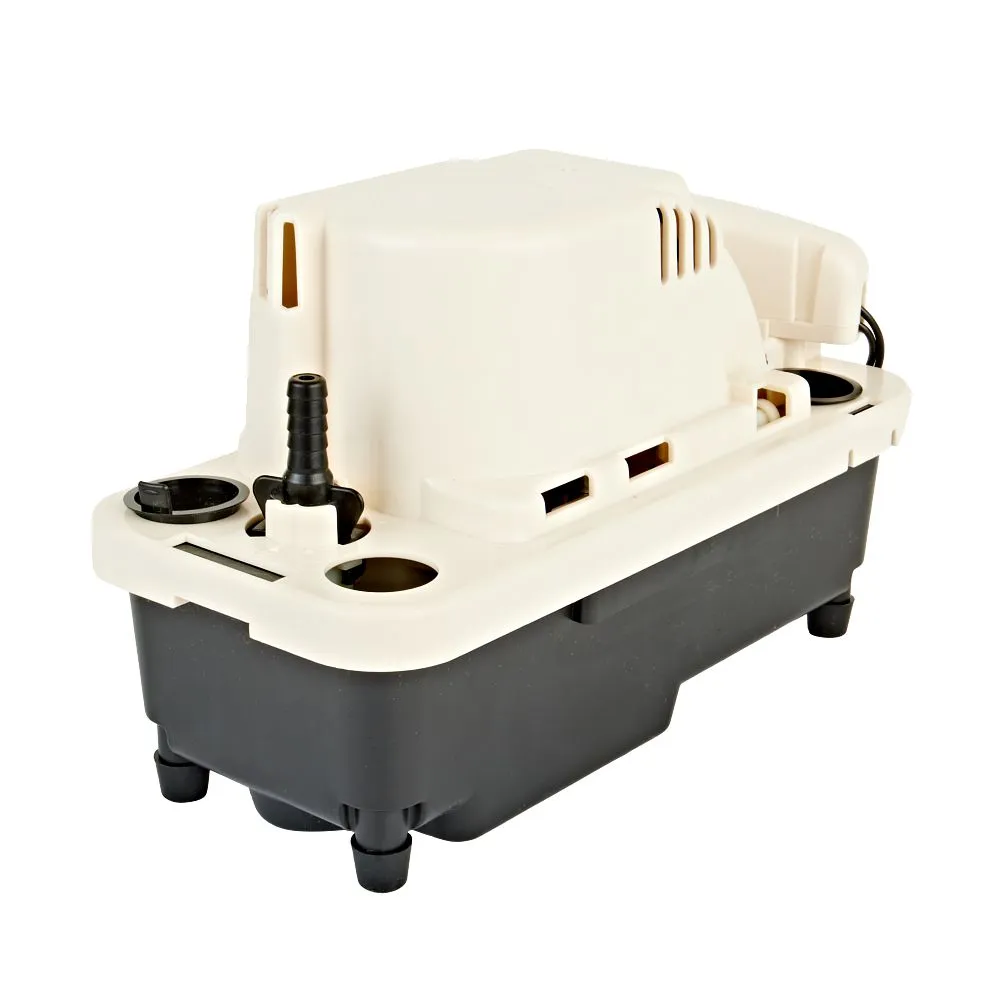

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz

Condensate Removal Pump, 1/30 Hp, 115 V, 60 Hz
ModelItemPrice (ex. VAT)
554620CV8PLM-
RFQ
12

Features

  • Little Giant condensate pumps comprise a motor with thermal overload protection to prevent damage to the sensitive components from excessive temperatures.
  • They are equipped with a fully automatic start / stop, safety switch & removable barbed check valve for reducing the risk of contamination & keeping the system / surrounding clean.
  • Most of the brand's condensate pumps are equipped with a reservoir / tank. However, the company's in-pan condensate pumps are sealed and submersible for in-pan placement & shallow pan tank applications to remove condensates.
  • Selected models (VCMX-20 Series) have rubber feet under their reservoir for slim footprint and dampening vibrations.
  • They are available in varying styles, namely compact submersible, high capacity, large reservoir, shallow pan & vertical variants.

Working Mechanism

  • Little Giant condensate pump is connected to a reservoir that collects the water / condensate from a condenser.
  • After a certain time, the water level rises in the reservoir of a selected condensate pump. The reservoir has a float that rises with the rising water level.
  • When the float reaches a specific point, it hits the float switch.
  • Once the float switch is triggered, the condensate pump turns on to remove the water from the reservoir.

Standards and Approvals

  • CE
  • CSA
  • cCSAus
  • UL

Frequently Asked Questions

What are some accessories compatible with Little Giant condensate pumps?

Little Giant condensate pumps can be fitted with a discharge adaptor, check valves & connecting equipment for discharging condensate safely while being connected to multiple types of equipment.

How to clean a Little Giant condensate pump?

  • Remove the tank / box containing the pump from the HVAC.
  • Empty the water from the tank.
  • Clean the pump using a soft brush.
  • Clean the plastic tank / box using a sponge soaked in vinegar.
  • Reconnect the reservoir & pump to the equipment.

How often should a condensate pump be inspected?

A condensate pump should undergo an annual inspection, maintenance & cleaning for efficient operation & safety. A condensate pump may get clogged due to dirt or debris. Users should thoroughly clean the pump at least once a year.
